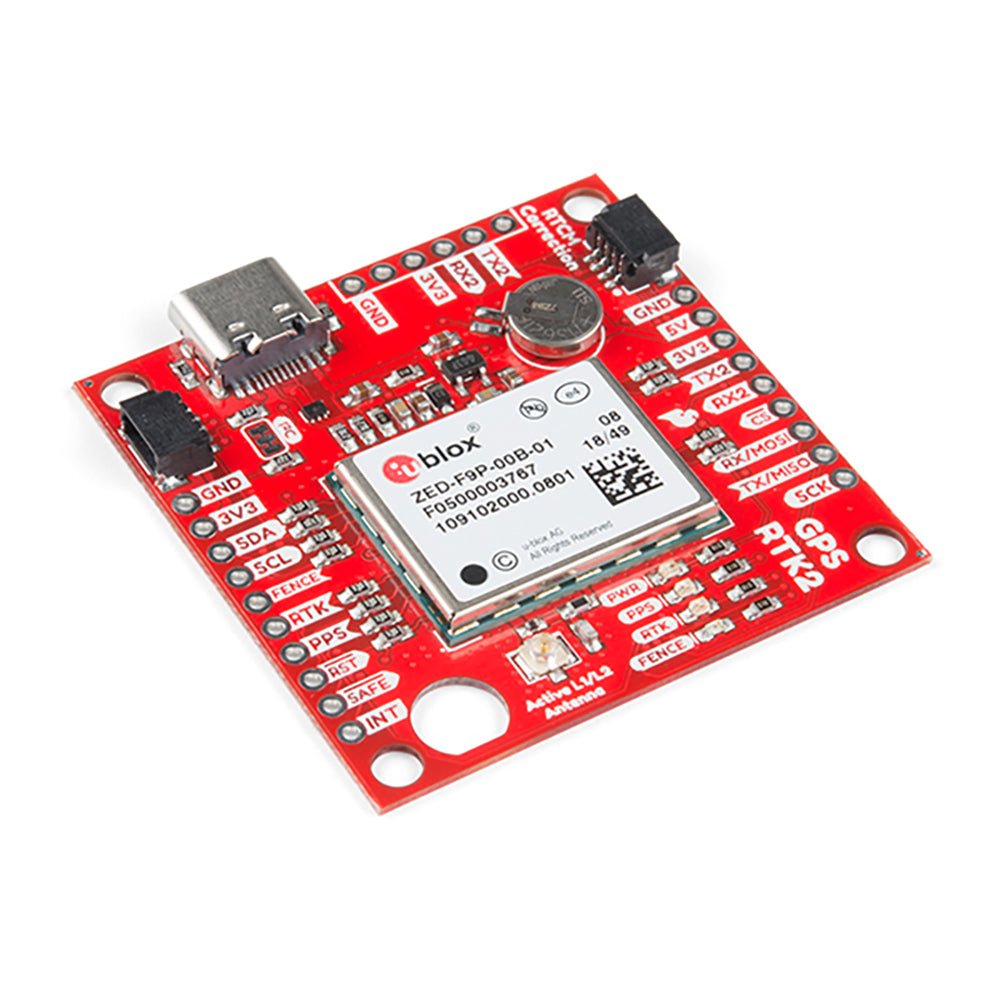

SparkFun GPS-RTK2 Board – ZED-F9P (Qwiic)

  • BrandSparkFun

Description

The SparkFun GPS-RTK2 raises the bar for high-precision GPS and is the latest in a line of powerful RTK boards featuring the ZED-F9P module from u-blox. The ZED-F9P is a top-of-the-line module for high accuracy GNSS and GPS location solutions, including RTK capable of 10 mm, three-dimensional accuracy. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail! The ZED-F9P is unique in that it is capable of both rover and base station operations. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1'-spaced pins if you prefer to use a breadboard.

We've even included a rechargeable backup battery to keep the latest module configuration and satellite data available for up to two weeks. This battery helps 'warm-start' the module decreasing the time-to-first-fix dramatically. This module features a survey-in mode allowing the module to become a base station and produce RTCM 3.x correction data.

The number of configuration options of the ZED-F9P is incredible! Geofencing, variable I²C address, variable update rates, even the high precision RTK solution can be increased to 20 Hz. The GPS-RTK2 even has five communications ports which are all active simultaneously: USB-C (which enumerates as a COM port), UART1 (with 3.3 V TTL), UART2 for RTCM reception (with 3.3V TTL), I²C (via the two Qwiic connectors or broken out pins), and SPI.

Sparkfun has also written an extensive Arduino library for u-blox modules to easily read and control the GPS-RTK2 over the Qwiic Connect System. Leave NMEA behind! Start using a much lighter weight binary interface and give your microcontroller (and its one serial port) a break. The SparkFun Arduino library shows how to read latitude, longitude, even heading and speed over I²C without the need for constant serial polling.

Features

  • Concurrent reception of GPS, GLONASS, Galileo and BeiDou
  • Receives both L1C/A and L2C bands
  • Voltage: 5 V or 3.3 V, but all logic is 3.3 V
  • Current: 68 mA - 130 mA (varies with constellations and tracking state)
  • Time to First Fix: 25 s (cold), 2 s (hot)
  • Max Navigation Rate:
    • PVT (basic location over UBX binary protocol) - 25 Hz
    • RTK - 20 Hz
    • Raw - 25 Hz
  • Horizontal Position Accuracy:
    • 2.5 m without RTK
    • 0.010 m with RTK
  • Max Altitude: 50k m
  • Max Velocity: 500 m/s
  • Weight: 6.8 g
  • Dimensions: 43.5 x 43.2 mm
  • 2x Qwiic Connectors
Product form

The SparkFun GPS-RTK2 raises the bar for high-precision GPS and is the latest in a line of powerful RTK boards... Read more

€ 379,00€ 299,00 incl. VAT
Members identical

    • Ship today? Order within Dec 12, 2024 17:00:00 +0100

    Details

    SKU: 19604
    EAN: GPS-15136

    Description

    The SparkFun GPS-RTK2 raises the bar for high-precision GPS and is the latest in a line of powerful RTK boards featuring the ZED-F9P module from u-blox. The ZED-F9P is a top-of-the-line module for high accuracy GNSS and GPS location solutions, including RTK capable of 10 mm, three-dimensional accuracy. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail! The ZED-F9P is unique in that it is capable of both rover and base station operations. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1'-spaced pins if you prefer to use a breadboard.

    We've even included a rechargeable backup battery to keep the latest module configuration and satellite data available for up to two weeks. This battery helps 'warm-start' the module decreasing the time-to-first-fix dramatically. This module features a survey-in mode allowing the module to become a base station and produce RTCM 3.x correction data.

    The number of configuration options of the ZED-F9P is incredible! Geofencing, variable I²C address, variable update rates, even the high precision RTK solution can be increased to 20 Hz. The GPS-RTK2 even has five communications ports which are all active simultaneously: USB-C (which enumerates as a COM port), UART1 (with 3.3 V TTL), UART2 for RTCM reception (with 3.3V TTL), I²C (via the two Qwiic connectors or broken out pins), and SPI.

    Sparkfun has also written an extensive Arduino library for u-blox modules to easily read and control the GPS-RTK2 over the Qwiic Connect System. Leave NMEA behind! Start using a much lighter weight binary interface and give your microcontroller (and its one serial port) a break. The SparkFun Arduino library shows how to read latitude, longitude, even heading and speed over I²C without the need for constant serial polling.

    Features

    • Concurrent reception of GPS, GLONASS, Galileo and BeiDou
    • Receives both L1C/A and L2C bands
    • Voltage: 5 V or 3.3 V, but all logic is 3.3 V
    • Current: 68 mA - 130 mA (varies with constellations and tracking state)
    • Time to First Fix: 25 s (cold), 2 s (hot)
    • Max Navigation Rate:
      • PVT (basic location over UBX binary protocol) - 25 Hz
      • RTK - 20 Hz
      • Raw - 25 Hz
    • Horizontal Position Accuracy:
      • 2.5 m without RTK
      • 0.010 m with RTK
    • Max Altitude: 50k m
    • Max Velocity: 500 m/s
    • Weight: 6.8 g
    • Dimensions: 43.5 x 43.2 mm
    • 2x Qwiic Connectors
