SparkFun GPS-RTK-SMA Breakout – ZED-F9P (Qwiic)

  • BrandSparkFun

Description

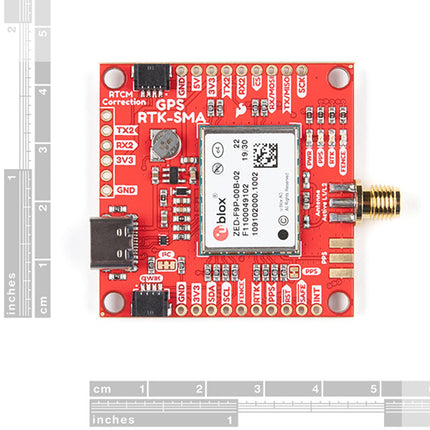

Based on the SparkFun GPS-RTK2 designs, the SparkFun GPS-RTK-SMA raises the bar for high-precision GPS and is the latest in a line of powerful RTK boards featuring the ZED-F9P module from u-blox. The ZED-F9P is a top-of-the-line module for high accuracy GNSS and GPS location solutions, including RTK capable of 10mm, three-dimensional accuracy. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail! The ZED-F9P is unique in that it is capable of both rover and base station operations. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1'-spaced pins if you prefer to use a breadboard.

We've included a rechargeable backup battery to keep the latest module configuration and satellite data available for up to two weeks. This battery helps 'warm start' the module decreasing the time-to-first-fix dramatically. This module features a survey-in mode allowing the module to become a base station and produce RTCM 3.x correction data. Based on your feedback, we switched out the u.FL connector and included an SMA connector in this version of the board.

The number of configuration options of the ZED-F9P is incredible! Geofencing, variable I²C address, variable update rates, even the high precision RTK solution can be increased to 20Hz. The GPS-RTK2 even has five communications ports which are all active simultaneously: USB-C (which enumerates as a COM port), UART1 (with 3.3V TTL), UART2 for RTCM reception (with 3.3V TTL), I²C (via the two Qwiic connectors or broken out pins), and SPI.

SparkFun has also written an extensive Arduino library for u-blox modules to easily read and control the GPS-RTK-SMA over our Qwiic Connect System. Leave NMEA behind! Start using a much lighter weight binary interface and give your microcontroller (and its one serial port) a break. The SparkFun Arduino library shows how to read latitude, longitude, even heading and speed over I²C without the need for constant serial polling.

Features

  • Concurrent reception of GPS, GLONASS, Galileo and BeiDou
  • Receives both L1C/A and L2C bands
  • Voltage: 5 V or 3.3 V, but all logic is 3.3 V
  • Current: 68 mA - 130 mA (varies with constellations and tracking state)
  • Time to First Fix: 25 s (cold), 2 s (hot)
  • Max Navigation Rate:
    • PVT (basic location over UBX binary protocol) - 25 Hz
    • RTK - 20 Hz
    • Raw - 25 Hz
  • Horizontal Position Accuracy:
    • 2.5 m without RTK
    • 0.010 m with RTK
  • Max Altitude: 50 km
  • Max Velocity: 500 m/s
  • Weight: 6.8 g
  • Dimensions: 43.5 mm x 43.2 mm
  • 2 x Qwiic Connectors
Product form

Based on the SparkFun GPS-RTK2 designs, the SparkFun GPS-RTK-SMA raises the bar for high-precision GPS and is the latest in... Read more

2 in stock

€ 379,00€ 299,00 incl. VAT
Members identical

      Details

      SKU: 19650
      EAN: GPS-16481

      Description

      Based on the SparkFun GPS-RTK2 designs, the SparkFun GPS-RTK-SMA raises the bar for high-precision GPS and is the latest in a line of powerful RTK boards featuring the ZED-F9P module from u-blox. The ZED-F9P is a top-of-the-line module for high accuracy GNSS and GPS location solutions, including RTK capable of 10mm, three-dimensional accuracy. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail! The ZED-F9P is unique in that it is capable of both rover and base station operations. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1'-spaced pins if you prefer to use a breadboard.

      We've included a rechargeable backup battery to keep the latest module configuration and satellite data available for up to two weeks. This battery helps 'warm start' the module decreasing the time-to-first-fix dramatically. This module features a survey-in mode allowing the module to become a base station and produce RTCM 3.x correction data. Based on your feedback, we switched out the u.FL connector and included an SMA connector in this version of the board.

      The number of configuration options of the ZED-F9P is incredible! Geofencing, variable I²C address, variable update rates, even the high precision RTK solution can be increased to 20Hz. The GPS-RTK2 even has five communications ports which are all active simultaneously: USB-C (which enumerates as a COM port), UART1 (with 3.3V TTL), UART2 for RTCM reception (with 3.3V TTL), I²C (via the two Qwiic connectors or broken out pins), and SPI.

      SparkFun has also written an extensive Arduino library for u-blox modules to easily read and control the GPS-RTK-SMA over our Qwiic Connect System. Leave NMEA behind! Start using a much lighter weight binary interface and give your microcontroller (and its one serial port) a break. The SparkFun Arduino library shows how to read latitude, longitude, even heading and speed over I²C without the need for constant serial polling.

      Features

      • Concurrent reception of GPS, GLONASS, Galileo and BeiDou
      • Receives both L1C/A and L2C bands
      • Voltage: 5 V or 3.3 V, but all logic is 3.3 V
      • Current: 68 mA - 130 mA (varies with constellations and tracking state)
      • Time to First Fix: 25 s (cold), 2 s (hot)
      • Max Navigation Rate:
        • PVT (basic location over UBX binary protocol) - 25 Hz
        • RTK - 20 Hz
        • Raw - 25 Hz
      • Horizontal Position Accuracy:
        • 2.5 m without RTK
        • 0.010 m with RTK
      • Max Altitude: 50 km
      • Max Velocity: 500 m/s
      • Weight: 6.8 g
      • Dimensions: 43.5 mm x 43.2 mm
      • 2 x Qwiic Connectors
