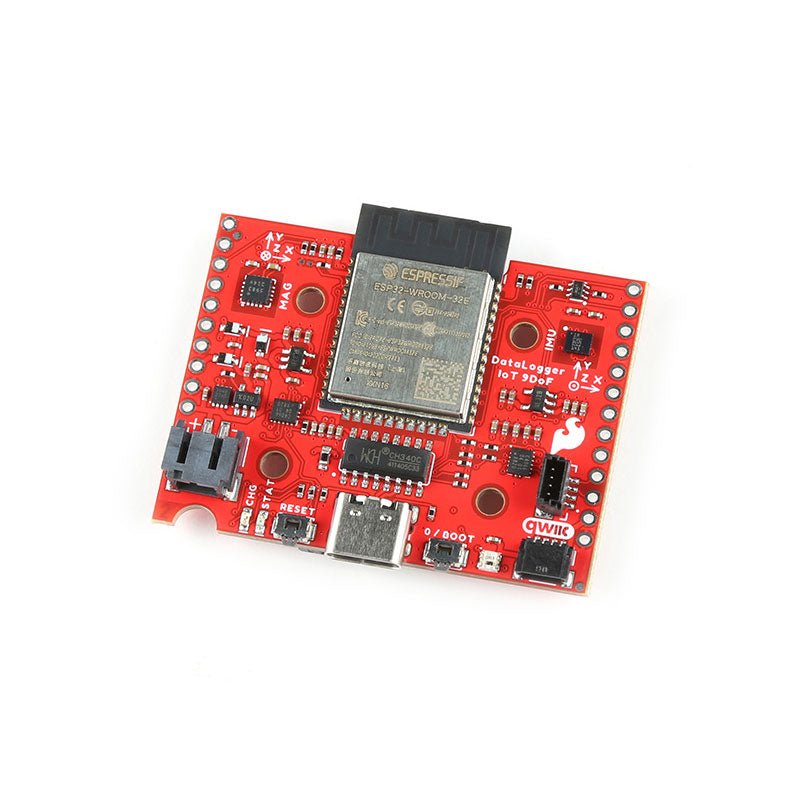

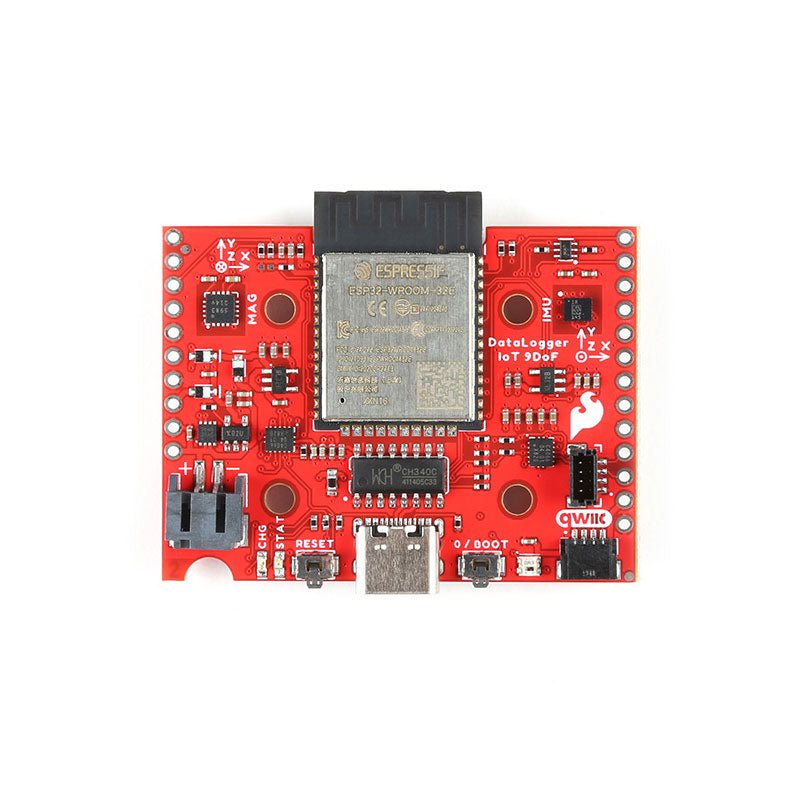

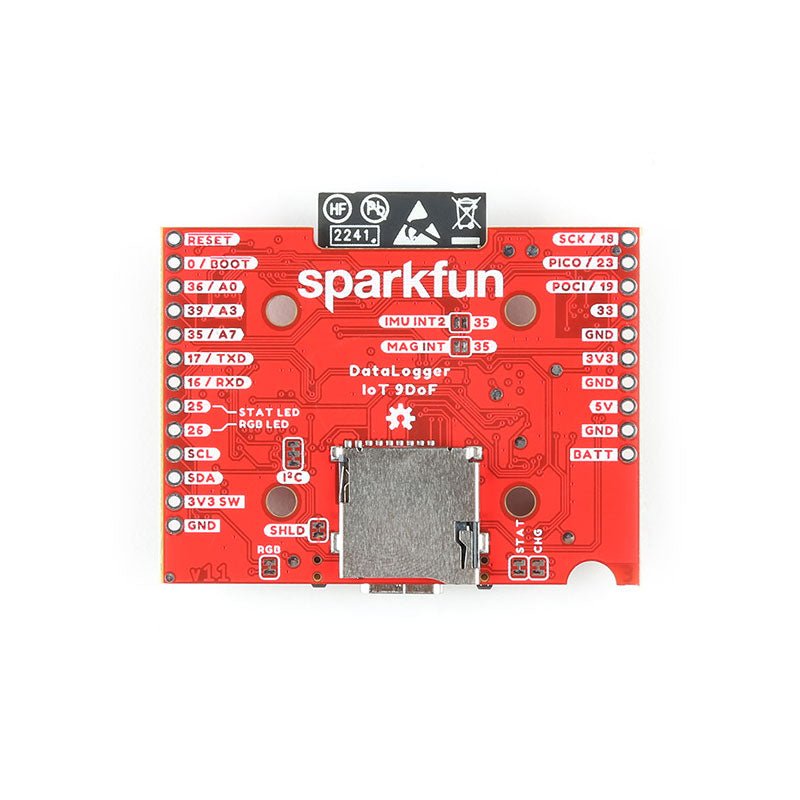

SparkFun DataLogger IoT (9DoF)

  • BrandSparkFun

Description

The SparkFun DataLogger IoT (9DoF) is a data logger that comes preprogrammed to automatically log IMU, GPS, and various pressure, humidity, and distance sensors. All without writing a single line of code! The DataLogger automatically detects, configures, and logs Qwiic sensors. It was specifically designed for users who just need to capture a lot of data to a CSV or JSON file and get back to their larger project. Save the data to a microSD card or send it wirelessly to your preferred Internet of Things (IoT) service!

Included on every DataLogger IoT is an IMU for built-in logging of a triple-axis accelerometer, gyro, and magnetometer. Whereas the original 9DOF Razor used the old MPU-9250, the DataLogger IoT uses the ISM330DHCX from STMicroelectronics and MMC5983MA from MEMSIC. Simply power up the DataLogger IoT, configure the board to record readings from supported devices, and begin logging! Data can be time-stamped when the time is synced to NTP, GNSS, or RTC.

The DataLogger IoT is highly configurable over an easy-to-use serial interface. Simply plug in a USB-C cable and open a serial terminal at 115200 baud. The logging output is automatically streamed to both the terminal and the microSD card. Pressing any key in the terminal window will open the configuration menu.

The DataLogger IoT (9DoF) automatically scans, detects, configures, and logs various Qwiic sensors plugged into the board (no soldering, no programming!).

Specifications

  • ESP32-WROOM-32E Module
    • Integrated 802.11b/g/n WiFi 2.4 GHz transceiver
    • Configurable via CH340C
  • Operating voltage range
    • 3.3 V to 6.0 V (via VIN)
    • 5 V with USB (via 5 V or USB type C)
    • 3.6 V to 4.2 V with LiPo battery (via BATT or 2-pin JST)
    • Built-in MCP73831 single cell LiPo charger
    • Minimum 500 mA charge rate
    • 3.3 V (via 3V3)
  • MAX17048 LiPo Fuel Gauge
  • Ports
    • 1x USB-C
    • 1x JST style connector for LiPo battery
    • 2x Qwiic enabled I²C
    • 1x microSD socket
      • Support for 4-bit SDIO and microSD cards formatted to FAT32
  • 9-axis IMU
    • Accelerometer & Gyro (ISM330DHCX)
    • Magnetometer (MMC5983MA)
  • LEDs
    • Charge (CHG)
    • Status (STAT)
    • WS2812-2020 Addressable RGB
  • Jumpers
    • IMU interrupt
    • Magnetometer interrupt
    • RGB LED
    • Status LED
    • Charge LED
    • I²C pull-up resistors
    • USB Shield
  • Buttons
    • Reset
    • Boot
  • Dimensions: 1.66 x 2.0' (4.2 x 5.1 cm)
  • Weight: 10.7 g

Downloads

Product form

The SparkFun DataLogger IoT (9DoF) is a data logger that comes preprogrammed to automatically log IMU, GPS, and various pressure,... Read more

€ 94,95 incl. VAT
Members € 85,46

    • Ship today? Order within Jul 15, 2024 17:00:00 +0200

    Details

    SKU: 20487
    EAN: DEV-20594

    Description

    The SparkFun DataLogger IoT (9DoF) is a data logger that comes preprogrammed to automatically log IMU, GPS, and various pressure, humidity, and distance sensors. All without writing a single line of code! The DataLogger automatically detects, configures, and logs Qwiic sensors. It was specifically designed for users who just need to capture a lot of data to a CSV or JSON file and get back to their larger project. Save the data to a microSD card or send it wirelessly to your preferred Internet of Things (IoT) service!

    Included on every DataLogger IoT is an IMU for built-in logging of a triple-axis accelerometer, gyro, and magnetometer. Whereas the original 9DOF Razor used the old MPU-9250, the DataLogger IoT uses the ISM330DHCX from STMicroelectronics and MMC5983MA from MEMSIC. Simply power up the DataLogger IoT, configure the board to record readings from supported devices, and begin logging! Data can be time-stamped when the time is synced to NTP, GNSS, or RTC.

    The DataLogger IoT is highly configurable over an easy-to-use serial interface. Simply plug in a USB-C cable and open a serial terminal at 115200 baud. The logging output is automatically streamed to both the terminal and the microSD card. Pressing any key in the terminal window will open the configuration menu.

    The DataLogger IoT (9DoF) automatically scans, detects, configures, and logs various Qwiic sensors plugged into the board (no soldering, no programming!).

    Specifications

    • ESP32-WROOM-32E Module
      • Integrated 802.11b/g/n WiFi 2.4 GHz transceiver
      • Configurable via CH340C
    • Operating voltage range
      • 3.3 V to 6.0 V (via VIN)
      • 5 V with USB (via 5 V or USB type C)
      • 3.6 V to 4.2 V with LiPo battery (via BATT or 2-pin JST)
      • Built-in MCP73831 single cell LiPo charger
      • Minimum 500 mA charge rate
      • 3.3 V (via 3V3)
    • MAX17048 LiPo Fuel Gauge
    • Ports
      • 1x USB-C
      • 1x JST style connector for LiPo battery
      • 2x Qwiic enabled I²C
      • 1x microSD socket
        • Support for 4-bit SDIO and microSD cards formatted to FAT32
    • 9-axis IMU
      • Accelerometer & Gyro (ISM330DHCX)
      • Magnetometer (MMC5983MA)
    • LEDs
      • Charge (CHG)
      • Status (STAT)
      • WS2812-2020 Addressable RGB
    • Jumpers
      • IMU interrupt
      • Magnetometer interrupt
      • RGB LED
      • Status LED
      • Charge LED
      • I²C pull-up resistors
      • USB Shield
    • Buttons
      • Reset
      • Boot
    • Dimensions: 1.66 x 2.0' (4.2 x 5.1 cm)
    • Weight: 10.7 g

    Downloads
