Sensepeek 4019 PCBite Kit with 2x 200 MHz and 4x SP10 handsfree Probe

  • BrandSensepeek

Description

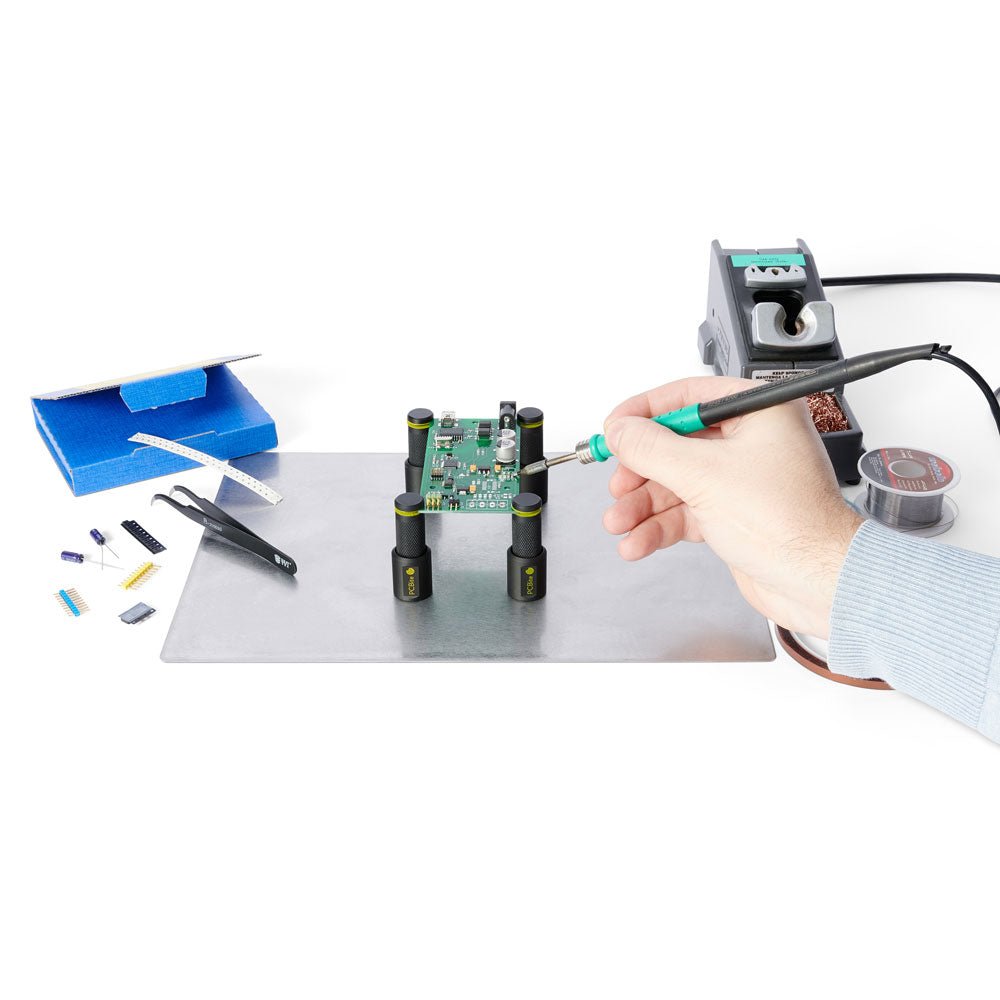

PCBite holds your circuit board during soldering, inspection and test.

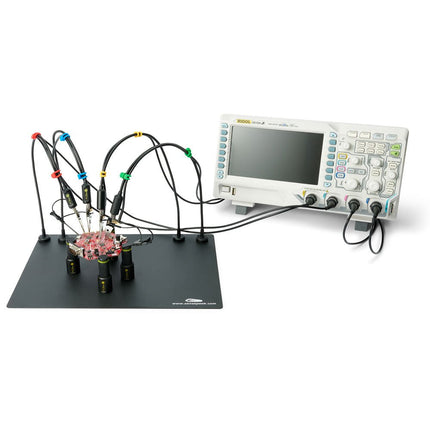

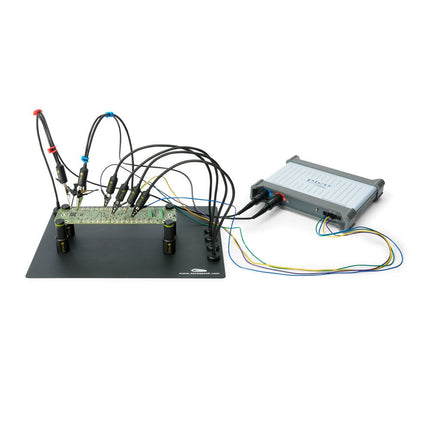

SP200: 200 MHz hands-free oscilloscope probe

  • The first truly hands-free 200-MHz 10:1 oscilloscope probe! Makes instant measurements or long triggering sessions a breeze.
  • No more soldering wires to connect your probe or complicated tools to set up. Just position the probe needle on any test point or component in the signal path and release.
  • Saves time and frustration during development, verification and repairs.

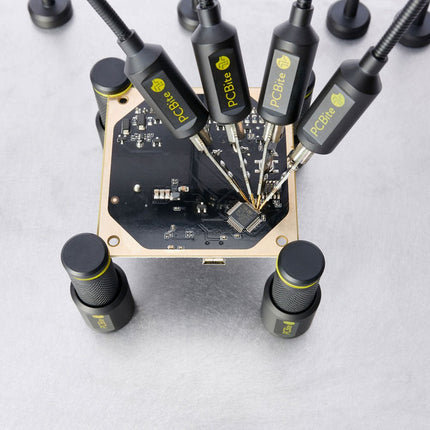

  • The minimalist design and the spring-loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.

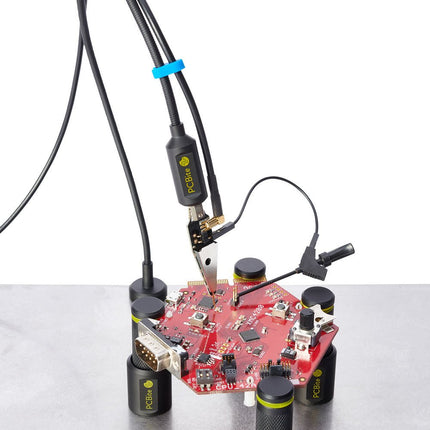

  • The ground probe connection has a detachable quality hook and the cable fits directly on a 2.54 mm (0.100ʺ) pitch pin header.
  • The SP200 comes with a powerful magnet in the base, as for all PCBite probes and holders, which makes the probe easy to place and reposition.
  • This probe is perfect for those who already has a metal base plate and holders which is a must for the function.

SP10: Passive 1:1 hands-free probe

  • A truly hands-free probe! Makes instant measurements or long triggering sessions simple.
  • No more soldering wires to connect your probe or complicated tools to setup. Just position the probe needle on any test point or component in the signal path and release.
  • Saves time and frustration during development, verification and repairs.
  • The minimalist design and the spring loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.

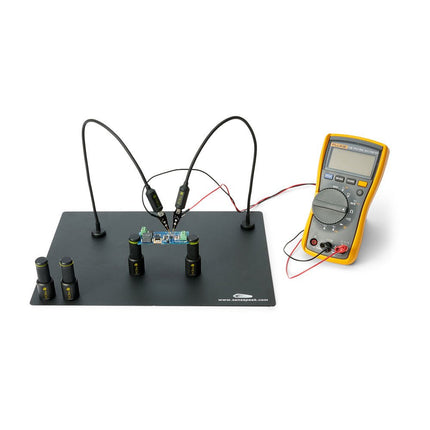

  • The probe is steady but yet flexible made for instant measurements or total hands-free operations together with your multimeter, logic analyzer or prefered tool.
  • The dual pin header connector fits directly on a 2.54 mm (0.100”) connector.
  • The SP10 comes with a powerful magnet in the base, as for all PCBite probes and holders, which makes the probe easy to place and reposition.

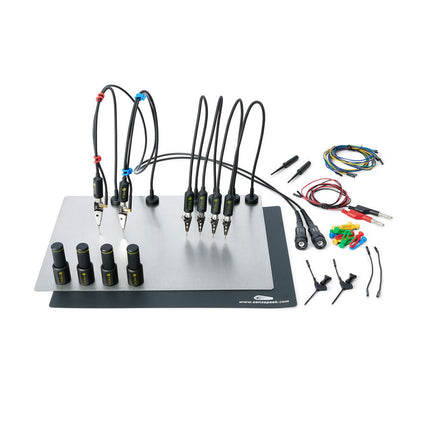

Included

  • 4x PCBite holder
  • 1x Large Base plate (A4)
  • 4x SP10 probes with pin tipped test needles
  • 4x Extra test needles
  • 1x Set of yellow insulation washers
  • 5x Dupont-to-dupont test wires
  • 2x Banana-to-dupont test wires
  • 1x Micro fiber cloth
  • 2x SP200 (200-MHz hands-free oscilloscope probe)
  • 2x Testhook with detachable cable for ground connection
  • 4x Ground cables (5 cm and 10 cm)
  • 2x Set of color coded cable holders (4 colors)
  • 2x Extra test needle

Downloads (User Guides)

Product form

PCBite holds your circuit board during soldering, inspection and test. SP200: 200 MHz hands-free oscilloscope probe The first truly hands-free... Read more

No reviews

€ 269,00 incl. VAT
Members € 242,10

      Details

      SKU: 19682
      EAN: 4019000001005
