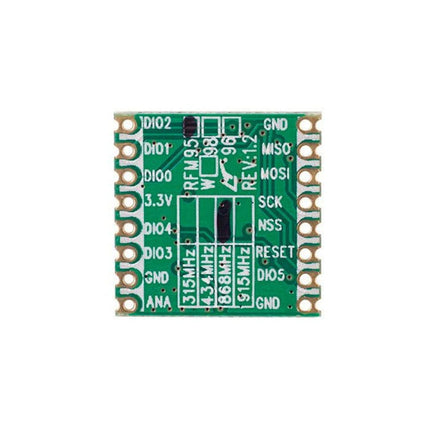

Seeed Studio RFM95 Ultra-long LoRa Transceiver Module (EU868)

  • BrandSeeed Studio

Description

The RFM95 is a LoRa / SigFox module to be used with Arduino / ESP32 / Raspberry Pi and many other. With ideal conditions, you can get ranges up to 2km+ while having only small power consumption.

It is equipped with the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity.

Using the patented LoRa™ modulation technique RFM95 can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

Features

  • maximum link budget: 168 dB
  • +20 dBm - 100 mW constant RF output vs. V supply
  • +14 dBm high efficiency PA
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Built-in bit synchronizer for clock recovery.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 mA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
  • Built-in temperature sensor
  • Low battery indicator.
  • Dimensions: 16 x 16 mm

Applications

  • Automated Meter Reading
  • Home and Building Automation
  • Wireless Alarm and Security Systems
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
Product form

The RFM95 is a LoRa / SigFox module to be used with Arduino / ESP32 / Raspberry Pi and many... Read more

€ 15,95 incl. VAT
Members € 14,36

      Details

      SKU: 18715
      EAN: 109990166

      Description

      The RFM95 is a LoRa / SigFox module to be used with Arduino / ESP32 / Raspberry Pi and many other. With ideal conditions, you can get ranges up to 2km+ while having only small power consumption.

      It is equipped with the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity.

      Using the patented LoRa™ modulation technique RFM95 can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

      Features

      • maximum link budget: 168 dB
      • +20 dBm - 100 mW constant RF output vs. V supply
      • +14 dBm high efficiency PA
      • Programmable bit rate up to 300 kbps.
      • High sensitivity: down to -148 dBm.
      • Bullet-proof front end: IIP3 = -12.5 dBm.
      • Built-in bit synchronizer for clock recovery.
      • Excellent blocking immunity.
      • Low RX current of 10.3 mA, 200 mA register retention.
      • Fully integrated synthesizer with a resolution of 61 Hz.
      • FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation.
      • Preamble detection.
      • 127 dB Dynamic Range RSSI.
      • Automatic RF Sense and CAD with ultra-fast AFC.
      • Packet engine up to 256 bytes with CRC.
      • Built-in temperature sensor
      • Low battery indicator.
      • Dimensions: 16 x 16 mm

      Applications

      • Automated Meter Reading
      • Home and Building Automation
      • Wireless Alarm and Security Systems
      • Industrial Monitoring and Control
      • Long range Irrigation Systems
