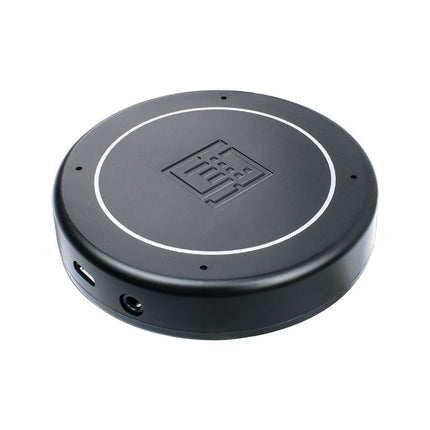

Seeed Studio ReSpeaker USB Mic Array (incl. Case)

  • BrandSeeed Studio

Description

Features

  • Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG.
  • Voice Pick-up device, Far-field voice pick-up up to 5m and supports 360° pick-up pattern
  • Acoustic algorithms implemented:
  • DOA(Direction of Arrival),
  • AEC(Automatic Echo Cancellation),
  • AGC(Automatic Gain Control),
  • NS(Noise Suppression)
  • Built-in audio jack, which allows for plugging in headphones or speakers (speaker not included)

Applications

  • Voice pick-up device
  • Home/Office automation device
  • In-car voice assistant
  • Healthcare device
  • Voice interaction robot
  • Other applications

Technical Specifications

  • XVF-3000 from XMOS
  • 4 High-Performance Digital Microphones
  • Supports Far-field Voice Capture
  • Speech Algorithms On-Chip
  • 12 Programmable RGB LED Indicators
  • Microphones: MEMS MSM261D4030H1CPM
  • Sensitivity: -26 dBFS (Omnidirectional)
  • Acoustic Overload Point: 120 dB SPL
  • SNR: 63 dB
  • Power Supply: 5V DC from Micro USB or Expansion Header

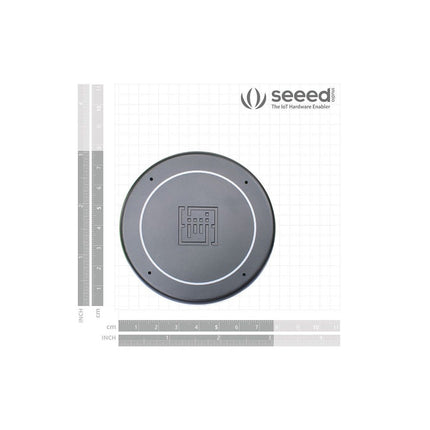

  • Dimensions: 77mm (Diameter)

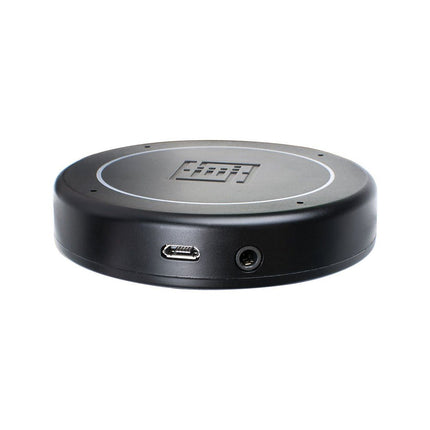

  • 3.5mm Audio Jack Output Socket
Product form

Features Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG. Voice Pick-up... Read more

€ 94,95 incl. VAT
Members € 85,46

      Details

      SKU: 20066
      EAN: 107990193

      Description

      Features

      • Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG.
      • Voice Pick-up device, Far-field voice pick-up up to 5m and supports 360° pick-up pattern
      • Acoustic algorithms implemented:
      • DOA(Direction of Arrival),
      • AEC(Automatic Echo Cancellation),
      • AGC(Automatic Gain Control),
      • NS(Noise Suppression)
      • Built-in audio jack, which allows for plugging in headphones or speakers (speaker not included)

      Applications

      • Voice pick-up device
      • Home/Office automation device
      • In-car voice assistant
      • Healthcare device
      • Voice interaction robot
      • Other applications

      Technical Specifications

      • XVF-3000 from XMOS
      • 4 High-Performance Digital Microphones
      • Supports Far-field Voice Capture
      • Speech Algorithms On-Chip
      • 12 Programmable RGB LED Indicators
      • Microphones: MEMS MSM261D4030H1CPM
      • Sensitivity: -26 dBFS (Omnidirectional)
      • Acoustic Overload Point: 120 dB SPL
      • SNR: 63 dB
      • Power Supply: 5V DC from Micro USB or Expansion Header
      • Dimensions: 77mm (Diameter)
      • 3.5mm Audio Jack Output Socket
