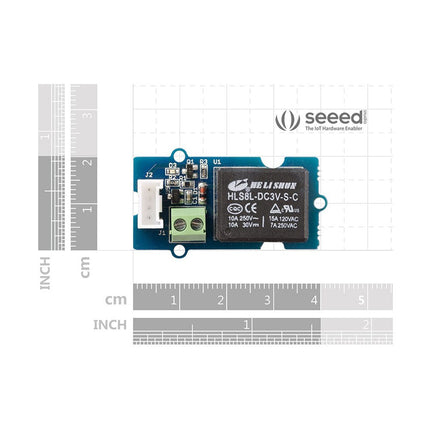

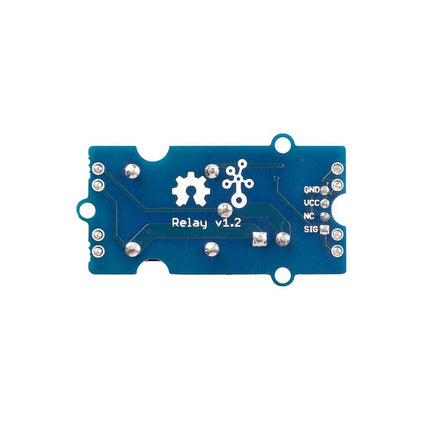

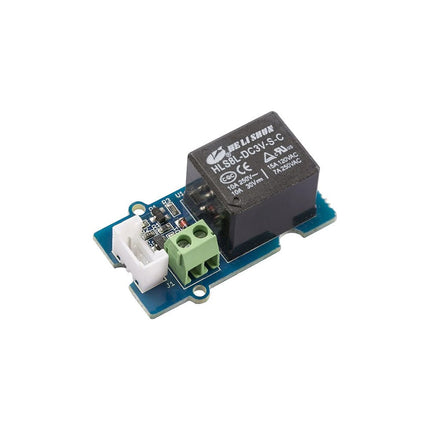

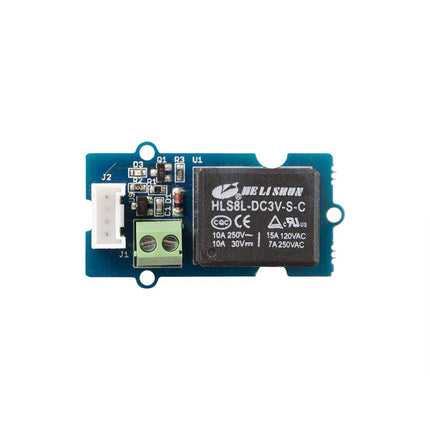

Seeed Studio Grove Relay

  • BrandSeeed Studio

Description

Features

  • Operate voltage: 3.3 V - 5 V
  • Input current: 100mA
  • Rated load: 5 A @ 250 VAC, 5 A @ 30 VDC
  • Contact resistance: 50 mΩ @ 6 VDC 1 A
  • Insulation resistance: 100 MΩ 10 ms Max.
  • Operate time: 10 ms Max.
  • Release time: 5 ms Max.
  • Input interface: Digital
  • Dimensions: 42 mm x 24 mm x 18.5 mm

Included

  • 1 x Grove Relay
  • 1 x User Guide

Downloads

Product form

Features Operate voltage: 3.3 V - 5 V Input current: 100mA Rated load: 5 A @ 250 VAC, 5 A... Read more

No reviews

Out of stock

€ 7,95 incl. VAT
Members € 7,16

      Details

      SKU: 20024
      EAN: 103020005

      Description

      Features

      • Operate voltage: 3.3 V - 5 V
      • Input current: 100mA
      • Rated load: 5 A @ 250 VAC, 5 A @ 30 VDC
      • Contact resistance: 50 mΩ @ 6 VDC 1 A
      • Insulation resistance: 100 MΩ 10 ms Max.
      • Operate time: 10 ms Max.
      • Release time: 5 ms Max.
      • Input interface: Digital
      • Dimensions: 42 mm x 24 mm x 18.5 mm

      Included

      • 1 x Grove Relay
      • 1 x User Guide

      Downloads
