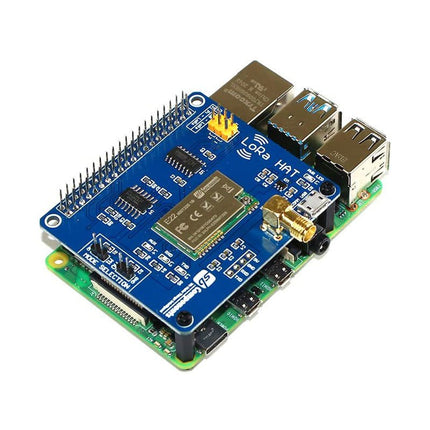

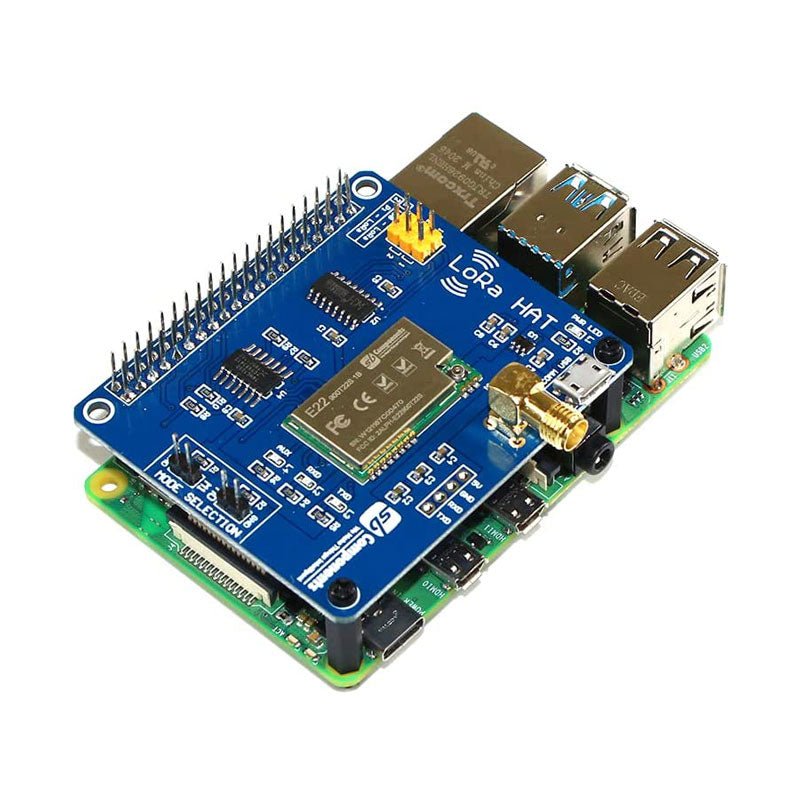

SB Components LoRa HAT for Raspberry Pi (EU868)

  • BrandSB Components

Description

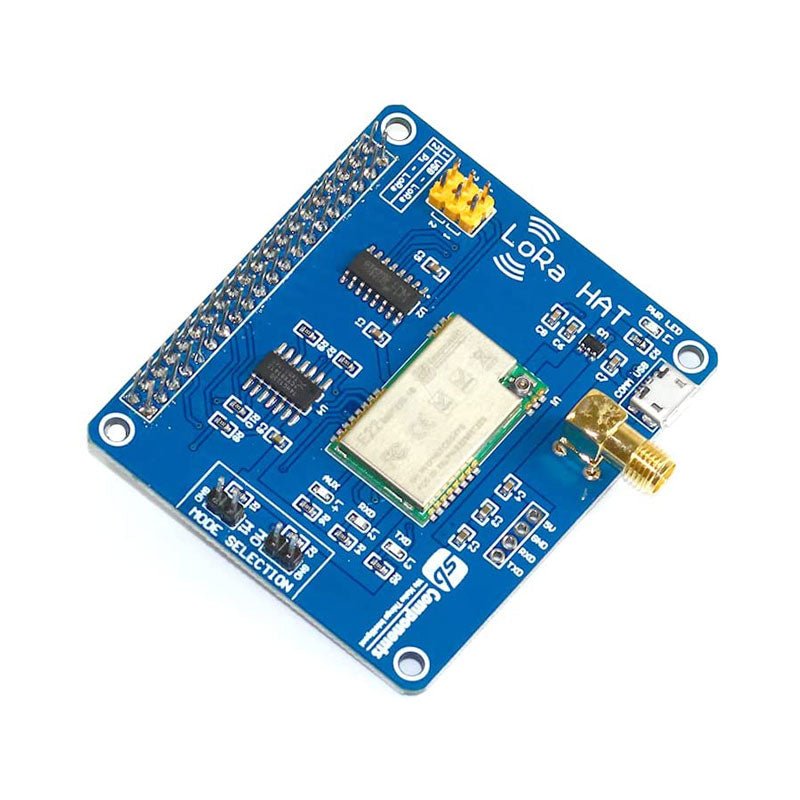

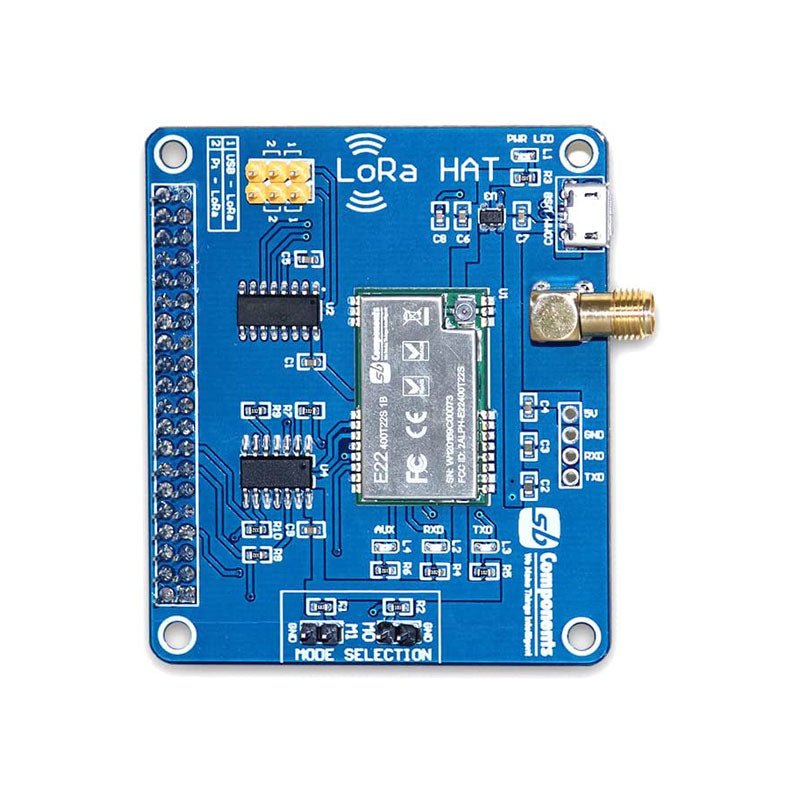

LoRa HAT, a low-power consumption data transmission module, comes with an onboard CH340 USB to UART converter, Voltage Level Translator (74HC125V), E22-900T22S and E22-400T22S SMA antenna connector, IPEX antenna connector, LoRa Spread Spectrum Modulation technology with auto multi-level repeating.

Features

  • Onboard 1.14' LCD
  • Voltage Level Translator (74HC125V)
  • Communication range up to 5 km
  • Supports auto repeating to transmit longer
  • Low Power Consumption
  • Highly Secured
  • For Evaluating signal quality with the RSSI or 'Received Signal Strength Indicator'
  • Wireless parameter configuration support
  • Fixed-point transmission support
  • SMA and IPEX Antenna Connector
  • USB to LoRa and Pico to LoRa Communication via UART
  • Comes with development resources and manual
  • LED Indicators:
    • RXD/TXD: UART RX/TX indicator
    • AUX: auxiliary indicator
    • PWR: power indicator
  • Serial/USB selection jumpers:
    • A: USB TO UART to control the LoRa module through USB
    • B: control the LoRa module through Raspberry Pi Pico
  • Data/Command mode selection jumpers:
    • Short M0, short M1: Transmission mode
    • Short M0, open M1: Configuration mode
    • Open M0, short M1: WOR mode
    • Open M0, open M1: Deep sleep mode

Specifications

  • Frequency: 850.125~930.125 MHz / 410~493 MHz (Programmable Range)
  • Power: 22dBm
  • Distance: Up to 5 km
  • Interface: UART Communication
  • Serial Port Module: E22-900T22S1B / E22-400T22S
  • Voltage Level Translator: 74HC125V

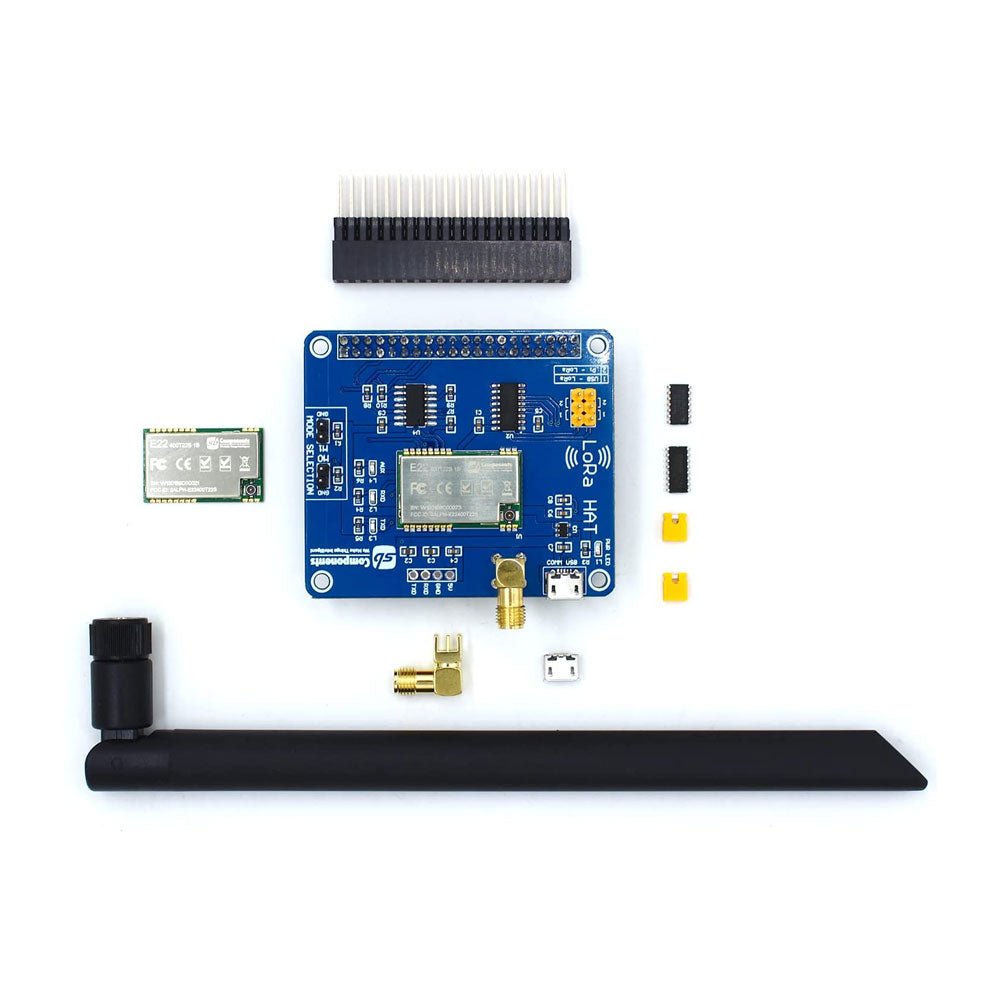

Included

  • 1x LoRa Module
  • 1x Antenna

Note: Raspberry Pi Board is not included.

Downloads

Product form

LoRa HAT, a low-power consumption data transmission module, comes with an onboard CH340 USB to UART converter, Voltage Level Translator... Read more

€ 49,95 incl. VAT
Members € 44,96

      Details

      SKU: 20103
      EAN: SKU22571

      Description

      LoRa HAT, a low-power consumption data transmission module, comes with an onboard CH340 USB to UART converter, Voltage Level Translator (74HC125V), E22-900T22S and E22-400T22S SMA antenna connector, IPEX antenna connector, LoRa Spread Spectrum Modulation technology with auto multi-level repeating.

      Features

      • Onboard 1.14' LCD
      • Voltage Level Translator (74HC125V)
      • Communication range up to 5 km
      • Supports auto repeating to transmit longer
      • Low Power Consumption
      • Highly Secured
      • For Evaluating signal quality with the RSSI or 'Received Signal Strength Indicator'
      • Wireless parameter configuration support
      • Fixed-point transmission support
      • SMA and IPEX Antenna Connector
      • USB to LoRa and Pico to LoRa Communication via UART
      • Comes with development resources and manual
      • LED Indicators:
        • RXD/TXD: UART RX/TX indicator
        • AUX: auxiliary indicator
        • PWR: power indicator
      • Serial/USB selection jumpers:
        • A: USB TO UART to control the LoRa module through USB
        • B: control the LoRa module through Raspberry Pi Pico
      • Data/Command mode selection jumpers:
        • Short M0, short M1: Transmission mode
        • Short M0, open M1: Configuration mode
        • Open M0, short M1: WOR mode
        • Open M0, open M1: Deep sleep mode

      Specifications

      • Frequency: 850.125~930.125 MHz / 410~493 MHz (Programmable Range)
      • Power: 22dBm
      • Distance: Up to 5 km
      • Interface: UART Communication
      • Serial Port Module: E22-900T22S1B / E22-400T22S
      • Voltage Level Translator: 74HC125V

      Included

      • 1x LoRa Module
      • 1x Antenna

      Note: Raspberry Pi Board is not included.
