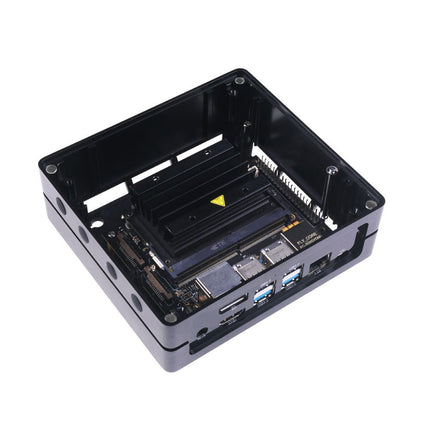

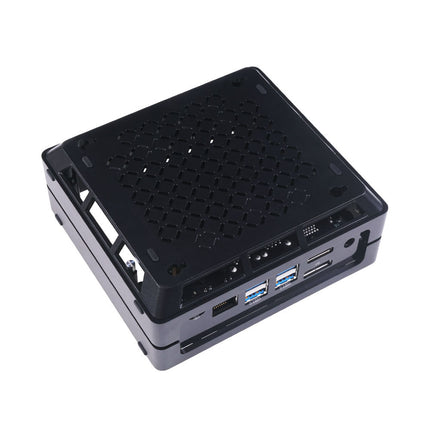

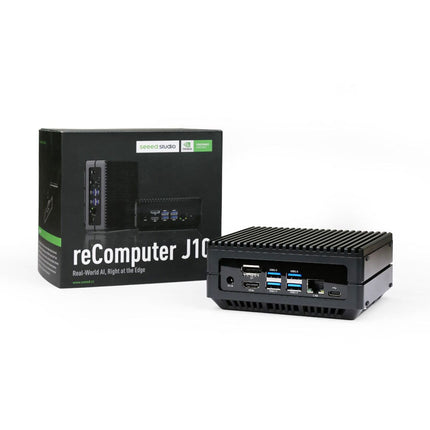

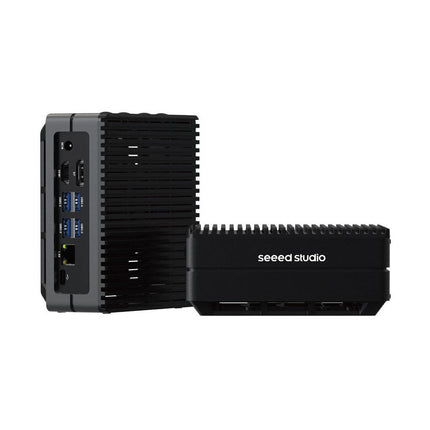

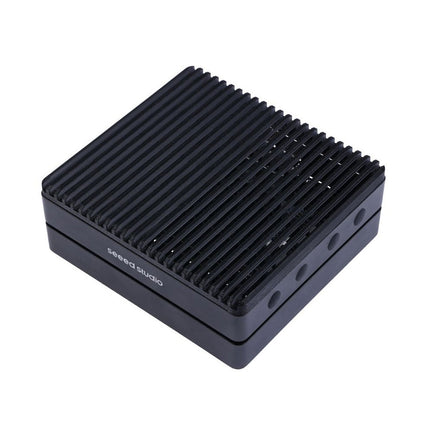

reComputer J1020 v2 – Edge AI Device with NVIDIA Jetson Nano (4 GB)

BrandSeeed Studio

Description

The reComputer J1020 v2 is a compact edge AI device powered by the NVIDIA Jetson Nano 4 GB production module, delivering 0.5 TFLOPs of AI performance. It features a robust aluminum case with a passive heatsink and comes pre-installed with JetPack 4.6.1. The device includes 16 GB of onboard eMMC storage and offers 2x SCI, 4x USB 3.0, M.2 Key M, HDMI, and DP.

Applications

Computer Vision
Machine Learning
Autonomous Mobile Robot (AMR)

Specifications

Jetson Nano 4 GB System-on-Module
AI Performance	Jetson Nano 4 GB (0.5 TOPS)
GPU	NVIDIA Maxwel architecture with 128 NVIDIA CUDA cores
CPU	Quad-core ARM Cortex-A57 MPCore processor
Memory	4 GB 64-bit LPDDR4 25.6 GB/s
Video Encoder	1x 4K30 \| 2x 1080p60 \| 4x 1080p30 \| 4x 720p60 \| 9x 720p30 (H.265 & H.264)
Video Decoder	1x 4K60 \| 2x 4K30 \| 4x 1080p60 \| 8x 1080p30 \| 9x 720p60 (H.265 & H.264)

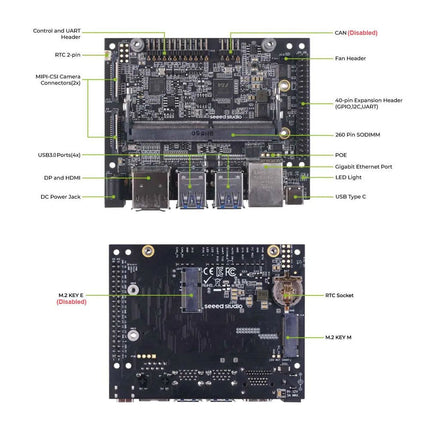

Carrier Board
Storage	1x M.2 Key M PCIe
Networking	Ethernet	1x RJ-45 Gigabit Ethernet (10/100/1000M)
I/O	USB	4x USB 3.0 Type-A 1x Micro-USB port for device mode
	CSI Camera	2x CSI (2-lane 15-pin)
	Display	1x HDMI Type A; 1x DP
	Fan	1x 4-pin Fan Connector (5 V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header
	Multifunctional Port	1x 12-Pin Control and UART header
Power Supply	DC 12 V/2 A
Mechanical	Dimensions	130 x 120 x 50 mm (with Case)
Mechanical	Installation	Desktop, wall-mounting
Operating Temperature	−10°C~60°C

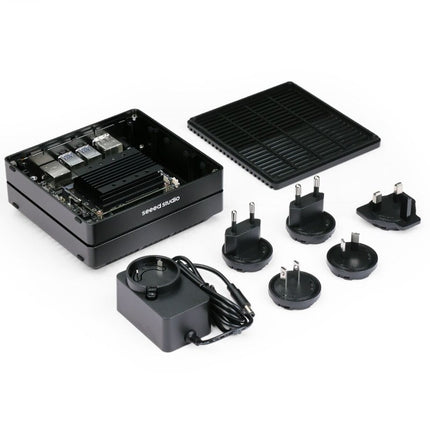

Included

reComputer J1020 v2 (system installed)
12 V/2 A power adapter (with 5 interchangeable adapter plugs)

Downloads

Product form

The reComputer J1020 v2 is a compact edge AI device powered by the NVIDIA Jetson Nano 4 GB production module,... Read more

€ 369,00 € 289,00 (incl. VAT)

Members identical

Details

SKU: 20968

EAN: 110061441

Description

Applications

Computer Vision
Machine Learning
Autonomous Mobile Robot (AMR)

Specifications

Jetson Nano 4 GB System-on-Module
AI Performance	Jetson Nano 4 GB (0.5 TOPS)
GPU	NVIDIA Maxwel architecture with 128 NVIDIA CUDA cores
CPU	Quad-core ARM Cortex-A57 MPCore processor
Memory	4 GB 64-bit LPDDR4 25.6 GB/s
Video Encoder	1x 4K30 \| 2x 1080p60 \| 4x 1080p30 \| 4x 720p60 \| 9x 720p30 (H.265 & H.264)
Video Decoder	1x 4K60 \| 2x 4K30 \| 4x 1080p60 \| 8x 1080p30 \| 9x 720p60 (H.265 & H.264)
Carrier Board
Storage	1x M.2 Key M PCIe
Networking	Ethernet	1x RJ-45 Gigabit Ethernet (10/100/1000M)
I/O	USB	4x USB 3.0 Type-A 1x Micro-USB port for device mode
	CSI Camera	2x CSI (2-lane 15-pin)
	Display	1x HDMI Type A; 1x DP
	Fan	1x 4-pin Fan Connector (5 V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header
	Multifunctional Port	1x 12-Pin Control and UART header
Power Supply	DC 12 V/2 A
Mechanical	Dimensions	130 x 120 x 50 mm (with Case)
Mechanical	Installation	Desktop, wall-mounting
Operating Temperature	−10°C~60°C

Included

reComputer J1020 v2 (system installed)
12 V/2 A power adapter (with 5 interchangeable adapter plugs)
