Raspberry Pi DAC+

Description

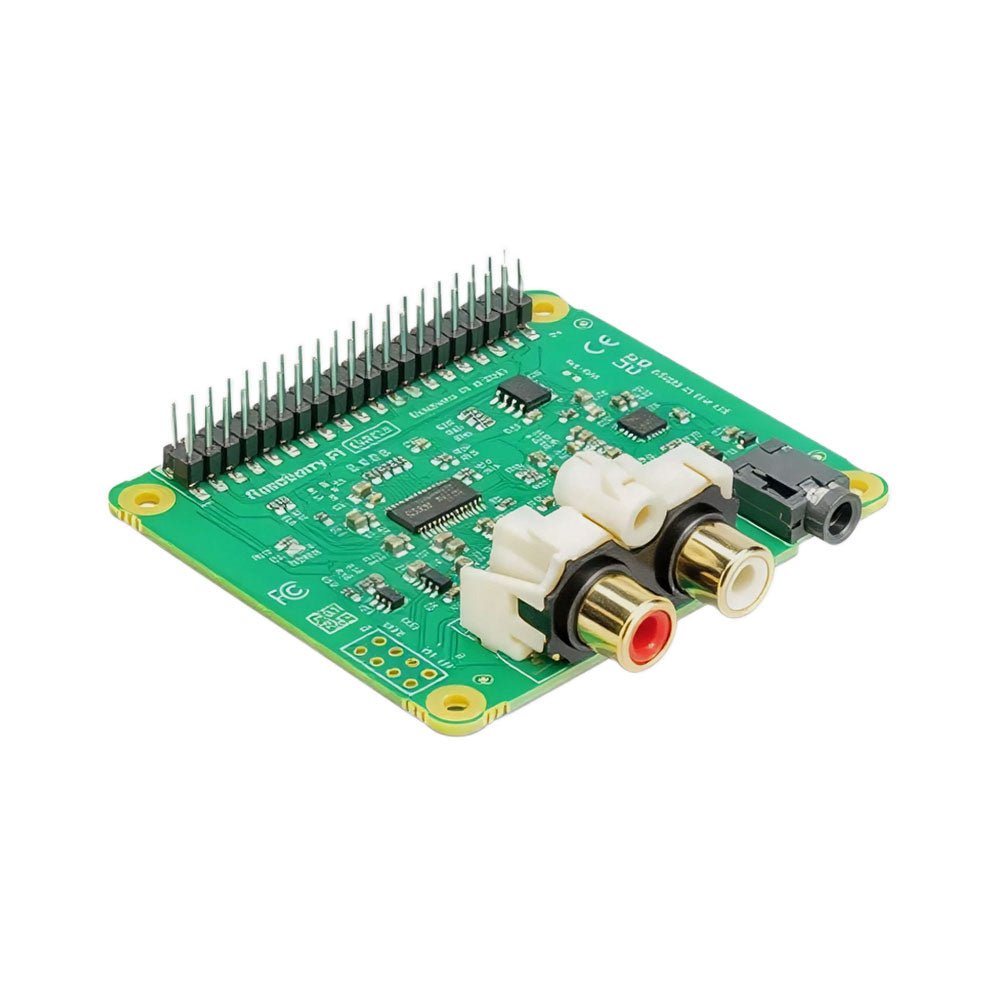

Raspberry Pi DAC+ (formerly known as IQaudio DAC+) is a high-performance audio HAT designed for any Raspberry Pi with a 40-pin GPIO header. Equipped with the Texas Instruments PCM5122 DAC, it delivers crystal-clear stereo analogue audio through a pair of phono (RCA) connectors.

No external power is needed – the DAC+ connects directly to the Raspberry Pi’s GPIO header without requiring soldering or cables.

Features

  • Power LED
  • Analogue audio out (0-2 V RMS) via panel-mounted stereo
  • phono (RCA) sockets with MUTE signal (headphone detect)
  • Dedicated headphone amplifier, output via 3.5 mm panel-mounted barrel socket
  • 40-pin pass-through GPIO header
  • HAT EEPROM write-enabled

Downloads

Product form

Raspberry Pi DAC+ (formerly known as IQaudio DAC+) is a high-performance audio HAT designed for any Raspberry Pi with a 40-pin... Read more

€ 29,95 € 22,95 (incl. VAT)
Members identical

      Details

      SKU: 19539
      EAN: 0617588405532

      Description

      Raspberry Pi DAC+ (formerly known as IQaudio DAC+) is a high-performance audio HAT designed for any Raspberry Pi with a 40-pin GPIO header. Equipped with the Texas Instruments PCM5122 DAC, it delivers crystal-clear stereo analogue audio through a pair of phono (RCA) connectors.

      No external power is needed – the DAC+ connects directly to the Raspberry Pi’s GPIO header without requiring soldering or cables.

      Features

      • Power LED
      • Analogue audio out (0-2 V RMS) via panel-mounted stereo
      • phono (RCA) sockets with MUTE signal (headphone detect)
      • Dedicated headphone amplifier, output via 3.5 mm panel-mounted barrel socket
      • 40-pin pass-through GPIO header
      • HAT EEPROM write-enabled

      Downloads

      Customer Reviews

      Based on 1 review
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      A
      Anonymous
      Toepassing IQaudiO Pi-DAC+ board voor Raspberry Pi

      Het board wordt gebruikt met een RPI modelB+ V1.2 uit 2014. Het board past precies op de rpi . Het vinden van juiste kastje is nog niet gelukt. De software die geladen is Volumio-3.785-2024-12-16-pi. In eerste instantie werkte het board niet, maar na enkele tweaks in de boot files van de rpi werkte het zoals verwacht.
      Het resultaat is een goed werkende media streamer voor een fractie van de prijs die gevraagd wordt voor een commerciële netwerk streamer.
