QuecPython EC200U-EU C4-P01 Development Board

  • BrandWaveshare

Description

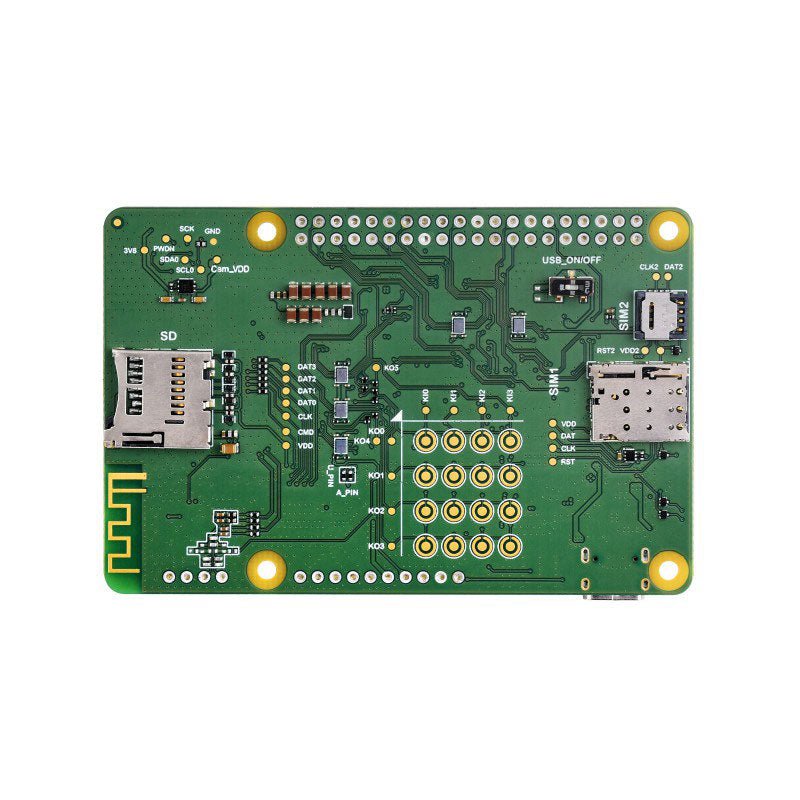

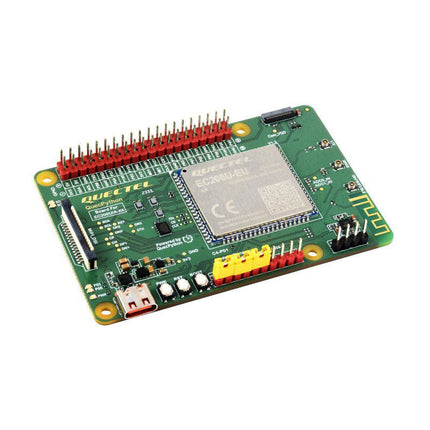

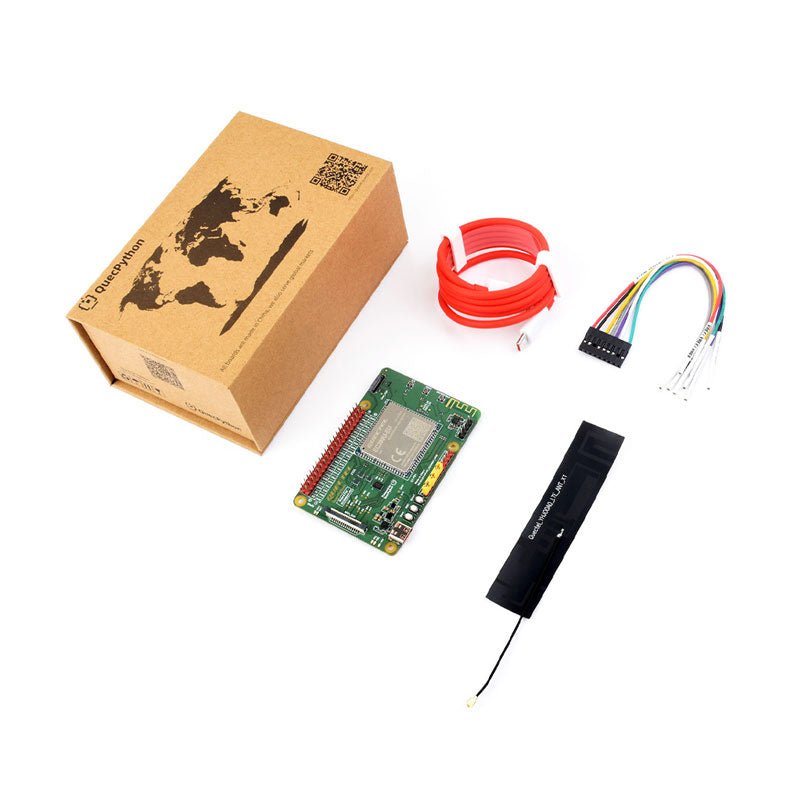

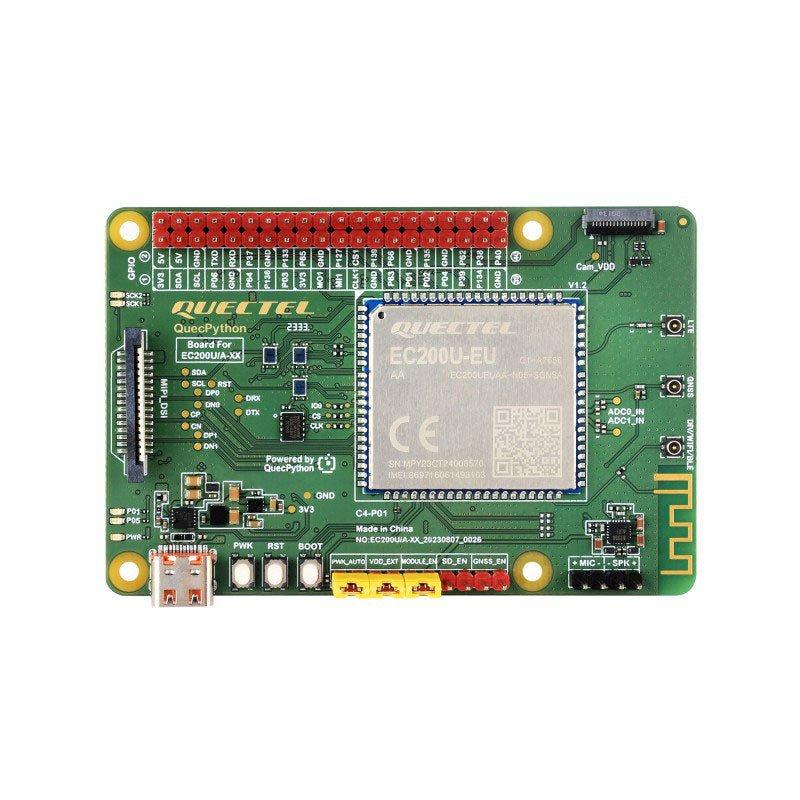

The EC200U-EU C4-P01 development board features the EC200U-EU LTE Cat 1 wireless communication module, offering a maximum data rate of up to 10 Mbps for downlink and 5 Mbps for uplink. It supports multi-mode and multi-band communication, making it a cost-effective solution.

The board is designed in a compact and unified form factor, compatible with the Quectel multi-mode LTE Standard EC20-CE. It includes an onboard USB-C port, allowing for easy development with just a USB-C cable.

Additionally, the board is equipped with a 40-pin GPIO header that is compatible with most Raspberry Pi HATs.

Features

  • Equipped with EC200U-EU LTE Cat 1 wireless communication module, multi-mode & multi-band support

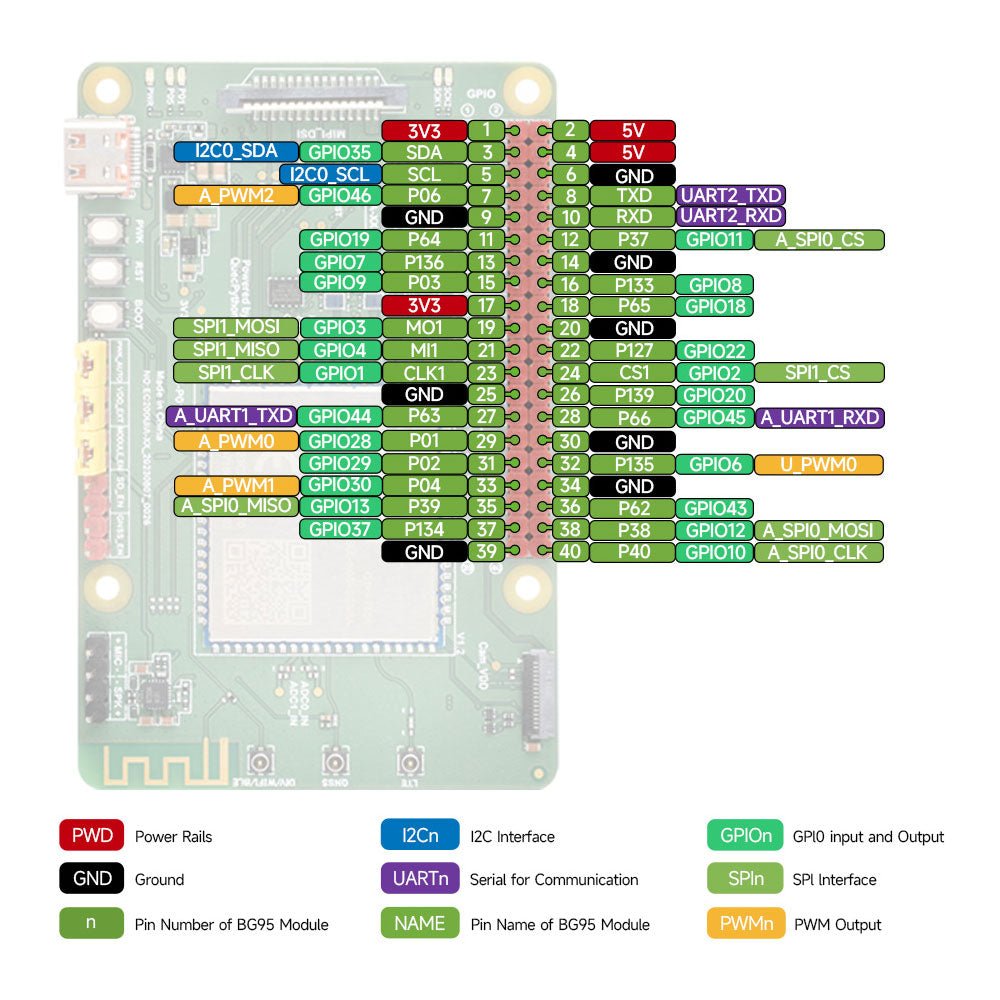

  • Onboard 40-Pin GPIO header, compatible with most Raspberry Pi HATs
  • 5 LEDs for indicating module operating status
  • Supports TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS protocols, etc.
  • Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)
  • Onboard Nano SIM card slot and eSIM card slot, dual card single standby
  • Onboard MIPI connector for connecting MIPI screen and is fully compatible with Raspberry Pi peripherals
  • Onboard camera connector, supports customized SPI cameras with a maximum of 300,000 pixels
  • Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development
  • Comes with online development resources and manual (example in QuecPython)

Specifications

Applicable Regions Europe, Middle East, Africa, Australia, New Zealand, Brazil
LTE-FDD B1, B3, B5, B7, B8, B20, B28
LTE-TDD B38, B40, B41
GSM / GPRS / EDGE GSM: B2, B3, B5, B8
GNSS GPS, GLONASS, BDS, Galileo, QZSS
Bluetooth Bluetooth 4.2 (BR/EDR)
Wi-Fi Scan 2.4 GHz 11b (Rx)
CAT 1 LTE-FDD: DL 10 Mbps; UL 5 Mbps
LTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps
GSM / GPRS / EDGE GSM: DL 85.6 Kbps; UL 85.6 Kbps
USB-C Port Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
Communication Protocol TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS
SIM Card Nano SIM and eSIM, dual card single standby
Indicator P01: Module Pin 1, default as EC200A-XX PWM0
P05: Module Pin 5, NET_MODE indicator
SCK1: SIM1 detection indicator, lights up when SIM1 card is inserted
SCK2: SIM2 detection indicator, lights up when SIM2 card is inserted
PWR: Power indicator
Buttons PWK: Power ON/OFF
RST: Reset
BOOT: Forcing into firmware burning mode
USB ON/OFF: USB power consumption detection switch
Antenna Connectors LTE main antenna + DIV / WiFi (scanning only) / Bluetooth antenna + GNSS antenna
Operating Temperature −30~+75°C
Storage Temperature −45~+90°C

Downloads

Product form

The EC200U-EU C4-P01 development board features the EC200U-EU LTE Cat 1 wireless communication module, offering a maximum data rate of up... Read more

€ 69,95 incl. VAT
Members € 62,96

    • Ship today? Order within Jul 13, 2024 17:00:00 +0200

    Details

    SKU: 20894
    EAN: 27095

    Description

    The EC200U-EU C4-P01 development board features the EC200U-EU LTE Cat 1 wireless communication module, offering a maximum data rate of up to 10 Mbps for downlink and 5 Mbps for uplink. It supports multi-mode and multi-band communication, making it a cost-effective solution.

    The board is designed in a compact and unified form factor, compatible with the Quectel multi-mode LTE Standard EC20-CE. It includes an onboard USB-C port, allowing for easy development with just a USB-C cable.

    Additionally, the board is equipped with a 40-pin GPIO header that is compatible with most Raspberry Pi HATs.

    Features

    • Equipped with EC200U-EU LTE Cat 1 wireless communication module, multi-mode & multi-band support
    • Onboard 40-Pin GPIO header, compatible with most Raspberry Pi HATs
    • 5 LEDs for indicating module operating status
    • Supports TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS protocols, etc.
    • Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)
    • Onboard Nano SIM card slot and eSIM card slot, dual card single standby
    • Onboard MIPI connector for connecting MIPI screen and is fully compatible with Raspberry Pi peripherals
    • Onboard camera connector, supports customized SPI cameras with a maximum of 300,000 pixels
    • Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development
    • Comes with online development resources and manual (example in QuecPython)

    Specifications

    Applicable Regions Europe, Middle East, Africa, Australia, New Zealand, Brazil
    LTE-FDD B1, B3, B5, B7, B8, B20, B28
    LTE-TDD B38, B40, B41
    GSM / GPRS / EDGE GSM: B2, B3, B5, B8
    GNSS GPS, GLONASS, BDS, Galileo, QZSS
    Bluetooth Bluetooth 4.2 (BR/EDR)
    Wi-Fi Scan 2.4 GHz 11b (Rx)
    CAT 1 LTE-FDD: DL 10 Mbps; UL 5 Mbps
    LTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps
    GSM / GPRS / EDGE GSM: DL 85.6 Kbps; UL 85.6 Kbps
    USB-C Port Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
    Communication Protocol TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS
    SIM Card Nano SIM and eSIM, dual card single standby
    Indicator P01: Module Pin 1, default as EC200A-XX PWM0
    P05: Module Pin 5, NET_MODE indicator
    SCK1: SIM1 detection indicator, lights up when SIM1 card is inserted
    SCK2: SIM2 detection indicator, lights up when SIM2 card is inserted
    PWR: Power indicator
    Buttons PWK: Power ON/OFF
    RST: Reset
    BOOT: Forcing into firmware burning mode
    USB ON/OFF: USB power consumption detection switch
    Antenna Connectors LTE main antenna + DIV / WiFi (scanning only) / Bluetooth antenna + GNSS antenna
    Operating Temperature −30~+75°C
    Storage Temperature −45~+90°C
