Pimoroni Raspberry Pi Pico Audio Pack (Line-Out and Headphone Amp)

  • BrandPimoroni

Description

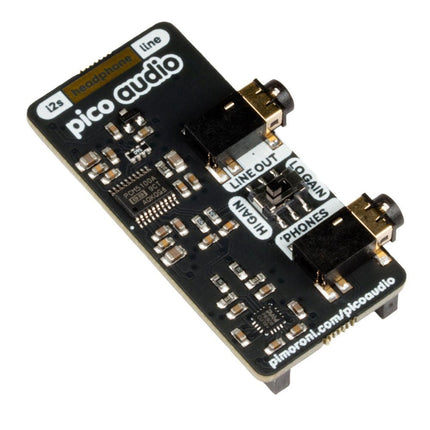

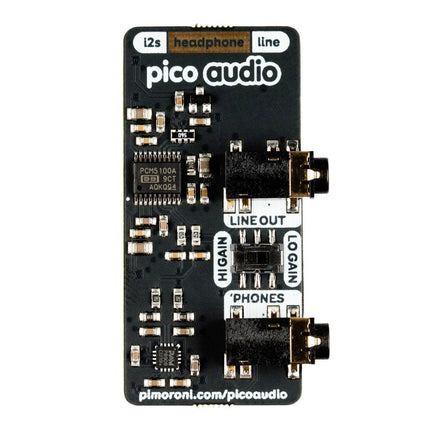

Pico Audio Pack uses its PCM5100A DAC to output up to 32-bit, 384 KHz stereo audio along its 3.5 mm line out connector, ready for plugging into an external amp or powered speakers. If you're after something a little louder for your ears, it can also pump out amplified stereo audio from its 3.5 mm headphone jack.

You could generate interesting noises with code on your Pico to output into a lo-fi synth, or hook your Pico up to another device and use it as a custom USB sound card.

Features

  • PCM5100A stereo DAC (datasheet)
  • PAM8908JER stereo headphone amp (datasheet)
  • 3.5 mm stereo headphone jack connector
  • 3.5 mm stereo line out jack connector
  • Switch to adjust headphone amp gain (low / high)
  • Pre-soldered female headers for attaching to Pico
  • Compatible with Raspberry Pi Pico
  • Fully assembled
  • No soldering required (as long as your Pico has header pins attached).
  • Dimensions: approx 53 x 29 x 11 mm (L x W x H, including headers and audio jacks)
  • Programmable with C/C++

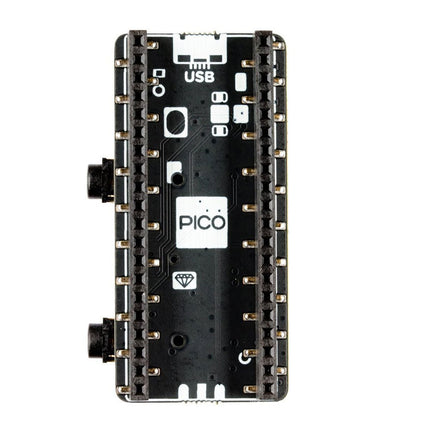

The labels on the underside of Pico Audio will show you which way round to plug it into your Pico ‐ just match up the USB port with the markings on the board.

Product form

Pico Audio Pack uses its PCM5100A DAC to output up to 32-bit, 384 KHz stereo audio along its 3.5 mm line out... Read more

No reviews

€ 19,95 incl. VAT
Members € 17,96

    • Ship today? Order within Apr 14, 2024 17:00:00 +0200

    Details

    SKU: 19765
    EAN: 0769894017098

    Description

    Pico Audio Pack uses its PCM5100A DAC to output up to 32-bit, 384 KHz stereo audio along its 3.5 mm line out connector, ready for plugging into an external amp or powered speakers. If you're after something a little louder for your ears, it can also pump out amplified stereo audio from its 3.5 mm headphone jack.

    You could generate interesting noises with code on your Pico to output into a lo-fi synth, or hook your Pico up to another device and use it as a custom USB sound card.

    Features

    • PCM5100A stereo DAC (datasheet)
    • PAM8908JER stereo headphone amp (datasheet)
    • 3.5 mm stereo headphone jack connector
    • 3.5 mm stereo line out jack connector
    • Switch to adjust headphone amp gain (low / high)
    • Pre-soldered female headers for attaching to Pico
    • Compatible with Raspberry Pi Pico
    • Fully assembled
    • No soldering required (as long as your Pico has header pins attached).
    • Dimensions: approx 53 x 29 x 11 mm (L x W x H, including headers and audio jacks)
    • Programmable with C/C++

    The labels on the underside of Pico Audio will show you which way round to plug it into your Pico ‐ just match up the USB port with the markings on the board.
