Description

PiKVM is a feature-rich, production grade, open-source, Raspberry Pi based KVM over IP device. It enables managing servers or workstations remotely, whatever the state of the operating system or whether one is installed. PiKVM allows you to turn on/off or restart your computer, configure the UEFI/BIOS, and even reinstall the OS using the Virtual CD-ROM or Flash Drive. You can use your remote keyboard and mouse or PiKVM can simulate a keyboard, mouse, and a monitor, which are then presented in a web browser as if you were working on a remote system directly.

PiKVM V4 Plus is the PiKVM version with the most features! Designed to be the most advanced and versatile PiKVM, it will assist you in the most unique and complex scenarios of tech support or remote system access/management. The future-proof architecture will allow to add more features and functionality.

Features

  • PiKVM V4 comes as a complete product, equipped with all you need out of the box; a power supply, USB & Ethernet cables, and even PCI brackets to install the ATX board into an ATX or mini ITX computer/server cases.
  • The (included) Raspberry Pi Compute Module 4 (CM4) allows to raise the bar to an industrial-grade level.
  • Improved WiFi connectivity with a port for an optional external antenna.
  • 1920x1080 @ 60 Hz & 1920x1200 @ 60 Hz resolution support for increased UEFI/BIOS compatibility.
  • New meticulously crafted steel case with a smooth and slick appearance, light pipes, location beacon, SD card access protection, and a Kensington security slot.

Specifications

Raspberry Pi Compute Module 4 (CM4) CM4102000 with 2 GB RAM and WiFi/Bluetooth (Lite)
Connection type USB-C
Power type 12 V/2 A (DC)
Power failure option Internal supercapacitor for the real time clock support
HDMI female HDMI source input
USB-C female
  • For the keyboard, mouse, mass storage, and other external device emulation)
  • Serial console management port
Micro SD card slot For the OS storage
ATX RJ-45 Special port for power control or AUX
WiFi Optional WiFi b/g/n support with internal/external antenna
LED indicators Power, activity, console power, search led, HDMI source engaged
Display OLED 128x32 0.91” (white)
Supported resolutions Up to 1920x1200 @ 60 Hz
Video compression methods MJPEG, H.264
Audio capture mode HDMI audio capture support
Peak power consumption Up to 24 W (2 A/12 V)
Operating temperature 0°C to 50°C
Dimensions 120 x 68 x 44mm
Weight 350 g

Model Comparison

PiKVM V3 PiKVM V4 Plus
Main computing unit Raspberry Pi 4 B Raspberry Pi Compute Module 4 (CM4)
1920x1200 @ 60 Hz HDMI video support with sound
Improved compatibility for many UEFI and BIOS
USB key/mouse/mass storage support
USB host support (external USB devices connectivity support)
Additional USB storage support with internal installation
RJ-45 console port
Cooling system Axial fan Advanced with radial fan
Locator LED
Power consumption in idle mode 3.3 W 3.3 W
External antenna support WiFi/LTE
mPCI-e slot with USB lines for LTE/5G cards

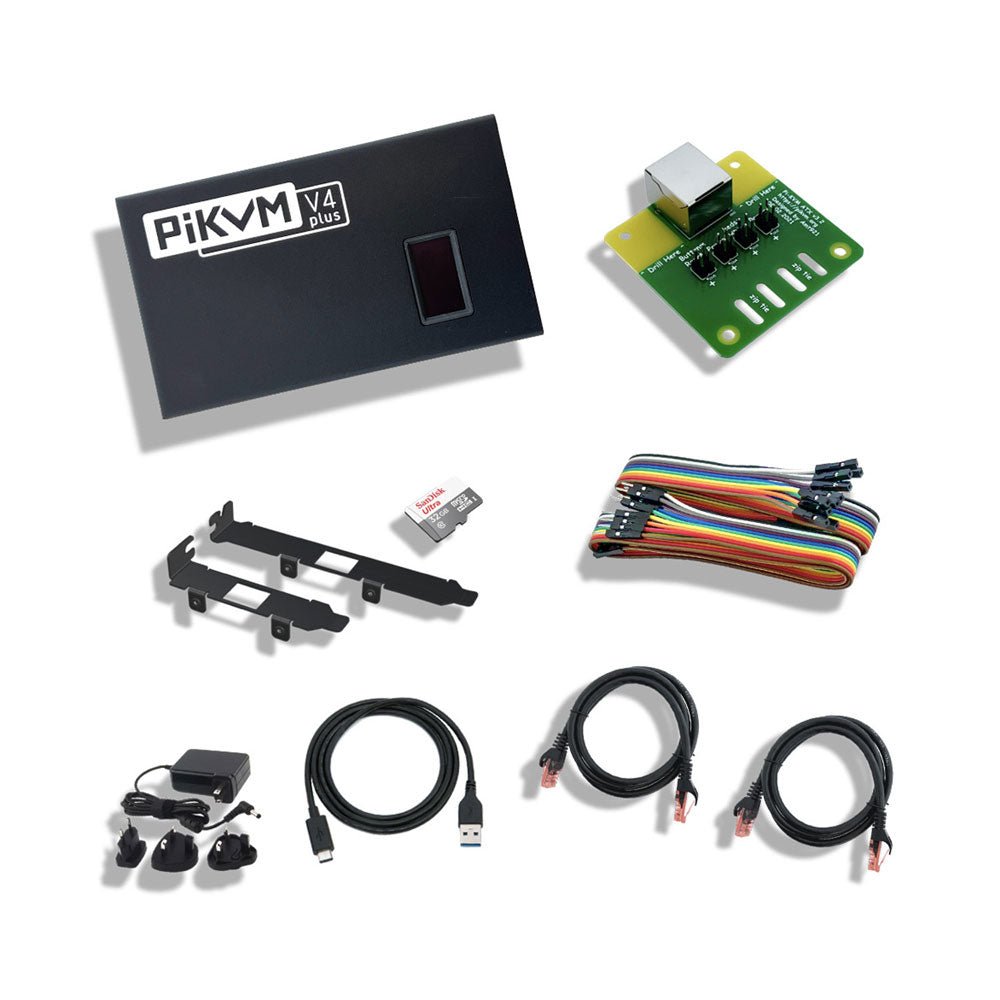

Included

  • PiKVM V4 Plus incl. Raspberry Pi CM4, case and OLED display
  • Micro SD card with pre-imaged PiKVM software
  • ATX control board
  • ATX connection cables
  • ATX installation brackets
  • Ethernet cable
  • ATX cable
  • USB-C to USB-A cable
  • 12 V/2 A power supply (international adapters)

Downloads
