PiCAN-M with CAN-Bus Micro-C and RS422 Connector + 3 A SMPS

  • BrandSK Pang Electronics

Description

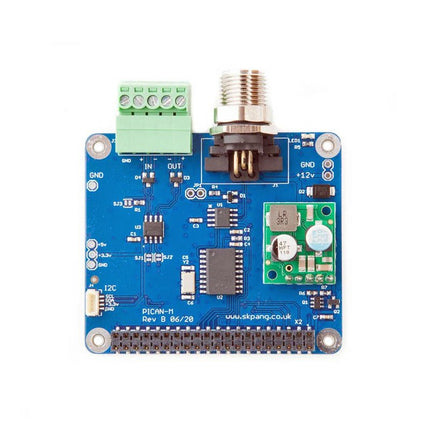

This is a PiCAN-M with RS422 and Micro-C connector. The RS422 is via a 5-way screw terminal. The CAN-Bus connection is via a Micro-C connector.

This board includes a 3 A SMPS. The 12 V is from the Micro-C network can be used to power the PiCAN-M and the Raspberry Pi.

Features

  • CAN connection via Micro-C connector
  • 120Ω terminator ready
  • SocketCAN driver
  • Appears as can0 to application
  • RS422 via 5-way screw terminal
  • Appears as ttyS0 to the application
  • LED indicator (GPIO22)
  • Qwiic (I²C) connector for extra sensors
  • Includes 3 A SMPS to power the board and the RPi from the 12 V line.
  • Compatible with OpenCPN, OpenPlotter, Signal K and CANBoat

Downloads

Product form

This is a PiCAN-M with RS422 and Micro-C connector. The RS422 is via a 5-way screw terminal. The CAN-Bus connection... Read more

€ 109,95 incl. VAT
Members € 98,96

    • Ship today? Order within Jul 27, 2024 17:00:00 +0200

    Details

    SKU: 19683
    EAN: 019683

    Description

    This is a PiCAN-M with RS422 and Micro-C connector. The RS422 is via a 5-way screw terminal. The CAN-Bus connection is via a Micro-C connector.

    This board includes a 3 A SMPS. The 12 V is from the Micro-C network can be used to power the PiCAN-M and the Raspberry Pi.

    Features

    • CAN connection via Micro-C connector
    • 120Ω terminator ready
    • SocketCAN driver
    • Appears as can0 to application
    • RS422 via 5-way screw terminal
    • Appears as ttyS0 to the application
    • LED indicator (GPIO22)
    • Qwiic (I²C) connector for extra sensors
    • Includes 3 A SMPS to power the board and the RPi from the 12 V line.
    • Compatible with OpenCPN, OpenPlotter, Signal K and CANBoat

    Downloads
