Description
The PeakTech 1265 is an affordable 30 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 250 MS/s and convinces with its high quality and easy handling with the best price/performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner. This oscilloscope has a VGA output for displaying the oscilloscope display on an external monitor or projector.
Features
- 2-channel oscilloscope with 30 MHz analog bandwidth at max. 250 MS/s sampling rate
- 8 inch (20 cm) TFT color display with 800 x 600 pixels

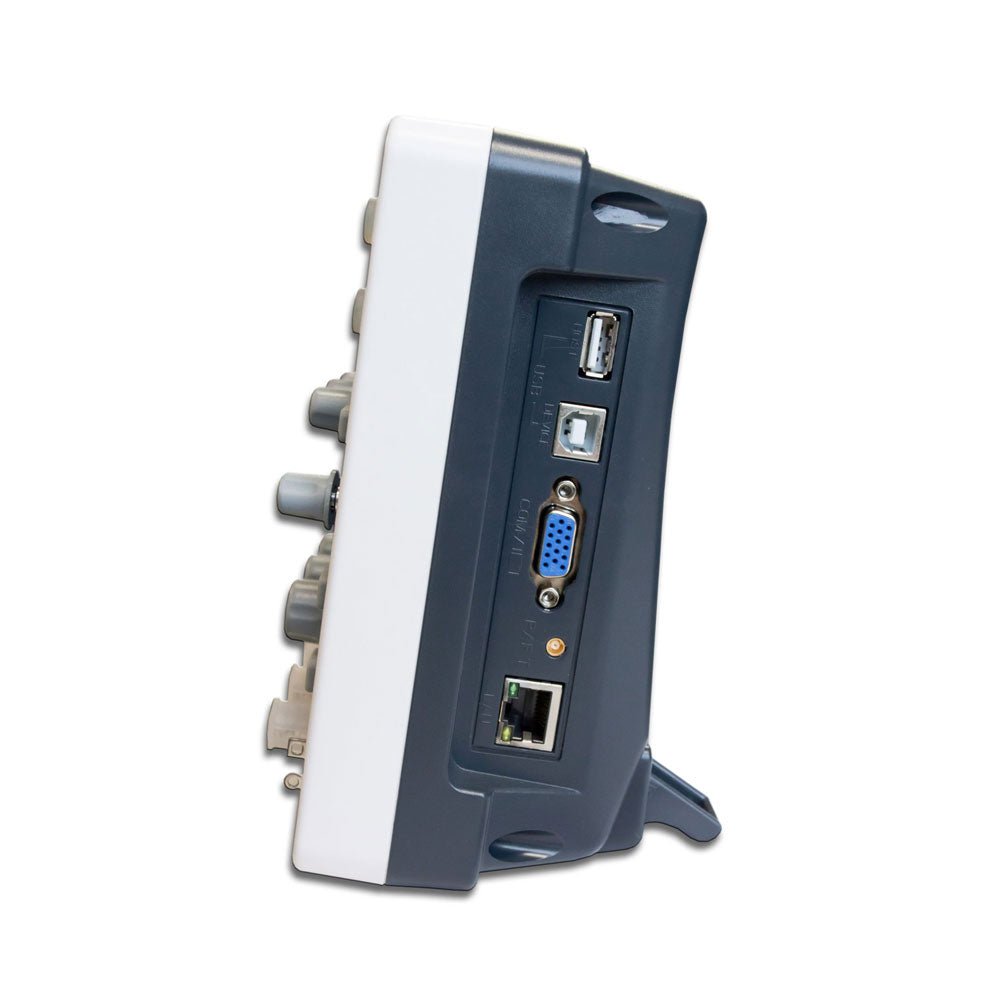

- LAN, USB host, USB device & VGA interface
- Autoset function for user-friendly operation
- Recording length of max. 10,000 points
- Automatic measurement modes, XY mode and FFT function
Specifications
Bandwidth |
30 MHz |
Channels |
2 |
Screen size (TFT) |
8' (20 cm) |
Resolution |
800 x 600 Pixel |
Display Type |
Color-TFT |
Sampling 1 CH |
250 MS/s |
Sampling 2 CH |
125 MS/s |
Hor. scale max. |
100 s/div |
Hor. scale min. |
5 ns/div |
Memory depth |
10,000 Points |
Rise Time |
< 14 ns |
Vert. resolution |
8 Bit |
Vert. scale max. |
10 V/div |
Vert. scale min. |
2 mV/div |
Interfaces |
1x USB, 1x LAN, 1x VGA |
Mains voltage |
110/240 V AC; 50/60 Hz |
Included
- PeakTech 1265 Oscilloscope
- USB cable
- Software CD for Windows
- Power cord
- 2 probes
- BNC cable
- Carrying case
- Manual
