Description

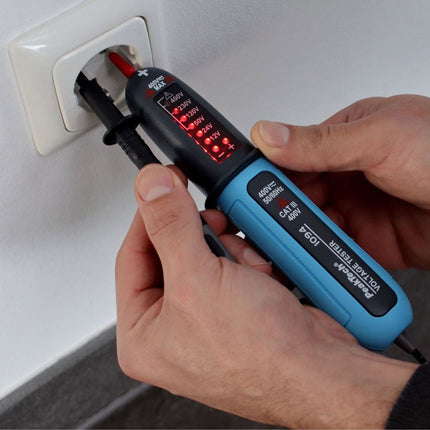

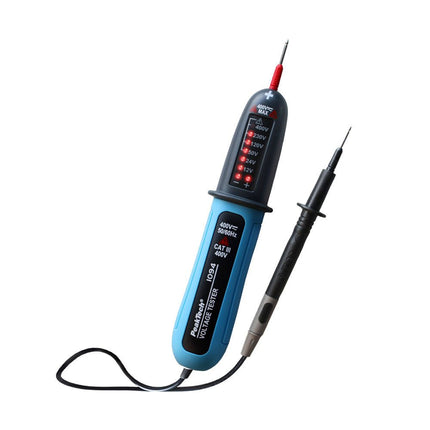

The PeakTech 1094 two-pole voltage tester is a reliable and practical tool for measuring voltages up to 400 V. It uses LED indicators to display voltage levels at 12 V, 24 V, 50 V, 120 V, 240 V, and 400 V. The device supports both AC and DC voltage measurements and automatically detects and displays polarity when measuring DC voltages – no manual switching between AC and DC is required.
This tester operates without batteries, ensuring it is always ready for use, even after extended periods of inactivity. With its IP54 protection rating, the PeakTech 1094 is robust and resistant to dust and splashing water, making it suitable for use in both indoor and outdoor environments.
Specifications
| DC Voltage (max.) |
400 V |
| AC Voltage (max.) |
400 V |
| Over voltage category |
CAT III 400 V |
| Accuracy |
-30% to 0% of the measured value |
| Voltage test |
Automatically |
| Polarity check |
Entire measuring range |
| Range selection |
Automatically |
| Response time |
<0.1s |
| AC Voltage frequency range |
50/60 Hz |
| Dimensions |
223 x 40 x 32 mm |
| Weight |
95 g |
