Description

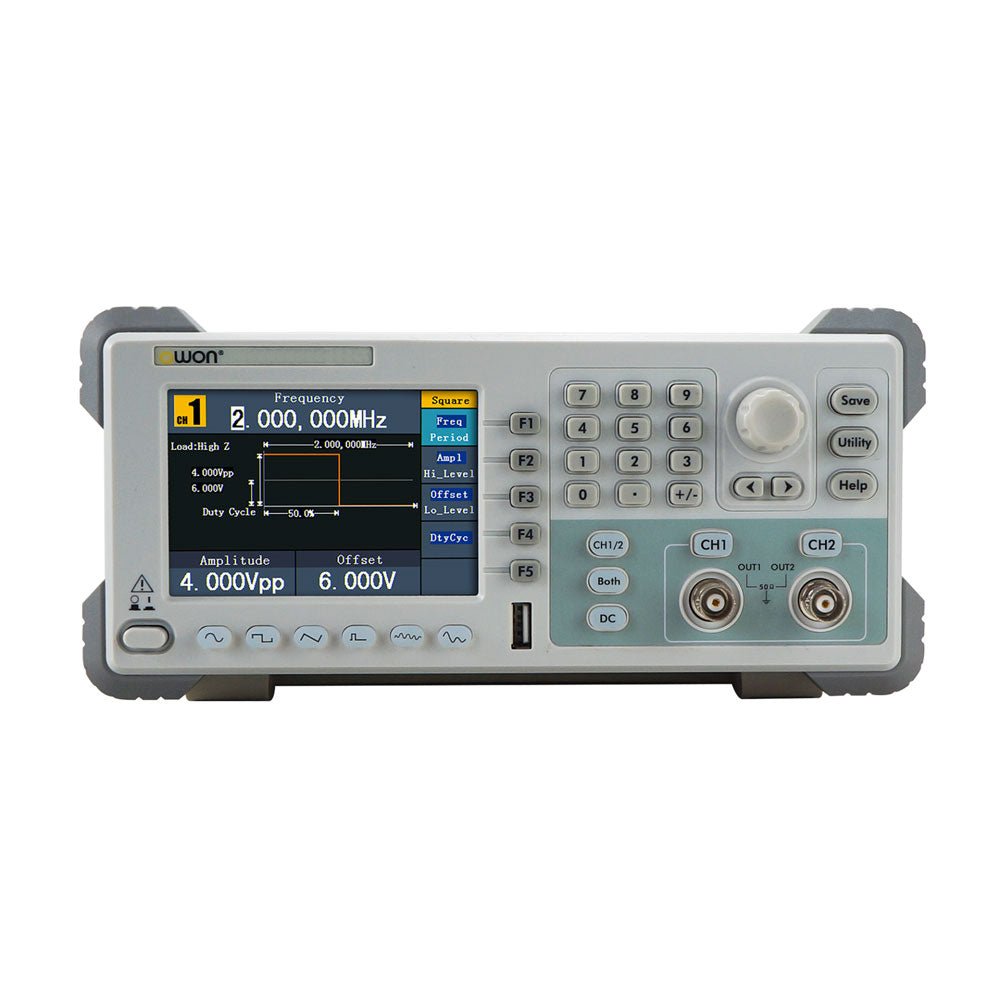

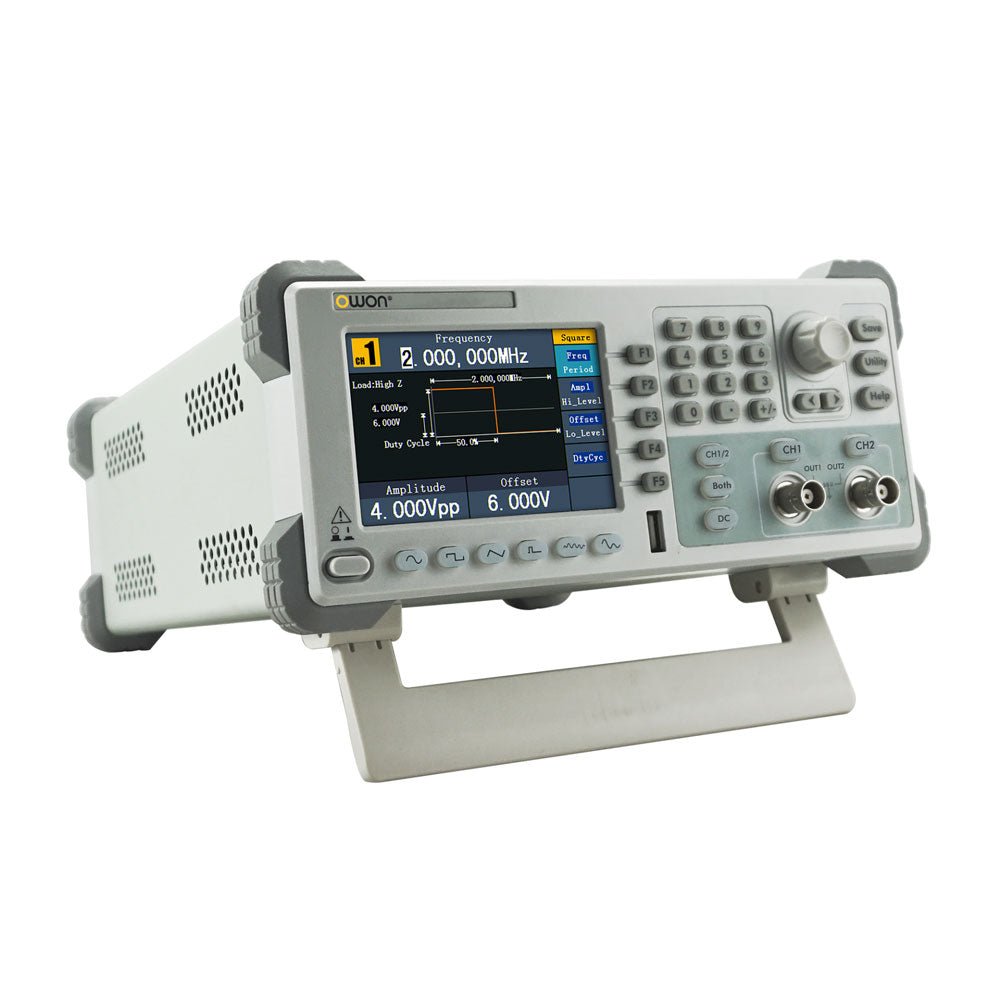

The OWON AG1022F is a 25 MHz dual-channel function generator with advanced DDS technology, offering a 125 MS/s sampling rate and 14-bit vertical resolution for precise signal generation. It supports a wide range of waveforms, including sine, square, saw-tooth, pulse, noise, sync, exponential rise/decay, and 32-channel digital waves. Additionally, it provides DC output and supports AM, FM, PM, FSK, and PWM modulation, making it a versatile tool for various testing and signal processing applications.
Features
- Advanced DDS technology, up to 25 MHz frequency output
- 125 MS/s sample rate, and 1 μHz frequency resolution
- Vertical Resolution: 14 bits, and 8K arb waveform length
- Comprehensive waveform output: 5 basic waveforms, and 45 built-in arbitrary waveforms
- Comprehensive modulation functions: AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
- SCPI, and LabVIEW supported
- 4-inch high resolution LCD (480 x 320)
Build-in 200 MHz hardware counter
6 bits/sec frequency rate, frequency measure ranges from 100 MHz ~ 200 MHz. Signal time, duty cycle and pulse width can be measured.
Specifications
| AG1022F |
| Channel |
Dual + Trigger |
| Frequency Output |
25 MHz |
| Sample Rate |
125 MS/s |
| Vertical Resolution |
14 bits |
| Standard Waveform |
Sine, Square, Pulse, Ramp, and Noise |
| Arbitrary Waveform |
Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform |
| Frequency (resolution 1 μHz) |
| Sine |
1 μHz – 25 MHz |
| Square |
1 μHz – 5 MHz |
| Pulse |
1 μHz – 5 MHz |
| Ramp |
1 μHz – 1 MHz |
| Noise |
25 MHz (-3 dB) (typical) |
| Arb |
1 μHz – 10 MHz |
| Amplitude |
| Amplitude |
1 mVpp – 10 Vpp (50 Ω), 1 mVpp – 20 Vpp (high impedance) |
| Resolution |
1 mVpp or 4 digits |
| DC Offset Range (AD+DC) |
±5 V (50 Ω), ±10 V (high impedance) |
| DC Offset Range Resolution |
1 mV or 4 digits |
| Load Impedance |
50 Ω (typical) |
| Arbitrary Waveform |
| Wave Length |
2 pts to 8K pts |
| Non-volatile Memory |
64 M byte |
| Modulation Waveform |
AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst |
| Modulation Frequency |
2 mHz to 20.00 KHz (FSK 2 mHz – 100 KHz) |
| Function |
Frequency, Period, +Width, -Width, +Duty, and -Duty |
| Frequency Range |
100 mHz ~ 200 MHz |
| Frequency Resolution |
6 digits/s |
| Input/Output |
| Display |
4 inch (480 x 320 pixels) LCD |
| Type |
Counter |
| External modulation input |
| External trigger input |
| External reference clock input / output |
| Dimensions |
235 x 110 x 295 mm |
| Weight |
3.0 kg |
Included
- 1x OWON AG1022F waveform generator
- 1x 220 V Power cable
- 1x USB Cable
- 1x BNC to BNC Cable
- 1x CD ROM
- 1x Quick start guide
