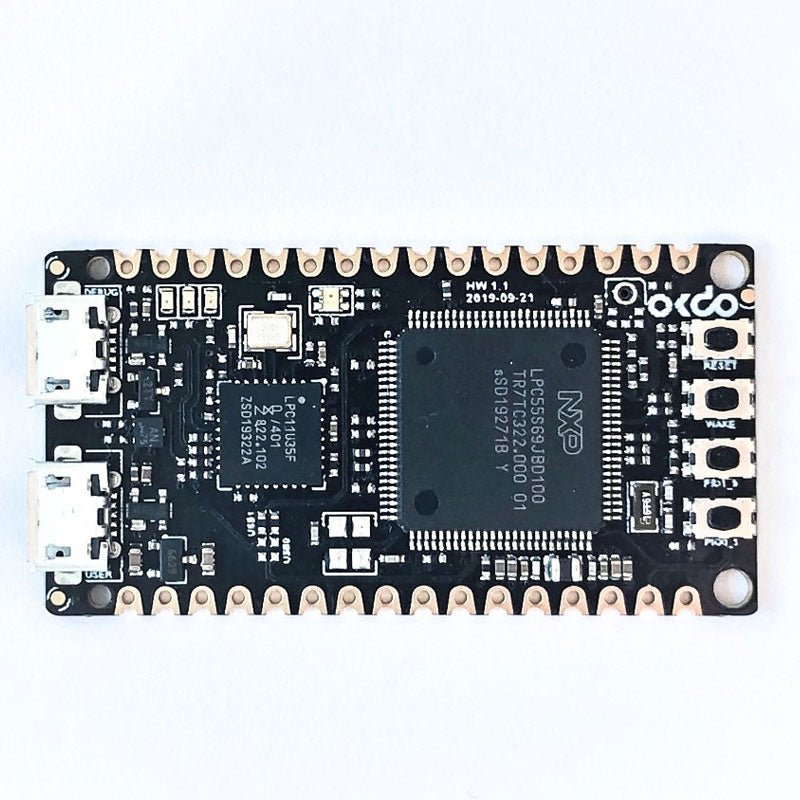

OKdo E1 Development Board

  • BrandFarnell element14

Description

The OKdo E1 is an ultra-low-cost Development Board based on the NXP LPC55S69JBD100 dual-core Arm Cortex-M33 microcontroller. The E1 board is perfect for Industrial IoT, building control and automation, consumer electronics, general embedded and secure applications.

Features

  • Processor with Arm TrustZone, Floating Point Unit (FPU) and Memory Protection Unit (MPU)
  • CASPER Crypto co-processor to enable hardware acceleration for certain asymmetric cryptographic algorithms
  • PowerQuad Hardware Accelerator for fixed and floating point DSP functions
  • SRAM Physical Unclonable Function (PUF) for key generation, storage and reconstruction
  • PRINCE module for real-time encryption and decryption of flash data
  • AES-256 and SHA2 engines
  • Up to Nine Flexcomm interfaces. Each Flexcomm interface can be selected by software to be a USART, SPI, I²C, and I²S interface
  • USB 2.0 High-Speed Host/Device controller with on-chip PHY
  • USB 2.0 Full-Speed Host/Device controller with on-chip PHY
  • Up to 64 GPIOs
  • Secure digital input/output (SD/MMC and SDIO) card interface

Specifications

  • LPC55S69JBD100 640kbyte flash microcontroller

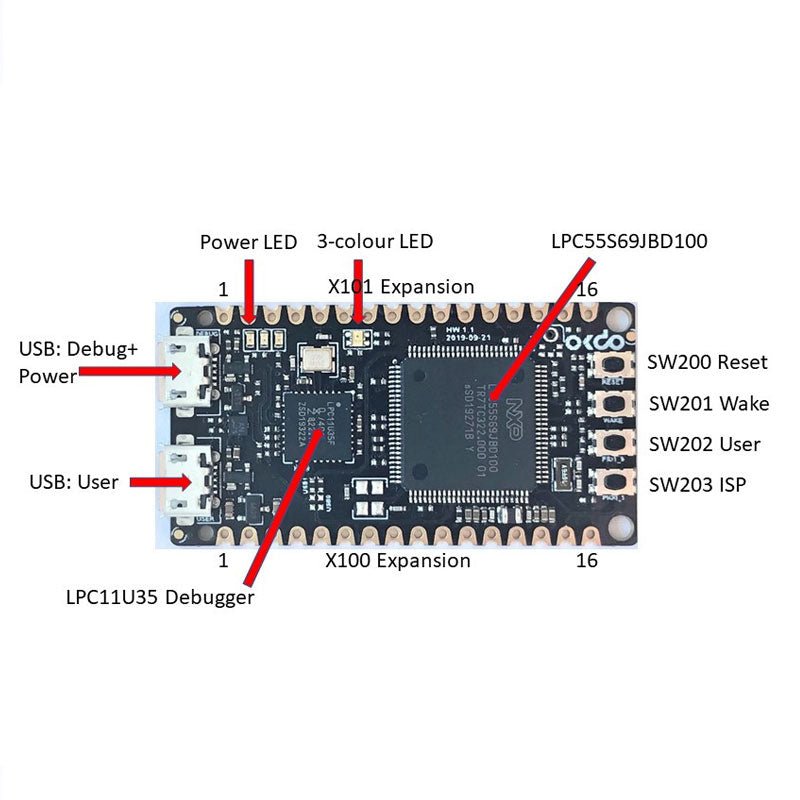

  • In-built CMSIS-DAP v1.0.7 debugger based on LPC11U35
  • Internal PLL support up to 100MHz operation, 16MHz can be mounted for full 150MHz operation.
  • SRAM 320kB
  • 32kHz crystal for real-time clock
  • 4 user switches
  • 3-colour LED
  • User USB connector

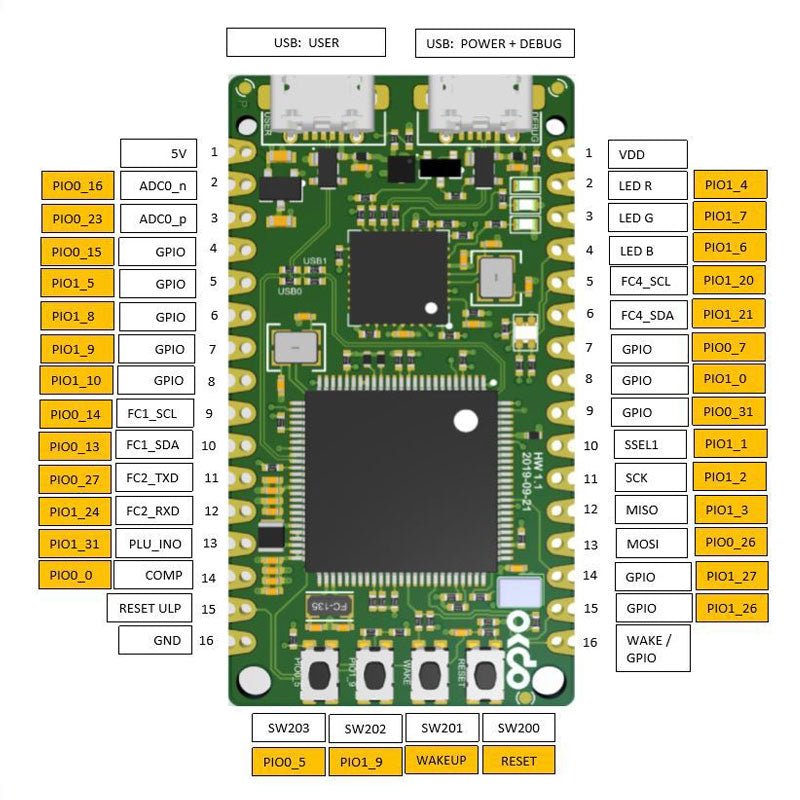

  • 2-off 16-way expansion connectors
  • UART over USB virtual COM port
Product form

The OKdo E1 is an ultra-low-cost Development Board based on the NXP LPC55S69JBD100 dual-core Arm Cortex-M33 microcontroller. The E1 board... Read more

No reviews

€ 24,95€ 19,95 incl. VAT
Members identical

      Details

      SKU: 19303
      EAN: 5056279182409

      Description

      The OKdo E1 is an ultra-low-cost Development Board based on the NXP LPC55S69JBD100 dual-core Arm Cortex-M33 microcontroller. The E1 board is perfect for Industrial IoT, building control and automation, consumer electronics, general embedded and secure applications.

      Features

      • Processor with Arm TrustZone, Floating Point Unit (FPU) and Memory Protection Unit (MPU)
      • CASPER Crypto co-processor to enable hardware acceleration for certain asymmetric cryptographic algorithms
      • PowerQuad Hardware Accelerator for fixed and floating point DSP functions
      • SRAM Physical Unclonable Function (PUF) for key generation, storage and reconstruction
      • PRINCE module for real-time encryption and decryption of flash data
      • AES-256 and SHA2 engines
      • Up to Nine Flexcomm interfaces. Each Flexcomm interface can be selected by software to be a USART, SPI, I²C, and I²S interface
      • USB 2.0 High-Speed Host/Device controller with on-chip PHY
      • USB 2.0 Full-Speed Host/Device controller with on-chip PHY
      • Up to 64 GPIOs
      • Secure digital input/output (SD/MMC and SDIO) card interface

      Specifications

      • LPC55S69JBD100 640kbyte flash microcontroller
      • In-built CMSIS-DAP v1.0.7 debugger based on LPC11U35
      • Internal PLL support up to 100MHz operation, 16MHz can be mounted for full 150MHz operation.
      • SRAM 320kB
      • 32kHz crystal for real-time clock
      • 4 user switches
      • 3-colour LED
      • User USB connector
      • 2-off 16-way expansion connectors
      • UART over USB virtual COM port
