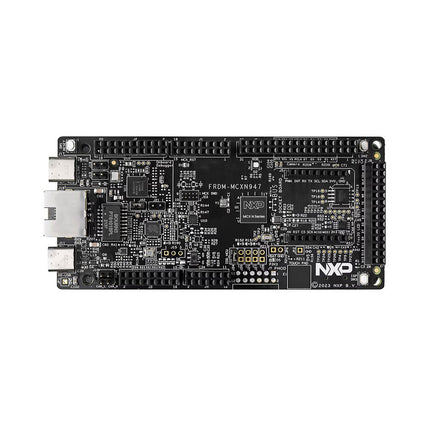

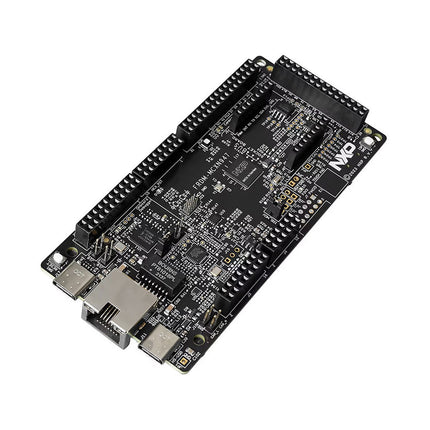

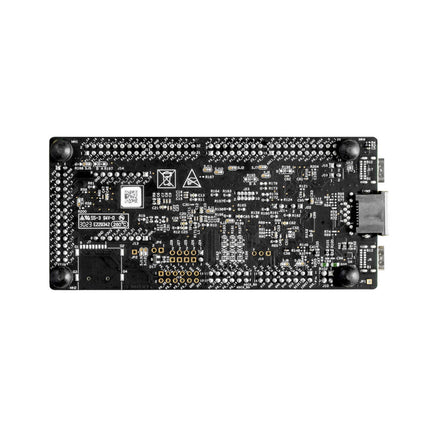

NXP FRDM-MCXN947 Development Board

  • BrandNXP Semiconductors

Description

The FRDM-MCXN947 is a compact and versatile development board designed for rapid prototyping with MCX N94 and N54 microcontrollers. It features industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory, and an onboard MCU-Link debugger.

Specifications

Microcontroller MCX-N947 Dual Arm Cortex-M33 cores @ 150 MHz each with optimized performance efficiency, up to 2 MB dual-bank flash with optional full ECC RAM, External flash
Accelerators: Neural Processing Unit, PowerQuad, Smart DMA, etc.
Memory Expansion *DNP Micro SD card socket
Connectivity Ethernet Phy and connector
HS USB-C connectors
SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
WiFi connector (PMOD/mikroBUS, DNP)
CAN-FD transceiver
Debug On-board MCU-Link debugger with CMSIS-DAP
JTAG/SWD connector
Sensor P3T1755 I³C/I²C Temp Sensor, Touch Pad
Expansion Options Arduino Header (with FRDM expansion rows)
FRDM Header
FlexIO/LCD Header
SmartDMA/Camera Header
Pmod *DNP
mikroBUS
User Interface RGB user LED, plus Reset, ISP, Wakeup buttons

Included

  • 1x FRDM-MCXN947 Development Board
  • 1x USB-C Cable
  • 1x Quick Start Guide

Downloads


Product form

The FRDM-MCXN947 is a compact and versatile development board designed for rapid prototyping with MCX N94 and N54 microcontrollers. It features... Read more

€ 29,95 incl. VAT
Members € 26,96

    • Ship today? Order within Jan 25, 2025 17:00:00 +0100

    Details

    SKU: 20957
    EAN: 935455837598

    Description

    The FRDM-MCXN947 is a compact and versatile development board designed for rapid prototyping with MCX N94 and N54 microcontrollers. It features industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory, and an onboard MCU-Link debugger.

    Specifications

    Microcontroller MCX-N947 Dual Arm Cortex-M33 cores @ 150 MHz each with optimized performance efficiency, up to 2 MB dual-bank flash with optional full ECC RAM, External flash
    Accelerators: Neural Processing Unit, PowerQuad, Smart DMA, etc.
    Memory Expansion *DNP Micro SD card socket
    Connectivity Ethernet Phy and connector
    HS USB-C connectors
    SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
    WiFi connector (PMOD/mikroBUS, DNP)
    CAN-FD transceiver
    Debug On-board MCU-Link debugger with CMSIS-DAP
    JTAG/SWD connector
    Sensor P3T1755 I³C/I²C Temp Sensor, Touch Pad
    Expansion Options Arduino Header (with FRDM expansion rows)
    FRDM Header
    FlexIO/LCD Header
    SmartDMA/Camera Header
    Pmod *DNP
    mikroBUS
    User Interface RGB user LED, plus Reset, ISP, Wakeup buttons

    Included

    • 1x FRDM-MCXN947 Development Board
    • 1x USB-C Cable
    • 1x Quick Start Guide
