Description
The ESP32-S3 Parallel TFT not only offers more SRAM and ROM (compared to the S2 version), but with Bluetooth 5.0 it is also suitable for applications such as local monitoring and controlling.
The built-in LCD driver ILI9488 uses 16-bit parallel lines to communicate with ESP32-S3, the main clock can be up to 20 MHz, which makes the display smooth enough for video displays. With this display, you can create more IoT display projects.
Features

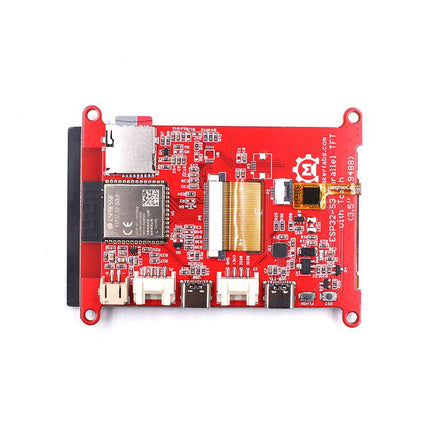

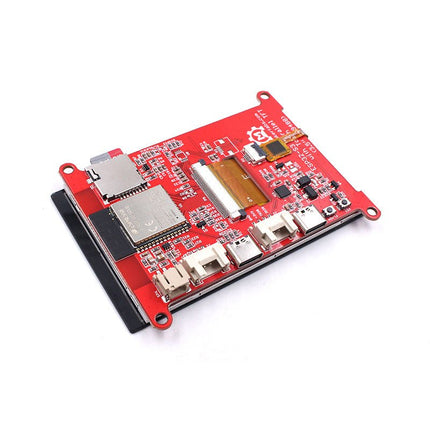

- Controller: ESP32-S3-WROOM-1, PCB Antenna, 16 MB Flash, 2 MB PSRAM, ESP32-S3-WROOM-1-N16R2
- Wireless: Wifi & Bluetooth 5.0

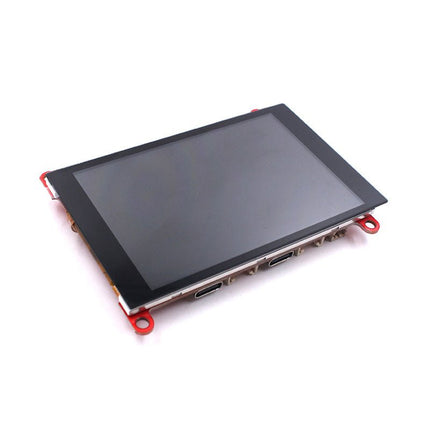

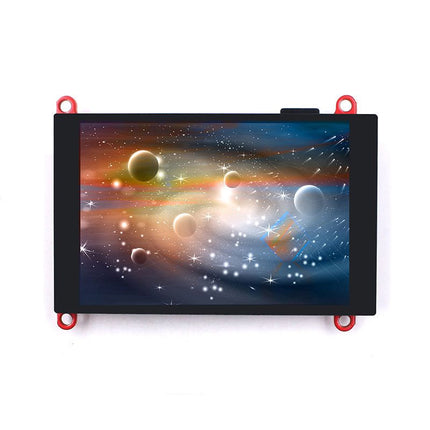

- LCD: 3.5-inch TFT LCD
- Resolution: 480x320
- Color: RGB
- LCD Interface: 16-bit parallel
- LCD Driver: ILI9488
- Touch Panel: Capacitive
- Touch Panel Driver: FT6236
- USB: Dual USB Type-C (one for USB-to-UART and one for native USB)
- UART to UART Chip: CP2104
- Power Supply: USB Type-C 5.0 V (4.0 V~5.25 V)
- Button: Flash button and reset button
- Mabee Interface: 1x I²C, 1x GPIO
- Backlight Controller: Yes
- MicroSD: Yes
- Arduino support: Yes
- Type-C Power Delivery: Not supported
- Operation temperature: -40℃ to +85℃
- Dimension: 66 x 84.3 x 12 mm
- Weight: 52 g
