Description

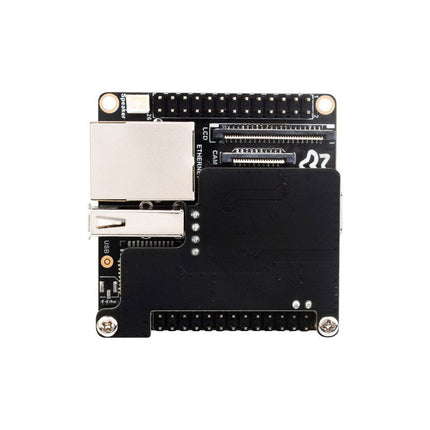

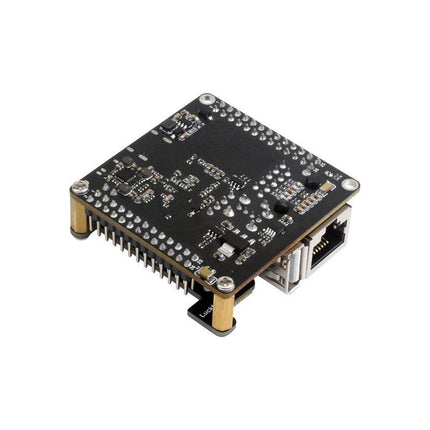

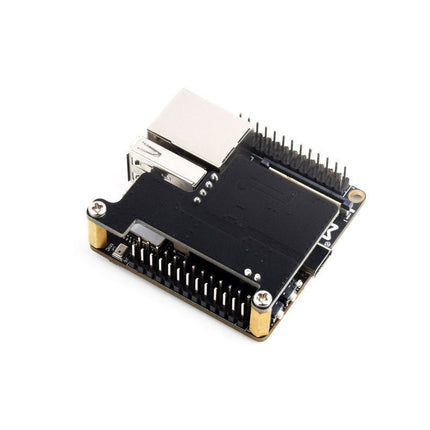

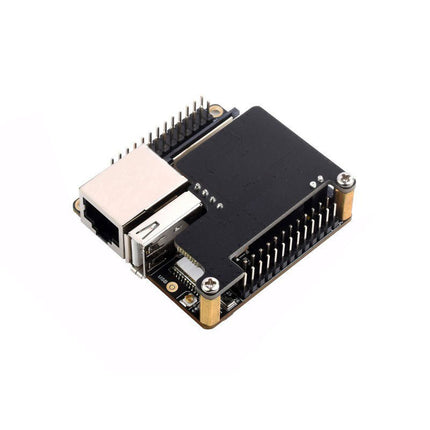

The LuckFox Pico Ultra is a compact single-board computer (SBC) powered by the Rockchip RV1106G3 chipset, designed for AI processing, multimedia, and low-power embedded applications.
It comes equipped with a built-in 1 TOPS NPU, making it ideal for edge AI workloads. With 256 MB RAM, 8 GB onboard eMMC storage, integrated WiFi, and support for the LuckFox PoE module, the board delivers both performance and versatility across a wide range of use cases.
Running Linux, the LuckFox Pico Ultra supports a variety of interfaces – including MIPI CSI, RGB LCD, GPIO, UART, SPI, I²C, and USB – providing a simple and efficient development platform for applications in smart home, industrial control, and IoT.
Specifications
| Chip |
Rockchip RV1106G3 |
| Processor |
Cortex-A7 1.2 GHz |
| Neural Network Processor (NPU) |
1 TOPS, supports int4, int8, int16 |
| Image Processor (ISP) |
Max input 5M @30fps |
| Memory |
256 MB DDR3L |
| WiFi + Bluetooth |
2.4GHz WiFi-6 Bluetooth 5.2/BLE |
| Camera Interface |
MIPI CSI 2-lane |
| DPI Interface |
RGB666 |
| PoE Interface |
IEEE 802.3af PoE |
| Speaker interface |
MX1.25 mm |
| USB |
USB 2.0 Host/Device |

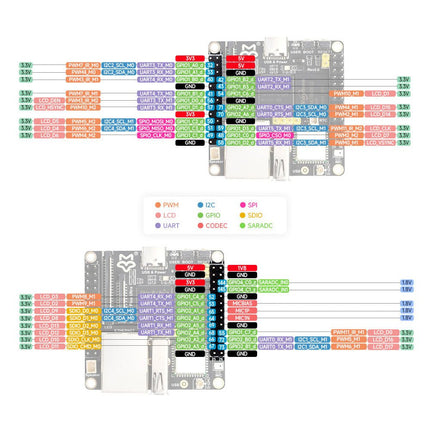

| GPIO |
30 GPIO pins |
| Ethernet |
10/100M Ethernet controller and embedded PHY |
| Default Storage Medium |
eMMC (8 GB) |
Included
- 1x LuckFox Pico Ultra W
- 1x LuckFox PoE module
- 1x IPX 2.4G 2 db antenna
- 1x USB-A to USB-C cable
- 1x Screws pack
Downloads
