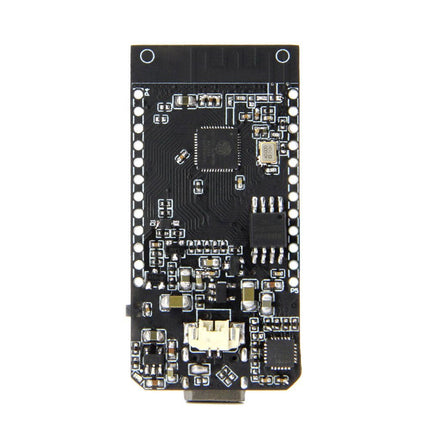

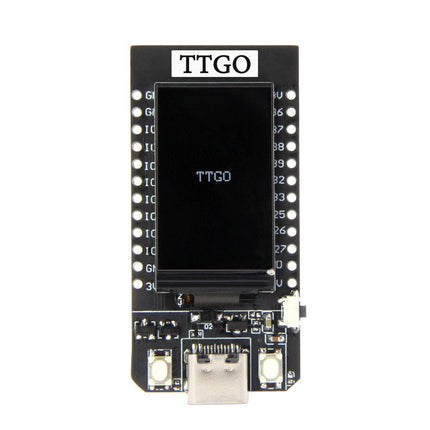

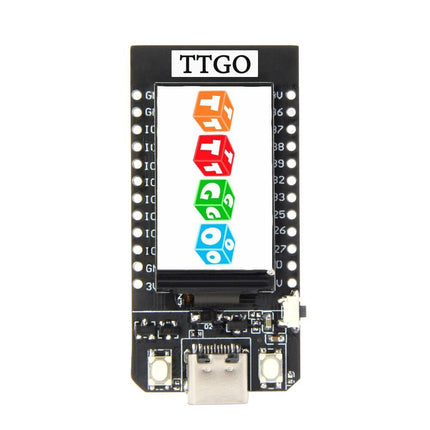

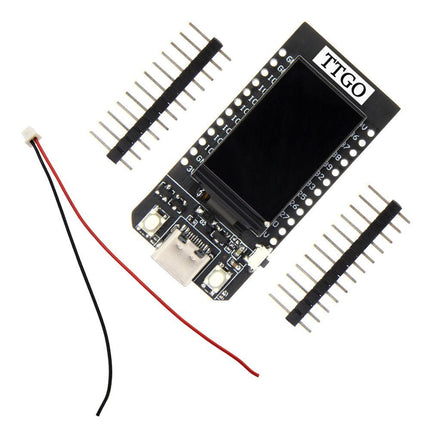

LILYGO T-Display ESP32 Development Board (16 MB)

BrandLILYGO

Product form

LILYGO T-Display ESP32 WiFi and Bluetooth Module Development Board 1.14-inch LCD Control BoardSpecifications Chipset Espressif-ESP32 240 MHz Xtensa single-/dual-core 32-bit... Read more

€ 24,95 incl. VAT

Members € 22,46

Details

SKU: 19774

EAN: 019774

Chipset	Espressif-ESP32 240 MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
Flash	QSPI flash 16 MB
SRAM	520 kB SRAM
Button	Reset
USB to TTL	CP2104
Modular interface	UART, SPI, SDIO, I²C, LED PWM, TV PWM, I²S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier
Display	IPS ST7789V 1.14 Inch
Working voltage	2.7-4.2 V
Working current	About 67 MA
Sleep current	About 350 uA
Working temperature range	-40°C ~ +85°C
Size & Weight	51.52 x 25.04 x 8.54 mm (7.81 g)
Power Supply	USB 5 V/1 A
Charging current	500 mA
Battery	3.7 V lithium battery
JST Connector	2-Pin 1.25 mm
USB	Type-C

Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip)
Protocol	802.11 b/g/n (802.11n, speed up to 150 Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency range	2.4~2.5 GHz (2400~2483.5 M)
Transmit Power	22 dBm
Communication distance	300 m

Protocol	Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	With -97 dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency

Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA (Through network/host to download and write firmware)
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, Android/iOS app
OS	FreeRTOS
