Description

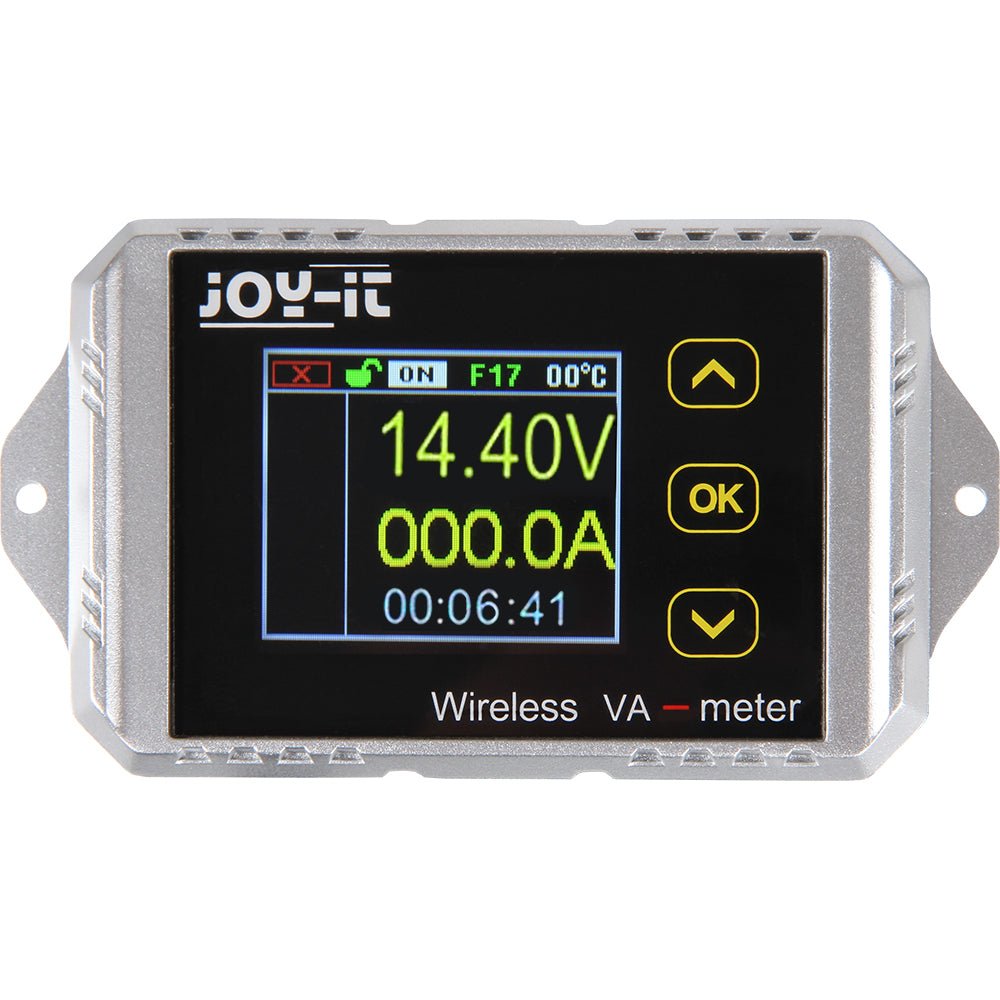

The JOY-iT VAX-1030 multifunction meter measures voltage, current, energy, power, temperature, real-time capacity, and charge/discharge durations in DC circuits.
The display can be connected to the measuring module either via a micro-USB cable or wirelessly via radio transmission.
A total of 26 communication channels allow multiple devices to communicate with the meter simultaneously.
The integrated relay offers overvoltage, undervoltage, and overcurrent protection. Additionally, the circuit can be manually disconnected.
Specifications
| Voltage Range |
0-100 V |
| Voltage Resolution |
0.01 V |
| Voltage Accuracy |
±2% - 3 Digit |
| Current Range |
1-30 A |
| Current Resolution |
0.01 A |
| Power Range |
0 W - 200 kW |
| Power Resolution |
0.001 W |
| Working Measuring Range |
0 W - 4000 kWh |
| Working Measuring Resolution |
0.001 Wh |
| Load Display Range |
0 Ah - 2000 kWh |
| Load Display Resolution |
0.001 Ah |
| Temperature Range |
-20-120 °C |
| Time Range |
0-99 days |
| Time Resolution |
1 sec |
| Negative Overcurrent Protection |
0 A - -300 A |
| Positive Overcurrent Protection |
0 A - 300 A |
| Overvoltage Protection (OVP) |
0 V - 100 V |
| Undervoltage Protection (LVP) |
0 V - 100 V |
| Protection Delay Time |
0 - 10 sec |
| Relays |
Internal |
| Communication Channels |
A-Z (26 channels) |
| Address Range |
01-99 |
| Communication Range |
Up to 10 m |
| Dimensions |
113.2 x 57.2 x 48.8 mm |
| Weight |
315 g |
