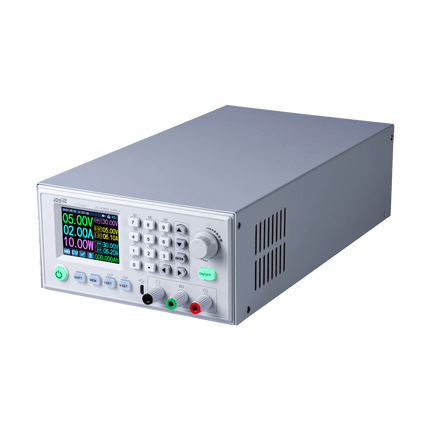

JOY-iT PS1440-C-Pro DC Power Supply with RS485 (1440 W)

  • BrandJOY-iT

Description

Limited-Time Introductory Offer!

With the JOY-iT PS1440-C-Pro, you get a programmable laboratory power supply that delivers DC voltages ranging from 0.01 to 60 V and DC currents from 0.01 to 24 A at the voltage output.

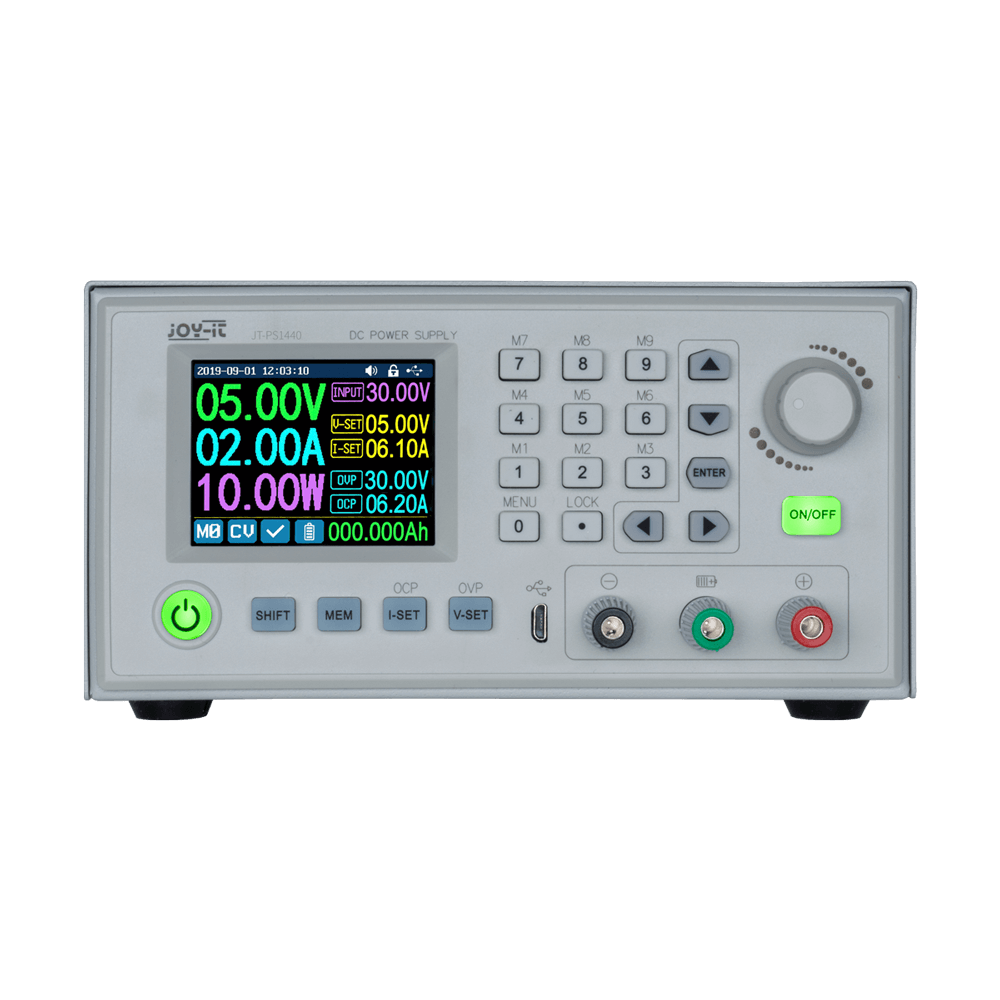

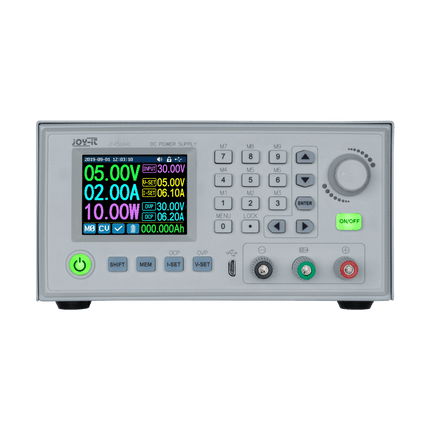

The intuitive control panel allows you to program, store, and recall up to 9 different DC voltage settings. You can also configure individual protection and limiting functions—such as overvoltage protection. All settings are easily adjusted via the keypad and/or rotary control and are clearly shown on the high-resolution 2.4" color display.

For enhanced connectivity, the PS1440-C-Pro includes an RS485 interface for robust, long-distance communication. This makes it ideal for complex setups where signal stability, noise immunity, and reliable data transfer are critical. The included connector ensures a secure connection, improving the overall reliability and performance of your laboratory equipment setup.

Features

  • Complete device ready for immediate use
  • RS485 interface
  • Battery charging function
  • Values can be entered conveniently via keypad
  • Over current & over voltage protection adjustable
  • Integrated RTC, NTC temperature sensor
  • Included detailed documentation in English, German & French

Specifications

Input voltage 230 V
Output voltage 060 V
Output current 0-24 A
Output power 0-1440 W
Input voltage accuracy ±1% +5 digits
Output voltage accuracy ±0.3% +3 digits
Output current accuracy ±0.5% +5 digits
Battery voltage ±0.5% +3 digits
Input voltage measurement resolution 0.01 V
Output voltage measurement resolution 0.01 V
Current measurement resolution 0.01 V
Battery voltage measurement resolution 0.01 V
Response time in constant voltage mode 2 ms @ 0.1-5 A
Load regulation in constant voltage mode ±0.1% +2 digits
Load regulation in constant current mode ±0.1% +3 digits
Measuring range electric charge 0-9999.99 Ah
Measuring range energy 0-9999.99 Wh
Statistical errors in electric charge & energy ±2%
Output ripple 100 mV VPP @ 12 V
150 mV VPP @ 24 V
Sensor temperature detection range −10~100°C (0-200°F)
Sensor temperature detection accuracy ±3°C (±6°F)
Working mode Step-down operation
Screen brightness setting Level 0-5, 6 levels in total
Permissible working temperature −10~40°C (0-104°F)
Dimensions 170 x 93 x 340 mm

Included

  • JOY-iT PS1440-C Power Supply
  • 2-pin connector for RS485 interface
  • Power cord
  • Manual

Downloads


Product form

Limited-Time Introductory Offer! With the JOY-iT PS1440-C-Pro, you get a programmable laboratory power supply that delivers DC voltages ranging from 0.01 to... Read more

Pre-order

€ 499,00 € 399,00 (incl. VAT)
Members identical

    Details

    SKU: 21278
    EAN: 4250236829661

    Description

    Limited-Time Introductory Offer!

    With the JOY-iT PS1440-C-Pro, you get a programmable laboratory power supply that delivers DC voltages ranging from 0.01 to 60 V and DC currents from 0.01 to 24 A at the voltage output.

    The intuitive control panel allows you to program, store, and recall up to 9 different DC voltage settings. You can also configure individual protection and limiting functions—such as overvoltage protection. All settings are easily adjusted via the keypad and/or rotary control and are clearly shown on the high-resolution 2.4" color display.

    For enhanced connectivity, the PS1440-C-Pro includes an RS485 interface for robust, long-distance communication. This makes it ideal for complex setups where signal stability, noise immunity, and reliable data transfer are critical. The included connector ensures a secure connection, improving the overall reliability and performance of your laboratory equipment setup.

    Features

    • Complete device ready for immediate use
    • RS485 interface
    • Battery charging function
    • Values can be entered conveniently via keypad
    • Over current & over voltage protection adjustable
    • Integrated RTC, NTC temperature sensor
    • Included detailed documentation in English, German & French

    Specifications

    Input voltage 230 V
    Output voltage 060 V
    Output current 0-24 A
    Output power 0-1440 W
    Input voltage accuracy ±1% +5 digits
    Output voltage accuracy ±0.3% +3 digits
    Output current accuracy ±0.5% +5 digits
    Battery voltage ±0.5% +3 digits
    Input voltage measurement resolution 0.01 V
    Output voltage measurement resolution 0.01 V
    Current measurement resolution 0.01 V
    Battery voltage measurement resolution 0.01 V
    Response time in constant voltage mode 2 ms @ 0.1-5 A
    Load regulation in constant voltage mode ±0.1% +2 digits
    Load regulation in constant current mode ±0.1% +3 digits
    Measuring range electric charge 0-9999.99 Ah
    Measuring range energy 0-9999.99 Wh
    Statistical errors in electric charge & energy ±2%
    Output ripple 100 mV VPP @ 12 V
    150 mV VPP @ 24 V
    Sensor temperature detection range −10~100°C (0-200°F)
    Sensor temperature detection accuracy ±3°C (±6°F)
    Working mode Step-down operation
    Screen brightness setting Level 0-5, 6 levels in total
    Permissible working temperature −10~40°C (0-104°F)
    Dimensions 170 x 93 x 340 mm

    Included

    • JOY-iT PS1440-C Power Supply
    • 2-pin connector for RS485 interface
    • Power cord
    • Manual
