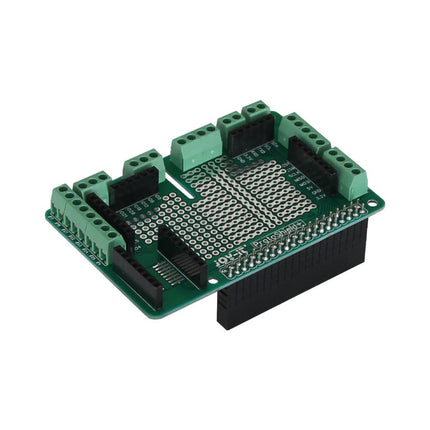

JOY-iT ProtoShield+ for Raspberry Pi

  • BrandJOY-iT

Description

With our Proto+ prototype circuit board your own designs and projects can be implemented easily. The board is equipped with all popular connectors and also has a built-in breadboard for quick implementation of your ideas and developments.

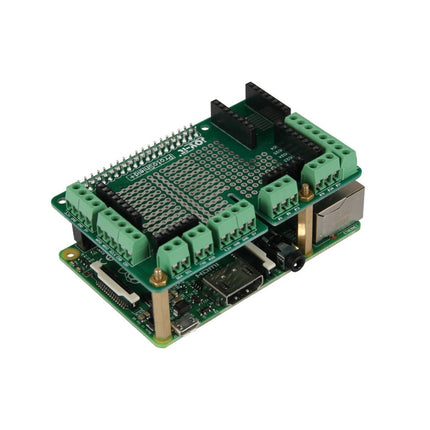

The built-in GPIO bar allows the expansion board to be easily plugged onto a Raspberry Pi and can be used immediately. The supplied screws and spacers allow the PCB to be connected directly to the Raspberry Pi. The screw terminals are already installed and facilitate the use and fast experimenting.

MODEL

  • Proto+ Prototyp-Board

AVAILABLE CONNECTIONS

  • GPIO (40-pole), SOIC16, Breadboard, 2x 3,3V, 2x 5V, UART, I2C, SPI

NOTICE

  • The outter screw terminals are connected to the GPIO connectors.

COMPATIBLE TO

  • Raspberry Pi B+, 2, 3

DIMENSIONS

  • 55 x 85 mm

WEIGHT

  • 44 g

ITEMS SHIPPED

  • Proto+ Board, Screws, Spacers

EAN

  • 4250236814797

ARTICLE NO.

  • RB-Proto+
Product form

With our Proto+ prototype circuit board your own designs and projects can be implemented easily. The board is equipped with... Read more

€ 11,95 incl. VAT
Members € 10,76

    • Ship today? Order within Jul 21, 2024 17:00:00 +0200

    Details

    SKU: 19380
    EAN: 4250236814797

    Description

    With our Proto+ prototype circuit board your own designs and projects can be implemented easily. The board is equipped with all popular connectors and also has a built-in breadboard for quick implementation of your ideas and developments.
    The built-in GPIO bar allows the expansion board to be easily plugged onto a Raspberry Pi and can be used immediately. The supplied screws and spacers allow the PCB to be connected directly to the Raspberry Pi. The screw terminals are already installed and facilitate the use and fast experimenting.

    MODEL

    • Proto+ Prototyp-Board

    AVAILABLE CONNECTIONS

    • GPIO (40-pole), SOIC16, Breadboard, 2x 3,3V, 2x 5V, UART, I2C, SPI

    NOTICE

    • The outter screw terminals are connected to the GPIO connectors.

    COMPATIBLE TO

    • Raspberry Pi B+, 2, 3

    DIMENSIONS

    • 55 x 85 mm

    WEIGHT

    • 44 g

    ITEMS SHIPPED

    • Proto+ Board, Screws, Spacers

    EAN

    • 4250236814797

    ARTICLE NO.

    • RB-Proto+
