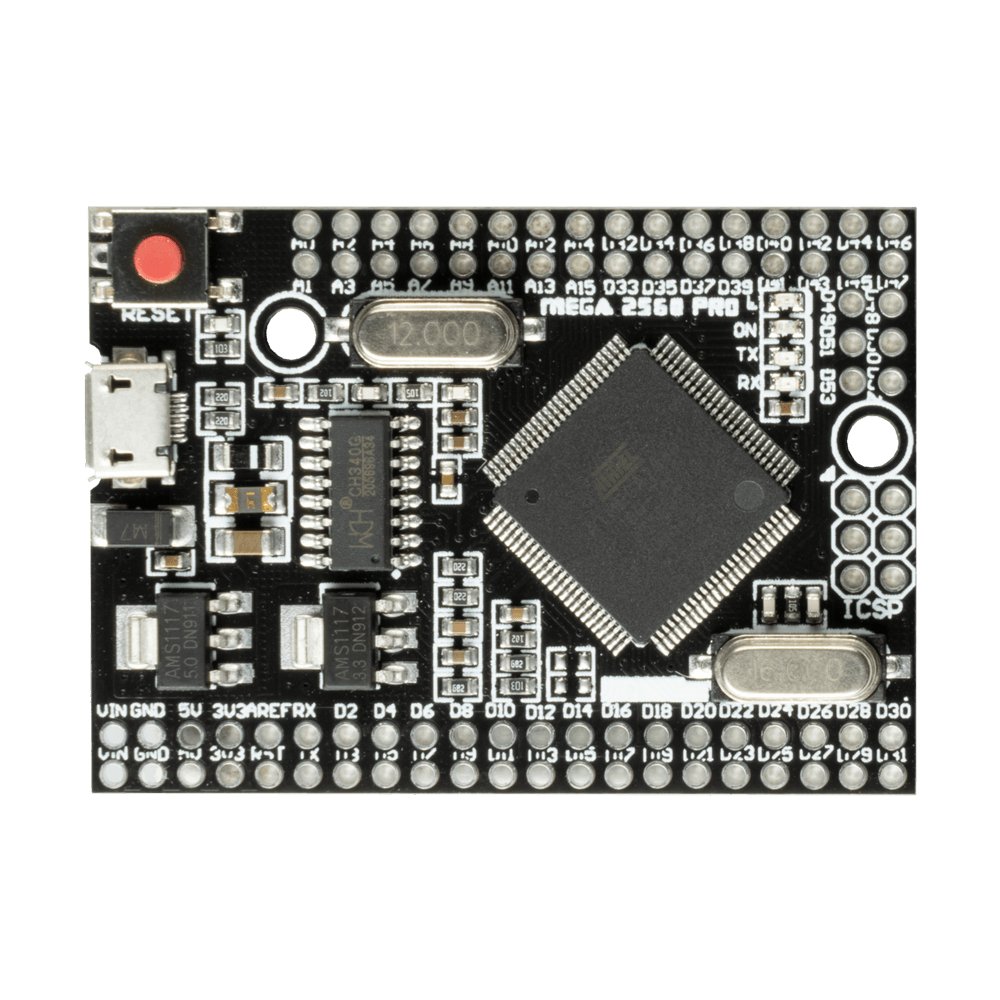

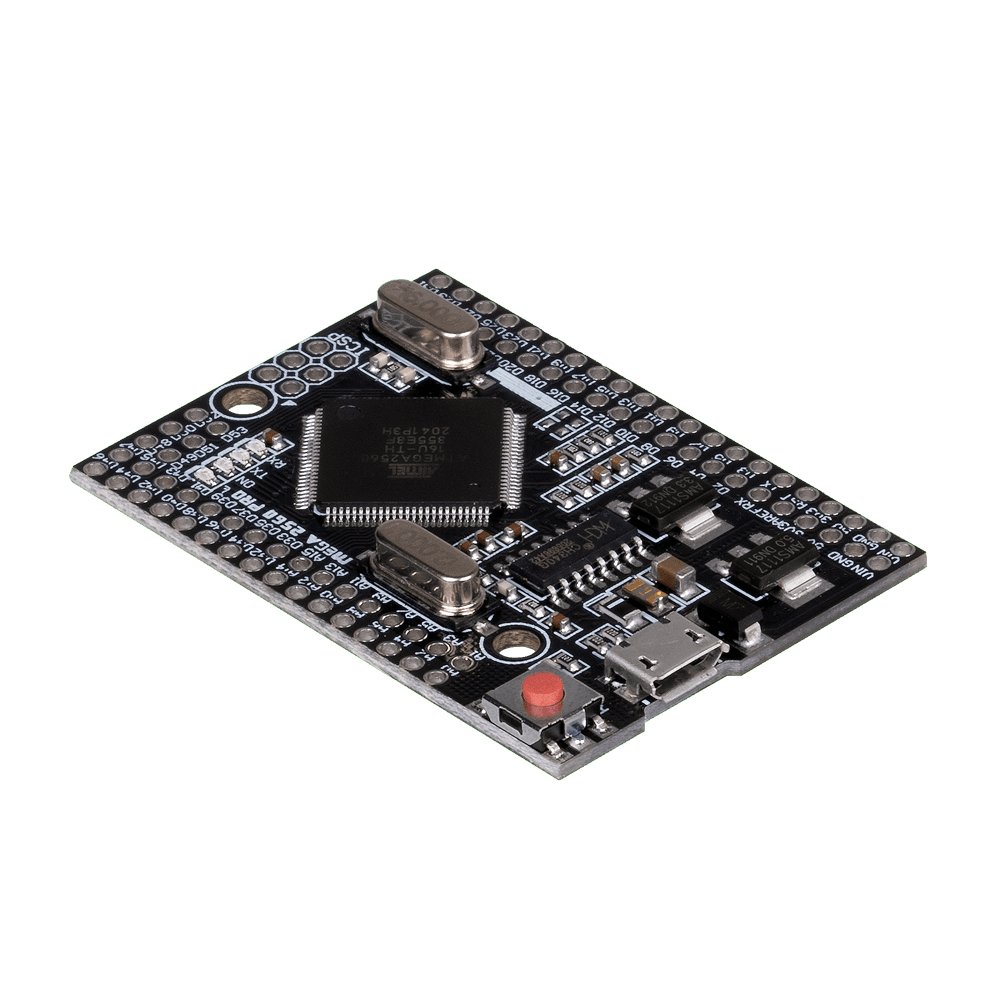

JOY-iT Mega 2560 Pro

  • BrandJOY-iT

Description

This JOY-iT microcontroller board opens the world of programming to you and offers you the same computing power as the Mega 2560, but with a smaller foot-print. It also has many more connectors than comparable boards (Arduino Uno). It is powered by the Arduino IDE and power can be supplied either via the USB port or the VIN pins. This allows you to use it safely with many other devices, e.g. desktop PC. Therefore the Mega 2560 Pro is highly integrable.

Features

Microcontroller ATmega2560 - 16AU
Storage Flash 256 KB, SRAM 8 KB, EEPRom 4 KB
Amount of Pins:
Digital I/O
PWM Output
Analog Input

54
15
16
Compatible with Arduino, Desktop PCs, etc.
Special features USB Port or Power Pins for power supply
Interface converter Micro USB to USB UART
Size 55 x 38 mm

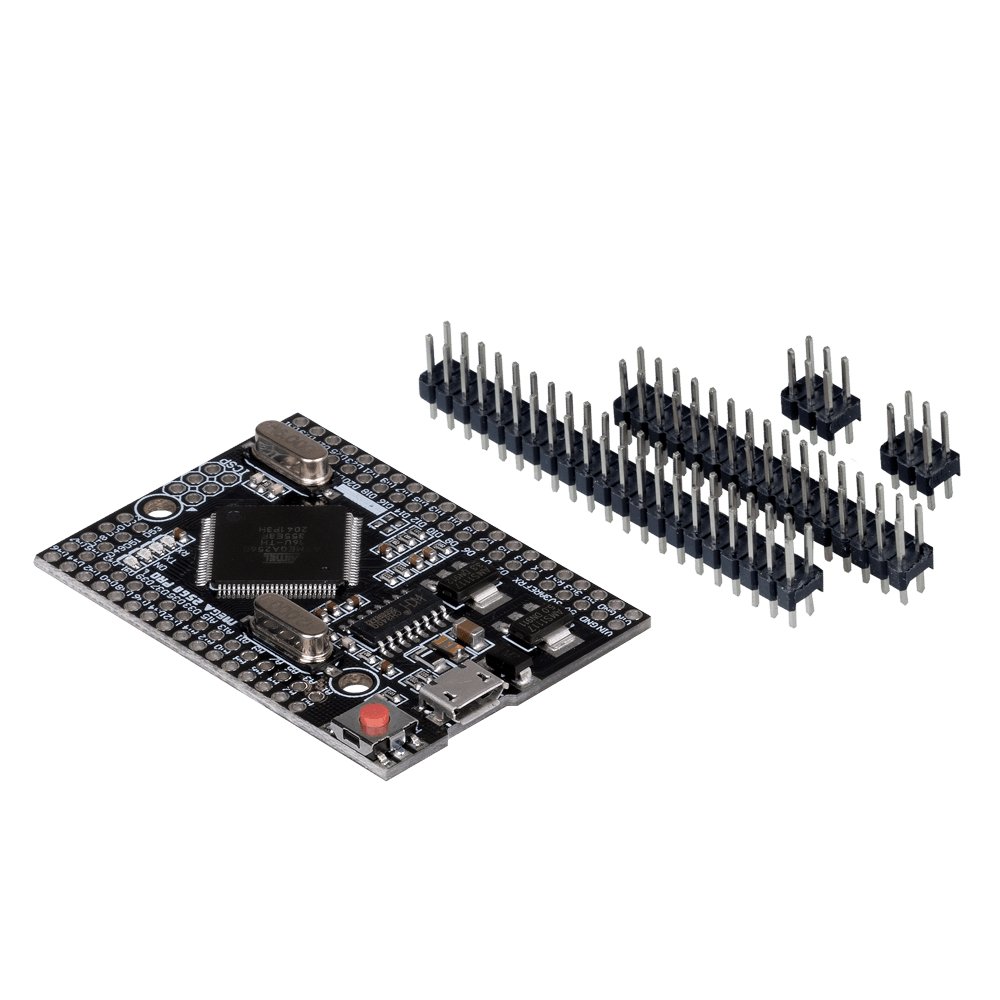

Items delivered JOY-iT Mega 2560 Pro with Pins

Further Specifications

Input Voltage 7 - 9 Volt on Vin, 5 Volt on mUSB
Logic level 5 Volt
Output current 800 mA
Voltage regulator LDO (for up to 12 V peak)
Frequency 16 MHz (12 MHz are possible for data exchange)

Download

Product form

This JOY-iT microcontroller board opens the world of programming to you and offers you the same computing power as the... Read more

€ 29,95 incl. VAT
Members € 26,96

    • Ship today? Order within Nov 04, 2024 17:00:00 +0100

    Details

    SKU: 19710
    EAN: 4250236820279

    Description

    This JOY-iT microcontroller board opens the world of programming to you and offers you the same computing power as the Mega 2560, but with a smaller foot-print. It also has many more connectors than comparable boards (Arduino Uno). It is powered by the Arduino IDE and power can be supplied either via the USB port or the VIN pins. This allows you to use it safely with many other devices, e.g. desktop PC. Therefore the Mega 2560 Pro is highly integrable.

    Features

    Microcontroller ATmega2560 - 16AU
    Storage Flash 256 KB, SRAM 8 KB, EEPRom 4 KB
    Amount of Pins:
    Digital I/O
    PWM Output
    Analog Input

    54
    15
    16
    Compatible with Arduino, Desktop PCs, etc.
    Special features USB Port or Power Pins for power supply
    Interface converter Micro USB to USB UART
    Size 55 x 38 mm
    Items delivered JOY-iT Mega 2560 Pro with Pins

    Further Specifications

    Input Voltage 7 - 9 Volt on Vin, 5 Volt on mUSB
    Logic level 5 Volt
    Output current 800 mA
    Voltage regulator LDO (for up to 12 V peak)
    Frequency 16 MHz (12 MHz are possible for data exchange)

    Download
