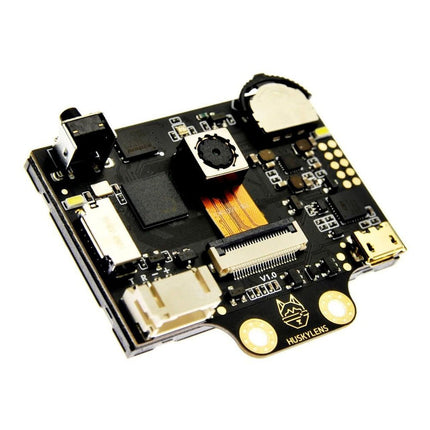

HuskyLens AI Camera

Description

Do you need a simple AI camera to enhance your projects?

The HuskyLens AI Camera intuitive design allows the user to control different aspects of the camera just by pressing buttons. You can start and stop learning new objects and even switch between algorithms from the device.

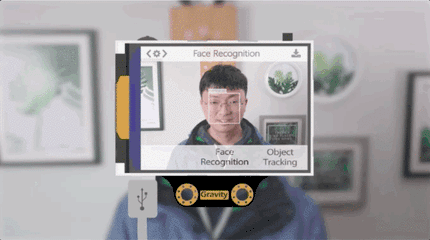

To further reduce the need to be connected to a PC the HuskyLens AI Camera comes with a 2-inch display so you can see what's going on in real time.

Specifications

  • Processor: Kendryte K210
  • Image Sensor: OV2640 (2.0 Megapixel Camera)
  • Supply Voltage: 3.3~5.0 V
  • Current Consumption (TYP): 320 mA @ 3.3 V, 230 mA @ 5.0 V (face recognition mode; 80% backlight brightness; fill light off)
  • Connection Interface: UART, I²C
  • Display: 2.0-inch IPS screen with 320x240 resolution
  • Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition
  • Dimension: 52 x 44.5 mm (2.05 x 1.75')

Included

  • 1x HuskyLens Mainboard
  • 6x M3 Screws
  • 6x M3 Nuts
  • 1x Small Mounting Bracket
  • 1x Heightening Bracket
  • 1x Gravity 4-Pin Sensor Cable
Product form

Do you need a simple AI camera to enhance your projects?  The HuskyLens AI Camera intuitive design allows the user... Read more

€ 89,95 incl. VAT
Members € 80,96

    • Ship today? Order within Jul 15, 2024 17:00:00 +0200

    Details

    SKU: 19248
    EAN: 019248

    Description

    Do you need a simple AI camera to enhance your projects?

    The HuskyLens AI Camera intuitive design allows the user to control different aspects of the camera just by pressing buttons. You can start and stop learning new objects and even switch between algorithms from the device.

    To further reduce the need to be connected to a PC the HuskyLens AI Camera comes with a 2-inch display so you can see what's going on in real time.

    Specifications

    • Processor: Kendryte K210
    • Image Sensor: OV2640 (2.0 Megapixel Camera)
    • Supply Voltage: 3.3~5.0 V
    • Current Consumption (TYP): 320 mA @ 3.3 V, 230 mA @ 5.0 V (face recognition mode; 80% backlight brightness; fill light off)
    • Connection Interface: UART, I²C
    • Display: 2.0-inch IPS screen with 320x240 resolution
    • Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition
    • Dimension: 52 x 44.5 mm (2.05 x 1.75')

    Included

    • 1x HuskyLens Mainboard
    • 6x M3 Screws
    • 6x M3 Nuts
    • 1x Small Mounting Bracket
    • 1x Heightening Bracket
    • 1x Gravity 4-Pin Sensor Cable
