Description
The DSO510 oscilloscope was designed for complex signal testing, research, and development. Ideal for professionals and educational use, it ensures precise measurements with ease.
With a 48 MS/s real-time sampling rate and 10 MHz bandwidth, it supports both analog and digital signals. Its complete trigger modes (Single, Normal, Auto) and ±400 V voltage range deliver reliable accuracy. The one-click AUTO mode simplifies waveform display.
A built-in 50 KHz signal generator adds versatility, while the 2.8-inch HD LCD screen and 1000 mAh battery provide clear visuals and up to 4 hours of use.
Features
- Oscilloscope: 10 MHz bandwidth, 48 MS/s sampling rate, ±400 V voltage range.
- Signal Generator: 50 KHz
- Display: 2.8" HD TFT (320 x 240)
- Interface: USB-C
- Design: Fully assembled, lightweight, ideal for maintenance tasks.
- Trigger Functions: Single, normal, automatic modes.
- Signal Support: Handles periodic analog and non-periodic digital signals.
- One-Click AUTO Mode: Instantly displays waveforms without complex setup.
- Battery: Built-in 1000 mAh lithium battery with up to 4 hours of usage per charge.
- Language Support: English, German, Spanish, Portuguese, Russian, Chinese, Korean, Japanese.
Specifications
| Channel |
1 |
| Bandwidth |
10 MHz |
| Sampling Rate |
48 MS/s |
| Vertical Sensitivity |
10 mV/Div-20 V/Div |
| Time Base Range |
50 ns/Div-20 s/Div |
| Measurement Values |
22 kinds |
| Trigger Mode |
Auto/Normal/Single |
| Voltage Range |
X1: ±40 V (Vpp: 80 V)
X10: ±400 V (Vpp: 800 V) |
| Trigger Edge |
Rising/Falling |
| Coupling |
AC/DC |
| Frequency |
0-50 KHz |
| Duty Cycle |
0-100% (rectangular and sawtooth waves) |
| Amplitude |
0.1-3.0 V |
| Waveforms |
Sine, rectangular, sawtooth, half, full, step, anti step, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz. |
| Display |
2.8-inch (320 x 240 pixels) |
| USB Charging |
5 V/1 A |
| Lithium Battery Capacity |
1000 mAh |
| Dimensions |
99 x 68.3 x 19.5 mm |
| Weight |
104 g |

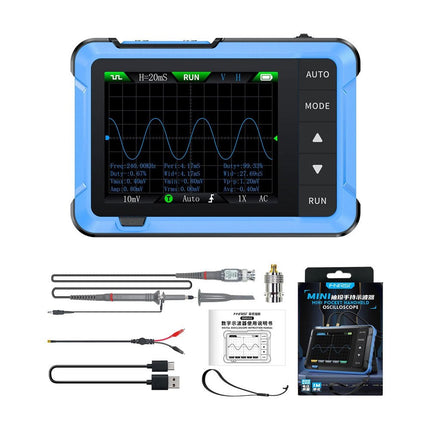

Included
- 1x FNIRSI DSO510 Oscilloscope
- 1x P6100 oscilloscope probe
- 1x Adapter
- 1x Alligator clip probe
- 1x USB charging cable
- 1x Lanyard
- 1x Manual
