FNIRSI 2C23T (3-in-1) 2-ch Oscilloscope (10 MHz) + Multimeter + Signal Generator

  • BrandFNIRSI

Description

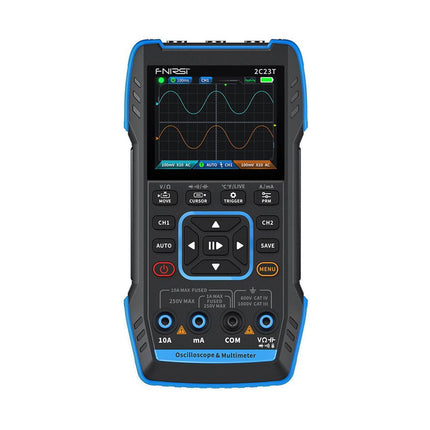

The FNIRSI 2C23T is a fully functional, highly practical 3-in-1 dual channel digital oscilloscope with a high resolution 2.8-inch LCD display (320 x 240 pixels) designed for the maintenance and development industry.

This device is equipped with 3 main functions: oscilloscope, multimeter and signal generator.

The oscilloscope has an FPGA+MCU+ADC hardware architecture with a sampling rate of 50 MS/s, an analog bandwidth of 10 MHz and a built-in high-voltage protection module that supports the measurement of peak voltages of ±400 V maximum.

The multimeter has a 4-digit 10000-point RMS value and supports AC/DC voltage and current measurements, as well as capacitance, resistance, diode, on/off and other measurement functions.

Equipped with a built-in DDS function signal generator, it can output 7 kinds of function signals, with a maximum output of 2 MHz for all signals and a step of 1 Hz; the output frequency, amplitude and duty cycle are adjustable.

The built-in 3000 mAh rechargeable lithium battery achieves a standby time of up to 6 hours.

Features

  • 2-ch oscilloscope
  • 10 MHz bandwidth
  • 50 MS/s real-time sampling rate
  • 7 signal waveforms
  • 10000 counts
  • 2.8' HD color display (320 x 240 pixels)
  • Dimensions: 167 x 89 x 35 mm
  • Weight: 300 g

Specifications

Oscilloscope

  • Dual channel, 2x 10 MHz bandwidth, 50 MS/s real-time sampling rate
  • Maximum measured voltage: ±400 V
  • FPGA+ADC+MCU high-performance hardware architecture, capturing waveform details without loss
  • Equipped with complete triggering functions (auto, single, normal)
  • Equipped with efficient automatic adjustment, the measured waveform can be displayed without complicated adjustment
  • Save waveform screenshots, supports exporting images to a computer, facilitate secondary waveform analysis

Multimeter

  • 4-bit integer 9999 counting True RMS measurement
  • Identification of voltage, current, capacitance, resistance, diode, on/off, and zero live wire
  • Maximum input voltage: AC 750 V, DC 1000 V
  • Automatic range, intelligent anti burning
  • Data retention, color screen digital display

Signal Generator

  • 7 signal waveforms: sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC
  • Output frequency: 1 Hz-2 MHz
  • Output amplituade: 0.1-3.3 V
  • Output duty cycle: 0-100%

Included

  • 1x FNIRSI 2C23T (3-in-1) 2-ch Oscilloscope
  • 1x P6100 oscilloscope probes (10X)
  • 1x Multimeter probe
  • 1x Crocodile clip probe
  • 1x USB-C charging cable
  • 1x Original Manual by FNIRSI (English, German, Spanish, Portuguese, Russian, Chinese)
  • 1x Elektor Manual (English, French, German, Dutch)

Downloads


Product form

The FNIRSI 2C23T is a fully functional, highly practical 3-in-1 dual channel digital oscilloscope with a high resolution 2.8-inch LCD... Read more

€ 94,95€ 74,95 incl. VAT
Members identical

      Details

      SKU: 20717
      EAN: 020717
      Language: English, Deutsch, Français, Nederlands
      Pages: 126 (Elektor Manual)
      Format: 14.8 x 21 cm (Paperback)

      Description

      The FNIRSI 2C23T is a fully functional, highly practical 3-in-1 dual channel digital oscilloscope with a high resolution 2.8-inch LCD display (320 x 240 pixels) designed for the maintenance and development industry.

      This device is equipped with 3 main functions: oscilloscope, multimeter and signal generator.

      The oscilloscope has an FPGA+MCU+ADC hardware architecture with a sampling rate of 50 MS/s, an analog bandwidth of 10 MHz and a built-in high-voltage protection module that supports the measurement of peak voltages of ±400 V maximum.

      The multimeter has a 4-digit 10000-point RMS value and supports AC/DC voltage and current measurements, as well as capacitance, resistance, diode, on/off and other measurement functions.

      Equipped with a built-in DDS function signal generator, it can output 7 kinds of function signals, with a maximum output of 2 MHz for all signals and a step of 1 Hz; the output frequency, amplitude and duty cycle are adjustable.

      The built-in 3000 mAh rechargeable lithium battery achieves a standby time of up to 6 hours.

      Features

      • 2-ch oscilloscope
      • 10 MHz bandwidth
      • 50 MS/s real-time sampling rate
      • 7 signal waveforms
      • 10000 counts
      • 2.8' HD color display (320 x 240 pixels)
      • Dimensions: 167 x 89 x 35 mm
      • Weight: 300 g

      Specifications

      Oscilloscope

      • Dual channel, 2x 10 MHz bandwidth, 50 MS/s real-time sampling rate
      • Maximum measured voltage: ±400 V
      • FPGA+ADC+MCU high-performance hardware architecture, capturing waveform details without loss
      • Equipped with complete triggering functions (auto, single, normal)
      • Equipped with efficient automatic adjustment, the measured waveform can be displayed without complicated adjustment
      • Save waveform screenshots, supports exporting images to a computer, facilitate secondary waveform analysis

      Multimeter

      • 4-bit integer 9999 counting True RMS measurement
      • Identification of voltage, current, capacitance, resistance, diode, on/off, and zero live wire
      • Maximum input voltage: AC 750 V, DC 1000 V
      • Automatic range, intelligent anti burning
      • Data retention, color screen digital display

      Signal Generator

      • 7 signal waveforms: sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC
      • Output frequency: 1 Hz-2 MHz
      • Output amplituade: 0.1-3.3 V
      • Output duty cycle: 0-100%

      Included

      • 1x FNIRSI 2C23T (3-in-1) 2-ch Oscilloscope
      • 1x P6100 oscilloscope probes (10X)
      • 1x Multimeter probe
      • 1x Crocodile clip probe
      • 1x USB-C charging cable
      • 1x Original Manual by FNIRSI (English, German, Spanish, Portuguese, Russian, Chinese)
      • 1x Elektor Manual (English, French, German, Dutch)

      Downloads


      Customer Reviews

      Based on 4 reviews
      75%
      (3)
      25%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      C
      Chris R.
      Trés bon produit

      Multimètre précis (Comparaison avec mon vieux et fiable Metrix).
      Fonction Oscillo/générateur trés pratique pour prototyper avec des micro-controleurs.
      Trés bon rapport qualité/prix.

      J
      Jph
      Très bon produit

      Très bon rapport qualité prix

      C
      Clemens
      Fine versatile instrument

      Excellent instrument for the price. Sure it is possible to use the signalgenerator and oscilloscope simultaneously. You can switch between the two to change settings and see the results from the generator on the scope (by probe or a bnc cable). An instrument with many convenient functions, for instance the highly automated multimeter. Richly equipped with accessories, especially considering the price.

      P
      Palmjet
      Interesting instrument

      I have this instrument now two weeks. It arrived with only one oscilloscope probe, so that makes it less usable. I had contact with Elektor and they had more complaints about this. Still waiting for a solution.
      In the meantime I tested the functions, they look OK except the oscilloscope part. Channel 1 is working well, but Channel 2 seems to have a software problem. As soon as a timebase of lower than 100ms is used, the Vavg and Vpp seem to be reversed.
      For example when 5VDC is introduced to the probe with settings 2V, x10DC and 50ms(or lower) and the probe on x10, the graphics are OK, but the Vavg shows 2.56V and the Vpp 5.38V
      Channel 1 shows with the same settings Vavg 5.02 and Vpp 0.15V and that is correct. When applying a waveform, frequency indications are correct on both channels.
      Have to test a little more for the rest of the functions.
      The idea of this instrument is great, but the bugs need to be fixed.
