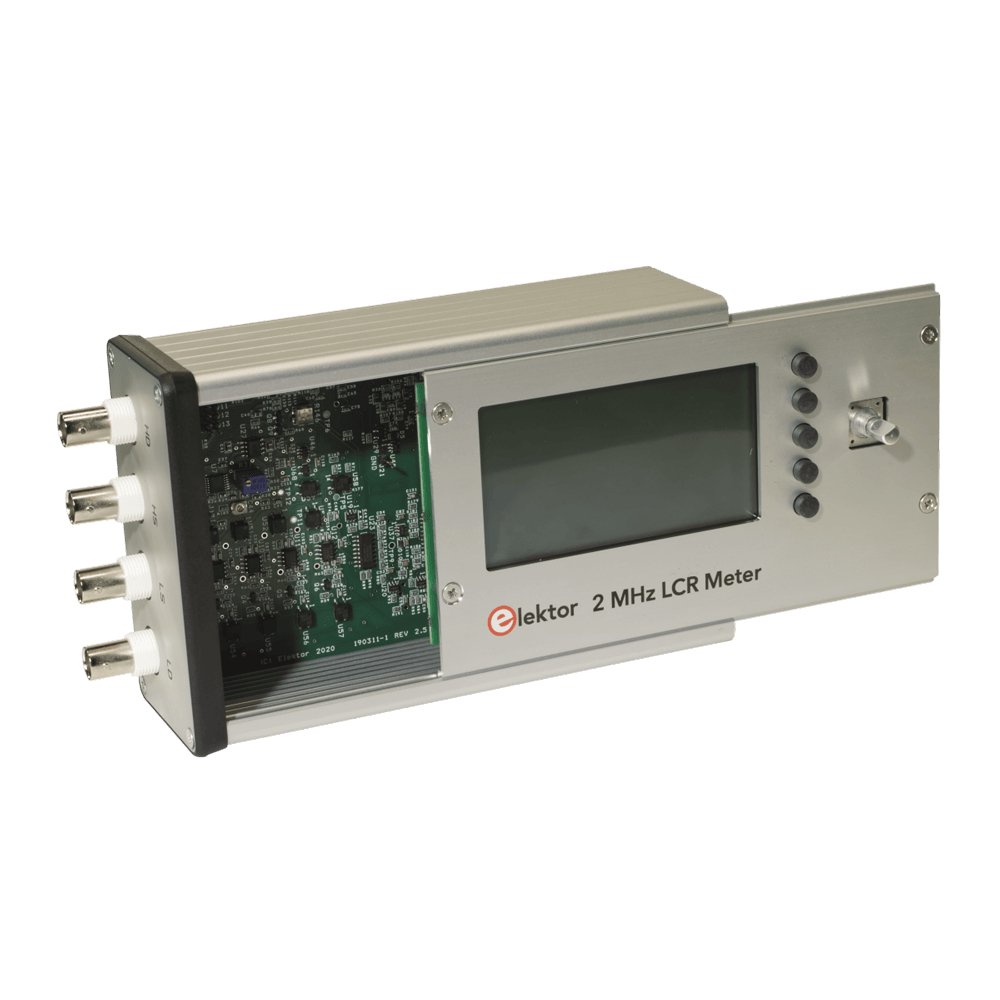

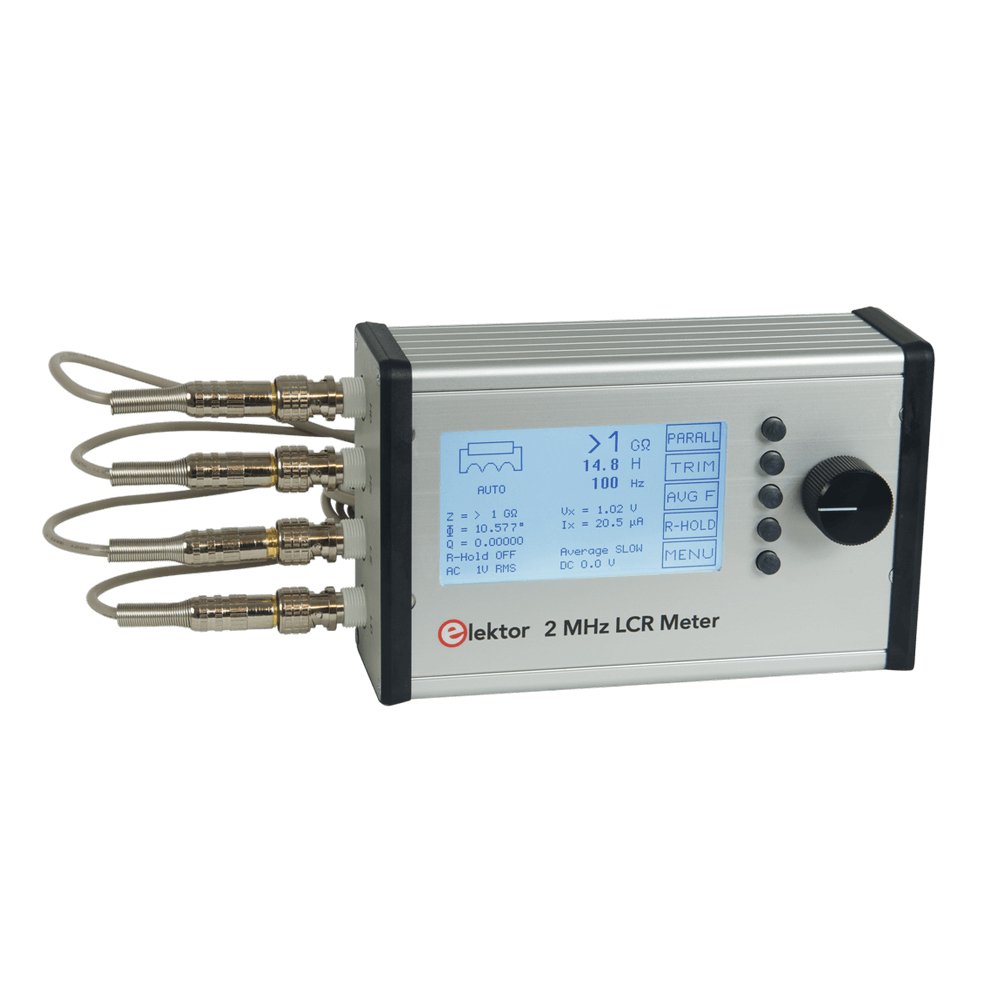

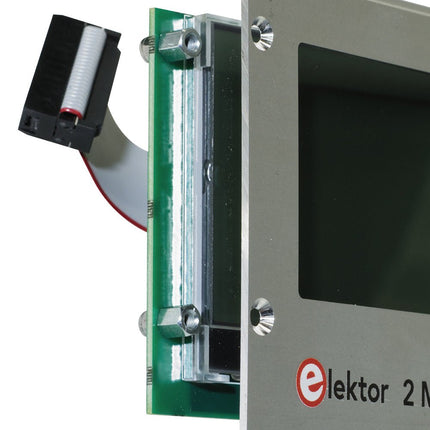

Elektor 2 MHz LCR Meter Kit

  • BrandEurocircuits

Description

Would you like to add an LCR Meter to your electronics workbench? Build your own! The Elektor 2 MHz LCR Meter Kit is an automatic impedance measuring bridge with extended functionality.

Features

  • Measures the resistance, capacitance and inductance of components with an impedance of 10 mΩ to 100 MΩ
  • Test frequency from 50 Hz to 2 MHz
  • Four possible test voltages (0.1, 0.2, 0.5 and 1 Vrms)
  • Additional DC polarization up to 5 V for capacitors and 50 mA for inductors
  • Two configurations possible:
    • Standalone mode with main board + display extension
    • Main board (without display) connected via USB to a computer running the user program (Windows, Linux, MacOS)

Specifications

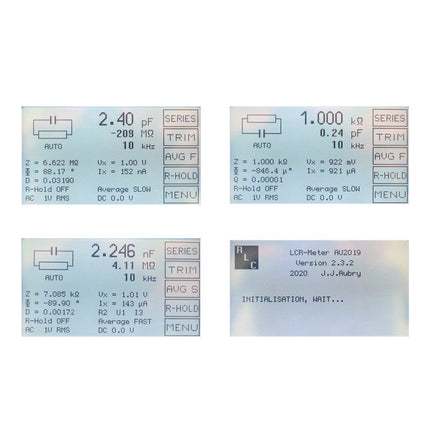

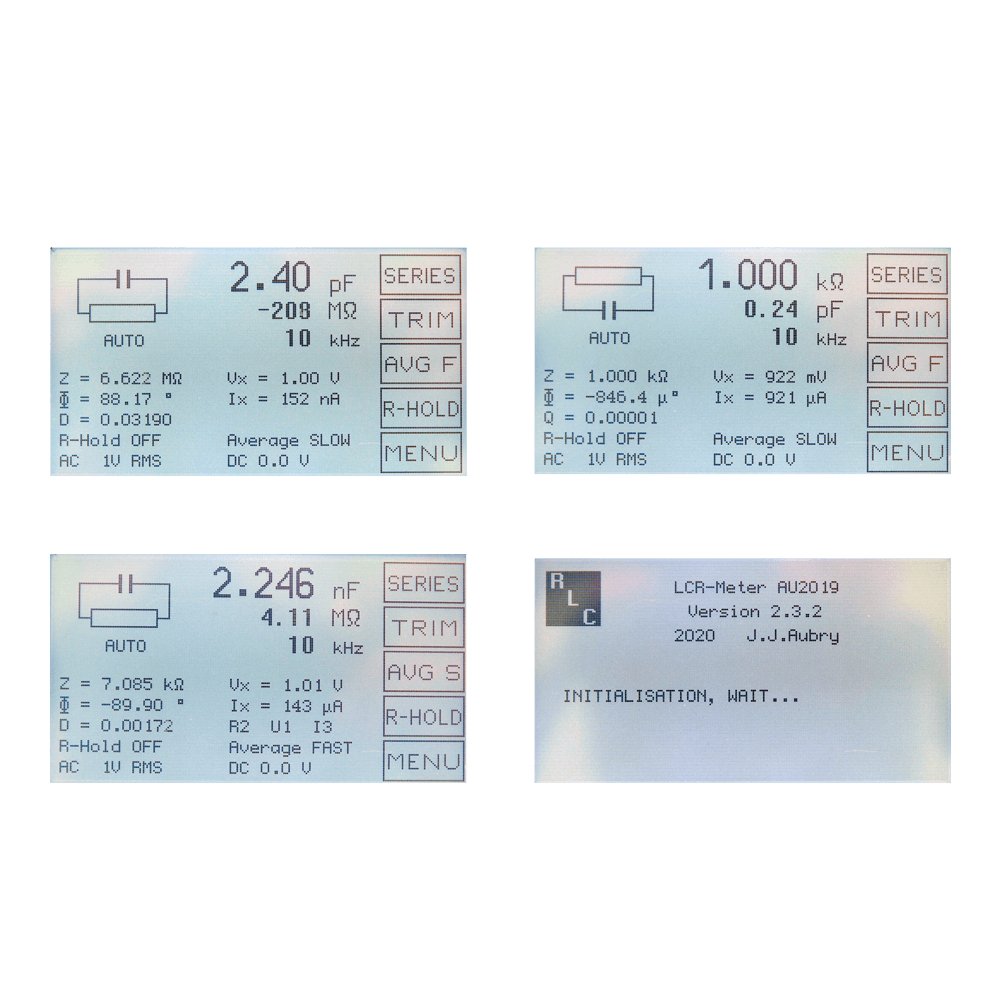

Display

Parameter values
Equivalent circuit
Frequency
Impedance ∣Z∣
Phase Φ
Q or D
Voltage and current of DUT
Test voltage (AC) and polarisation (DC)
Range hold status
Labels for multi-function buttons

Display size 4.1' (10.5 cm) | 240 x 128 dots
Measurement range Parameter Value
Inductance L 10 nH - 100 H
Capacity C 1 pF - 100 mF
Resistance R 10 mΩ - 100 MΩ
Q 0 - 5000 for display
Phase Φ -90° / +90°
Test frequency 50 Hz to 2 MHz in 54 predefined steps
or any frequency within the range
Accuracy Up to ± 0.1% ±1 of last digit
Total current (MCU board + backlit display board) without polarization
420 mA
when polarizing DUT
up to 650 mA
Power supply 5 VDC/1 A USB A (not included)
e.g. mobile phone mains charger
PC software Windows, Linux, MacOS
Dimensions (Hammond case) 6.5 x 4.2 x 2.1' (166 x 106 x 53 mm)
Weight 1 kg

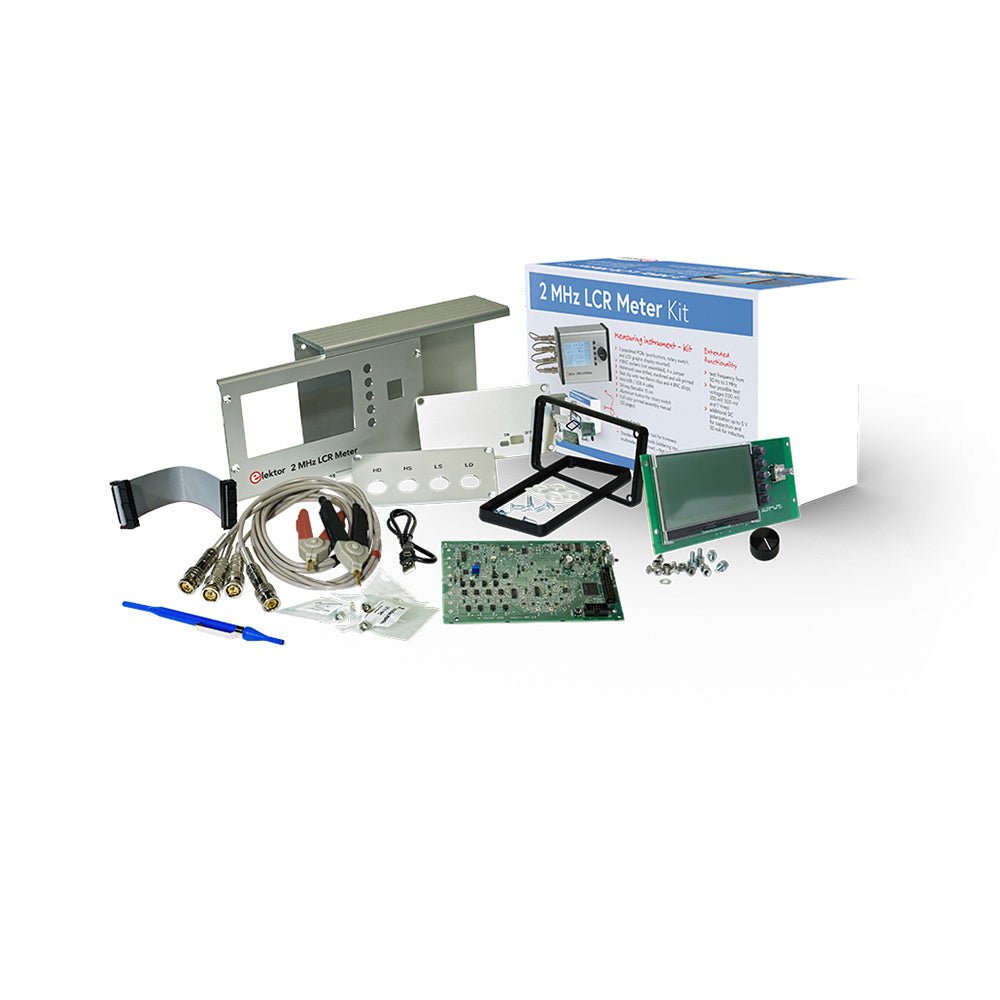

All the necessary components are included for assembly and calibration:

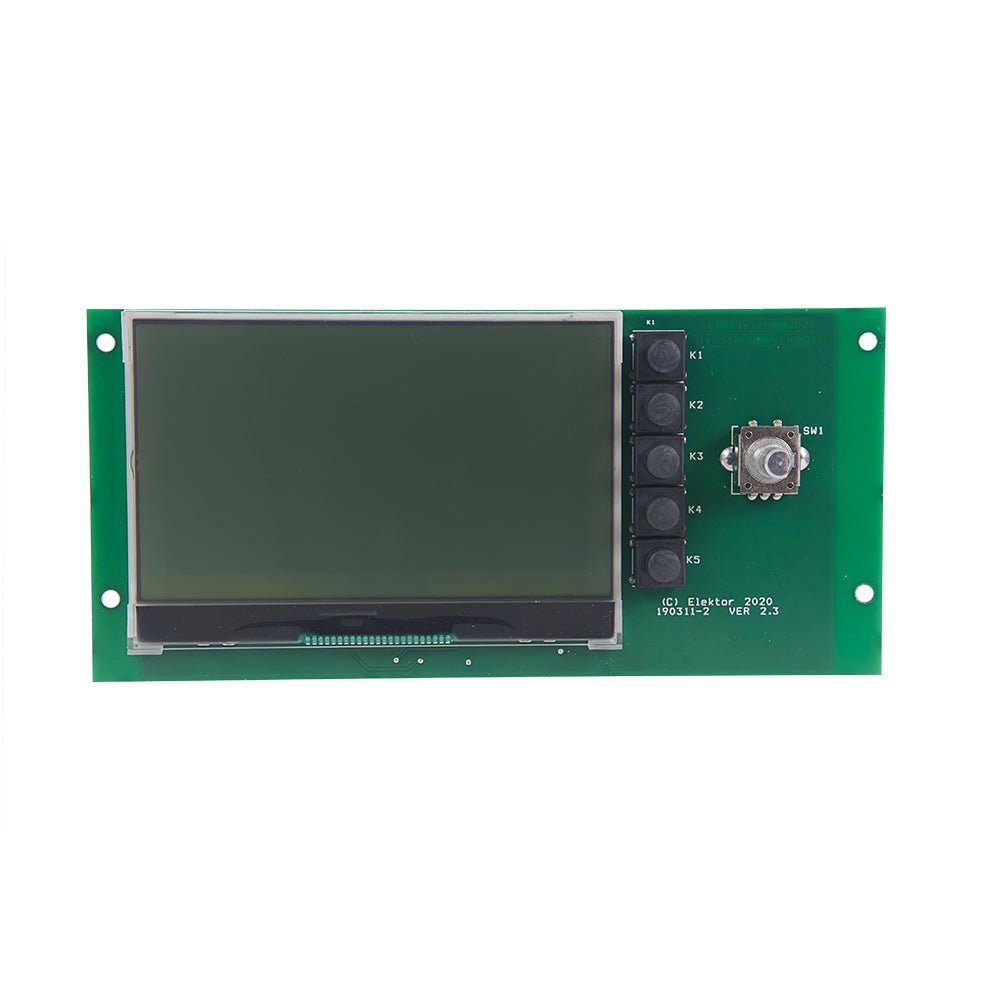

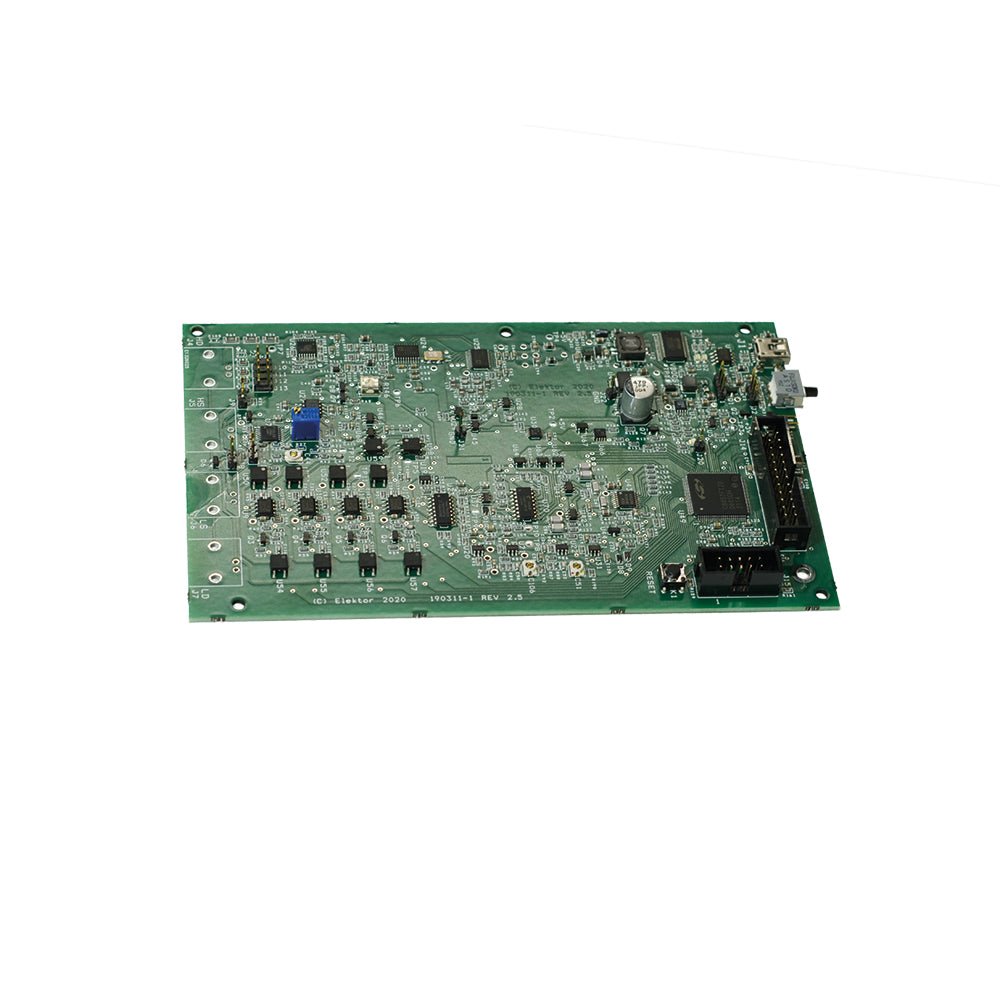

  • 2 populated PCBs (pushbuttons, rotary switch, and LCD)
    Note: Before shipping the operation of both assembled boards is carefully checked according to a protocol developed by the original designer Jean-Jacques Aubry.
  • 4 BNC sockets (not assembled)
  • 4 jumpers

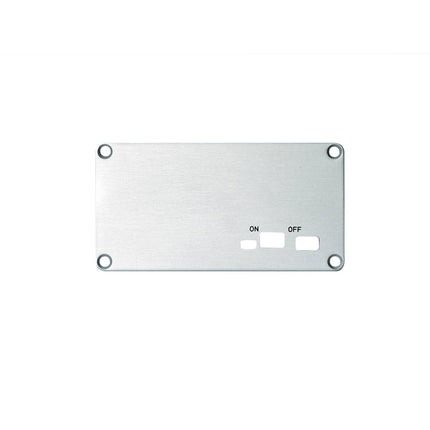

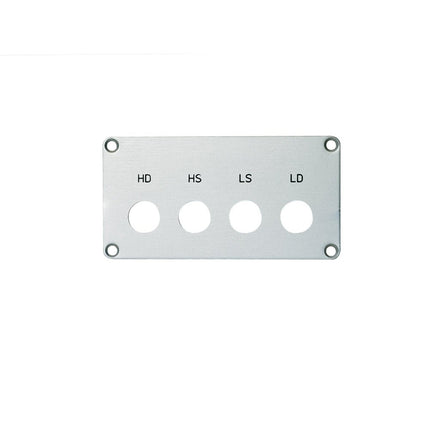

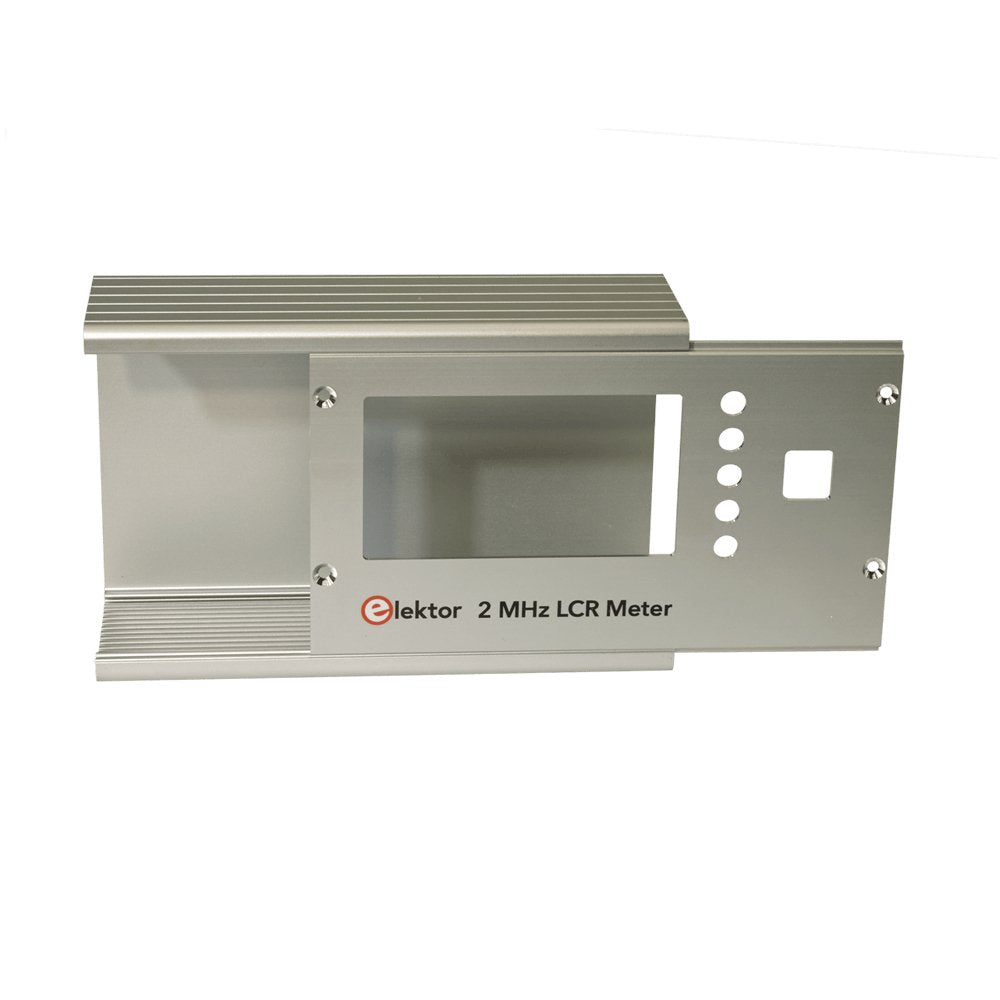

  • Hammond case drilled, machined, with printed front and side panels
  • Kelvin cables with clips and 4 plugs
  • Mini-USB / USB-A cable
  • 24-way flat cable (15 cm)
  • Aluminium button for rotary switch
  • Full-color printed assembly manual (32 pages)
  • Adjustment tool for trimmers

Required tools

  • Screwdriver, multimeter, and soldering iron.

Time

Total assembly and calibration time (depending on your skill): 60 to 90 minutes
