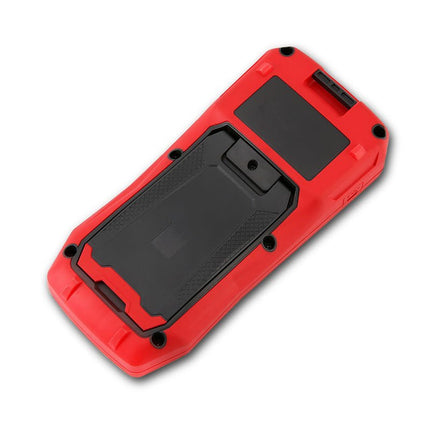

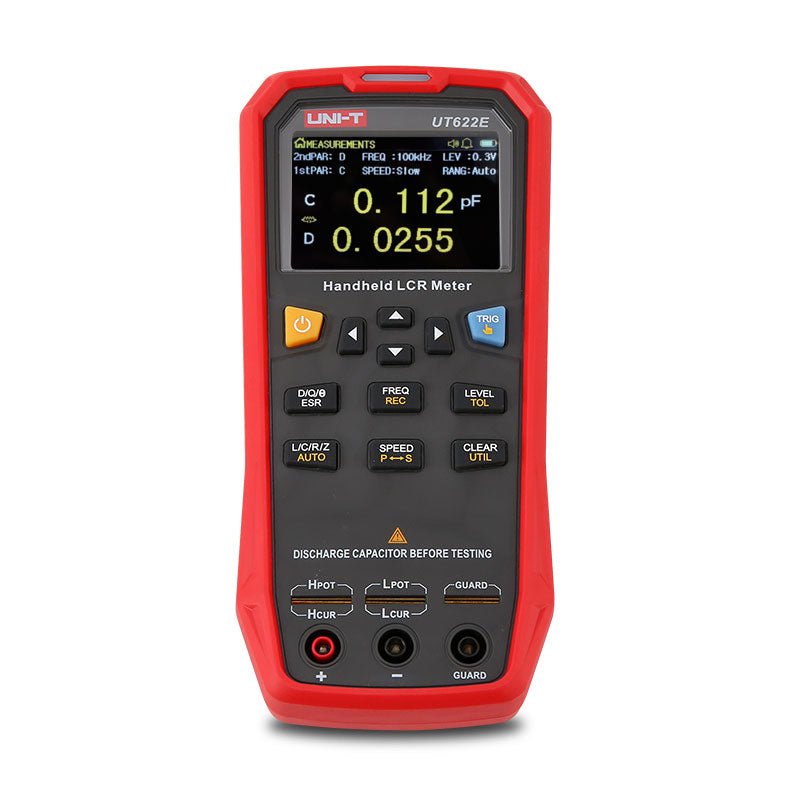

UNI-T UT622E LCR Meter

Description

The UT622E handheld LCR meter features powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and 100 kHz test frequency, the meter can be used for longstanding accurate and convenient measurement in any occasion.

It is suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, etc.

Features

  • Max. test frequency: 100 kHz
  • Accuracy: 0.1%
  • Display count: 99999
  • Max. test rate: 20 times/s
  • DCR: Yes
  • Connectivity: Mini-USB
  • Display: 2.8" TFT LCD

Specifications

Testfrequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
Test level 0.1 Vmrs, 0.3 Vrms, 1 Vrms
Output impedance 100 Ω
Measurement parameters Primary: L/C/R/Z/DCR
Secondary: D/Q/Θ/ESR
DSR speed test Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
Range Auto/Hold
Tolerance range 1%~20%
Equivalent mode Series/Parallel
Clearing connection Open/Short circuit
Fuse of test ports 0.1 A/250 V
Communication interface Mini-USB
MAX reading of primary parameters 99999
MIN resolution 0.0001
Maximum accuracy 0.10%
L 0.00 µH~99.999 H
C 0.00 pF~99.999 mF
Z/R 0.0000 Ω~9.9999 MΩ
ESR 0.0000 Ω~999.99 Ω
D 0.0000~9.9999
Q 0.0000~99999
Θ -179.9°~179.9°
DCR 0.01 mΩ~20.000 MΩ
Power supply 3.7 V/1800 mAh lithium polymer battery
Display 2.8" TFT LCD (320x240)
Dimensions 93 x 192 x 44 mm
Weight 420 g

Included

  • UT622E LCR meter
  • Short circuit board
  • Four-terminal kelvin test leads
  • USB cable
  • Manual
