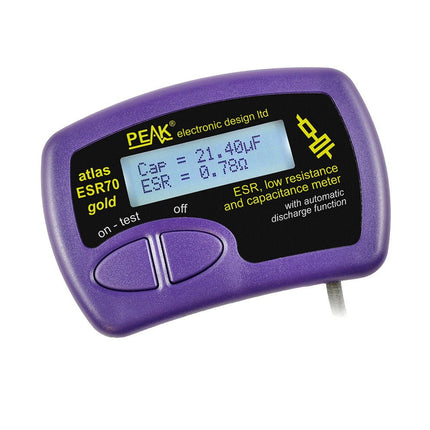

Peak Atlas ESR70 gold (ESR and Capacitance Meter)

Description

The Peak Atlas ESR70 gold is an enhanced version of the previous Peak Atlas ESR70 Plus. It does everything that the ESR70 Plus did but better.

It now measures capacitance up to 10x faster, and over a wider range, thanks to new test algorithms. The capacitance measurement is also much less influenced by parallel resistances or leakage current thanks to our new Triple-Slope measurement system.

Using the supplied gold plated probes (removable), the Atlas ESR70 gold can measure ESR down to a resolution of 0.01 ohms, up to 40 ohms. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2 mm compatible probes to be fitted. Audible alerts are produced for various ESR levels allowing you to perform many tests in succession without having to look at the display. The ESR70 automatically takes capacitive reactance into account, so even low value capacitors (down to 0.3 uF) can have the ESR measured accurately.

Features

  • Uses a single AAA Alkaline cell (included)
  • Alphanumeric LCD with backlight
  • Automatic analysis-start when you apply the probes
  • Automatic capacitor discharge using controlled discharge function
  • ESR (and low DC resistance) measurement (even in-circuit)
  • Capacitive reactance automatically taken into account to ensure accurate ESR
  • Capacitance measurement (if testing out-of-circuit)
  • Audible alerts for various ESR levels
  • Extended ESR measurement range up to 40 Ohms
  • Optional probe alternatives easily fitted

New gold Features

  • Improved LCD with better backlight
  • 10x faster capacitance measurement for large capacitors
  • Enhanced user options system
  • New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements
  • Much wider capacitance measurement range now 0.3 uF to 90,000 uF (was 1uF to 22,000uF)

Specifications

Analyzer type ESR and Capacitance
Component types Capacitors (>0.3 uF)
ESR range 0.00 Ohms to 40.0 Ohms
ESR resolution From 0.01 Ohms
In-circuit use ESR only
Capacitance range 0.3 uF to 90000 uF
Battery type 1.5 V Alkaline AAA Cell (supplied). Life typically 1500 ops
Display type Alphanumeric LCD (with backlight)

Included

  • Peak Atlas ESR70 gold
  • Extra-long and extra-flexible test cables (450 mm of Silicone covered cable)
  • 2 mm gold plated plugs and sockets with removeable gold plated crocodile clips
  • Comprehensive illustrated user guide
  • AAA Alkaline cell

Downloads

Product form

The Peak Atlas ESR70 gold is an enhanced version of the previous Peak Atlas ESR70 Plus. It does everything that... Read more

€ 99,00 (incl. VAT)
Order Now (at Eleshop)
By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

    Details

    SKU: 17668
    EAN: 0700153222976

    Description

    The Peak Atlas ESR70 gold is an enhanced version of the previous Peak Atlas ESR70 Plus. It does everything that the ESR70 Plus did but better.

    It now measures capacitance up to 10x faster, and over a wider range, thanks to new test algorithms. The capacitance measurement is also much less influenced by parallel resistances or leakage current thanks to our new Triple-Slope measurement system.

    Using the supplied gold plated probes (removable), the Atlas ESR70 gold can measure ESR down to a resolution of 0.01 ohms, up to 40 ohms. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2 mm compatible probes to be fitted. Audible alerts are produced for various ESR levels allowing you to perform many tests in succession without having to look at the display. The ESR70 automatically takes capacitive reactance into account, so even low value capacitors (down to 0.3 uF) can have the ESR measured accurately.

    Features

    • Uses a single AAA Alkaline cell (included)
    • Alphanumeric LCD with backlight
    • Automatic analysis-start when you apply the probes
    • Automatic capacitor discharge using controlled discharge function
    • ESR (and low DC resistance) measurement (even in-circuit)
    • Capacitive reactance automatically taken into account to ensure accurate ESR
    • Capacitance measurement (if testing out-of-circuit)
    • Audible alerts for various ESR levels
    • Extended ESR measurement range up to 40 Ohms
    • Optional probe alternatives easily fitted

    New gold Features

    • Improved LCD with better backlight
    • 10x faster capacitance measurement for large capacitors
    • Enhanced user options system
    • New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements
    • Much wider capacitance measurement range now 0.3 uF to 90,000 uF (was 1uF to 22,000uF)

    Specifications

    Analyzer type ESR and Capacitance
    Component types Capacitors (>0.3 uF)
    ESR range 0.00 Ohms to 40.0 Ohms
    ESR resolution From 0.01 Ohms
    In-circuit use ESR only
    Capacitance range 0.3 uF to 90000 uF
    Battery type 1.5 V Alkaline AAA Cell (supplied). Life typically 1500 ops
    Display type Alphanumeric LCD (with backlight)

    Included

    • Peak Atlas ESR70 gold
    • Extra-long and extra-flexible test cables (450 mm of Silicone covered cable)
    • 2 mm gold plated plugs and sockets with removeable gold plated crocodile clips
    • Comprehensive illustrated user guide
    • AAA Alkaline cell

    Downloads
