Description

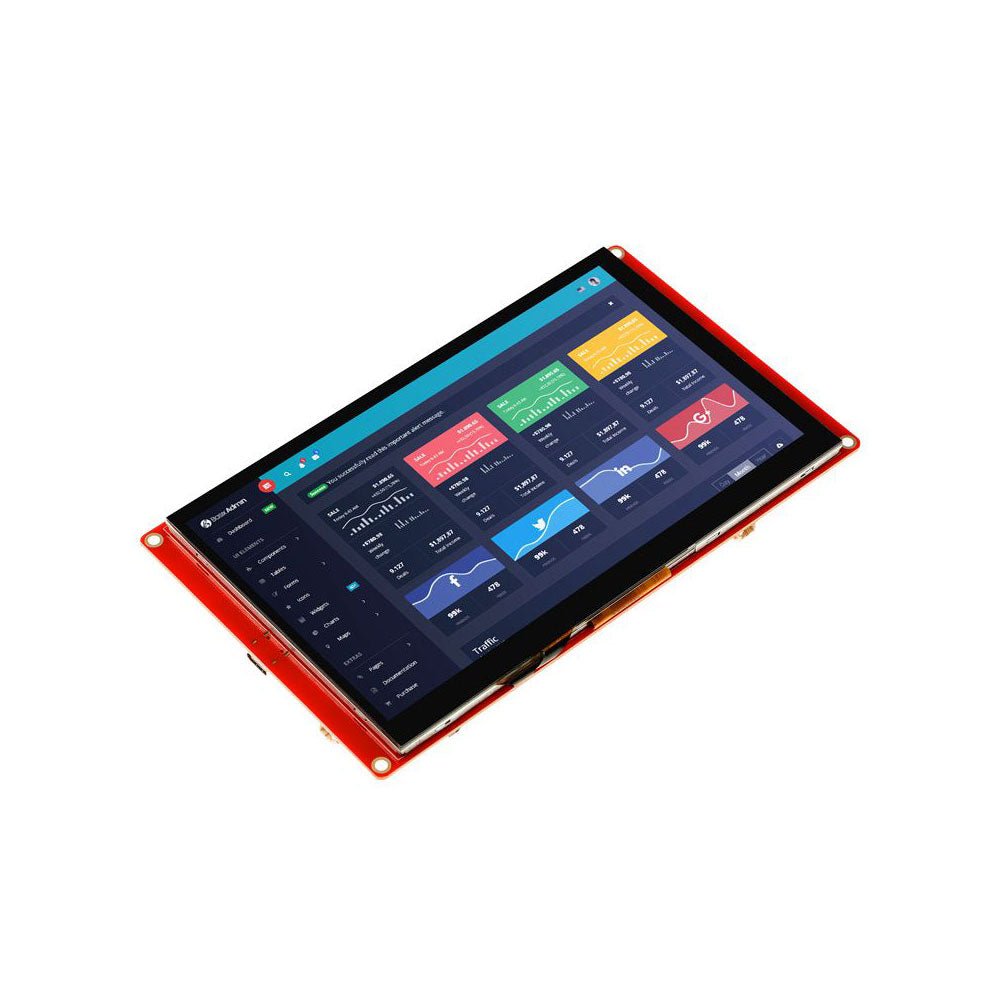

The CrowPanel ESP32 Display is a powerful HMI touch screen featuring a 7.0-inch LCD with a resolution of 800x480 pixels. It is powered by the ESP32-S3-WROOM-1-N4R8 module, which integrates a dual-core 32-bit LX6 microprocessor, Wi-Fi, and Bluetooth functionality. With a main frequency of up to 240 MHz, it delivers robust performance and is well-suited for IoT applications and other usage scenarios.
The module consists of a capacitive touch LCD screen and a driver board. The board includes a TF card slot, various peripheral interfaces, a USB interface, a speaker port, a battery connection, and more – offering extensive expansion capabilities. It supports multiple development environments, including the Arduino IDE, Espressif IDF, Lua RTOS, and MicroPython, and is compatible with the LVGL graphics library as well as openHASP.
Additionally, the module comes with 16 learning tutorials and a comprehensive collection of open-source learning materials. These resources allow developers to efficiently build customized UI interfaces and engaging projects, significantly reducing development time.
Features
- Integrated ESP32-S3 module with built-in 2.4 GHz wireless communication, supporting Wi-Fi (802.11 b/g/n) and Bluetooth 5.0.
- Supports development environments such as Arduino IDE, Espressif IDF, PlatformIO, and MicroPython; compatible with the LVGL graphics library.
- Includes built-in LVGL demo interface and Arduino examples for a plug-and-play development experience.
- 7.0-inch 800x480 TFT-LCD display, equipped with driver ICs EK9716BD3 and EK73002ACGB.
- Rich peripheral interfaces and expansion options make it suitable for a wide range of applications across various fields.
Specifications
- Main Processor: ESP32-S3-WROOM-1-N4R8
- Resolution: 800 x 480
- Flash: 4 MB
- PSRAM: 8 MB
- Touch Type: Capacitive Touch Screen
- Display Type: TN Panel
- Screen: TFT-LCD Screen
- Display driver: EK9716BD3 & EK73002ACGB
- External power supply: DC 5 V/2 A
- Interfaces: 2x UART0, 2x GPIO, 2x I²C, 1x Battery
- Buttons: BOOT and Reset
- Active Area: 153.84 x 85.63 mm
Included
- 1x CrowPanel 7-inch ESP32 display (with acrylic case)
- 1x USB-C cable
- 1x Crowtail/Grove to 4-pin Dupont cable
