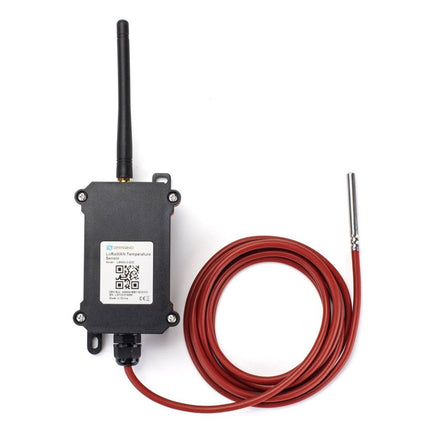

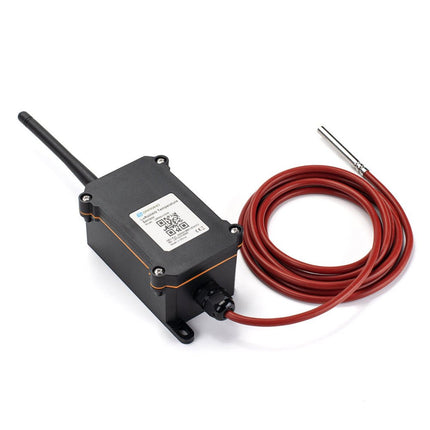

Dragino LSN50v2-D20 LoRaWAN Waterproof Outdoor Temperature Sensor (EU868)

  • BrandDragino

Description

The temperature sensor used in LSN50v2-D20 is DS18B20, which can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C). The sensor cable is made by Silica Gel, and the connection between the metal probe and cable is double compressed for waterproof, moisture-proof, and anti-rust for long-term usage.

The LSN50v2-D20 supports a temperature alarm feature, the user can set a temperature alarm for instant notice.

It is powered by an 8500mAh Li-SOCI2 battery, It is designed for long-term use up to 10 years.

Each LSN50v2-D20 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the local LoRaWAN server and it will auto-connect after power on.

Features

  • LoRaWAN v1.0.3 Class A
  • Ultra-low power consumption
  • External DS18B20 Probe (default 2meters)
  • Measure range -55°C ~ 125°C
  • Temperature alarm
  • AT Commands to change parameters
  • Uplink on periodically or Interrupt
  • Downlink to change configure

Applications

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long-range Irrigation Systems
Product form

The temperature sensor used in LSN50v2-D20 is DS18B20, which can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).... Read more

€ 64,95 incl. VAT
Members € 58,46

      Details

      SKU: 20005
      EAN: 020005

      Description

      The temperature sensor used in LSN50v2-D20 is DS18B20, which can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C). The sensor cable is made by Silica Gel, and the connection between the metal probe and cable is double compressed for waterproof, moisture-proof, and anti-rust for long-term usage.

      The LSN50v2-D20 supports a temperature alarm feature, the user can set a temperature alarm for instant notice.

      It is powered by an 8500mAh Li-SOCI2 battery, It is designed for long-term use up to 10 years.

      Each LSN50v2-D20 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the local LoRaWAN server and it will auto-connect after power on.

      Features

      • LoRaWAN v1.0.3 Class A
      • Ultra-low power consumption
      • External DS18B20 Probe (default 2meters)
      • Measure range -55°C ~ 125°C
      • Temperature alarm
      • AT Commands to change parameters
      • Uplink on periodically or Interrupt
      • Downlink to change configure

      Applications

      • Wireless Alarm and Security Systems
      • Home and Building Automation
      • Automated Meter Reading
      • Industrial Monitoring and Control
      • Long-range Irrigation Systems
