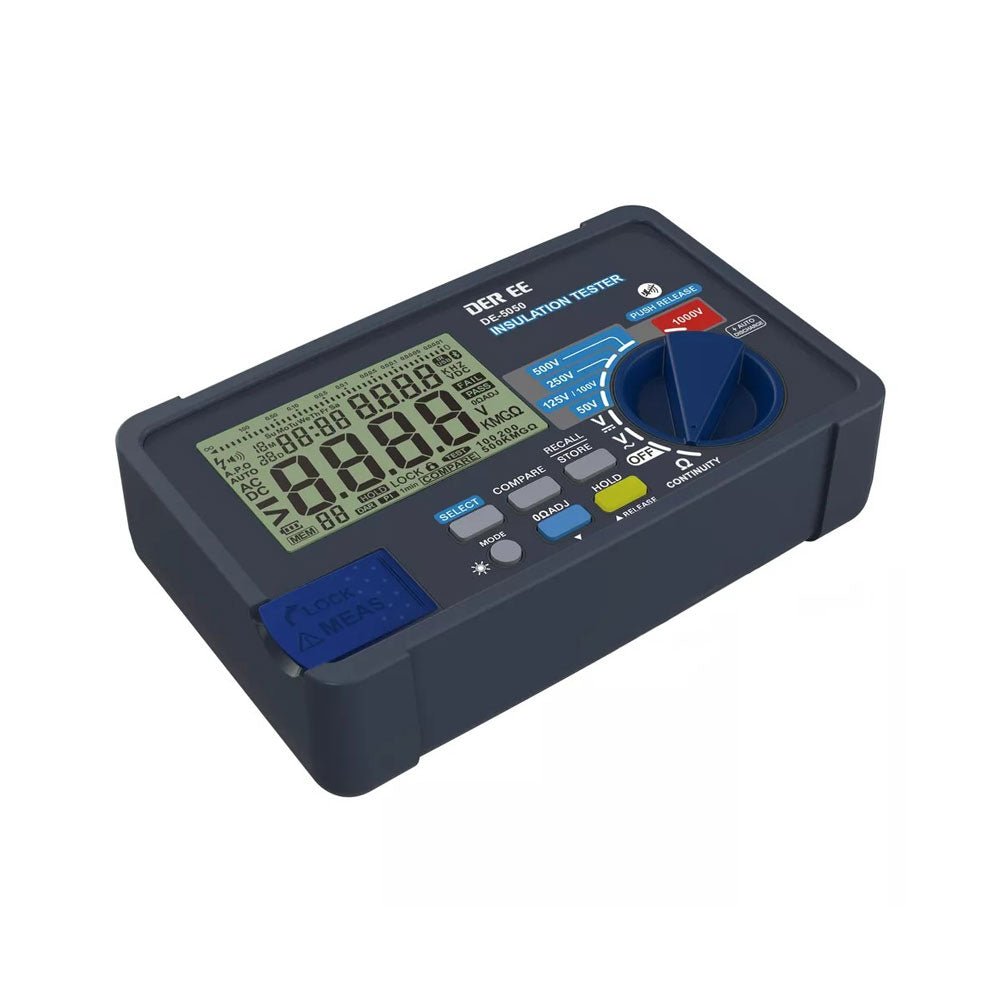

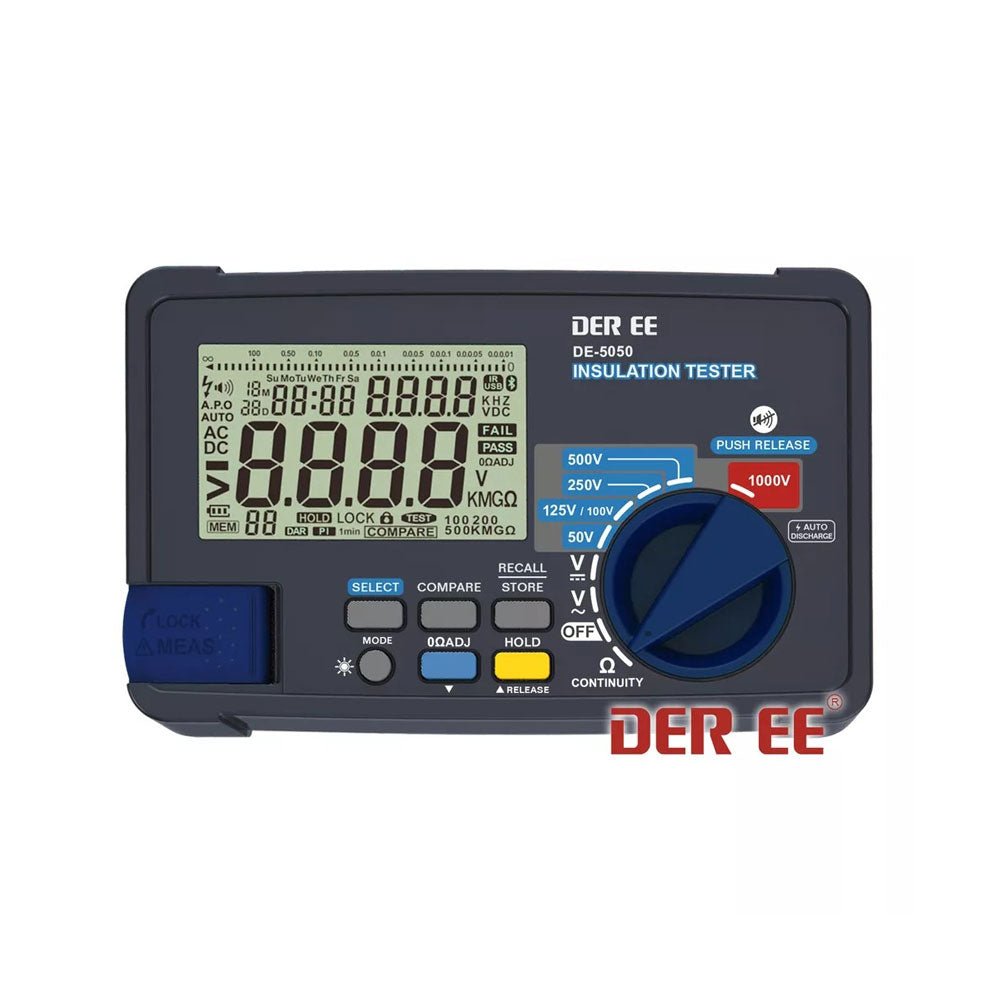

DER EE DE-5050 Insulation Tester

  • BrandDER EE

Description

The DE-5050 Insulation Tester is a versatile instrument designed for measuring insulation resistance, low resistance, and AC/DC voltage. Its user-friendly features make it suitable for various electrical testing applications.

Features

  • Offers five selectable test voltages for different test requirements
  • Automatically detects AC/DC voltage and displays frequency when AC voltage exceeds 10 V
  • Stores up to 100 sets of test results with date and time
  • Switches off automatically after 10 minutes of inactivity
  • Equipped with a backlit display
  • Enables zero adjustment for low resistance measurements
  • Automatic calculation and display of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI) during the insulation resistance test

Specifications

Test Voltages 50 V, 100 V/125 V, 250 V, 500 V, 1000 V
Insulation Resistance Range Up to 20 GΩ at 500 V
Up to 40 GΩ at 1000 V
Voltage Measurement Accuracy ±1%rdg±4dgt (sine wave)
Dimensions 160 x 100 x 46 mm
Weight 380 g (excluding batteries)

Downloads

Product form

The DE-5050 Insulation Tester is a versatile instrument designed for measuring insulation resistance, low resistance, and AC/DC voltage. Its user-friendly features... Read more

€ 184,95 incl. VAT
Members € 166,46

    • Ship today? Order within Dec 13, 2024 17:00:00 +0100
      • Shipping may take longer during the festive season.

    Details

    SKU: 21004
    EAN: 021004

    Description

    The DE-5050 Insulation Tester is a versatile instrument designed for measuring insulation resistance, low resistance, and AC/DC voltage. Its user-friendly features make it suitable for various electrical testing applications.

    Features

    • Offers five selectable test voltages for different test requirements
    • Automatically detects AC/DC voltage and displays frequency when AC voltage exceeds 10 V
    • Stores up to 100 sets of test results with date and time
    • Switches off automatically after 10 minutes of inactivity
    • Equipped with a backlit display
    • Enables zero adjustment for low resistance measurements
    • Automatic calculation and display of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI) during the insulation resistance test

    Specifications

    Test Voltages 50 V, 100 V/125 V, 250 V, 500 V, 1000 V
    Insulation Resistance Range Up to 20 GΩ at 500 V
    Up to 40 GΩ at 1000 V
    Voltage Measurement Accuracy ±1%rdg±4dgt (sine wave)
    Dimensions 160 x 100 x 46 mm
    Weight 380 g (excluding batteries)
