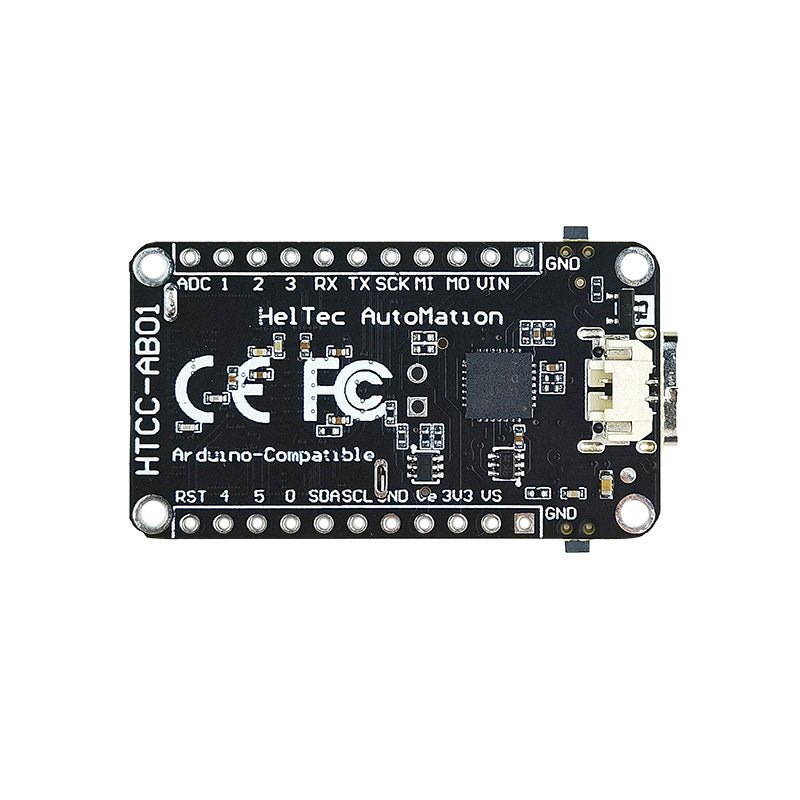

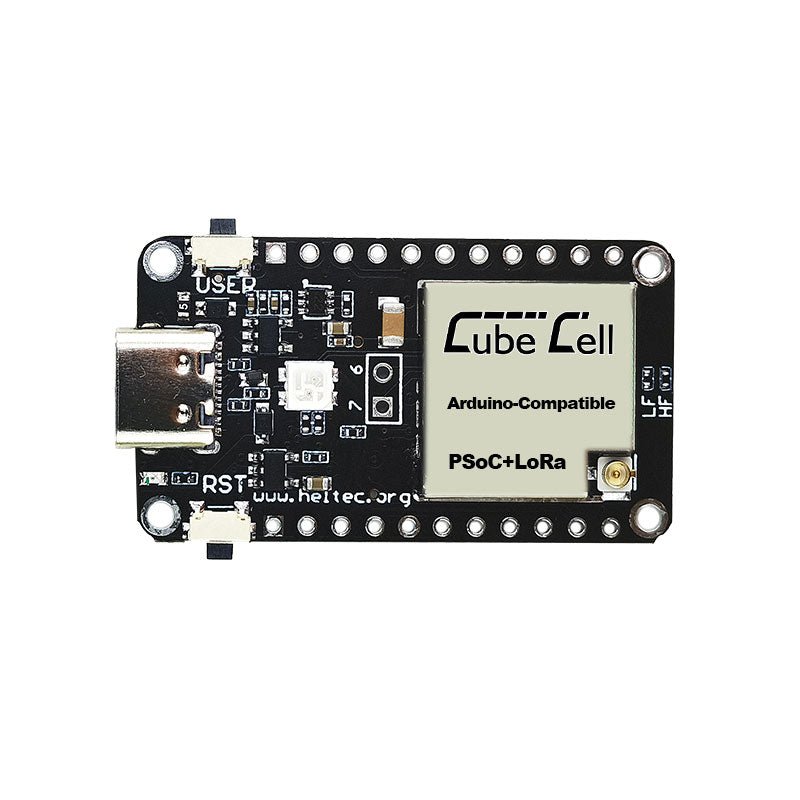

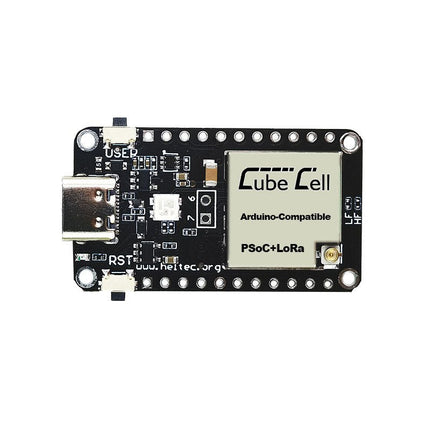

CubeCell Arduino-compatible LoRa Dev-Board AB01 (EU868)

  • BrandHeltec Automation

Description

The CubeCell series is designed primarily for LoRa/LoRaWAN node applications.

Built on the ASR605x platform (ASR6501. ASR6502). these chips integrate the PSoC 4000 series MCU (ARM Cortex-M0+ Core) with the SX1262 module. The CubeCell series offers seamless Arduino compatibility. stable LoRaWAN protocol operation. and straightforward connectivity with lithium batteries and solar panels.

The HTCC-AB01 (V2) is an upgraded version of the HTCC-AB01 board.

Features

  • Arduino compatible
  • Based on ASR605x (ASR6501. ASR6502). those chips are already integrated the PSoC 4000 series MCU (ARM Cortex-M0+ Core) and SX1262
  • LoRaWAN 1.0.2 support
  • Ultra low power design. 3.5 uA in deep sleep
  • Onboard SH1.25-2 battery interface. integrated lithium battery management system (charge and discharge management. overcharge protection. battery power detection. USB/battery power automatic switching)
  • Good impendence matching and long communication distance. Onboard solar energy management system. can directly connect with a 5.5~7 V solar panel
  • Micro USB interface with complete ESD protection. short circuit protection. RF shielding. and other protection measures
  • Integrated CP2102 USB to serial port chip. convenient for program downloading. debugging information printing

Specifications

Main Chip ASR6502 (48 MHz ARM Cortex-M0+ MCU)
LoRa Chipset SX1262
Frequency 863~870 MHz
Max. TX Power 21 ±1 dBm
Max. Receiving Sensitivity ?134 dBm
Hardware Resource 1x UART
1x SPI
1x I²C
1x SWD
1x 12-bit ADC input
8-channel DMA engine
8x GPIO
2x PWM
Memory 128 Kb FLASH
16 Kb SRAM
Power consumption Deep Sleep 3.5 uA
Interfaces 1x USB-C
1x LoRa Antenna (IPEX 1.0)
SH1.25; 11x 2x 2.54 Pin header
1x (2x 2.54 Pin header)
Solar Energy VS pin can be connected to 5.5~7 V solar panel
Battery 3.7 V Lithium battery (power supply and charging)
Operating temperature ?20~70°C
Dimensions 40.6 x 22.9 x 7.6 mm

Included

  • 1x CubeCell HTCC-AB01 (V2) Development Board
  • 1x Antenna
  • 1x 2x SH1.25 battery connector

Downloads

Product form

The CubeCell series is designed primarily for LoRa/LoRaWAN node applications.Built on the ASR605x platform (ASR6501. ASR6502). these chips integrate the... Read more

€ 19,95 incl. VAT
Members € 17,96

    • Ship today? Order within Feb 19, 2025 17:00:00 +0100

    Details

    SKU: 20886
    EAN: 020886

    Description

    The CubeCell series is designed primarily for LoRa/LoRaWAN node applications.

    Built on the ASR605x platform (ASR6501. ASR6502). these chips integrate the PSoC 4000 series MCU (ARM Cortex-M0+ Core) with the SX1262 module. The CubeCell series offers seamless Arduino compatibility. stable LoRaWAN protocol operation. and straightforward connectivity with lithium batteries and solar panels.

    The HTCC-AB01 (V2) is an upgraded version of the HTCC-AB01 board.

    Features

    • Arduino compatible
    • Based on ASR605x (ASR6501. ASR6502). those chips are already integrated the PSoC 4000 series MCU (ARM Cortex-M0+ Core) and SX1262
    • LoRaWAN 1.0.2 support
    • Ultra low power design. 3.5 uA in deep sleep
    • Onboard SH1.25-2 battery interface. integrated lithium battery management system (charge and discharge management. overcharge protection. battery power detection. USB/battery power automatic switching)
    • Good impendence matching and long communication distance. Onboard solar energy management system. can directly connect with a 5.5~7 V solar panel
    • Micro USB interface with complete ESD protection. short circuit protection. RF shielding. and other protection measures
    • Integrated CP2102 USB to serial port chip. convenient for program downloading. debugging information printing

    Specifications

    Main Chip ASR6502 (48 MHz ARM Cortex-M0+ MCU)
    LoRa Chipset SX1262
    Frequency 863~870 MHz
    Max. TX Power 21 ±1 dBm
    Max. Receiving Sensitivity ?134 dBm
    Hardware Resource 1x UART
    1x SPI
    1x I²C
    1x SWD
    1x 12-bit ADC input
    8-channel DMA engine
    8x GPIO
    2x PWM
    Memory 128 Kb FLASH
    16 Kb SRAM
    Power consumption Deep Sleep 3.5 uA
    Interfaces 1x USB-C
    1x LoRa Antenna (IPEX 1.0)
    SH1.25; 11x 2x 2.54 Pin header
    1x (2x 2.54 Pin header)
    Solar Energy VS pin can be connected to 5.5~7 V solar panel
    Battery 3.7 V Lithium battery (power supply and charging)
    Operating temperature ?20~70°C
    Dimensions 40.6 x 22.9 x 7.6 mm

    Included

    • 1x CubeCell HTCC-AB01 (V2) Development Board
    • 1x Antenna
    • 1x 2x SH1.25 battery connector

    Downloads
