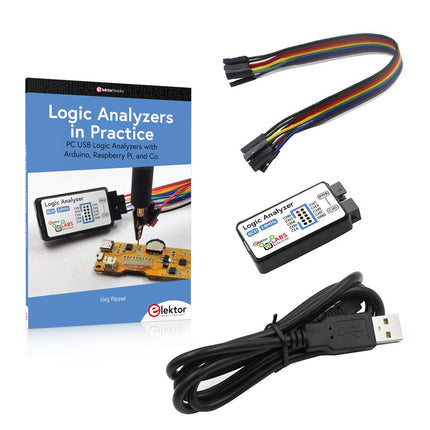

Bundle: Logic Analyzers in Practice (Book) + USB Logic Analyzer (8-ch, 24 MHz)

Description

PC USB Logic Analyzers with Arduino, Raspberry Pi, and Co.

Step-by-step instructions guide you through the analysis of modern protocols such as I²C, SPI, UART, RS-232, NeoPixel, WS28xx, HD44780 and 1-Wire protocols. With the help of numerous experimental circuits based on the Raspberry Pi Pico, Arduino Uno and the Bus Pirate, you will learn the practical application of popular USB logic analyzers.

All the experimental circuits presented in this book have been fully tested and are fully functional. The necessary program listings are included – no special programming or electronics knowledge is required for these circuits. The programming languages used are MicroPython and C along with the development environments Thonny and Arduino IDE.

This book uses several models of flexible and widely available USB logic analyzers and shows the strengths and weaknesses of each price range.

You will learn about the criteria that matter for your work and be able to find the right device for you.

Whether Arduino, Raspberry Pi or Raspberry Pi Pico, the example circuits shown allow you to get started quickly with protocol analysis and can also serve as a basis for your own experiments.

After reading this book, you will be familiar with all the important terms and contexts, conduct your own experiments, analyze protocols independently, culminating in a comprehensive knowledge set of digital signals and protocols.


USB Logic Analyzer (8-ch, 24 MHz)

This USB Logic Analyzer is an 8-channel logic analyzer with each input dual purposed for analog data recording. It is perfect for debugging and analyzing signals like I²C, UART, SPI, CAN and 1-Wire. It operates by sampling a digital input connected to a device under test (DUT) at a high sample rate. The connection to the PC is via USB.

Specifications

Channels 8 digital channels
Maximum sampling rate 24 MHz
Maximum input voltage 0 V ~ 5 V
Operating temperature 0°C ~ 70°C
Input impedance 1 MΩ || 10 pF
Supported protocols I²C, SPI, UART, CAN, 1-Wire, etc.
PC connection USB
Dimensions 55 x 28 x 14 mm

Downloads

This bundle contains:

Product form

PC USB Logic Analyzers with Arduino, Raspberry Pi, and Co. Step-by-step instructions guide you through the analysis of modern protocols... Read more

Out of stock

€ 49,95 € 39,95 (incl. VAT)
Members identical

    Details

    SKU: 20800
    EAN: 020800
    ISBN: 978-3-89576-592-6
    Author: Jörg Rippel
    Language: English
    Pages: 169 (Full Color)
    Format: 17 x 24 cm (Paperback)

    Description

    PC USB Logic Analyzers with Arduino, Raspberry Pi, and Co.

    Step-by-step instructions guide you through the analysis of modern protocols such as I²C, SPI, UART, RS-232, NeoPixel, WS28xx, HD44780 and 1-Wire protocols. With the help of numerous experimental circuits based on the Raspberry Pi Pico, Arduino Uno and the Bus Pirate, you will learn the practical application of popular USB logic analyzers.

    All the experimental circuits presented in this book have been fully tested and are fully functional. The necessary program listings are included – no special programming or electronics knowledge is required for these circuits. The programming languages used are MicroPython and C along with the development environments Thonny and Arduino IDE.

    This book uses several models of flexible and widely available USB logic analyzers and shows the strengths and weaknesses of each price range.

    You will learn about the criteria that matter for your work and be able to find the right device for you.

    Whether Arduino, Raspberry Pi or Raspberry Pi Pico, the example circuits shown allow you to get started quickly with protocol analysis and can also serve as a basis for your own experiments.

    After reading this book, you will be familiar with all the important terms and contexts, conduct your own experiments, analyze protocols independently, culminating in a comprehensive knowledge set of digital signals and protocols.


    USB Logic Analyzer (8-ch, 24 MHz)

    This USB Logic Analyzer is an 8-channel logic analyzer with each input dual purposed for analog data recording. It is perfect for debugging and analyzing signals like I²C, UART, SPI, CAN and 1-Wire. It operates by sampling a digital input connected to a device under test (DUT) at a high sample rate. The connection to the PC is via USB.

    Specifications

    Channels 8 digital channels
    Maximum sampling rate 24 MHz
    Maximum input voltage 0 V ~ 5 V
    Operating temperature 0°C ~ 70°C
    Input impedance 1 MΩ || 10 pF
    Supported protocols I²C, SPI, UART, CAN, 1-Wire, etc.
    PC connection USB
    Dimensions 55 x 28 x 14 mm

    Downloads

    This bundle contains:

    Customer Reviews

    Based on 3 reviews
    67%
    (2)
    33%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    R
    Ronald B.
    Prima boek over het onderwerp

    De afgelopen weken het boek doorgelezen en het is een prima boek over dit onderwerp

    C
    Chris d.B.
    las een artikel over hacking a OWON sds1000 series oscilloscoop .....

    ... waarin uitleg over hoe een Logic Analyzer te gebruiken .... was er net een prachtige aanbieding bij elektor.nl van deze bundel. Ja, ik zoek altijd eerst bij elektor.nl ....
    Zeer snel bezorgd en voor een hobby-leek als ik ben, een erg goede instapper in deze (eh ... moeilijke) materie!

    M
    Michel U.
    Analyseur logique USB

    Analyseur logique USB : pour l'instant non encore testé.
    Dommage que le livre soit en anglais...
