Arduino Uno R4 Experimenting Bundle

  • BrandElektor Bundles

Description

The project book, written by well-known Elektor author Dogan Ibrahim, holds many software- and hardware-based projects especially developed for the Arduino Uno Experimenting Kit. The kit comes with the Arduino Uno R4 Minima, several LEDs, sensors, actuators, and other components. The purpose of the kit is to make a flying start with hardware and software aspects of projects designed around the Arduino Uno microcontroller system.

The projects given in this guide are fully evaluated and working and fully employ all the supplied components. A block diagram, a circuit diagram, an extensive program listing, and a complete program description is given for every project in the guide.

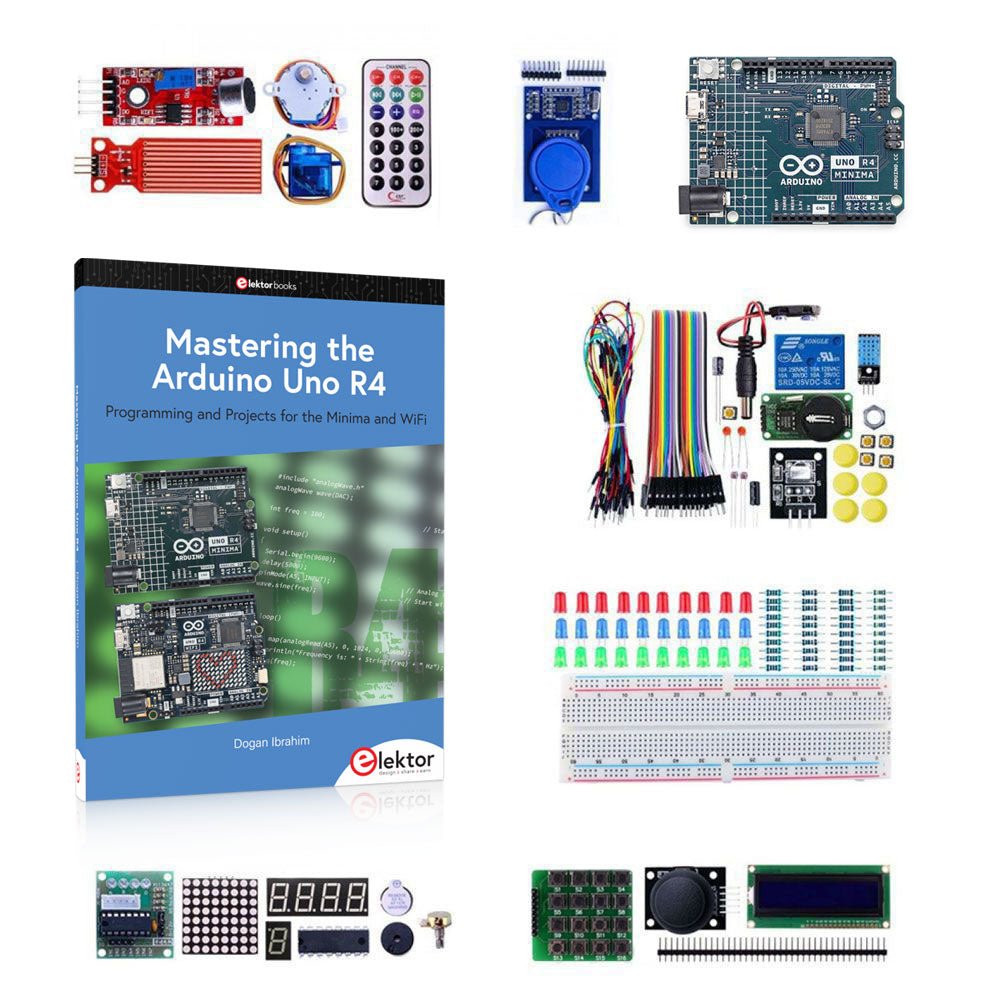

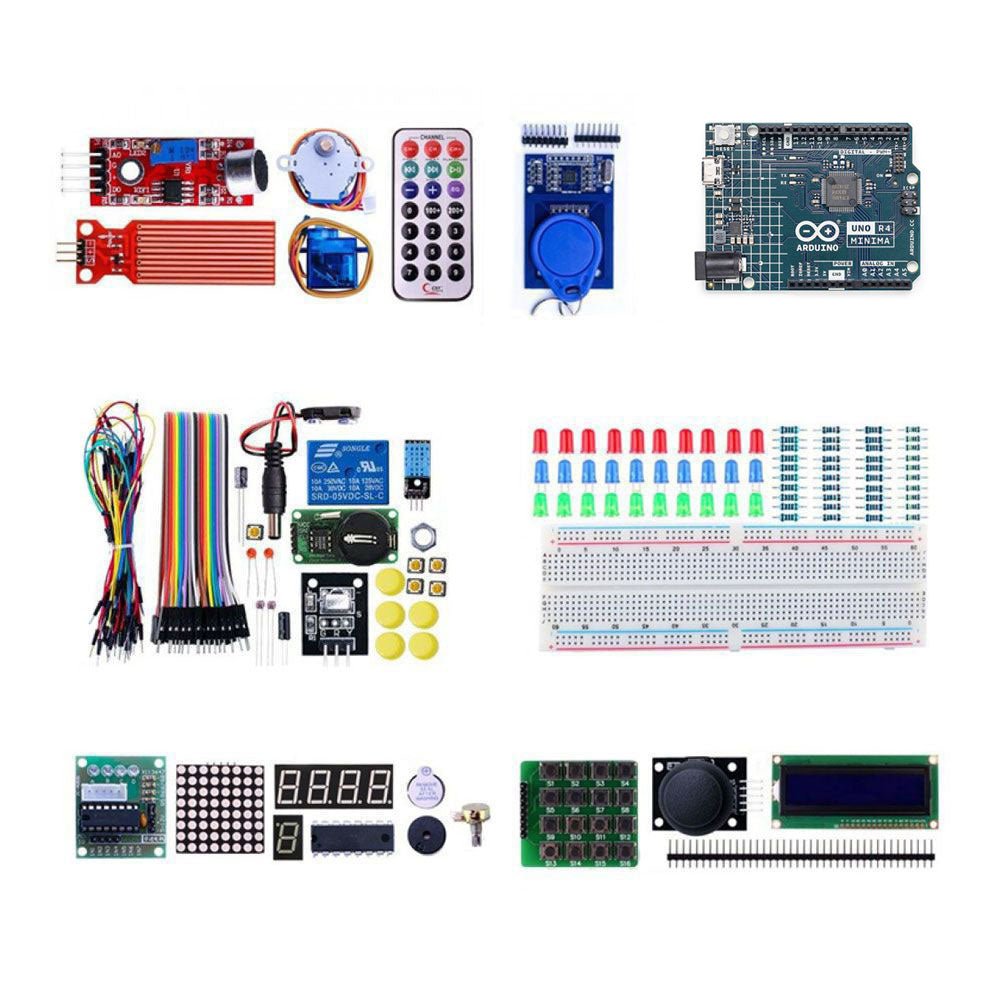

Included

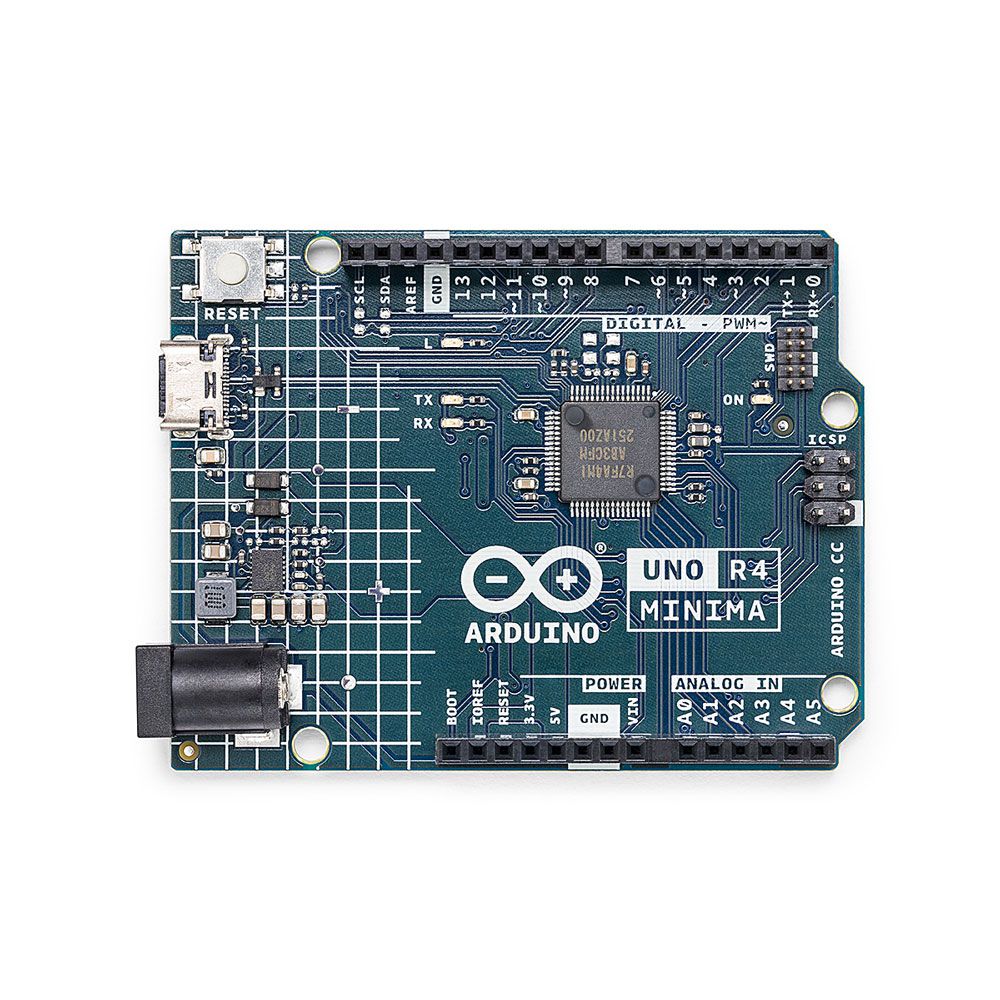

  • 1x Arduino Uno R4 Minima
  • 1x RFID reader module
  • 1x DS1302 clock module
  • 1x 5 V stepper motor
  • 1x '2003' stepper motor drive board
  • 5x Green LED
  • 5x Yellow LED
  • 5x Red LED
  • 2x Rocker switch
  • 1x Flame sensor
  • 1x LM35 sensor module
  • 1x Infrared receiver
  • 3x Light-dependent resistors (LDRs)
  • 1x IR remote controller
  • 1x Breadboard
  • 4x Pushbutton (with four caps)
  • 1x Buzzer
  • 1x Piezo sounder
  • 1x Adjustable resistor (potentiometer)
  • 1x 74HC595 shift register
  • 1x 7-segment display
  • 1x 4-digit 7-segment display
  • 1x 8x8 Dot-matrix display
  • 1x 1602 / I²C LCD module
  • 1x DHT11 Temperature and humidity module
  • 1x Relay module
  • 1x Sound module
  • Set of Dupont cables
  • Set of Breadboard cables
  • 1x Water sensor
  • 1x PS2 Joystick
  • 5x 1 k-ohm resistor
  • 5x 10 k-ohm resistor
  • 5x 220-ohm resistor
  • 1x 4x4 keypad module
  • 1x 9g Servo (25 cm)
  • 1x RFID card
  • 1x RGB module
  • 1x 9 V battery DC jack
  • Project book (326 pages)

Over 80 Projects in the Book

Hardware Projects with LEDs

  • Blinking LED – using the on-board LED
  • Blinking LED – using an external LED
  • LED flashing SOS
  • Alternately blinking LEDs
  • Chaser-LEDs
  • Chasing LEDs 2
  • Binary counting LEDs
  • Random flashing LEDs – Christmas lights
  • Button controlled LED
  • Controlling the LED flashing rate – external interrupts
  • Reaction timer
  • LED color wand
  • RGB fixed colors
  • Traffic lights
  • Traffic lights with pedestrian crossings
  • Using the 74HC595 shift register – binary up counter
  • Using the 74HC595 shift register – random flashing 8 LEDs
  • Using the 74HC595 shift register – chasing LEDs
  • Using the 74HC595 shift register – turn ON a specified LED
  • Using the 74HC595 shift register – turn ON specified LEDs

7-Segment LED Displays

  • 7-Segment 1-digit LED counter
  • 7-Segment 4-digit multiplexed LED display
  • 7-Segment 4-digit multiplexed LED display counter – timer interrupts
  • 7-Segment 4-digit multiplexed LED display counter – blanking leading zeroes
  • 7-Segment 4-digit multiplexed LED display – reaction timer
  • Timer interrupt blinking onboard LED

Liquid Crystal Displays (LCDs)

  • Display text on the LCD
  • Scrolling text on the LCD
  • Display custom characters on the LCD
  • LCD based conveyor belt goods counter
  • LCD based accurate clock using timer interrupts
  • LCD dice

Sensors

  • Analog temperature sensor
  • Voltmeter
  • On/Off temperature controller
  • Darkness reminder – using a light-dependent resistor (LDR)
  • Tilt detection
  • Displaying water level
  • Water level controller
  • Water flooding detector with buzzer
  • Sound detection sensor – control the relay by clapping hands
  • Flame sensor – fire detection with relay output
  • Temperature and humidity display
  • Generating musical tones – melody maker

The RFID Reader

  • Finding the Tag ID
  • RFID door lock access with relay

The 4x4 Keypad

  • Display the pressed key code on the Serial Monitor
  • Integer calculator with LCD
  • Keypad door security lock with relay

The Real-Time Clock (RTC) Module

  • RTC with Serial Monitor
  • RTC with LCD
  • Temperature and humidity display with time stamping
  • Setting and displaying the current time
  • Periodic interrupt every 2 seconds

The Joystick

  • Reading analog values from the joystick

8x8 LED Matrix

  • Displaying shapes

Motors: Servo and Stepper

  • Test-rotate the servo
  • Servo sweep
  • Joystick-controlled servo
  • Rotate the motor clockwise and then anticlockwise

The Digital to Analog Converter (DAC)

  • Generating a square wave with 2 V amplitude
  • Generate a sine wave
  • Sine wave sweep frequency generator
  • Generate sine wave whose frequency changes with potentiometer
  • Generate a square wave with frequency of 1 kHz and amplitude of 1 V

Using the EEPROM, the Human Interface Device, and PWM

  • Keyboard control to launch Windows programs
  • LED dimming using PWM

The Arduino Uno R4 WiFi

  • Using LED matrix 1 – creating a large + shape
  • Creating images by setting bits
  • Using LED matrix 2 – creating a large + shape
  • Animation – displaying a word
  • Controlling the Arduino Uno R4 WiFi on-board LED from a smartphone using UDP

Serial Communications

  • Receiving ambient temperature from an Arduino Uno R3

Using an Arduino Uno Simulator

  • A simple project simulation – flashing LED
  • Displaying text on LCD
  • LCD seconds counter

The CAN bus

  • Arduino Uno R4 WiFi to Arduino Uno R4 Minima CAN bus communication
  • Sending the temperature readings over the CAN bus

Infrared Receiver and Remote Controller

  • Decoding the IR remote control codes
  • Remote relay activation/deactivation
  • Infrared remote stepper motor control
Product form

The project book, written by well-known Elektor author Dogan Ibrahim, holds many software- and hardware-based projects especially developed for the... Read more

€ 99,95€ 84,95 incl. VAT
Members identical

      Details

      SKU: 20648
      EAN: 020648
      Author: Dogan Ibrahim
      Language: English
      Pages: 326 (Full Color)
      Format: 17 x 23.5 cm (Paperback)
