Description

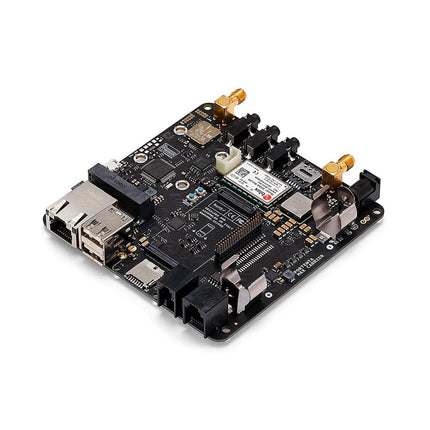

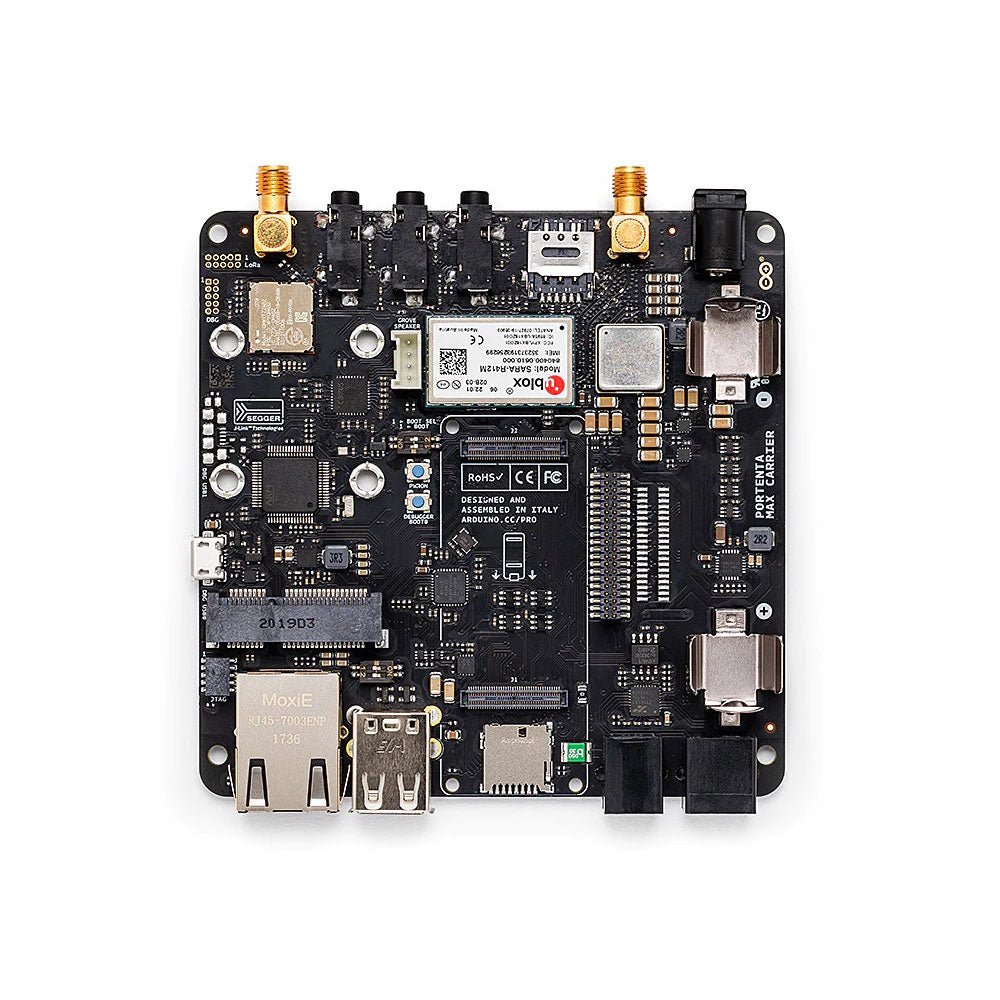

Max Carrier transforms Portenta modules into single-board computers or reference designs that enable edge AI for high-performance industrial, building automation and robotics applications. Thanks to dedicated high-density connectors, it can be paired with Portenta X8 or H7, allowing you to easily prototype and deploy your industrial projects. This Arduino Pro carrier further augments Portenta connectivity options with Fieldbus, LoRa, Cat-M1 and NB-IoT.
Among the many available plug-and-play connectors there are Ethernet, USB-A, audio jacks, microSD, mini-PCIe, FD-CAN and Serial RS232/422/485.
Max Carrier can be powered via external supply (6-36 V) or battery via the onboard 18650 Li-ion battery connector with 3.7 V battery charger.
Features
- Easily prototype industrial applications and minimize time to market
- A powerful carrier exposing Portenta peripherals (e.g. CAN, RS232/422/485, USB, mPCIe)
- Multiple connectivity options (Ethernet, LoRa, CAT-M1, NB-IoT)
- MicroSD for data logging operations
- Integrated audio jacks (line-in, line-out, mic-in)
- Standalone when battery powered
- Onboard JTAG debugger via micro-USB (with Portenta H7 only)
Specifications
| Connectors | High-Density connectors compatible with Portenta products
2x USB-A female connectors
1x Gigabit Ethernet connector (RJ45)
1x FD-Can on RJ11
1x mPCIe
1x Serial RS232/422/485 on RJ12 |
| Audio | 3x audio jacks: stereo line-in/line-out, mic-in
Speaker connector |
| Memory | Micro SD |
| Wireless modules | Murata CMWX1ZZABZ-078 LoRa
SARA-R412M-02B (Cat.M1/NB-IoT) |
| Operating temperatures | -40 °C to +85 °C (-40° F to 185 °F) |
| Debugging | Onboard JLink OB / Blackmagic probe |
| Power/battery | Power Jack for external supply (6-36 V)
On-board 18650 Li-ion battery connector with battery charger (3.7 V) |
| Dimensions | 101.6 x 101.6 mm (4.0 x 4.0') |
