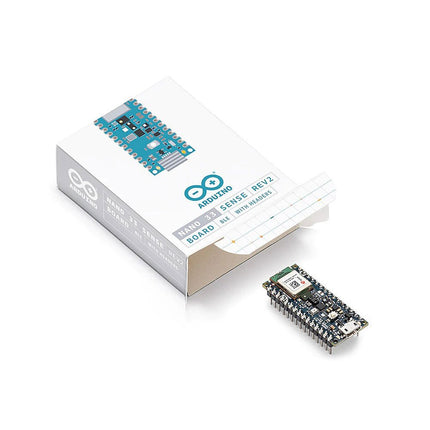

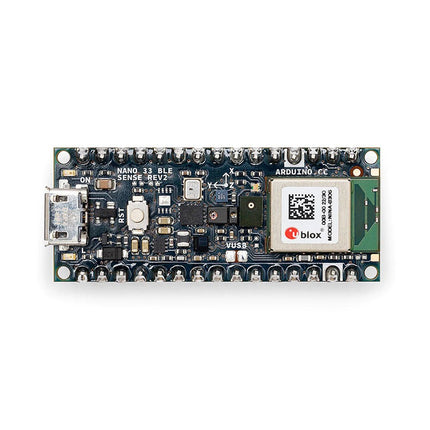

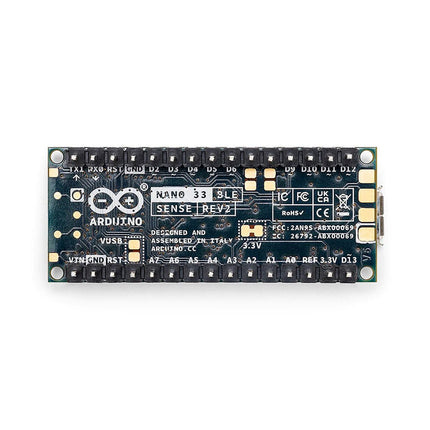

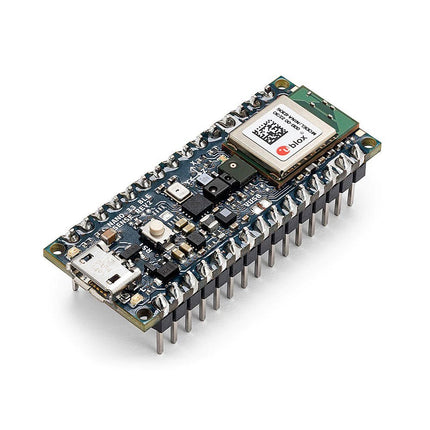

Arduino Nano 33 BLE Sense Rev2 with Headers

Description

The Arduino Nano 33 BLE Sense Rev2 with headers is Arduino’s 3.3 V AI enabled board in the smallest available form factor with a set of sensors that will allow you without any external hardware to start programming your next project, right away.

With the Arduino Nano 33 BLE Sense Rev2, you can:

  • Build wearable devices that using AI can recognize movements.
  • Build a room temperature monitoring device that can suggest or modify changes in the thermostat.
  • Build a gesture or voice recognition device using the microphone or the gesture sensor together with the AI capabilities of the board.

Differences between Rev1 and Rev2

  • Replacement of IMU from LSM9DS1 (9 axis) for a combination of two IMUs (BMI270 – 6 axis IMU and BMM150 – 3 axis IMU)
  • Replacement of temperature and humidity sensor from HTS221 for HS3003
  • Replacement of microphone from MP34DT05 to MP34DT06JTR
  • Replacement of power supply MPM3610 for MP2322
  • Addition of VUSB soldering jumper on the top side of the board
  • New test point for USB, SWDIO and SWCLK

Specifications

Microcontroller nRF52840 (datasheet)
Operating Voltage 3.3 V
Input Voltage (limit) 21 V
DC Current per I/O Pin 15 mA
Clock Speed 64 MHz
CPU Flash Memory 1 MB (nRF52840)
SRAM 256 KB (nRF52840)
EEPROM None
Digital Input / Output Pins 14
PWM Pins All digital pins
UART 1
SPI 1
I²C 1
Analog Input Pins 8 (ADC 12 bit 200 k samples)
Analog Output Pins Only through PWM (no DAC)
External Interrupts All digital pins
LED_BUILTIN 13
USB Native in the nRF52840 Processor
IMU BMI270 (datasheet) and BMM150 (datasheet)
Microphone MP34DT06JTR (datasheet)
Gesture, light, proximity, color APDS9960 (datasheet)
Barometric pressure LPS22HB (datasheet)
Temperature, humidity HS3003 (datasheet)

Downloads

Product form

The Arduino Nano 33 BLE Sense Rev2 with headers is Arduino’s 3.3 V AI enabled board in the smallest available... Read more

No reviews

€ 54,95 incl. VAT
Members € 49,46

    • Ship today? Order within Apr 21, 2024 17:00:00 +0200

    Details

    SKU: 20404
    EAN: 7630049203495

    Description

    The Arduino Nano 33 BLE Sense Rev2 with headers is Arduino’s 3.3 V AI enabled board in the smallest available form factor with a set of sensors that will allow you without any external hardware to start programming your next project, right away.

    With the Arduino Nano 33 BLE Sense Rev2, you can:

    • Build wearable devices that using AI can recognize movements.
    • Build a room temperature monitoring device that can suggest or modify changes in the thermostat.
    • Build a gesture or voice recognition device using the microphone or the gesture sensor together with the AI capabilities of the board.

    Differences between Rev1 and Rev2

    • Replacement of IMU from LSM9DS1 (9 axis) for a combination of two IMUs (BMI270 – 6 axis IMU and BMM150 – 3 axis IMU)
    • Replacement of temperature and humidity sensor from HTS221 for HS3003
    • Replacement of microphone from MP34DT05 to MP34DT06JTR
    • Replacement of power supply MPM3610 for MP2322
    • Addition of VUSB soldering jumper on the top side of the board
    • New test point for USB, SWDIO and SWCLK

    Specifications

    Microcontroller nRF52840 (datasheet)
    Operating Voltage 3.3 V
    Input Voltage (limit) 21 V
    DC Current per I/O Pin 15 mA
    Clock Speed 64 MHz
    CPU Flash Memory 1 MB (nRF52840)
    SRAM 256 KB (nRF52840)
    EEPROM None
    Digital Input / Output Pins 14
    PWM Pins All digital pins
    UART 1
    SPI 1
    I²C 1
    Analog Input Pins 8 (ADC 12 bit 200 k samples)
    Analog Output Pins Only through PWM (no DAC)
    External Interrupts All digital pins
    LED_BUILTIN 13
    USB Native in the nRF52840 Processor
    IMU BMI270 (datasheet) and BMM150 (datasheet)
    Microphone MP34DT06JTR (datasheet)
    Gesture, light, proximity, color APDS9960 (datasheet)
    Barometric pressure LPS22HB (datasheet)
    Temperature, humidity HS3003 (datasheet)

    Downloads
