Arduino MKR WiFi 1010

Description

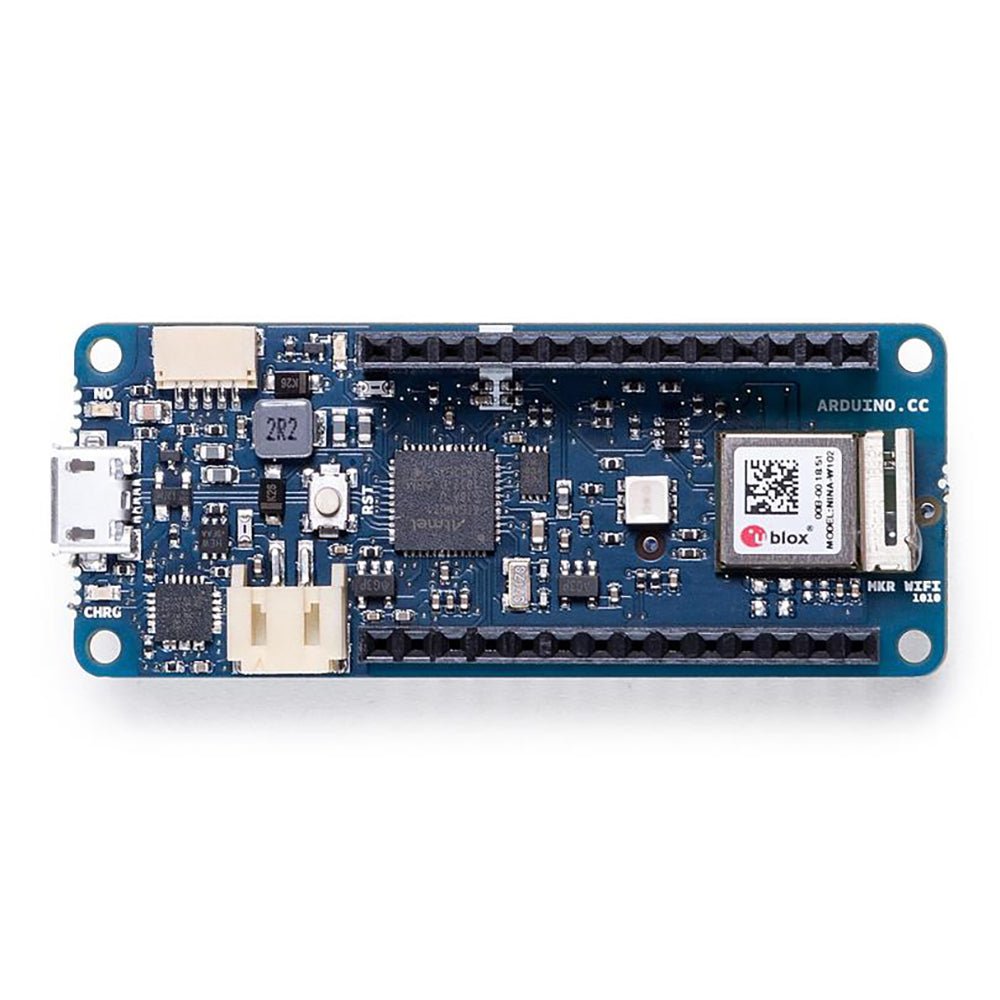

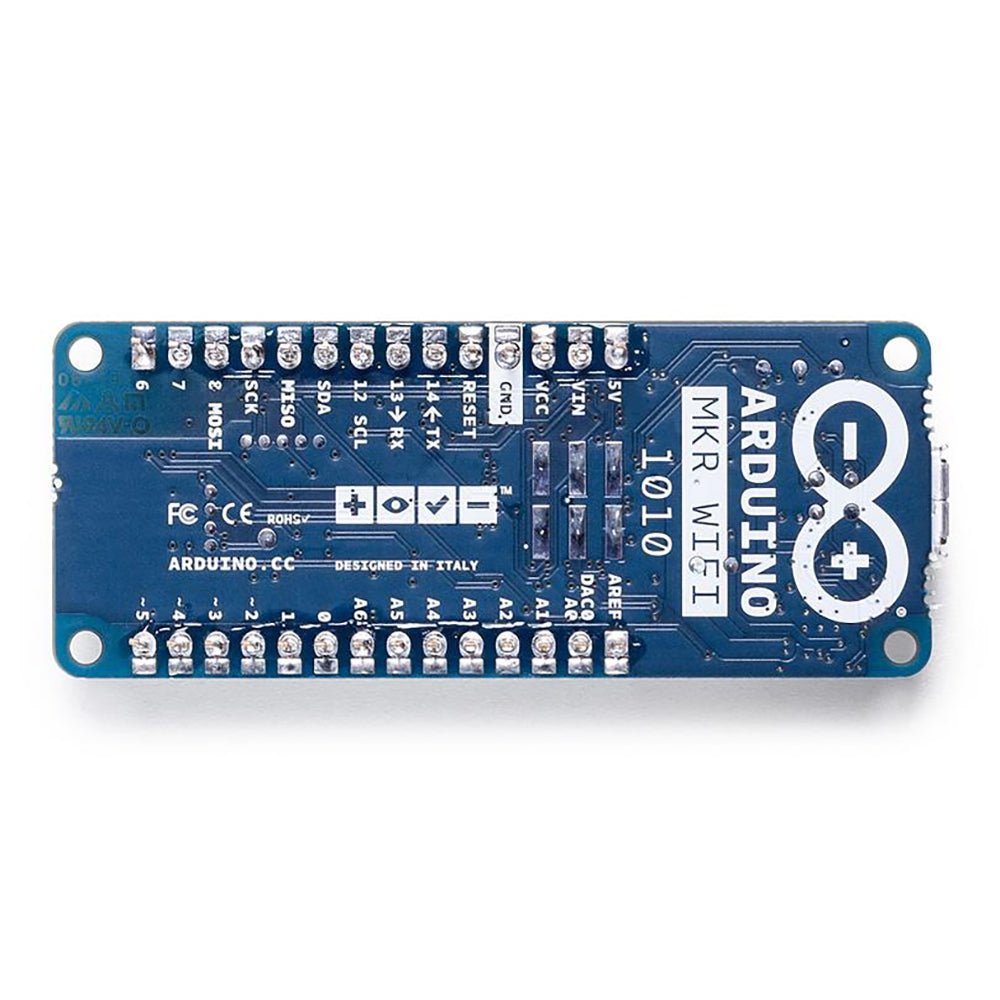

The board's main processor is a low-power ARM Cortex-M0 32-bit SAMD21, like in the other boards within the Arduino MKR family. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low-power chipset operating in the 2.4 GHz range. On top of that, secure communication is ensured through the Microchip ECC508 crypto chip. Besides that, you can find a battery charger, and an RGB LED on-board.

Official Arduino WiFi Library

You can get your board to connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point. The specific set of examples we provide for the MKR WiFi 1010 can be consulted at the WiFiNINA library reference page.

Compatible with other Cloud Services

It is also possible to connect your board to different Cloud services, Arduino's own among others. Here are some examples of how to get the MKR WiFi 1010 to connect to:

  • Blynk: a simple project from the Arduino community connecting to Blynk to operate your board from a phone with little code
  • IFTTT: in-depth case of building a smart plug connected to IFTTT
  • AWS IoT Core: Arduino made this example on how to connect to Amazon Web Services
  • Azure: visit this GitHub repository explaining how to connect a temperature sensor to Azure's Cloud
  • Firebase: you want to connect to Google's Firebase, this Arduino library will show you how

Specifications

Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU
Radio Module u-blox NINA-W102
Power Supply 5 V
Secure Element ATECC508
Supported Battery Li-Po Single Cell, 3.7 V, 1024 mAh Minimum
Operating Voltage 3.3 V
Digital I/O Pins 8
PWM Pins 13
UART 1
SPI 1
I2C 1
Analog Input Pins 7
Analog Output Pins 1
External Interrupts 10
Flash Memory 256 KB
SRAM 32 KB
EEPROM no
Clock Speed 32.768 kHz, 48 MHz
LED_Builtin 6
USB Full-Speed USB Device and embedded Host
Length 61.5 mm
Width 25 mm
Weight 32 g
Product form

The board's main processor is a low-power ARM Cortex-M0 32-bit SAMD21, like in the other boards within the Arduino MKR... Read more

€ 39,95 € 32,95 (incl. VAT)
Members identical

      Details

      SKU: 19935
      EAN: 7630049200258

      Description

      The board's main processor is a low-power ARM Cortex-M0 32-bit SAMD21, like in the other boards within the Arduino MKR family. The WiFi and Bluetooth connectivity is performed with a module from u-blox, the NINA-W10, a low-power chipset operating in the 2.4 GHz range. On top of that, secure communication is ensured through the Microchip ECC508 crypto chip. Besides that, you can find a battery charger, and an RGB LED on-board.

      Official Arduino WiFi Library

      You can get your board to connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point. The specific set of examples we provide for the MKR WiFi 1010 can be consulted at the WiFiNINA library reference page.

      Compatible with other Cloud Services

      It is also possible to connect your board to different Cloud services, Arduino's own among others. Here are some examples of how to get the MKR WiFi 1010 to connect to:

      • Blynk: a simple project from the Arduino community connecting to Blynk to operate your board from a phone with little code
      • IFTTT: in-depth case of building a smart plug connected to IFTTT
      • AWS IoT Core: Arduino made this example on how to connect to Amazon Web Services
      • Azure: visit this GitHub repository explaining how to connect a temperature sensor to Azure's Cloud
      • Firebase: you want to connect to Google's Firebase, this Arduino library will show you how

      Specifications

      Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU
      Radio Module u-blox NINA-W102
      Power Supply 5 V
      Secure Element ATECC508
      Supported Battery Li-Po Single Cell, 3.7 V, 1024 mAh Minimum
      Operating Voltage 3.3 V
      Digital I/O Pins 8
      PWM Pins 13
      UART 1
      SPI 1
      I2C 1
      Analog Input Pins 7
      Analog Output Pins 1
      External Interrupts 10
      Flash Memory 256 KB
      SRAM 32 KB
      EEPROM no
      Clock Speed 32.768 kHz, 48 MHz
      LED_Builtin 6
      USB Full-Speed USB Device and embedded Host
      Length 61.5 mm
      Width 25 mm
      Weight 32 g

      Customer Reviews

      Based on 1 review
      0%
      (0)
      0%
      (0)
      100%
      (1)
      0%
      (0)
      0%
      (0)
      v
      vince
      mkr

      quite interrested. I just got a bundle with this board.
      as a beginner, i must say it`s quite difficult to get to know how to start, where to get a good intro to these systems, etc
      i suggest to select and add links for the `new experimenter -buyer`
