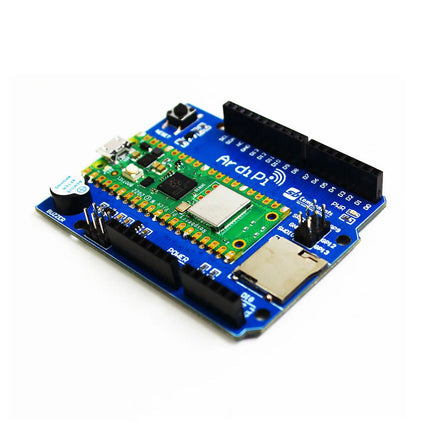

ArdiPi - Uno R3 Board based on Raspberry Pi Pico W

  • BrandSB Components

Description

ArdiPi is the ultimate Arduino Uno alternative packed with powerful specs and exciting features in the Arduino Uno form factor. You can enjoy a low-cost solution with access to the largest support communities for Raspberry Pi.

ArdiPi variant is powered by Raspberry Pi Pico W. The built-in Wi-Fi and Bluetooth connectivity makes the board ideal for IoT projects or projects requiring wireless communication.

Features

  • Arduino Uno form factor, so you can connect 3.3 V compatible Arduino shields
  • SD card slot for storage and data transfer
  • Drag-and-drop programming using mass storage over USB
  • Multifunction GPIO breakout supporting general I/O, UART, I²C, SPI, ADC & PWM functions.
  • Multi-tune Buzzer to add audio alert into the project
  • SWD pins breakout for serial debugging
  • Multi-platform support like Arduino IDE, MicroPython, and CircuitPython.
  • Comes with HID support, so the device can simulate a mouse or keyboard

Specifications

  • Powered by RP2040 microcontroller which is a dual-core Arm Cortex-M0+ processor, 2 MB of onboard flash storage, 264 kB of RAM
  • On-board single-band 2.4 GHz wireless interfaces (802.11n) for WiFi and Bluetooth 5 (LE)
  • WPA3 & Soft access point supporting up to four clients
  • Operating voltage of pins 3.3 V and board supply 5 V
  • 25 Multipurpose GPIOs breakout in Arduino style for easy peripheral interfacing
  • I²C, SPI, and UART communications protocol support
  • 2 MB of onboard Flash memory
  • Cross-platform development and multiple programming language support

Product form

ArdiPi is the ultimate Arduino Uno alternative packed with powerful specs and exciting features in the Arduino Uno form factor.... Read more

No reviews

€ 24,95 incl. VAT
Members € 22,46

      Details

      SKU: 20690
      EAN: 5055652926630

      Description

      ArdiPi is the ultimate Arduino Uno alternative packed with powerful specs and exciting features in the Arduino Uno form factor. You can enjoy a low-cost solution with access to the largest support communities for Raspberry Pi.

      ArdiPi variant is powered by Raspberry Pi Pico W. The built-in Wi-Fi and Bluetooth connectivity makes the board ideal for IoT projects or projects requiring wireless communication.

      Features

      • Arduino Uno form factor, so you can connect 3.3 V compatible Arduino shields
      • SD card slot for storage and data transfer
      • Drag-and-drop programming using mass storage over USB
      • Multifunction GPIO breakout supporting general I/O, UART, I²C, SPI, ADC & PWM functions.
      • Multi-tune Buzzer to add audio alert into the project
      • SWD pins breakout for serial debugging
      • Multi-platform support like Arduino IDE, MicroPython, and CircuitPython.
      • Comes with HID support, so the device can simulate a mouse or keyboard

      Specifications

      • Powered by RP2040 microcontroller which is a dual-core Arm Cortex-M0+ processor, 2 MB of onboard flash storage, 264 kB of RAM
      • On-board single-band 2.4 GHz wireless interfaces (802.11n) for WiFi and Bluetooth 5 (LE)
      • WPA3 & Soft access point supporting up to four clients
      • Operating voltage of pins 3.3 V and board supply 5 V
      • 25 Multipurpose GPIOs breakout in Arduino style for easy peripheral interfacing
      • I²C, SPI, and UART communications protocol support
      • 2 MB of onboard Flash memory
      • Cross-platform development and multiple programming language support
