Andonstar AD246SM-Plus 7" 3-Lens HDMI Digital Microscope

  • BrandAndonstar

Description

This versatile microscope with upgraded Plus stand covers a wide magnification range (60-240x, 18-720x, 1560-2040x) with 3 lenses. With this digital microscope, you can examine plants, insects, gems and coins, or do electronic work such as repairing or making circuit boards.

Features

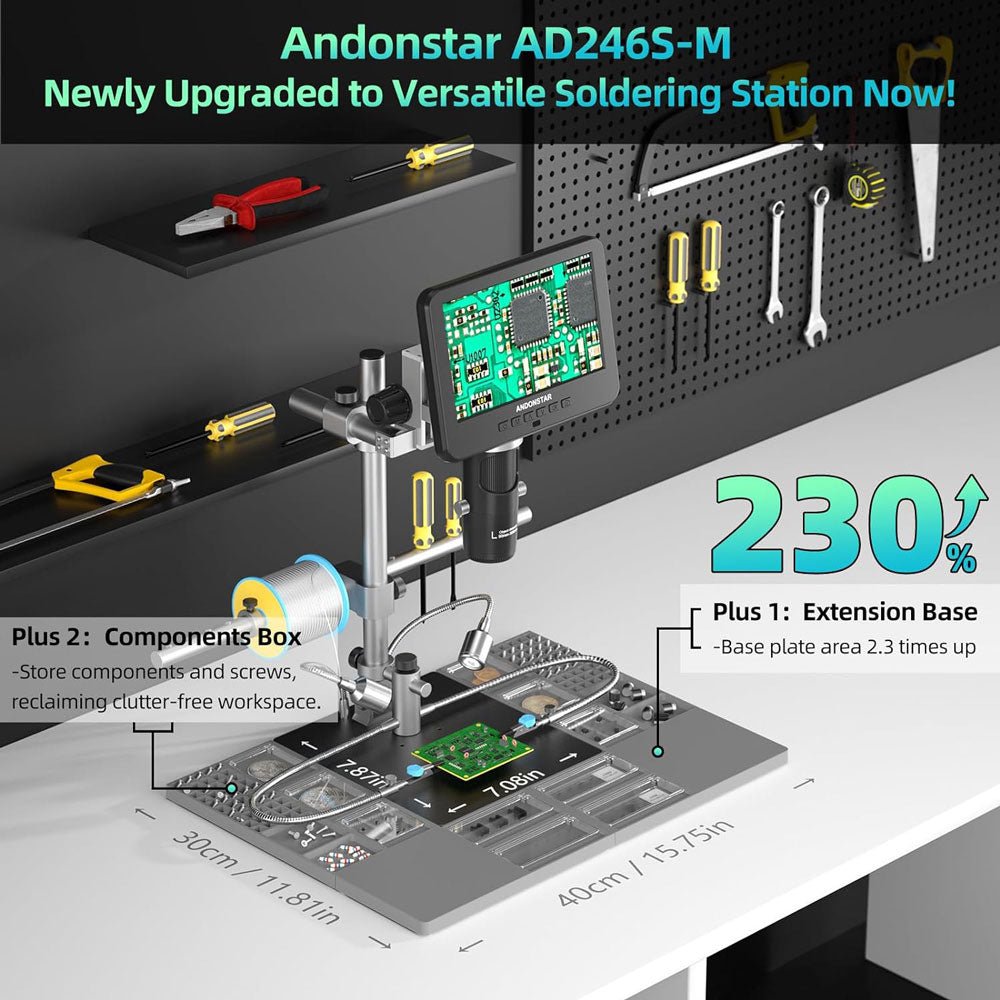

  • Upgraded Plus stand, the spliced base plate, which is easy to disassemble and assemble
  • Turn into a large base, from 18 x 20 cm to 40 x 30 cm

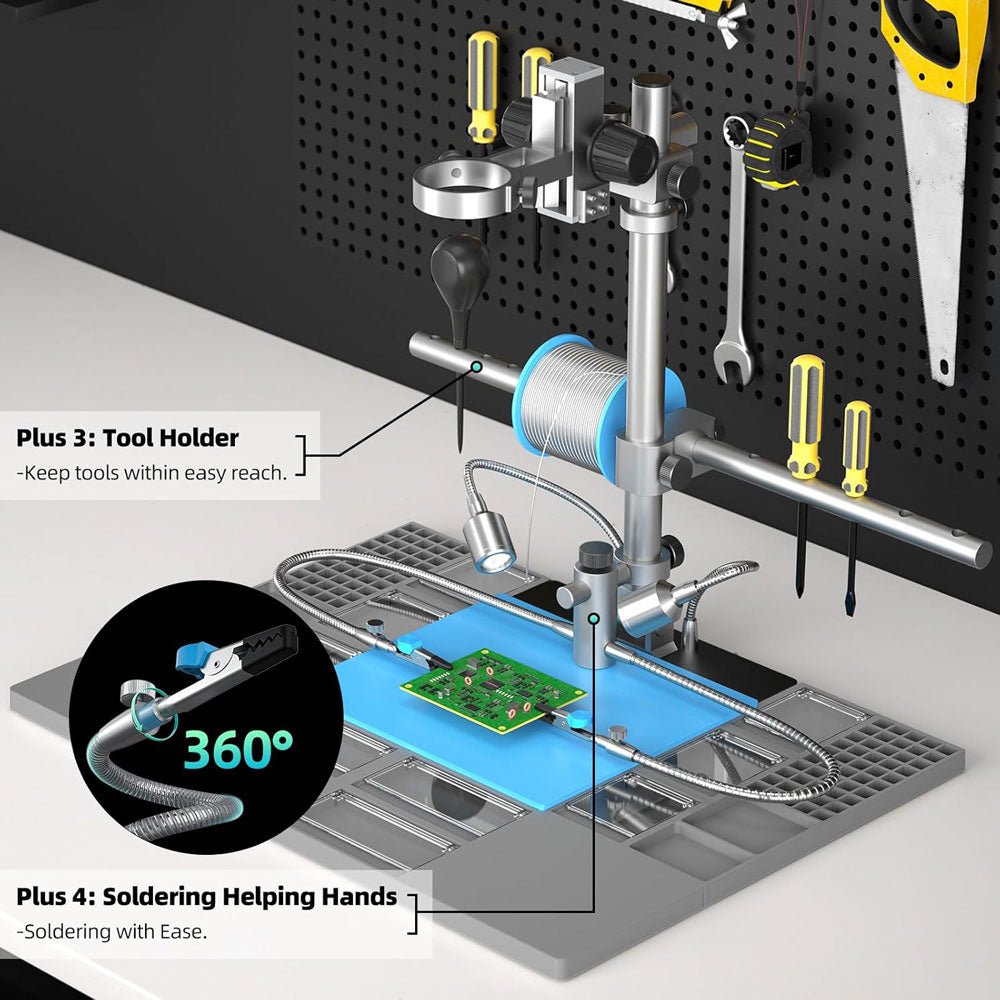

  • Add a tool holder and bottom storage to keep your desktop tidy
  • A pair of soldering helping hands to help secure the PCB or other objects
  • An anti-static and high-temperature resistant silicone pad/soldering mat to help you complete your work better
  • The Pro Metal Stands features a strong metal stand adjustable in various directions and angle

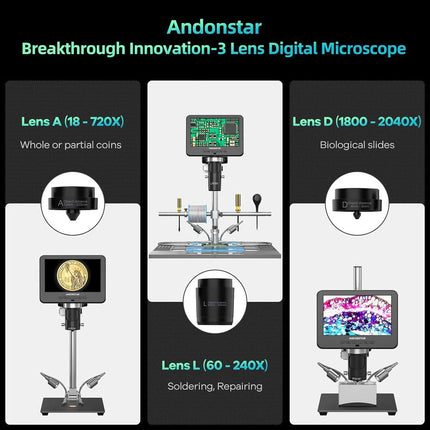

  • 3-Lens Digital Microscope allowing you to observe objects ranging from soldering and repairing to coins, and even for biological slides.
    • Lens A (18-720x)
    • Lens D (1800-2040x)
    • Lens L (60-240x)
    • Observation distance:
      • Lens A (12-320 mm)
      • Lens L (90-300 mm)
      • Lens D (4-5 mm)

Specifications

AD246SM-Plus AD249SM-Plus
Magnification Lens A 18-720 18-720
Focus range 12-320 mm 12-320 mm
Lens D 1800-2040 1800-2040
Focus range 4-5 mm 4-5 mm
Lens L 60-240 60-240
Focus range 90-300 mm 90-300 mm

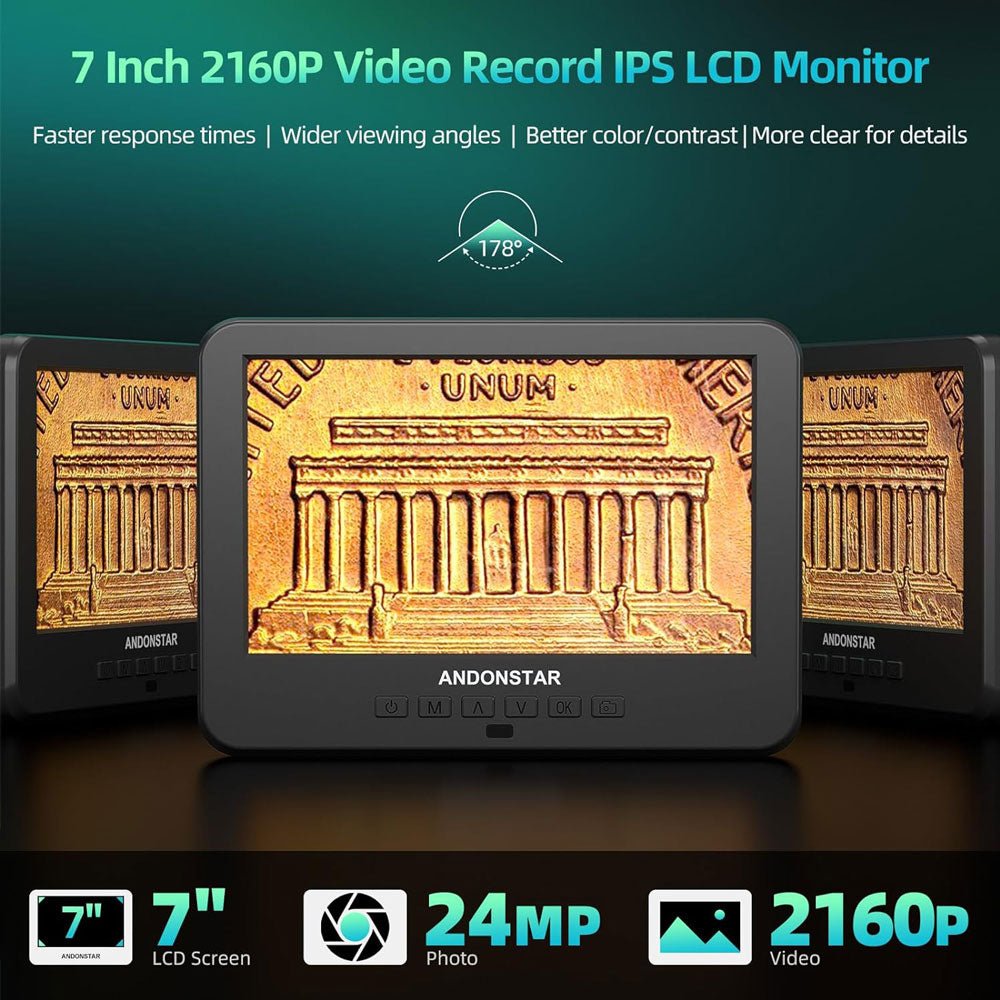

Screen size 7 inch (17.8 cm) 10 inch (25.7 cm)
Video resolution (max.) UHD 2880x2160 (24fps) UHD 2880x2160 (24fps)
Video format MP4 MP4
Photo format JPG JPG
Photo resolution 5600x2400 (with interpolation) 5600x2400 (with interpolation)
Frame rate Max. 120fps Max. 120fps
HDMI output Yes (support dual-screen display) Yes (only HDMI monitor displays)
PC output Yes Yes
Stand size 30 x 40 x 33 cm 30 x 40 x 33 cm

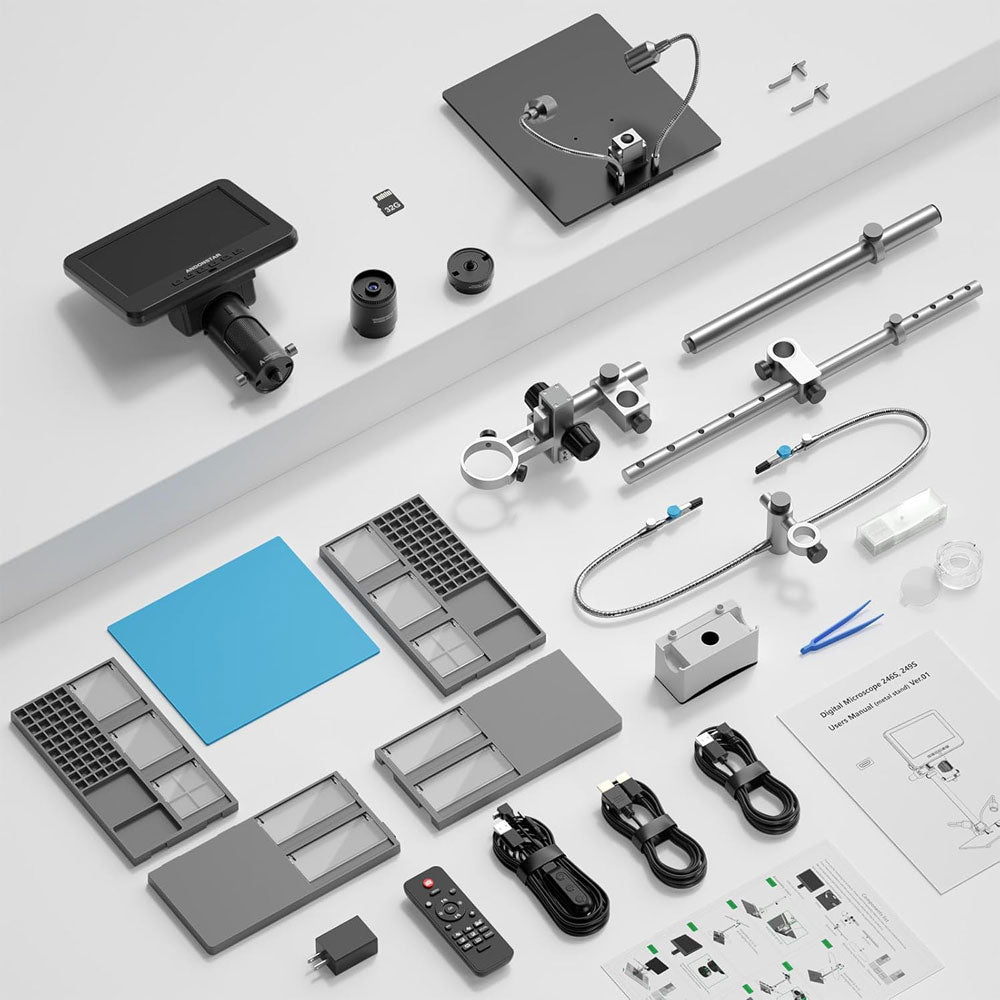

Included

  • 1x Andonstar AD246SM-Plus Digital Microscope
  • 3x Lenses (A, D & L)
  • 1x Metal stand with 2 LEDs
  • 1x Soldering mat
  • 1x Beam
  • 1x Column
  • 1x Tool holder
  • 1x Soldering Helping Hands
  • 1x Slide holder
  • 1x 32 GB microSD card
  • 1x USB cable
  • 1x Switch cable
  • 1x HDMI cable
  • 1x Remote control
  • 5x Prepared Slides
  • 1x Observation box
  • 1x Tweezers
  • 1x Manual

Downloads

Product form

This versatile microscope with upgraded Plus stand covers a wide magnification range (60-240x, 18-720x, 1560-2040x) with 3 lenses. With this... Read more

€ 249,00€ 209,00 incl. VAT
Members identical

      Details

      SKU: 20850
      EAN: 020850

      Description

      This versatile microscope with upgraded Plus stand covers a wide magnification range (60-240x, 18-720x, 1560-2040x) with 3 lenses. With this digital microscope, you can examine plants, insects, gems and coins, or do electronic work such as repairing or making circuit boards.

      Features

      • Upgraded Plus stand, the spliced base plate, which is easy to disassemble and assemble
      • Turn into a large base, from 18 x 20 cm to 40 x 30 cm
      • Add a tool holder and bottom storage to keep your desktop tidy
      • A pair of soldering helping hands to help secure the PCB or other objects
      • An anti-static and high-temperature resistant silicone pad/soldering mat to help you complete your work better
      • The Pro Metal Stands features a strong metal stand adjustable in various directions and angle
      • 3-Lens Digital Microscope allowing you to observe objects ranging from soldering and repairing to coins, and even for biological slides.
        • Lens A (18-720x)
        • Lens D (1800-2040x)
        • Lens L (60-240x)
        • Observation distance:
          • Lens A (12-320 mm)
          • Lens L (90-300 mm)
          • Lens D (4-5 mm)

      Specifications

      AD246SM-Plus AD249SM-Plus
      Magnification Lens A 18-720 18-720
      Focus range 12-320 mm 12-320 mm
      Lens D 1800-2040 1800-2040
      Focus range 4-5 mm 4-5 mm
      Lens L 60-240 60-240
      Focus range 90-300 mm 90-300 mm
      Screen size 7 inch (17.8 cm) 10 inch (25.7 cm)
      Video resolution (max.) UHD 2880x2160 (24fps) UHD 2880x2160 (24fps)
      Video format MP4 MP4
      Photo format JPG JPG
      Photo resolution 5600x2400 (with interpolation) 5600x2400 (with interpolation)
      Frame rate Max. 120fps Max. 120fps
      HDMI output Yes (support dual-screen display) Yes (only HDMI monitor displays)
      PC output Yes Yes
      Stand size 30 x 40 x 33 cm 30 x 40 x 33 cm

      Included

      • 1x Andonstar AD246SM-Plus Digital Microscope
      • 3x Lenses (A, D & L)
      • 1x Metal stand with 2 LEDs
      • 1x Soldering mat
      • 1x Beam
      • 1x Column
      • 1x Tool holder
      • 1x Soldering Helping Hands
      • 1x Slide holder
      • 1x 32 GB microSD card
      • 1x USB cable
      • 1x Switch cable
      • 1x HDMI cable
      • 1x Remote control
      • 5x Prepared Slides
      • 1x Observation box
      • 1x Tweezers
      • 1x Manual
