Description
Arduino, MicroPython, and CircuitPython-compatible compact development board powered by Raspberry Pi RP2040

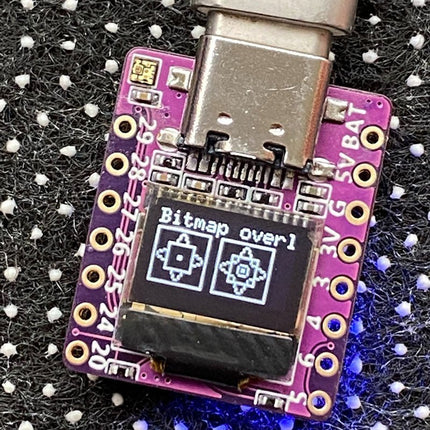

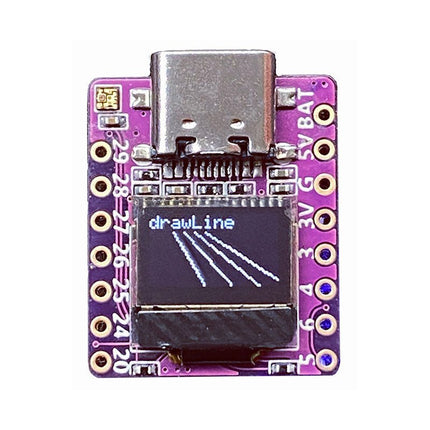

RP2040-0.42LCD is a high-performance development board with integrated 0.42" LCD (70x40 resolution) with flexible digital interfaces.
It incorporates Raspberry Pi's RP2040 microcontroller chip. The RP2040 features a dual-core Arm Cortex-M0+ processor clocked at 133 MHz with 264 KB internal SRAM and 2 MB flash storage.
Specifications
| SoC |
Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller at up to 125 MHz, with 264 KB SRAM |
| Storage |
2 MB SPI flash |
| Display |
0.42-inch OLED |
| USB |
1x USB Type-C port for power and programming |
| Expansion |
– Qwiic I²C connector

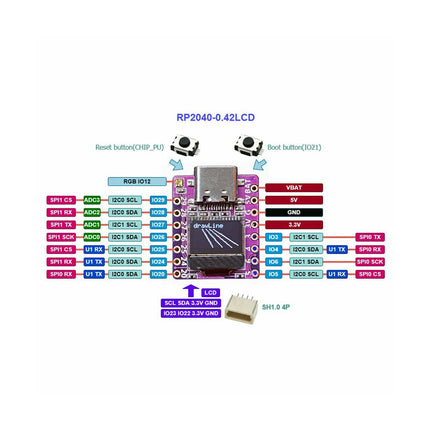

– 7-pin and 8-pin headers with up to 11x GPIOs, 2x SPI, 2x I²C, 4x ADC, 1x UART, 5 V, 3.3 V, VBAT, GND |
| Misc |
– Reset and Boot buttons
– RGB LED, power LED
|
| Power supply |
– 5 V via USB-C port or Vin
– VBAT pin for battery input
– 3.3 V regulator with 500 mA peak output
|
| Dimensions |
23.5 x 18 mm |
| Weight |
2.5 g |
Downloads
