TapNLink modules provide wireless interfaces for linking electronic systems to mobile devices and the Cloud. TapNLink connects directly to the target system's microcontroller. It integrates into and is powered by the target system. All TapNLink products are easily configured to control access by different types of users to data in the target system. TapNLink facilitates rapid creation of Human Machine Interfaces (HMI) that run on Android, iOS and Windows mobiles. HMI apps are easily customized for different users and can be deployed and updated to keep pace with evolving system requirements and user needs. TapNLink Wi-Fi modules can also be configured to connect the target system permanently to a wireless network and the Cloud. This enables permanent logging of target system data and alarms. Features Wireless Channels Wi-Fi 802.11b/g/n Bluetooth Low Energy (BLE 4.2) Near Field Communication (NFC) Type5 tag (ISO/IEC 15693) Supported Target Connections: Connects on 2 GPIO of the target microcontroller and supports: Serial interface with Software Secure Serial Port (S3P) protocol Serial interface with ARM SWD debug protocol. UART with Modbus protocol Mobile Platform Support HTML5 web apps (Android, iOS) API for Cordova (Android, iOS, Windows 10) Java (Android, iOS native) Auto-app generator for Android and iOS mobiles Security Configurable access profiles Configurable, encrypted passwords AES-128/256 module-level data encryption Configurable secure pairing with NFC Dimensions: 38 mm x 28 mm x 3 mm Electrical Characteristics Input voltage: 2.3V to 3.6 V Low power consumption: Standby: 100 µA NFC Tx/Rx: 7 mA Wi-Fi Rx: 110 mA Wi-Fi Tx : 280 mA (802.11b) Temperature Range: -20°C ~ +55°C Compliance CE (Europe), FCC (USA), IC (Canada) REACH RoHS WEEE Ordering Information Base Part Number: TnL-FIW103 MOQ: 20 modules TapNLink modules pre-qualified, pre-programmed and ready to configure. IoTize Studio configuration and testing software Software for HMI on mobile devices (iOS, Android, Windows 10) IoTize Cloud MQTT infrastructure (open source) For more information, check out the datasheet here.

Read more less

The OWON SPS3081 Fanless Programmable DC Power Supply (120 W) delivers ultra-quiet, high-precision performance with 10 mV/1 mA accuracy and advanced heat dissipation for long-term reliability. Featuring comprehensive protection, a USB interface with SCPI support for remote control, and a 2.8-inch TFT LCD screen, it is the perfect choice for laboratories, electronics testing, and research. Features Fanless design: Ultra-quiet operation, reducing vibration noise and minimizing the potential failure risks associated with traditional cooling fans. Excellent heat dissipation design: Ensures a controlled temperature rise, allowing long-term operation under full load conditions and extending internal component longevity. Lightweight and ultra-thin design. Output accuracy up to 10 mV/1 mA. Supports List waveform editing and output, with four memory shortcut parameters for quick and convenient access. Integrated protection features include overvoltage, overcurrent, overtemperature, and input undervoltage protection for enhanced safety. Built-in discharge circuit prevents residual high voltage risks when the power is turned off. USB communication interface with SCPI protocol support, enabling PC programming and remote control for simplified user management. 2.8-inch TFT LCD screen Specifications Model SPS6051 SPS3081 Rated Output (0°C-40°C) Voltage 0-61 V 0-31 V Current 0-5.1 A 0-8.1 A Power 150 W 120 W Load Regulation Voltage ≤30 mV Current ≤20 mA Power Regulation Voltage ≤30 mV Current ≤20 mA Setting Resolution Voltage 10 mV Current 1 mA Readback Resolution Voltage 10 mV Current 1 mA Seting Accuracy (25°C ±5°C) Voltage ≤0.05% ±20 mV ≤0.1% ±20 mV Current ≤0.05% ±20 mA ≤0.2% ±20 mA Readback Accuracy (25°C ±5°C) Current ≤0.05% ±20 mV ≤0.1% ±20 mV Voltage ≤0.05% ±20 mV ≤0.2% ±20 mA Ripple/Noise Voltage ≤30 mVp-p ≤30 mVp-p Voltage ≤4 mVrms ≤5 mVrms Current ≤10 mAp-p ≤30 mAp-p Output temperature coefficient (0°C-40°C) Voltage 100 ppm/°C Current 200 ppm/°C Readback temperature coefficient Voltage 100 ppm/°C Current 200 ppm/°C Response Time (50-100% rated load) ≤1.0 ms Storage 4 groups of data Working Temperature 0-40°C Display 2.8-inch color LCD display Interface USB Dimensions (W x H x D) 82 x 142 x 226 mm Weight 1.8 kg Included 1x OWON SPS3081 Power Supply 2x Test leads 1x Power cord 1x Manual Downloads Datasheet User Manual Programming Manual PC Software

Read more less

Waveshare Core3S500E is an FPGA core board that features an XC3S500E device onboard supporting further expansion. Features Onboard 1x XCF04S Integrated FPGA basic circuit, such as clock circuit Onboard nCONFIG button, RESET button, 4x LEDs All the I/O ports are accessible on the pin headers Onboard JTAG debugging/programming interface 2.0 mm header pitch design, suitable for being plugged-in your application system Downloads Wiki

Read more less

The starter kit for Jetson Nano is one of the best kits for beginners to get started with Jetson Nano. This kit includes 32 GB MicroSD card, 20 W adapter, 2-pin jumper, camera, and micro-USB cable. Features 32 GB High-performance MicroSD card 5 V 4 A power supply with 2.1 mm DC barrel connector 2-pin jumper Raspberry Pi camera module V2 Micro-B To Type-A USB cable with DATA enabled

Read more less

This fiberglass outdoor antenna is optimized for receiving signals in the 868 MHz ISM band, supporting technologies such as Sigfox, LoRa, Mesh Networks, and Helium. The antenna consists of a half-wave dipole with 4.4 dBi gain, encapsulated inside a fiberglass radome with an aluminum mounting base. Specifications Frequency 868-870 MHz Antenna type Dipole 1/2 wave Connector N female Installation type Mast Diam 35-60 mm (mounting bracket included) Gain 4.4 dBi SWR ≤1.5 Type of Polarization Vertical Maximum power 10 W Impedance 50 Ohms Dimensions 52.5 cm Tube diameter 26 mm Base antenna 32 mm Operating temperature −30°C to +60°C Included ISM Band Antenna (868 Mhz) Mast bracket (for installation on a 35 to 60 mm diameter mast)

Read more less

The PeakTech 1265 is an affordable 30 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 250 MS/s and convinces with its high quality and easy handling with the best price/performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner. This oscilloscope has a VGA output for displaying the oscilloscope display on an external monitor or projector. Features 2-channel oscilloscope with 30 MHz analog bandwidth at max. 250 MS/s sampling rate 8 inch (20 cm) TFT color display with 800 x 600 pixels LAN, USB host, USB device & VGA interface Autoset function for user-friendly operation Recording length of max. 10,000 points Automatic measurement modes, XY mode and FFT function Specifications Bandwidth 30 MHz Channels 2 Screen size (TFT) 8' (20 cm) Resolution 800 x 600 Pixel Display Type Color-TFT Sampling 1 CH 250 MS/s Sampling 2 CH 125 MS/s Hor. scale max. 100 s/div Hor. scale min. 5 ns/div Memory depth 10,000 Points Rise Time < 14 ns Vert. resolution 8 Bit Vert. scale max. 10 V/div Vert. scale min. 2 mV/div Interfaces 1x USB, 1x LAN, 1x VGA Mains voltage 110/240 V AC; 50/60 Hz Included PeakTech 1265 Oscilloscope USB cable Software CD for Windows Power cord 2 probes BNC cable Carrying case Manual Downloads Software Datasheet_DE-EN Datasheet_FR Datasheet_IT Datasheet_ES

Read more less

The PeakTech 1240 is a 60 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 500 MS/s and convinces with its high quality and easy handling with the best price/performance ratio. Features High-resolution TFT color display with 800 x 600 pixels and 65536 colors USB port for real-time data transmission or reading of internal memory Saving of measured values and graphics directly onto the USB-stick VGA-output port for external monitor Autoset and autoscale function for easy operation LAN connection for remote access via network Internal memory of 10 million points per channel or 15 waveforms 20 automatic measurement modes and FFT function PASS/FAIL function Safety: EN 61010-1; CAT II Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/Vista/7/8/10, power cable, 2 probes, carrying case and manual Specifications Bandwidth 60 MHz Display 20 cm (8”) TFT with 65536 colors Resolution 800 x 600 Pixel Channel 2 CH Sampling mode Normal/peak detect/average Sampling rate each Channel 250 MSa/s Input coupling AC, DC, GND Input impedance 1 MΩ +/- 2 % in parallel with 10 pF +/- 5 pF Input voltage 400 V DC or ACpp Sensitivity 2 mV - 10 V/Skt/div. Rise time < 5,8 ns Accuracy +/- 3 % Vertical resolutions 8 Bits (2 CH simultaneously) Horizontal scale 5ns-100s/Skt./div Sampling range 0,5 - 250 S/s Trigger type Edge/Video/Pulse/Slope Trigger mode Auto, Normal, Single Trigger coupling DC, AC, LF, HF 20 automat. measurements peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B(falling), frequency, period, min, max Phase difference +/- 3° Record length 10.000.000 points/CH Interfaces USB Device 2.0, USB Host 2.0, VGA, LAN Operation voltage 100~240 V ACrms / 50/60 Hz Dimensions 340 x 155 x 70 mm Weight 1.8 kg

Read more less

Waveshare CoreEP4CE10 is an FPGA core board that features an EP4CE10F17C8N device onboard supporting further expansion. Features Onboard Serial Configuration Device EPCS16SI8N Integrated FPGA basic circuit, such as clock circuit Onboard nCONFIG button, RESET button, 4x LEDs All the I/O ports are accessible on the pin headers Onboard JTAG debugging/programming interface 2.00 mm header pitch design, suitable for being plugged-in your application system Downloads Wiki

Read more less

The Waveshare Jetson Nano Development Kit, based on AI computers Jetson Nano (with 16 GB eMMC) and Jetson Xavier NX, provides almost the same IOs, size, and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of the core module, it is qualified for fields like image classification, object detection, segmentation, speech processing, etc., and can be used in sorts of AI projects. Specifications GPU 128-core Maxwell CPU Quad-core ARM A57 @ 1.43 GHz RAM 4 GB 64-bit LPDDR4 25.6 GB/s Storage 16 GB eMMC + 64 GB TF Card Video encoder 250 MP/s 1x 4K @ 30 (HEVC) 2x 1080p @ 60 (HEVC) 4x 1080p @ 30 (HEVC) Video decoder 500 MP/s 1x 4K @ 60 (HEVC) 2x 4K @ 30 (HEVC) 4x 1080p @ 60 (HEVC) 8x 1080p @ 30 (HEVC) Camera 1x MIPI CSI-2 D-PHY lanes Connectivity Gigabit Ethernet, M.2 Key E expansion connector Display HDMI USB 1x USB 3.2 Gen 1 Type A 2x USB 2.0 Type A 1x USB 2.0 Micro-B Interfaces GPIO, I²C, I²S, SPI, UART Dimensions 100 x 80 x 29 mm Included 1x JETSON-NANO-LITE-DEV-KIT (carrier + Nano + heatsink) 1x AC8265 dual-mode NIC 1x Cooling fan 1x USB cable (1.2 m) 1x Ethernet cable (1.5 m) 1x 5 V/3 A power adapter (EU) 1x 64 GB TF Card 1x Card reader Documentation Wiki

Read more less

The UPO1104 4-channel digital oscilloscope utilizes Ultra Phosphor 2.0 technology. It features a bandwidth of 100 MHz and a real-time sampling rate of up to 2 GSa/s. It supports an independent DVM module, offers extensive trigger and bus decoding functions, and supports full-memory hardware real-time decoding. The UPO1104 can be widely used in embedded system design, instrumentation, consumer electronics, automotive electronics, field maintenance, education, and many other fields. Features Bandwidth: 100 MHz Channels: 4 Sampling rate: 2 GSa/s Vertical scale: 500μV/div-20 V/div Low-base noise: <100μVrms Maximum storage depth up to 56 Mpts Waveform capture rate of up to 500,000 wfms/s The hardware can be continuous waveform recording 120,000 frames in real time Automatic measurement of 36 waveform parameters, the measurement range divides into screen and cursor area Supports 7 digits hardware frequency meter measurement DVM supports AC/DC TRMS (true virtual value) measurement Waveform calculation function (FFT, add, subtract, multiply, divide, digital filter, logical operation and advanced operation) 1M sampling points to enhance FFT function, it supports frequency setting, waterfall curve, demodulation mode and marker measurement Multiple trigger functions (edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern) Supporting RS232, I²C, SPI trigger Innovative RS232, I²C, SPI full memory hardware for real-time decoding Ultra phosphor display effect, 256 grayscale display 7-inch WVGA (800x480) TFT LCD Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM) Supporting waveform navigation, marker and segment Supporting SCPI programmable standard command Support WEB access and control Dimensions: 306 x 138 x 107 mm Weight: 2.45 kg Specifications Model UPO1104 UPO1204 Bandwidth 100 MHz 200 Mhz Analog channels 4 4 Real-time sampling rate 2 GSa/s 2 GSa/s Rise time ≤3.5 ns ≤1.8 ns Storage depth 56 Mpts 56 Mpts Waveform capture rate 500,000 Wfms/s 500,000 Wfms/s Included 1x UNI-T UPO1104 4-ch Phosphor Oscilloscope (100 MHz) 4x Passive probe (100 MHz) 1x Power cord 1x USB cable 1x Manual Downloads Datasheet Software

Read more less

The PeakTech 6192 is a linear regulated, dual-channel laboratory power supply that delivers reliable performance and enhanced safety, thanks to its integrated safety transformer. With adjustable outputs ranging from 0-60 V and 0-2.5 A DC, it is versatile and well-suited for various laboratory and workshop applications. It features a current preselection function, allowing users to set the desired current before connecting the load. The four-digit blue LED displays clearly and precisely show voltage, current, and power values. The output button ensures that output is only activated after settings have been configured, preventing unintentional changes and increasing operational safety. A temperature-controlled fan automatically responds to the device's internal temperature, providing efficient cooling and quiet operation. The unit is equipped with four potentiometers for quick and precise adjustment of current and voltage values. Additionally, a USB interface enables remote control and data readout via PC. Features Two outputs adjustable from 0-60 V and 0-2.5 A DC Fixed voltage output 5 V/1 A DC With USB interface and PC software 4-digit segment displays for current and voltage Channels can be used independently, in series or in parallel Overload protection and short-circuit proof Temperature-controlled fan High load stability and low residual ripple Sturdy metal housing with carrying handle Output of safety extra-low voltage (SELV) Safety: EN-61010-1, EN 61558-2-6 Specifications Adjustable DC Output voltage 2x 20...60 V Rechargeable DC Output current 2x 0...2.5 A Fixed value output 5 V/1 A USB interface Yes Input voltage 104~127 V AC (60 Hz) or207~253 V AC (50 Hz) switchable Grid stability (at 0-100% load) CV ≤0.01% + 3 mVCC ≤0.2% + 3 mA Load stability (at 0-100% load) CV ≤0.05% + 5 mVCC ≤0.5% + 5 mA Ripple (at 100% load) CV ≤1 mVrmsCC ≤3 mArms Overload protection Constant current limiter circuit and short-circuit proof Accuracy of the voltage display ±0.5% + 5 digits Accuracy of the current display ±0.5% + 5 digits Operating temperature 0°C ... +40°C (<90% RH) Dimensions (W x H x D) 255 x 160 x 335 mm Weight approx. 9 kg Included 1x PeakTech 6192 DC Power Supply 1x Power cable 1x USB cable 1x CD-ROM 1x Manual Downloads Datasheet Interface protocol Software

Read more less

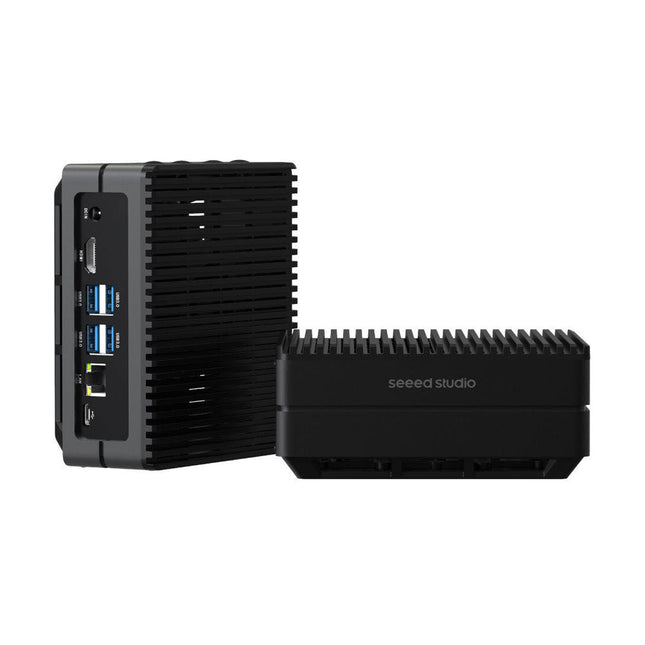

The reComputer J3010 is a compact and powerful edge AI device powered by the NVIDIA Jetson Orin Nano SoM, delivering an impressive 20 TOPS AI performance – up to 40 times faster than the Jetson Nano. Pre-installed with Jetpack 5.1.1, it features a 128 GB SSD, 4x USB 3.2 ports, HDMI, Gigabit Ethernet, and a versatile carrier board with M.2 Key E for WiFi, M.2 Key M for SSD, RTC, CAN, and a 40-pin GPIO header. Applications AI Video Analytics Machine Vision Robotics Specifications Jetson Orin Nano System-on-Module AI Performance reComputer J3010, Orin Nano 4 GB (20 TOPS) GPU 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (Orin Nano 4 GB) CPU 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5 MB L2 + 4 MB L3 Memory 4 GB 64-bit LPDDR5 34 GB/s (Orin Nano 4 GB) Video Encoder 1080p30 supported by 1-2 CPU cores Video Decoder 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265) Carrier Board Storage M.2 Key M PCIe (M.2 NVMe 2280 SSD 128 GB included) Networking Ethernet 1x RJ-45 Gigabit Ethernet (10/100/1000M) M.2 Key E 1x M.2 Key E (pre-installed 1x Wi-Fi/Bluetooth combo module) I/O USB 4x USB 3.2 Type-A (10 Gbps)1x USB 2.0 Type-C (Device Mode) CSI Camera 2x CSI (2-lane 15-pin) Display 1x HDMI 2.1 Fan 1x 4-pin Fan Connector (5 V PWM) CAN 1x CAN Multifunctional Port 1x 40-Pin Expansion header 1x 12-Pin Control and UART header RTC RTC 2-pin, supports CR1220 (not included) Power Supply 9-19 V DC Mechanical Dimensions 130 x 120 x 58.5 mm (with Case) Installation Desktop, wall-mounting Operating Temperature −10°C~60°C Included 1x reComputer J3010 (system installed) 1x Power adapter (12 V / 5 A) Downloads reComputer J301x Datasheet NVIDIA Jetson Devices and carrier boards comparisions reComputer J401 schematic design file reComputer J3010 3D file

Read more less

The reComputer J1020 v2 is a compact edge AI device powered by the NVIDIA Jetson Nano 4 GB production module, delivering 0.5 TFLOPs of AI performance. It features a robust aluminum case with a passive heatsink and comes pre-installed with JetPack 4.6.1. The device includes 16 GB of onboard eMMC storage and offers 2x SCI, 4x USB 3.0, M.2 Key M, HDMI, and DP. Applications Computer Vision Machine Learning Autonomous Mobile Robot (AMR) Specifications Jetson Nano 4 GB System-on-Module AI Performance Jetson Nano 4 GB (0.5 TOPS) GPU NVIDIA Maxwel architecture with 128 NVIDIA CUDA cores CPU Quad-core ARM Cortex-A57 MPCore processor Memory 4 GB 64-bit LPDDR4 25.6 GB/s Video Encoder 1x 4K30 | 2x 1080p60 | 4x 1080p30 | 4x 720p60 | 9x 720p30 (H.265 & H.264) Video Decoder 1x 4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60 (H.265 & H.264) Carrier Board Storage 1x M.2 Key M PCIe Networking Ethernet 1x RJ-45 Gigabit Ethernet (10/100/1000M) I/O USB 4x USB 3.0 Type-A1x Micro-USB port for device mode CSI Camera 2x CSI (2-lane 15-pin) Display 1x HDMI Type A; 1x DP Fan 1x 4-pin Fan Connector (5 V PWM) CAN 1x CAN Multifunctional Port 1x 40-Pin Expansion header 1x 12-Pin Control and UART header Power Supply DC 12 V/2 A Mechanical Dimensions 130 x 120 x 50 mm (with Case) Installation Desktop, wall-mounting Operating Temperature −10°C~60°C Included reComputer J1020 v2 (system installed) 12 V/2 A power adapter (with 5 interchangeable adapter plugs) Downloads reComputer J1020 v2 datasheet reComputer J1020 v2 3D file Seeed NVIDIA Jetson Product Catalog NVIDIA Jetson Device and Carrier Boards Comparison

Read more less

The PeakTech 5620 is a professional thermal imaging camera with a high thermal resolution of 384x288 thermal image points and a variety of excellent features for work in building thermography or industrial use. In addition to the pure thermal image display, this new development also offers a PIP (picture-in-picture) display, a real image camera or a fusion function in which the contours of the real image recording are combined with the thermal image in order to ensure an even better display. All of the image modes mentioned can also be used for video recording, which also enables audio recordings for the respective video. The many functions are controlled via push buttons on the device, but also via the touch screen function of the color TFT display. All thermal images can be opened and evaluated using the enclosed software, with subsequent changes, e.g. can be done on the pallet selection. Features Professional thermal imaging technology 3.5" touchscreen and graphic menu navigation Thermal image resolution of 384x288 pixels High temperature measuring range up to +550°C High quality thermal image sensor with high temperature sensitivity Fast thermal imaging with 25 Hz Seven color palettes (Iron, Rainbow, White, Black ...) Photo and video recordings with audio commentary WiFi, USB and Bluetooth interfaces IP 54 protected against dust and splash water Accessories: Hard case, 2x Li-Po battery, charger, carrying strap, connection cable, software and instructions Specifications Thermal Resolution 384 x 288 Pixel Temperature Range -20°C … 550°C (-4°F … 1022°F), 0,1° Resolution Accuracy ±2% (±2°C) Display 3.5" Touchscreen TFT Thermal Sensivity <40 mK Field of View (FOV) 37,2°x 28,5° Pixel Pitch 17 µm IFOV 1.7 mrad Wave Length 8 ... 14 µm Emissivity 0.01~1.0 Image Frequency 25 Hz Storage Micro SD (64 GB) Data Interface USB, WiFi, Bluetooth Operation voltage 5000 mAh / 3.7 V Li-Ion Dimensions 100 x 244 x 104 mm Weight approx. 660 g

Read more less

The Arduino Pro Portenta Cat. M1/NB IoT GNSS Shield allows you to enhance the connectivity features of your Portenta H7 applications. The shield leverages a Cinterion TX62 wireless module by Thales, designed for highly efficient, low-power IoT applications to deliver optimized bandwidth and performance. The Portenta Cat. M1/NB IoT GNSS Shield combines with the strong edge computing power of the Portenta H7 to enable the development of asset tracking and remote monitoring applications in industrial settings, as well as in agriculture, public utilities and smart cities. The shield offers cellular connectivity to both Cat. M1 and NB-IoT networks with the option to use eSIM technology. Easily track your valuables – across the city or worldwide – with your choice of GPS, GLONASS, Galileo or BeiDou. Features Change connectivity capabilities without changing the board Add NB-IoT, CAT. M1 and positioning to any Portenta product Possibility to create a small multiprotocol router (WiFi - BT + NB-IoT/CAT. M1) Greatly reduce communication bandwidth requirements in IoT applications Low-power module Compatible also with MKR boards Remote Monitoring Industrial and agricultural companies can leverage the Portenta Cat. M1/NB IoT GNSS Shield to remotely monitor gas detectors, optical sensors, machinery alarm systems, biological bug traps and more. Technology providers providing smart city solutions can compound the power and reliability of the Portenta H7 with the Portenta Cat. M1/NB IoT GNSS Shield, to connect data and automate actions for a truly optimized use of resources and enhanced user experience. Asset Monitoring Add monitoring capabilities to any asset by combining the performance and edge computing features of the Portenta family boards. The Portenta Cat. M1/NB IoT GNSS Shield is ideal to monitor valuable goods and also for monitoring industrial machinery and equipment. Specifications Connectivity Cinterion TX62 wireless module; NB-IoT - LTE CAT.M1; 3GPP Rel.14 Compliant Protocol LTE Cat. M1/NB1/NB2; UMTS BANDS: 1 / 2 / 3 / 4 / 5 / 8 / 12(17) / 13 / 18 / 19 / 20 / 25 / 26 / 27 / 28 / 66 / 71 / 85; LTE Cat.M1 DL: max. 300 kbps, UL: max. 1.1 Mbps; LTE Cat.NB1 DL: max. 27 kbps, UL: max. 63 kbps; LTE Cat.NB2 DL: max. 124 kbps, UL: max. 158 kbps Short messaging service (SMS) Point-to-point mobile terminated (MT) and mobile originated (MO) Text Mode; Protocol Data Unit (PDU) Mode Localization support GNSS capability (GPS/BeiDou/Galileo/GLONASS) Other Embedded IPv4 and IPv6 TCP/IP stack access; Internet Services: TCP server/client, UDP client, DNS, Ping, HTTP client, FTP client, MQTT client Secure Connection with TLS/DTLS Secure boot Dimensions 66 x 25.4 mm Operating temperature -40° C to +85° C (-104° F to 185°F) Downloads Datasheet Schematics

Read more less

The CS Mount Lens (3 MP, 6 mm) is designed for use with the Raspberry Pi HQ Camera Module, delivering sharp, detailed imaging for various applications.

Read more less

The single backlit button is a simple mechanical switch that comes with an LED inside. When you press the button, the circuit is completed, driving your pin high or low. Use the embedded LED to make a glowing power icon, logo , or whatever suits your fancy. Features Press durability: Up to 10,000 times pressing under 5lbf (22.24 N) LED Voltage: 5 V Component: 2" x 3" Individual (5,08 x 7,62 cm) Button Size: 1" radius circle (2,54 cm)

Read more less

Double Backlit User Interface: The dual backlit button is just like the single backlit button, but twice the fun! Use this component when you need to operate something up and down, or right to left. Using cut-out vinyl, you can create icons and stickers on fabric that show your users button functionality. Features Component: 4.6 x 6.3" Individual Button Size: 1" radius circle Press Durability: Up to 10,000 presses under 5lbf LED Voltage: 5 V

Read more less

Portenta HAT Carrier is a reliable and robust carrier that transforms Portenta X8 into an industrial single board computer compatible with Raspberry Pi HATs and cameras. It is ideal for multiple industrial applications such as building automation and machine monitoring. Compatible also with Portenta H7 and Portenta C33, Portenta HAT Carrier provides easy access to multiple peripherals – including CAN, Ethernet, microSD and USB – and further extends any Portenta application. It is great for prototyping and ready for scaling up, it extends the features found on a typical Raspberry Pi Model B. Debug quickly with dedicated JTAG pins and keeps heat manageable under intense workloads with a PWM fan connector. Control actuators or read analog sensors via the additional 16x analog I/Os. Add industrial machine vision solutions to any project by leveraging the onboard camera connector. Features Add Raspberry Pi HATs to your Portenta projects Quickly access CAN, USB, and Ethernet peripherals Leverage onboard MicroSD card to log data Enjoy simple debugging through the onboard JTAG pins Easily control actuators and read sensors via 16x analog I/Os Leveraging the onboard camera connector for machine vision Portenta takes you from prototype to high-performance Portenta HAT Carrier offers you a frictionless Linux prototyping experience and unlocks the ability for integrated real-time MCU solutions. Portenta HAT Carrier extends Portenta SOMs for faster, easier and more efficient testing for your ideas while also ensuring the capabilities and industrial-grade performances the Portenta range is known for. Extend the Raspberry Pi ecosystem for commercial applications Combine the ease of use, accessibility and incredible support from both the Arduino and Raspberry Pi communities for your next project with the carrier designed to combine and extend MPU and MCU applications for the development of advanced commercial solutions. Specifications Connectors High-density connectors compatible with Portenta products 1x USB-A female connector 1x Gigabit Ethernet connector (RJ45) 1x CAN FD with onboard transceiver 1x MIPI Camera connector 1x MicroSD card slot 1x PWM fan connector 40-pin header connector allowing compatibility with Raspberry Pi HATs 16-pin analog header connectors, including: 8x analog inputs 1x GPIO 1xUART without flow control 2x PWM pins 1x LICELL pin for Portenta's RTC power Interfaces CAN FD UART SAI ANALOG GPIO SPI I²C I²S PWM Debugging Onboard 10x pin 1.27 mm JTAG connector Power From onboard screw terminal block allowing: 7-32 V power supply, powering both the carrier and the connected Portenta 5 V power supply From USB-C on Portenta From 5 V on 40-pin header connector Dimensions 85 x 56 mm Downloads Datasheet Schematics

Read more less

The unPhone is an open-source IoT development platform powered by the ESP32S3 microcontroller. It features integrated LoRa, Wi-Fi, and Bluetooth connectivity, a touchscreen, and a LiPo battery, offering a robust and versatile solution for IoT development. Its compatibility with Adafruit's FeatherWing standard enables easy expansion, making it an ideal choice for educators, makers, and developers seeking a flexible and user-friendly platform. Features ESP32S3 microcontroller (with 8 MB flash and 8 MB PSRAM) LoRaWAN licence-free radio communication (plus the ESP32's excellent wifi and bluetooth support) 3.5" (320 x 480) LCD capacitive touchscreen for easy debugging and UI creation IR LEDs for surreptitiously switching the cafe TV off 1200 mAh LiPo battery with USB-C charging Vibration motor for notifications Compass/Accelorometer A robust case SD card slot Power and reset buttons Programmable in C++ or CircuitPython Expander board that supports two Featherwing sockets and a prototyping area Open source firmware compatible with the Arduino IDE, PlatformIO and Espressif's IDF development framework Included unPhone (assembled) Expander board FPC cable (to link the expander board to unPhone) Self adhesive mounts for the expander board Code Examples C++ library Kick the tyres on everything in the box The main LVGL demo CircuitPython Support forum Textbook (especially chapter 11)

Read more less

The PeakTech 6193 is a linear regulated 2-channel laboratory power supply with 0-30 V/0-5 A DC output. Its integrated safety transformer ensures reliable operation and high safety standards for lab and workshop use. Key features include current preselection for safe setup, four-digit blue LED displays for voltage, current, and power, and an Output On/Off button to prevent accidental changes. The temperature-controlled fan provides efficient and quiet cooling. With four precision potentiometers, output values can be adjusted quickly and accurately. A USB interface enables remote control and data readout via PC, making it ideal for versatile and automated applications. Features Two outputs adjustable from 0-30 V and 0-5 A DC Fixed voltage output 5 V/1 A DC With USB interface and PC software 4-digit segment displays for current and voltage Channels can be used independently, in series or in parallel Overload protection and short-circuit proof Temperature-controlled fan High load stability and low residual ripple Sturdy metal housing with carrying handle Output of safety extra-low voltage (SELV) Specifications Channels 2 Display Type Segment Output Voltage 0-30 V DC Output Current 0-5 A Input voltage 115-230 VAC 50/60 Hz Auxillary output 5 V DC Cooling Active Included 1x PeakTech 6193 DC Power Supply 1x Power cable 1x USB cable 1x CD-ROM 1x Manual Downloads Datasheet Software Interface Protocol
