Use the right tool for the right job. These steel stakes are used to press the rivets on the PCB after holes have been drilled. They have been designed for optimum performance on the ink and ensure an electrical connection between the top and bottom layers of your PCB. Learn how to use them here.
Do you need a way to connect the top and bottom layers? Rivets are the key!Rivets are little copper tubes that make a mechanical connection between the top and bottom layer. We found rivets to be the easiest way to create vias. Be sure to pick up the corresponding rivet tool if you don't have one!
Pack of 200
Inner Diameter - 0.4mm
Head Diameter - 0.9mm
Drill Size: 0.7mm
Confused on how to use them? Checkout our tutorial here.
Do you need a way to connect the top and bottom layers? Rivets are the key!Rivets are little copper tubes that make a mechanical connection between the top and bottom layer. We found rivets to be the easiest way to create vias. Be sure to pick up the corresponding rivet tool if you don't have one!
Pack of 200
Inner Diameter - 1.0mm
Head Diameter - 2.2mm
Drill Size: 1.5mm (or 1.6mm)
Confused on how to use them? Checkout our tutorial here.
To protect the V-One from any damage during drilling, mount this piece of FR1 on the heated bed and clamp your substrate on top. The V-One Drill attachment will perforate your substrate but won't make it through this layer so your heated bed stays intact. Only one is included, but don't worry, the sacrifical layer can be reused plenty of times.
T5 Particle size. Smaller particles means less clogging and more consistent dispensing!Fed up with ordering multiple stencils in between board iterations?Just snap on this RoHS solder paste cartridge and the V-One will dispense solder paste onto the pads of your board. Solder paste can be dispensed onto your V-One printed boards, or prefabricated circuit boards.
Particle Size: T5
Alloy: Sn42Bi57.6Ag0.4
Each cartridge prints approximately 11,000 0603 pads.
1 x 2mL cartridge
Use with 225um or 150um nozzles for best performance.
Done printing? Let’s add some components! Just be sure to use the Voltera recommended solder wire and plenty of flux to ensure a strong solder joint. Voltera has chemically tested it to be most compatible with their ink.
Alloy: Sn42 Bi57 Ag1
Dia: 1.0 mm
Flux: 2%
Weight: 20g
Recommended Temp: < 205°C (400°F)
RoHS Compliant
Solder Paste Dispensing and Reflow All-in-One
The Voltera V-One creates two-layer prototype circuit boards on your desk. Gerber files go in, printed circuit boards come out. The dispenser lays down a silver-based conductive ink to print your circuit right before your eyes. Assembling traditional and additive boards is easy with the V-One’s solder paste dispensing and reflow features. Simply mount your board on the print bed and import your Gerber file into Voltera’s software.
No more stencils required
Voltera’s software is designed to be understood easily. From importing your Gerber files to the moment you press print, the software safely walks you through each step.
Compatible with EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace, Upverter.
The V-One Desktop PCB Printer includes all accessories and consumables needed to get started:
Consumables
1 Conductor 2 cartridge
1 Solder Paste cartridge
10 2"x3" FR4 substrates
6 3"x4" FR4 substrates
10 2"x3" FR1 substrates
6 3"x4" FR1 substrates
25 Disposable 230 micron nozzles
1 Burnishing pad
1 Solder wire spool
1 Drill bit set
200 0.4 mm rivets
200 1.0 mm rivets
2 Rivet tools
1 Sacrificial layer
1 Hello World starter kit
1 Punk Console starter kit
Accessories
2 Substrate clamps and thumbscrews
2 Dispensers with caps
1 Probe
1 Drill
1 Set of safety glasses
1 Voltera anti-static tweezers
Downloads
Specifications
V-One Software
Manuals
Safety Datasheets
Technical Datasheets
Voltera CAM file for EAGLE
Substrates and Templates
More Info
Frequently Asked Questions
More from the Voltera community
Technical Specifications
Printing Specifications
Minimum trace width
0.2 mm
Minimum passive size
1005
Minimum pin-to-pin pitch (conductive ink)
0.8 mml
Minimum pin-to-pin pitch (solder paste)
0.5 mml
Resistivity
12 mΩ/sq @ 70 um height
Substrate material
FR4
Maximum board thickness
3 mm
Soldering Specifications
Solder paste alloy
Sn42/Bi57.6/Ag0.4
Solder wire alloy
SnBiAg1
Soldering iron temperature
180-210°C
Print Bed
Print area
135 x 113.5 mm
Max. heated bed temperature
240°C
Heated bed ramp rate
~2°C/s
Footprint
Dimensions
390 x 257 x 207 mm (L x W x H)
Weight
7 kg
Computing Requirements
Compatible operating systems
Windows 7 or higher, MacOS 10.11 or higher
Compatible file format
Gerber
Connection type
Wired USB
Certification
EN 61326-1:2013
EMC requirements
IEC 61010-1
Safety requirements
CE Marking
Affixed to the Voltera V-One printers delivered to European customers
Designed and assembled in Canada.
More technical information
Quickstart
Explore Flexible Printed Electronics on the V-One
Voltera V-One Capabilities Reel
Voltera V-One PCB Printer Walkthrough
Unpacking the V-One
V-One: Solder Paste Dispensing and Reflow All-in-One
Voltera @ Stanford University's Bao Research Group: Robotic Skin and Stretchable Sensors
Voltera @ Princeton: The Future of Aerospace Innovation
The V-One Drill includes everything you need to start making double sided boards right away: Drill Bit set (0.7 m, 0.8 mm, 0.9 mm, 1.0 mm, 1.6 mm) Sacrificial Layer (Black FR1) Copper Rivets (2 sizes, 200 pcs) Safety Glasses (clear) Rivet Tools (2 sizes) Hey Key Also included Power Supply (12 V, 25 W) Power Cable (1.8 m) Power Adapter Zip Ties (2 pcs) 4 Long Thumbscrews (10 mm) 2' x 3' FR1 Substrates (10 pcs) 3' x 4' FR1 Substrates (6 pcs) Zip Tie Mount
The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I²C bus for communication. Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation. Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Accelerometer Resolution: 16-bitMeasuring range (configurable): ±2, ±4, ±8, ±16gOperating current: 68.9uA Gyroscope Resolution: 16-bitMeasuring range (configurable): ±250, ±500, ±1000, ±2000°/secOperating current: 1.23mA Magnetometer Resolution: 16-bitMeasuring range: ±4900µTOperating current: 90uA Baroceptor Measuring range: 260 ~ 1260hPaMeasuring accuracy (ordinary temperature): ±0.025hPaMeasuring speed: 1Hz - 75Hz
The Waveshare 10.1-inch High-Resolution Capacitive Touch Display is a universal touchscreen with 1920 x 1200 resolution, compatible with most standard HDMI devices. It features a thin and lightweight design, a rigid tempered glass cover for durability, excellent display performance, and a smooth multi-touch experience. Additionally, the built-in metal backplate provides stability, making it easier for users to integrate the display into all-in-one projects.
Features
10.1-inch IPS screen with 1920 x 1200 pixels
10-point capacitive touch with tempered glass panel offering up to 6H hardness
Fully laminated panel technology for better display effect
When used with Raspberry Pi, it supports Raspberry Pi OS, Ubuntu, Kali, and RetroPie
As a computer monitor, it supports Windows 7 and higher.
OSD menu (can be used for power control, adjusting brightness/volume/picture rotation, etc.)
HDMI audio output, onboard 3.5 mm headphone jack and 4-pin high-quality speakers
Specifications
Display
10.1 inch IPS
Viewing angle
178°
Resolution
1920 x 1200 pixels
Touchscreen area
217.2 x 135.6 mm
Dimensions
239 x 147 mm
Color gamut
65% NTSC
Max brightness
300 cd/m²
Contrast
1000:1
Backlight adjustment
Button dimming
Refresh rate
60 Hz
Display interface
Standard HDMI
Power supply
5 V (USB-C)
Max power consumption
6 W
Included
1x 10.1" High-Res Capacitive Touch Display (10.1EP-CAPLCD)
1x HDMI flat cable (1 m)
1x USB-A to USB-C cable (1 m)
1x Micro HDMI Adapter
1x HDMI Adapter
1x HDMI to Micro HDMI Adapter
1x PH1.25 4-pin to Type-A cable
1x Capacitive touch pen
1x 3-pin cable
1x HDMI cable 120 mm (2pcs)
1x Cleaning cloth
1x 5 V/3A power supply (EU)
1x Screws pack
Downloads
Wiki
2-ch CAN HAT+ is an isolated expansion board for Raspberry Pi. It supports dual-channel CAN communication and features multi-protection circuits, wide voltage input, and more.
Features
Designed for Raspberry Pi
Standard HAT+ design, with onboard EEPROM chip.
Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication.
Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.
Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference.
Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection.
Onboard voltage conversion circuit, select 3.3 V/5 V operating voltage by jumper.
Onboard 120 Ω terminal resistor, enable through the jumper cap.
Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino.
Provides online supporting information manuals and demos.
Specifications
CAN controller
MCP2515
Control Bus
SPI
Power supply method
External power supply terminal or Raspberry Pi GPIO
Terminal voltage input
DC 7~36 V
Operating voltage
5 V
Logic level
3.3 V/5 V
Dimensions
65.0 x 56.5 mm
Downloads
Wiki
Features 2.13' capacitive touch e-Paper display, 5-point touch, 250×122 pixels Supports waken up by user-defined gesture No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W Comes with development resources and manual (examples for Raspberry Pi) Included 1x 2.13inch Touch e-Paper HAT 1x ABS case 1x Screwdriver 1x Thermal tape 1x Rubber feet 4pcs 2x Screws Downloads Documentation
Features Adopts both 4-wire SPI and I²C interface, better compatibility, fast data rate Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Logical voltage 3.3 V Viewing angle >160° Operating voltage 3.3 V/5 V Resolution 128×32 pixels Communication interface 4-wire SPI, I²C Display size 55.02 × 13.10 mm Display panel OLED Pixel size 0.41 × 0.39 mm Driver SSD1305 Dimensions 63.00 × 26.00 mm
Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, requires minimal IO pins Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 3.3 V Display color red, black, white Interface 3-wire SPI, 4-wire SPI Grey scale 2 Outline dimensions 74.00 × 37.5 0mm Full refresh time 15s Display size 60.088 × 30.704 mm Refresh power 42.4 mW (typ.) Dot pitch 0.203 × 0.202 mm Standby current <0.01 uA (almost none) Resolution 296×152 pixels Viewing angle >170° Downloads Wiki
Features No backlight Displays last images even when powered down Ultra low power consumption SPI interface Compatible with 3.3 V and 5 V Specifications Operating voltage 3.3 V / 5 V Interface 3-wire SPI, 4-wire SPI Outline dimension 89.5 x 38 mm Display size 66.89 x 29.05 mm Dot pitch 0.138 x 0.138 Resolution 296 x 128 Display color red, black, white Grey level 2 Full refresh time 15 s Refresh power 26.4 mW Standby power <0.017 mW Viewing angle >170° For more information check out the waveshare wiki here.
Features 480 x 320 resolution, IPS screen, 65K colors, clear and colorful displaying effect Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions MicroSD card slot for storing images and direct displaying them easily Programmable backlight control, power saving Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Resolution 480 x 320 pixels Communication interface SPI Display size 73.44 x 48.96 mm Display panel IPS Pixel size 0.153 x 0.153 mm Driver ILI9488 Dimensions 86.00 x 57.20 mm Touch controller XPT2046 Downloads Wiki
Features
SPI-compatible, easy to drive
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage
5 V
Digits
4
Dispaly size
0.4 inch
LED color
red
Driver
74HC595
Display part no.
FJ4401AH
Dimensions
52 × 21 mm
This 5.83-inch 3-color e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, requires minimal I/O pins
2x user buttons and 1x reset button for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage
3.3 V
Display color
Red, black, white
Resolution
648 × 480 pixels
Gray scale
2
Interface
3-wire SPI, 4-wire SPI
Viewing angle
>170°
Partial refresh time
N/A
Full refresh time
5s
Outline dimensions
125.4 × 99.5 mm
Display size
119.232 × 88.320 mm
Refresh power
26.4 mW (typ.)
Standby current
<0.01 uA (almost none)
Dot pitch
0.184 × 0.184 mm
Applications
Suitable For Price Tags
Asset/Equipment Tags
Shelf Labels
Conference Name Tag
Included
1x 5.83-inch e-Paper (B)
1x Pico-ePaper-Driver-Board
1x Standoff pack
Downloads
Wiki
This 5.83-inch black/white e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, requires minimal I/O pins
2x user buttons and 1x reset button for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage
3.3 V
Display color
Black, white
Resolution
648 × 480 pixels
Gray scale
2
Interface
3-wire SPI, 4-wire SPI
Viewing angle
>170°
Partial refresh time
N/A
Full refresh time
5s
Outline dimensions
125.4 × 99.5 mm
Display size
119.232 × 88.320 mm
Refresh power
26.4 mW (typ.)
Standby current
<0.01 uA (almost none)
Dot pitch
0.184 × 0.184 mm
Applications
Suitable For Price Tags
Asset/Equipment Tags
Shelf Labels
Conference Name Tag
Included
1x 5.83-inch e-Paper
1x Pico-ePaper-Driver-Board
1x Standoff pack
Downloads
Wiki
The Zero-DISP-7A is a 7″ touch display kit for Raspberry Pi Zero with IPS Display Expansion Board featuring 1024x600 pixels and 5-point capacitive touch.
Features
7-inch IPS touch display with a hardware resolution of 1024x600.
5-point touch control, toughened glass panel with up to 6H hardness.
When working with Raspberry Pi Zero, supports Raspberry Pi OS, Ubuntu, Kali, and Retropie systems.
Onboard ETH/USB HUB function, adapting RJ45 and USB port serving as an alii-in-one mini computer.
Onboard 4-pin speaker header and 3.5 mm audio jack, support for HDMI audio output.
Specifications
Zero connectors
Mini HDMI port, 2x USB Micro male port (1x HUB, 1x Power supply)
Display
7-inch 1024 x 600 pixels, 5-point capacitive touch
Networking
100M Ethernet RJ45 port
USB
2x USB 2.0 port
Audio
Headphone jack, 4-pin speaker header
Power input
USB Type-C Interface, 5V
Included
1x Zero-DISP-7A
1x Button board
1x Button board cable (9 cm)
4x White nylon spacer
Downloads
Wiki

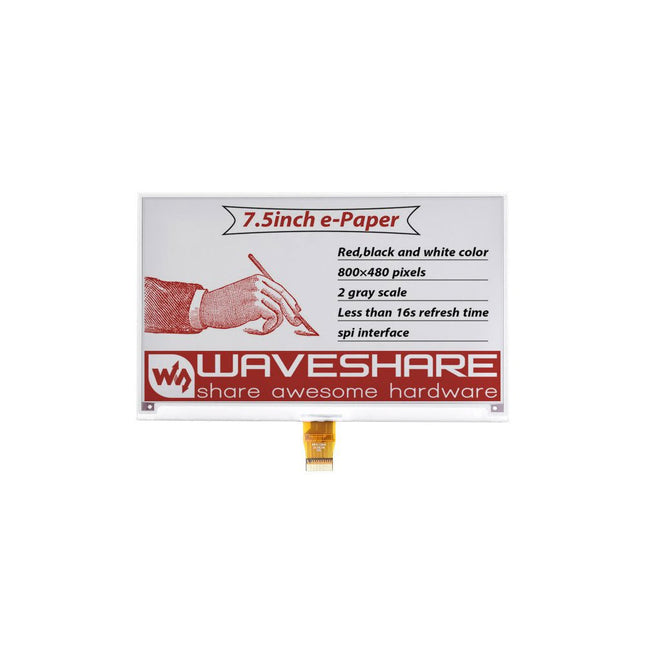

This 7.5-inch e-paper E-Ink display HAT for Raspberry Pi with SPI interface provides low power consumption, wide viewing angle and a paper-like display of 3 colors (red, black, white) without electricity. Advantages Of E-Ink E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40-pin GPIO extension header, supports Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc. Onboard voltage translator, compatible with 3.3/5 V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage 3.3/5 V Interface 3-wire SPI, 4-wire SPI Display size 163.2 x 97.92 mm Dot pitch 0.205 x 0.204 mm Resolution 800 x 480 pixels Display color Red, black, white Viewing angle >170° Gray scale 2 Full refresh time 26s Refresh power 48mW (typ.) Standby current <0.01uA (almost none) Dimensions 170.2 x 111.2 mm Included 1x 7.5-inch e-Paper HAT (B) 1x RPi screws pack (2pcs) 1x GH1.25 9-pin cable (20 cm) Downloads Wiki (Manual)
This IPS 7.9-inch HDMI touch display with 400 x 1280 resolution, 170° wide viewing angle and built-in ferrite Hi-Fi speaker can be used as a secondary screen for chassis and also supports Raspberry Pi and Jetson Nano.
Features
7.9-inch IPS display with a hardware resolution of 400 x 1280.
Zinc alloy case, toughened glass panel with up to 6H hardness.
When working as a computer monitor, it supports Windows without a driver.
When working with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali and Retropie, driver-free.
When working with Jetson Nano, it supports Ubuntu, driver-free.
Support backlight control for power saving.
Support 5-point capacitive touch control.
Specifications
Display size
7.9"
Viewing angle
170°
Resolution
400 x 1280 pixels
Display area
191.08 x 60.40 mm
IPS version solor gamut
62% NTSC
Max brightness
550 cd/m²
Backlight adjustment
Adjusted by the key/HID software
Contrast
900:1
Color depth
16.7M
Refresh rate
60 Hz
Power port
USB-C
Display port
HDMI interface
Dimensions
211 x 73 x 20 mm
Included
1x 7.9-inch Side Monitor
1x HDMI to Micro HDMI adapter
1x USB Type-A to Type-C cable (1 m)
1x HDMI flat cable (1 m)
2x Nonskid rubber feet
Downloads
Wiki
Waveshare Core3S500E is an FPGA core board that features an XC3S500E device onboard supporting further expansion.
Features
Onboard 1x XCF04S
Integrated FPGA basic circuit, such as clock circuit
Onboard nCONFIG button, RESET button, 4x LEDs
All the I/O ports are accessible on the pin headers
Onboard JTAG debugging/programming interface
2.0 mm header pitch design, suitable for being plugged-in your application system
Downloads
Wiki
