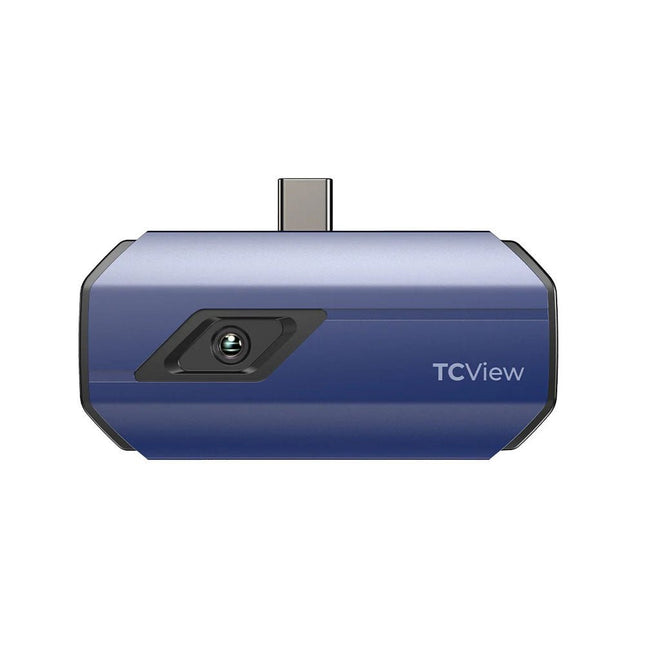

The TC001 is a portable camera that transforms your Android smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, connect the TC001 to your device’s USB-C port, and access thermal technology once exclusive to specialists. Ideal for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers seeking to protect crops and livestock, the TC001 is perfect for professionals across various fields. Specifications Resolution 256 x 192 pixels Pixel Size 12 μm Spectral Range 8~14 μm Focal Length 3.2 mm Temperature Range −20°C to 550°C (−4°F to 1022°F) Temperature Accuracy ±2°C or ±2% Temperature Resolution 0.1°C Frame Rate 25 Hz NETD <40 mK Field of View 56° x 42° Color Palettes 10 Colors High/Low Temperature Alarm Yes Compatible Systems Android/Windows Devices with USB-C Dimensions 71 x 42 x 14 mm Weight 30 g Included TC001 Thermal Imaging Camera Multifunctional Adapter Cable (50 cm) Carrying Bag Cleaning Cloth Manual Downloads Manual Datasheet Android App Windows App

Read more less

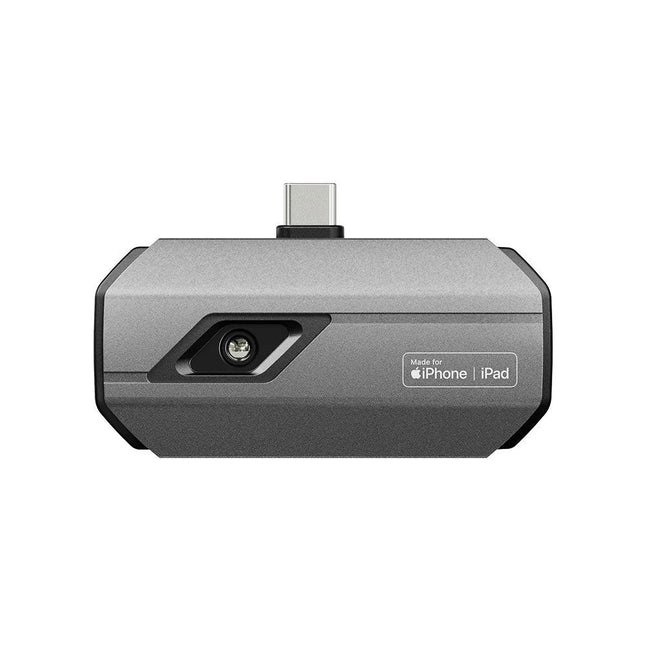

The TC002C offers exceptional precision in temperature detection, insulation inspection, and circuit board analysis, making it your reliable companion for a wide range of applications. With an impressive resolution of 256 x 192, it captures thermal imagery with unparalleled clarity and detail. Its energy-efficient design, consuming only 0.35 W, ensures prolonged usage without the inconvenience of frequent recharging. Featuring a remarkable heat sensitivity of 40 mK, the TC002C swiftly identifies concealed anomalies, empowering users with rapid troubleshooting capabilities. Ideal for a multitude of tasks, the TC002C excels in diverse applications such as home inspections, HVAC diagnostics, water leak detection, electrical maintenance, automotive repairs, and more. Specifications Resolution 256 x 192 pixels Pixel Size 12 μm Spectral Range 8~14 μm Focal Length 3.2 mm Temperature Range −20°C to 550°C (−4°F to 1022°F) Temperature Accuracy ±2°C or ±2% Temperature Resolution 0.1°C Frame Rate 25 Hz NETD <40 mK Field of View 56° x 42° Color Palettes 10 Colors High/Low Temperature Alarm Yes Compatible Systems iOS Devices with USB-C Dimensions 71 x 42 x 14 mm Weight 30 g Included TC002C Thermal Imaging Camera USB-C Extension Cable (50 cm) USB-C to Lightning Cable Cleaning Cloth EVA Carrying Bag Manual Downloads iOS App

Read more less

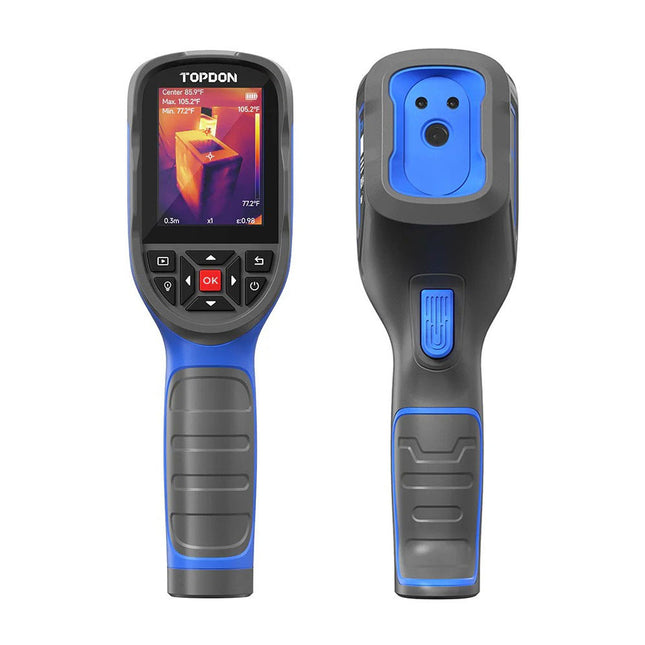

The TOPDON TC004 SE is a reliable thermal camera designed for locating and tackling industrial, electrical, building, HVAC, and automotive problems with confidence. With an impressive battery life of up to 21 hours (at low brightness), it ensures all-day use. Its video recording capability allows you to monitor maintenance history and reassure customers that systems are functioning safely. The TC004 SE enhances your diagnostic capabilities, excelling in pinpointing and resolving issues across multiple industries, including industrial, electrical, building, HVAC, and automotive. Features 21-hour runtime for reliable all-day use (at low brightness) Supports video recording for later review Store up to 160,000 images with built-in 32 GB storage Professional PC software for expanded display and thermal data analysis Switch between 1x, 2x, and 4x digital zoom to capture every detail Detailed & smooth images with 256 x 192 IR resolution and 25 Hz refresh rate Mount on a tripod for steady monitoring Two built-in LED lights for inspecting hard-to-reach areas Specifications TC004 TC004 SE TC004 Lite Display 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) IR light resolution 256 x 192 Pixels 256 x 192 Pixels 160 x 120 Pixels Spectral range 8~14 μm 8~14 μm 8~14 μm FOV 52.5° x 39.5° 56° x 42° 40° x 30° Storage 2 GB RAM + 16 GB TF card 32 GB Built-in 512 MB Built-in Measuring range −20~350°C (−4~662°F) −20~550°C (−4~1022°F) −20~550°C (−4~1022°F) Temperature resolution 0.1°C (0.18°F) 0.1°C (0.18°F) 0.1°C (0.18°F) Measuring modes Center spot/hot spot/cold spot Center spot/hot spot/cold spot Center spot/hot spot/cold spot Measuring accuracy ±2°C or ±2% ±2°C or ±2% ±2°C or ±2% Frame rate 25 Hz 25 Hz 25 Hz Focal length 3.2 mm (0.12") 3.2 mm (0.12") 2.6 mm (0.1") NETD <40 mK <40 mK <40 mK Magnification 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) Tripod screw hole Yes Yes Yes High/Low temperature alarm Yes Yes Yes LED flashlight Yes Yes No Video recording Yes Yes No Auto shutdown 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF Battery Built-in 5000 mAh battery Built-in 5300 mAh battery Built-in 2900 mAh battery Charging time 4 h 4 h 4 h Standby time 12 h 16 h (High Brightness)21 h (Low Brightness) 15 h Operating system Standalone use/Windows devices Standalone use/Windows devices Standalone use PC-based analysis Supports image analysis with PC Yes No Dimensions 240 x 70 x 90 mm 240 x 70 x 90 mm 240 x 70 x 90 mm Weight 520 g 520 g 520 g Included 1x TOPDON TC004 SE Thermal Imaging Camera 1x USB Power Supply 4x Plugs (EU, UK, US, and AU) 1x USB Cable 1x Storage Bag 1x Manual Downloads Manual PC Software (Windows)

Read more less

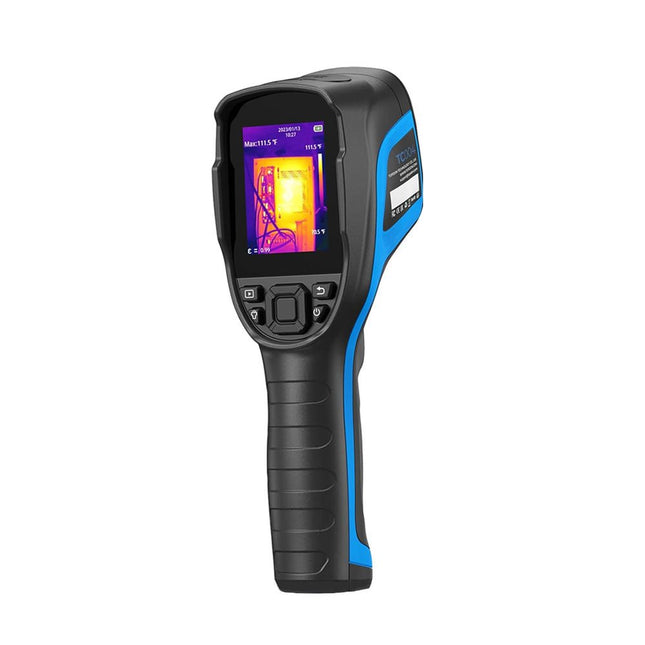

The TOPDON TC004 Thermal Imaging Camera offers a wide temperature range from -20°C to 350°C (-4°F to +662°F) with a 12-hour battery life. It features a high-resolution 256 x 192 pixel infrared camera, ensuring clear, detailed images. With a thermal sensitivity of 0.05°C, it can detect subtle temperature changes. The camera automatically detects center, hot, and cold spots, enhancing visual temperature analysis. Its wide 56° field of view captures more in a single shot without needing focal adjustments. The TC004 offers precise measurements with ±2°C accuracy, a NETD of less than 40 mK, and a resolution down to 0.1°C. It supports both standalone and PC modes, allowing users to upload and project images for easy analysis. The built-in LED light enables usage in low-light conditions, and the professional software simplifies data sharing. Features Wide Temp Ranging from −20°C to 350°C (−4°F to 662°F) Real-time Photo and Video Recording 5 Color Palettes for More Possibilities Tripod Mountable for a Stable View High and Low Temperature Alarm Monitor Temperature Change with Waveform Graphs Long-lasting 12 Hour Battery Life PC Image Analysis and Instant Projection Built-in LED Light Specifications TC004 TC004 SE TC004 Lite Display 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) IR light resolution 256 x 192 Pixels 256 x 192 Pixels 160 x 120 Pixels Spectral range 8~14 μm 8~14 μm 8~14 μm FOV 52.5° x 39.5° 56° x 42° 40° x 30° Storage 2 GB RAM + 16 GB TF card 32 GB Built-in 512 MB Built-in Measuring range −20~350°C (−4~662°F) −20~550°C (−4~1022°F) −20~550°C (−4~1022°F) Temperature resolution 0.1°C (0.18°F) 0.1°C (0.18°F) 0.1°C (0.18°F) Measuring modes Center spot/hot spot/cold spot Center spot/hot spot/cold spot Center spot/hot spot/cold spot Measuring accuracy ±2°C or ±2% ±2°C or ±2% ±2°C or ±2% Frame rate 25 Hz 25 Hz 25 Hz Focal length 3.2 mm (0.12") 3.2 mm (0.12") 2.6 mm (0.1") NETD <40 mK <40 mK <40 mK Magnification 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) Tripod screw hole Yes Yes Yes High/Low temperature alarm Yes Yes Yes LED flashlight Yes Yes No Video recording Yes Yes No Auto shutdown 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF Battery Built-in 5000 mAh battery Built-in 5300 mAh battery Built-in 2900 mAh battery Charging time 4 h 4 h 4 h Standby time 12 h 16 h (High Brightness)21 h (Low Brightness) 15 h Operating system Standalone use/Windows devices Standalone use/Windows devices Standalone use PC-based analysis Supports image analysis with PC Yes No Dimensions 240 x 70 x 90 mm 240 x 70 x 90 mm 240 x 70 x 90 mm Weight 520 g 520 g 520 g Included 1x TOPDON TC004 Thermal Imaging Camera 1x USB Power Supply 4x Plugs (EU, UK, US, and AU) 1x USB Cable 1x Storage Bag 1x Manual Downloads Datasheet Manual

Read more less
