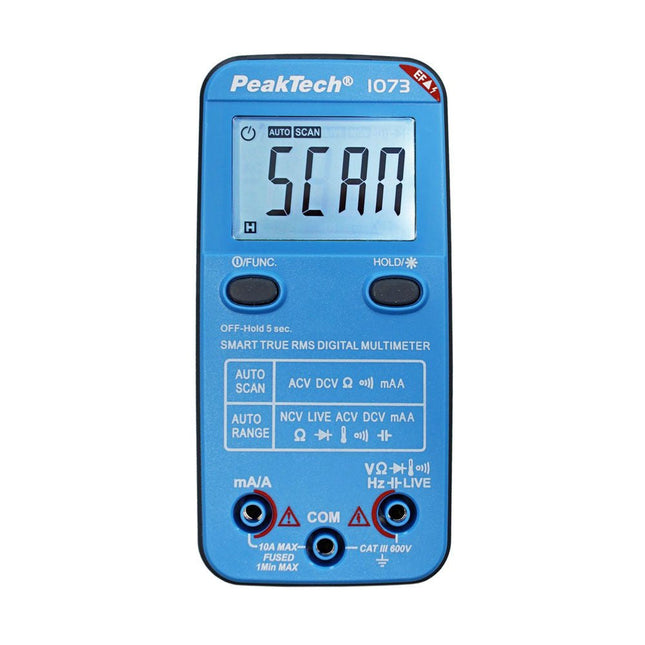

The PeakTech 1073 smart digital multimeter combines state-of-the-art technology with an impressive range of functions in a compact design. It measures voltages up to 600 V AC/DC, is CAT III certified and features True RMS for precise measurements with varying voltages. The integrated NCV voltage tester enables non-contact voltage detection, while the LIVE test reliably identifies phases and neutral conductors. Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognizes what is being measured and adjusts itself accordingly. The 4000-digit LCD display with blue backlighting ensures clear readability of the measured values and changes to red when measuring ranges are exceeded or the NCV voltage tester detects a voltage. In addition to the standard measurements for voltage, current (AC & DC), resistance, continuity, diode test and temperature, this multimeter also offers capacitance and frequency measurements. Features Smart True RMS multimeter with automatic function selection Manual function selection possible at the touch of a button 3¾ digit LCD display with 4,000 counts Backlight (blue/red) and LED light Continuity test and diode test function Capacitance, temperature & frequency measurement Live test and NCV voltage tester Auto-Power-Off and battery status indicator Sturdy ABS plastic housing Safety: EN 61010-1, CAT III 600 V Specifications Digital counts 4000 Basic Accuracy DC ±0.5% Over voltage category CAT III 600 V Display Type LCD Range selection Auto Auto-Scan Yes LED-lamp Yes NCV Yes True RMS Yes V DC max. 600 V A AC max. 10 A Hz max. 4 kHz Capacitance max. 1 mF OHM max. 40 MΩ Temp. max. 1200°C (2192°F) Temp. min. −200°C (−328°F) mA DC max. 4000 mA V AC max. 600 V A DC max. 10 A mA AC max. 4000 mA Power supply 2x 1.5 V AAA batteries Dimensions 130 x 63 x 35 mm Weight 116 g (incl. batteries) Included 1x PeakTech 1073 Multimeter 2x Test leads 1x Thermocouple 2x Batteries 1x Manual Downloads Manual

Read more less

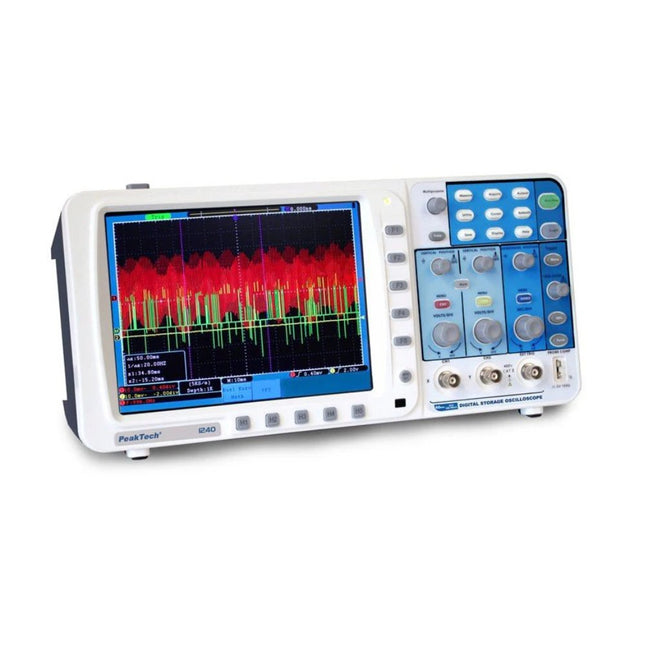

The PeakTech 1240 is a 60 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 500 MS/s and convinces with its high quality and easy handling with the best price/performance ratio. Features High-resolution TFT color display with 800 x 600 pixels and 65536 colors USB port for real-time data transmission or reading of internal memory Saving of measured values and graphics directly onto the USB-stick VGA-output port for external monitor Autoset and autoscale function for easy operation LAN connection for remote access via network Internal memory of 10 million points per channel or 15 waveforms 20 automatic measurement modes and FFT function PASS/FAIL function Safety: EN 61010-1; CAT II Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/Vista/7/8/10, power cable, 2 probes, carrying case and manual Specifications Bandwidth 60 MHz Display 20 cm (8”) TFT with 65536 colors Resolution 800 x 600 Pixel Channel 2 CH Sampling mode Normal/peak detect/average Sampling rate each Channel 250 MSa/s Input coupling AC, DC, GND Input impedance 1 MΩ +/- 2 % in parallel with 10 pF +/- 5 pF Input voltage 400 V DC or ACpp Sensitivity 2 mV - 10 V/Skt/div. Rise time < 5,8 ns Accuracy +/- 3 % Vertical resolutions 8 Bits (2 CH simultaneously) Horizontal scale 5ns-100s/Skt./div Sampling range 0,5 - 250 S/s Trigger type Edge/Video/Pulse/Slope Trigger mode Auto, Normal, Single Trigger coupling DC, AC, LF, HF 20 automat. measurements peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B(falling), frequency, period, min, max Phase difference +/- 3° Record length 10.000.000 points/CH Interfaces USB Device 2.0, USB Host 2.0, VGA, LAN Operation voltage 100~240 V ACrms / 50/60 Hz Dimensions 340 x 155 x 70 mm Weight 1.8 kg

Read more less

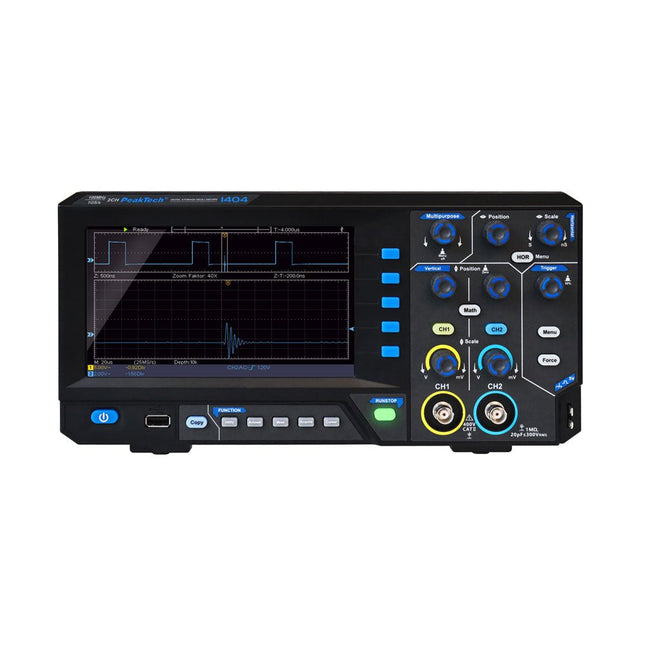

Specially developed for the education and hobby sector, this fully-fledged digital storage oscilloscope offers the best possible price/performance ratio without having to compromise on functionality or technical features. Whether Autoset and Autoscale, mathematical measurement functions, FFT, Cursor or XY mode and even a zoom function, all standard market functions are already integrated in this series. The data storage of the waveforms is either internal with memory for 16 waveforms or external on a USB memory in TXT, CSV or BIN format, which can be read out with the included software. Configurations can also be saved internally or screenshots of the display can be saved externally. The display of the waveforms can be achieved quickly and user-friendly through the Autoset function, via AutoScale the measured waveforms can be displayed even more precisely as required, whereby these settings can of course also be carried out completely manually via the key control. Features 2-channel oscilloscope with 100 MHz analogue bandwidth at max. 1 GS/s sampling rate 17.5 cm (7") TFT colour display with 800 x 480 pixels USB device connection for real-time data transmission USB host connection for external USB data carriers Handy and flat housing design with carrying handle Autoset function for user-friendly operation Recording length of max. 10,000 points Automatic measuring modes, XY mode and FFT function Specifications Bandwidth 100 MHz Channels 2 Sampling 1 CH 1 GS/s Sampling 2 CH 500 MS/s Rise Time < 3.5 ns Display Type Color TFT Resolution 800 x 480 Pixels Screen size (TFT) 17.5 cm (7") Hor. scale max. 1000 s/div Hor. scale min. 2 ns/div Memory depth 10,000 Points Vert. resolution 8 Bit Vert. scale max. 5 V/div Vert. scale min. 2 mV/div Mains voltage 110/240 V AC; 50/60 Hz Downloads Manual Driver Software

Read more less

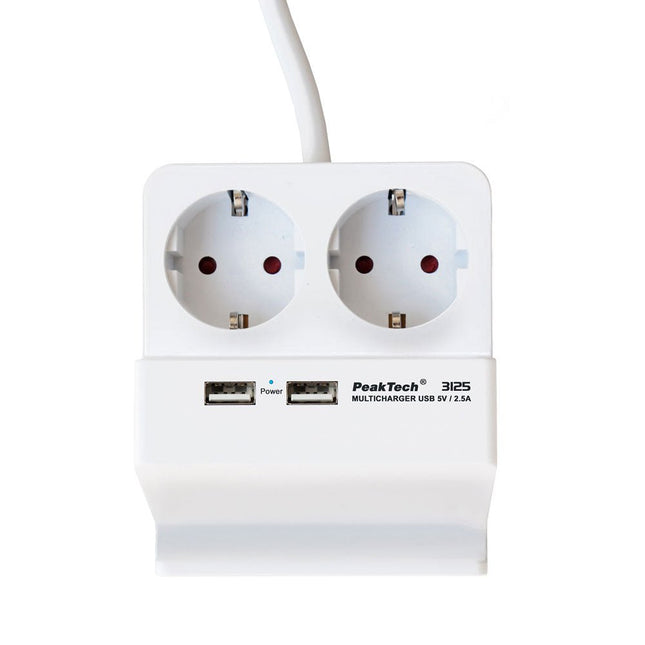

This handy power strip provides two child-proof, shockproof sockets and two USB charging ports with a high maximum charging current. On the front side there is a holder for smartphones and tablet PCs, which, thanks to its slightly angled shape, enables outstanding usability of the device. The non-slip rubber knobs on the underside prevent slipping on the work table, with a blue LED integrated as a power indicator. 2x 16 A safety sockets with child safety lock 2x USB charging ports with high charging current of 2.5 A Angled bracket for tablet PCs and smartphones Non-slip rubber knobs at the bottom

Read more less

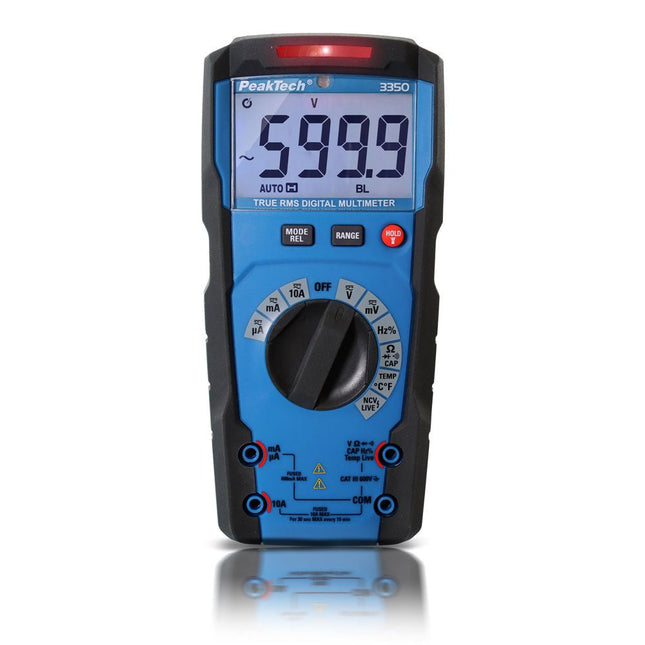

The PeakTech 3350 was specially developed for use in the craftsmanship and industry and offers a variety of useful functions that simplify daily work, especially in dark or noisy environments. The lighting of the large LCD display is automatically activated by a photodiode in dark surroundings. On the back of the device there is also a bright LED flashlight, which is used to illuminate the area where the measurement has to be taken. A multi-colored LED bar is located above the 6000-digit display. Depending on the active measuring function, it lights up green during the continuity test, red when a voltage is found in NCV mode, yellow when measuring large capacities or flashes red when the phase tester mode is active (LIVE). The PeakTech 3350 was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with rubber coating, a tilt stand on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these. With this device the measuring range is selected automatically, which enable particularly fast response times. Features True RMS voltage up to 600 V and current up to 10 A AC/DC 6,000 LCD display with automatic backlight Multi-colored warning LED for various measuring functions Automatic range selection Manual range selection possible using selection buttons Integrated LED flashlight for lighting the area where the measurement has to be taken Auto off and battery status display Safety: EN 61010-1; CAT III 600 V Accessories: bag, test leads, temperature sensor, temperature adapter, batteries and user manual Specifications Basic Accuracy DC ±0.5% Battery 1.5 V AAA Capacitance max. 60 mF Digital counts 6000 Display Type LCD Info LEDs ■ LED lamp ■ NCV ■ Over voltage category CAT III 600 V Range selection Auto True RMS ■ V DC max. 600 V A AC max. 10 A Hz max. 10 MHz OHM max. 60 MΩ Temp. max. 1000°C Temp. min. -18°C mA DC max. 600 mA mV DC max. 600 mV µA DC max. 6000 µA V AC max. 600 V mV AC max. 600 mV A DC max. 10 A mA AC max. 600 mA µA AC max. 6000 µA Downloads Manual

Read more less

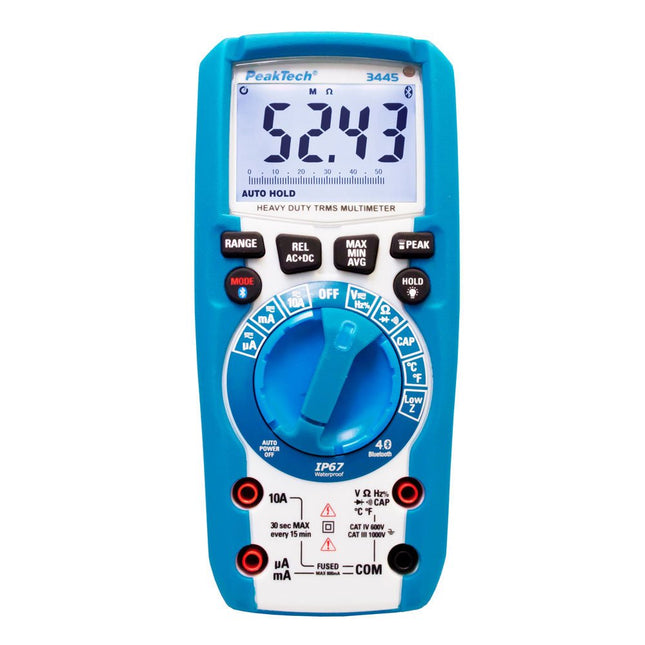

The PeakTech 3445 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions. As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness. In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things. Through these many technical qualities, this device is suitable for the outdoor use of every electrician, technician and engineer in the service, construction or industrial sector. Features Automatic illuminated functions keys and rotary switch Integrated powerful LED Flashlight Bleutooth 4.0 interface for data transfer to Android or iOS smartphones TrueRMS measurement ACV, ACV+DCV, DCV measurement and Low Impedance (Lo Z) 3 5/6-digits measurement value display (max. 5999) LCD-Display with Relative-value measurement and 42-segment bargraph Continuity with buzzer and diode-test Data-Hold, Min, Max, Peak function and Duty Cycle (Hz / %) Heavy Duty Case, IP67 dust- and waterproof Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V Accessories: Carrying case, Test Leads, K-type Specifications DCV 600 mV / 6 / 60 / 600 / 1000 V +/-0,8% + 5 dgt. ACV + DCV @ 10 MΩ 6 / 60 / 600 / 1000 V +/-1,5% + 20 dgt. ACV + DCV @ 3 kΩ (LO Z) 6 / 60 / 600 / 1000 V +/-3% + 30 dgt. ACV + DCV Frequency range 50 Hz … 400 Hz ACV 6 / 60 / 600 / 1000 V +/-1% + 5 dgt. ACV Frequency range 50 Hz … 1000 Hz DCA 600 / 6000 µA / 60 / 600 mA / 10 A +/-1% + 3 dgt. ACA 600 / 6000 µA / 60 / 600 mA / 10 A +/-1% + 3 dgt. ACA Frequency range 50 Hz … 400 Hz Ohm 600 Ω / 6 / 60 / 600 kΩ / 6 / 60 MΩ +/- 1,5% + 5 dgt. Capacitance 60 / 600 nF / 6 / 60 / 600 / 6000 µF +/-3% + 5 dgt. Frequency 10 Hz … 10 kHz +/- 1,0% + 5 dgt. Temperature 20.0 °C … +760 °C +/-1,0% + 5 °C Interface Bluetooth 4.0 Low Energy Operating Voltage 4 x 1,5 V AAA Batteries Dimensions (WxHxD) 75 x 170 x 50 mm Weight 400 g

Read more less

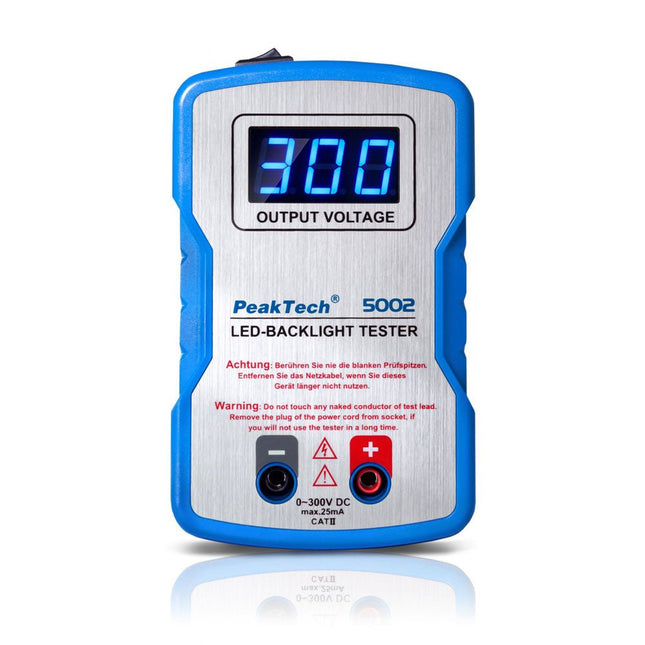

The PeakTech 5002 is a highly practical component tester designed for LEDs and various other electronic components. It delivers an automatically adjustable DC output voltage ranging from 0 to 300 V, adapting to the connected load to prevent damage to sensitive components. This makes it particularly well-suited for use in service and repair workshops. Features Output of automatic test voltage from 0 V to 300 V Suitable for testing individual LEDs or LED panels Suitable for testing the withstand voltage of electrolytic capacitors Suitable for Zener voltage testing of Zener diodes Safety: EN 61010-1 Specifications Input Voltage AC 100-240 V (Fuse: 2 A/250 V) Frequency 50-60 Hz Power consumption 10 W Output Voltage DC 0-300 V Accuracy ±5% +10 digts. Output Current <25 mA Dimensions 126 x 77 x 36 mm Weight 141 g Included 1x PeakTech 5002 LED Tester 2x Test leads 1x Power cable 1x Carrying case 1x Manual Downloads Datasheet (English/Deutsch) Datasheet (Italiano)

Read more less

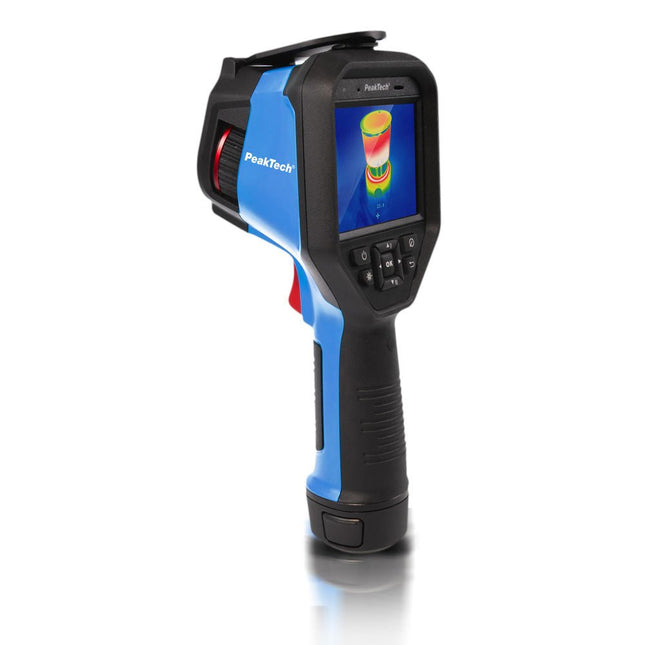

The PeakTech 5620 is a professional thermal imaging camera with a high thermal resolution of 384x288 thermal image points and a variety of excellent features for work in building thermography or industrial use. In addition to the pure thermal image display, this new development also offers a PIP (picture-in-picture) display, a real image camera or a fusion function in which the contours of the real image recording are combined with the thermal image in order to ensure an even better display. All of the image modes mentioned can also be used for video recording, which also enables audio recordings for the respective video. The many functions are controlled via push buttons on the device, but also via the touch screen function of the color TFT display. All thermal images can be opened and evaluated using the enclosed software, with subsequent changes, e.g. can be done on the pallet selection. Features Professional thermal imaging technology 3.5" touchscreen and graphic menu navigation Thermal image resolution of 384x288 pixels High temperature measuring range up to +550°C High quality thermal image sensor with high temperature sensitivity Fast thermal imaging with 25 Hz Seven color palettes (Iron, Rainbow, White, Black ...) Photo and video recordings with audio commentary WiFi, USB and Bluetooth interfaces IP 54 protected against dust and splash water Accessories: Hard case, 2x Li-Po battery, charger, carrying strap, connection cable, software and instructions Specifications Thermal Resolution 384 x 288 Pixel Temperature Range -20°C … 550°C (-4°F … 1022°F), 0,1° Resolution Accuracy ±2% (±2°C) Display 3.5" Touchscreen TFT Thermal Sensivity <40 mK Field of View (FOV) 37,2°x 28,5° Pixel Pitch 17 µm IFOV 1.7 mrad Wave Length 8 ... 14 µm Emissivity 0.01~1.0 Image Frequency 25 Hz Storage Micro SD (64 GB) Data Interface USB, WiFi, Bluetooth Operation voltage 5000 mAh / 3.7 V Li-Ion Dimensions 100 x 244 x 104 mm Weight approx. 660 g

Read more less

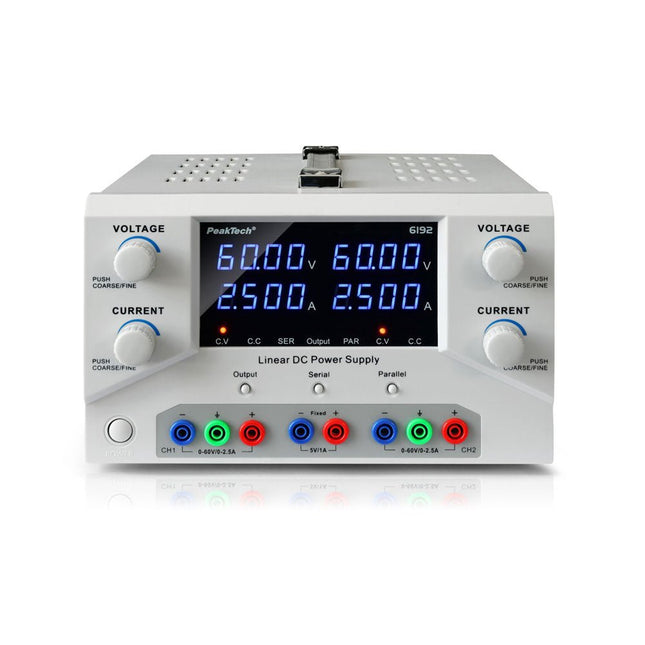

The PeakTech 6192 is a linear regulated, dual-channel laboratory power supply that delivers reliable performance and enhanced safety, thanks to its integrated safety transformer. With adjustable outputs ranging from 0-60 V and 0-2.5 A DC, it is versatile and well-suited for various laboratory and workshop applications. It features a current preselection function, allowing users to set the desired current before connecting the load. The four-digit blue LED displays clearly and precisely show voltage, current, and power values. The output button ensures that output is only activated after settings have been configured, preventing unintentional changes and increasing operational safety. A temperature-controlled fan automatically responds to the device's internal temperature, providing efficient cooling and quiet operation. The unit is equipped with four potentiometers for quick and precise adjustment of current and voltage values. Additionally, a USB interface enables remote control and data readout via PC. Features Two outputs adjustable from 0-60 V and 0-2.5 A DC Fixed voltage output 5 V/1 A DC With USB interface and PC software 4-digit segment displays for current and voltage Channels can be used independently, in series or in parallel Overload protection and short-circuit proof Temperature-controlled fan High load stability and low residual ripple Sturdy metal housing with carrying handle Output of safety extra-low voltage (SELV) Safety: EN-61010-1, EN 61558-2-6 Specifications Adjustable DC Output voltage 2x 20...60 V Rechargeable DC Output current 2x 0...2.5 A Fixed value output 5 V/1 A USB interface Yes Input voltage 104~127 V AC (60 Hz) or207~253 V AC (50 Hz) switchable Grid stability (at 0-100% load) CV ≤0.01% + 3 mVCC ≤0.2% + 3 mA Load stability (at 0-100% load) CV ≤0.05% + 5 mVCC ≤0.5% + 5 mA Ripple (at 100% load) CV ≤1 mVrmsCC ≤3 mArms Overload protection Constant current limiter circuit and short-circuit proof Accuracy of the voltage display ±0.5% + 5 digits Accuracy of the current display ±0.5% + 5 digits Operating temperature 0°C ... +40°C (<90% RH) Dimensions (W x H x D) 255 x 160 x 335 mm Weight approx. 9 kg Included 1x PeakTech 6192 DC Power Supply 1x Power cable 1x USB cable 1x CD-ROM 1x Manual Downloads Datasheet Interface protocol Software

Read more less

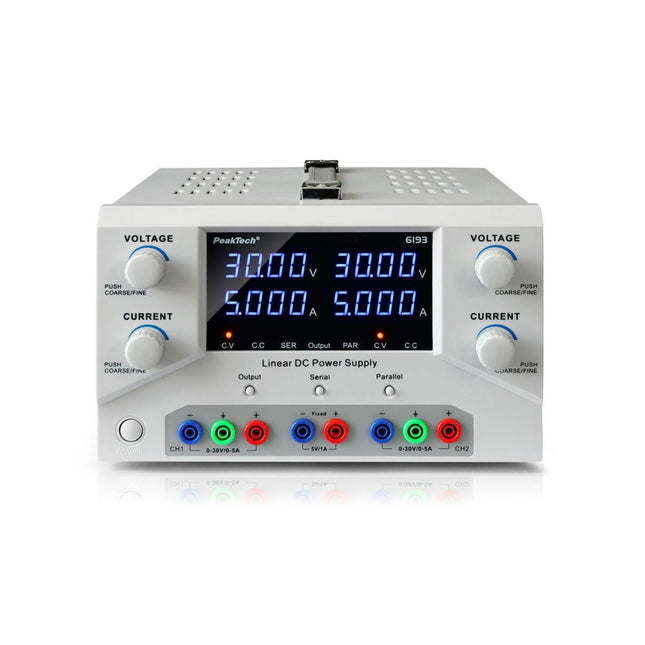

The PeakTech 6193 is a linear regulated 2-channel laboratory power supply with 0-30 V/0-5 A DC output. Its integrated safety transformer ensures reliable operation and high safety standards for lab and workshop use. Key features include current preselection for safe setup, four-digit blue LED displays for voltage, current, and power, and an Output On/Off button to prevent accidental changes. The temperature-controlled fan provides efficient and quiet cooling. With four precision potentiometers, output values can be adjusted quickly and accurately. A USB interface enables remote control and data readout via PC, making it ideal for versatile and automated applications. Features Two outputs adjustable from 0-30 V and 0-5 A DC Fixed voltage output 5 V/1 A DC With USB interface and PC software 4-digit segment displays for current and voltage Channels can be used independently, in series or in parallel Overload protection and short-circuit proof Temperature-controlled fan High load stability and low residual ripple Sturdy metal housing with carrying handle Output of safety extra-low voltage (SELV) Specifications Channels 2 Display Type Segment Output Voltage 0-30 V DC Output Current 0-5 A Input voltage 115-230 VAC 50/60 Hz Auxillary output 5 V DC Cooling Active Included 1x PeakTech 6193 DC Power Supply 1x Power cable 1x USB cable 1x CD-ROM 1x Manual Downloads Datasheet Software Interface Protocol

Read more less

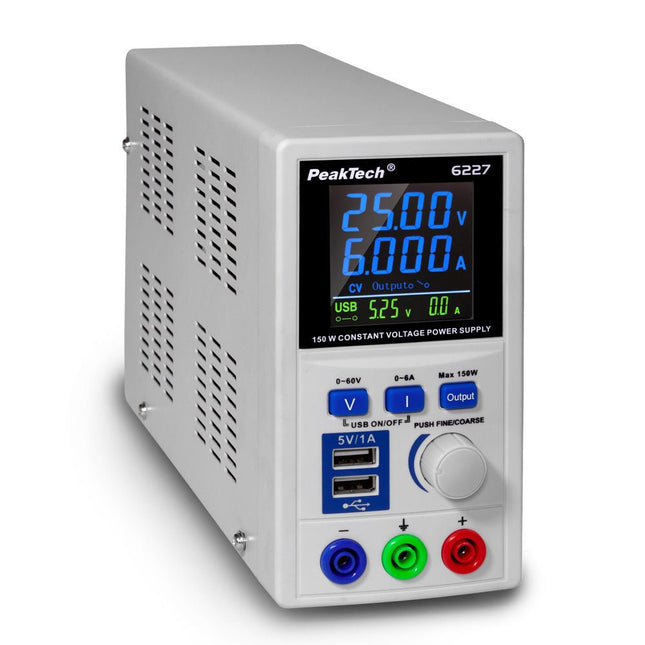

This laboratory power supply offers a controllable 0...60 V or 0...6 A DC main output with a maximum continuous power of 150 W. For developers, this laboratory power supply offers two switchable USB outputs with their own LCD display with voltage and current values.If you use a load up to 2.5 A, you can set the output voltage up to 60 V. If you want to use a higher current up to 6 A, set the load to a maximum of 25 V. Of course, all stages are also adjustable in between, e.g. 30 V/5 A, 40 V/3.7 A or 50 V/3 A.The current and voltage setting also can be done when the output is switched off. By pressing the knob for current or voltage, the setting resolution can be fine/coarse switched from 1 mA to 100 mA or 10 mV to 1 V.Due to the high range of functions and the simple operation with the best price-performance ratio, this laboratory power supply is ideal for the education, hobby, development and service sector. Blue LCD display showing the output voltage and current values Green LCD display showing the USB output voltage and current values 150 W constant output power Adjustable voltage range: 0~60 V at 0~2.5 A and 0~25 V at 2.5~6 A Voltage and current pre-selection with switchable output C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load Protection against short circuit, overload and overtemperature Accessories: Power cable, Connection Leads and Manual Output Voltage 0 ~ 60 V DC (@2,5 A) Output Current 0 ~ 6 A DC (@ 25 V) Output Power 150 W Display Resolution (V) 10 mV Display Resolution (A) 1 mA Setting Resolution (V) 10 mV / 1 V switchable Setting Resolution (A) 1 mA / 100 mA switchable Ripple & noise ≤ 5 mV RMS; ≤ 20 mA RMS Load regulation ≤ 0.05% + 5 mV, ≤ 0.5% + 5 mA Line regulation ≤ 0.1% + 3 mV, ≤ 0.2% + 3 mA Display accuracy +/- 0,5% + 5 dgt. Protection Overload, overtemperature, short circuit Operating voltage 115 / 240 V AC; 50/60 Hz Dimensions (WxHxD) 80 x 160 x 260 mm Weight 1.6 kg

Read more less

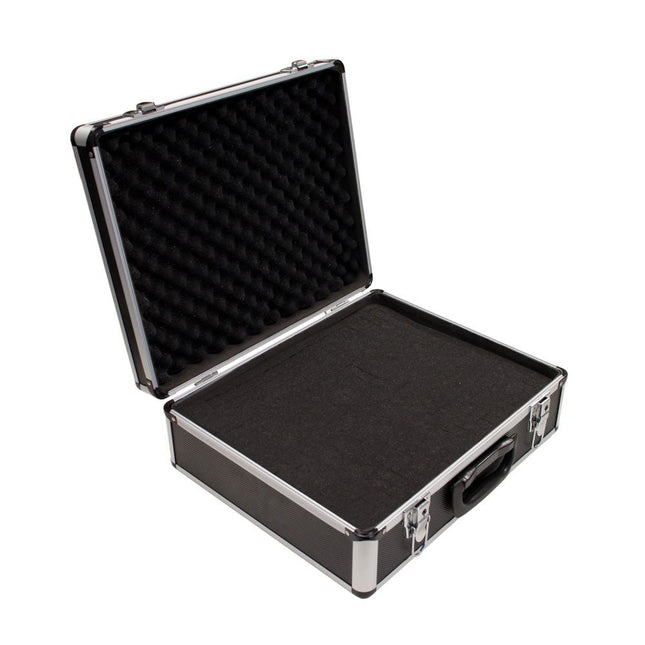

In this lockable universal carrying case you can safely store your sensitive electronic devices while traveling and on the way to work. In order to adapt these sturdy cases universally to the respective equipment, each case is padded with a 1 cm thick foam insert and additionally designed with two 3 cm thick, removable cubic foam inserts, which can be easily adjusted without additional tools. Due to the double notch in the closing edge, these high-quality case offer a high level of safety against the ingress of dust or splash water and are therefore the ideal companion for daily work in the field. Features Integrated lock Stable carrying case for all kinds of work Including cube foam for easy adjustment of the desired shape Changeable cube foam available separately Specifications Material Aluminum Color Black Dimensions 405 x 150 x 330 mm Dimensions (inside) 390 x 130 x 315 mm Payload (max.) 16.2 kg Lock Snap lock (lockable) Cube foam insert Yes Design/Type Aluminum frame/Composite material Downloads Manual

Read more less

In this lockable universal carrying case you can safely store your sensitive electronic devices while traveling and on the way to work. In order to adapt these sturdy cases universally to the respective equipment, each case is padded with a 1 cm thick foam insert and additionally designed with two 3 cm thick, removable cubic foam inserts, which can be easily adjusted without additional tools. Due to the double notch in the closing edge, these high-quality case offer a high level of safety against the ingress of dust or splash water and are therefore the ideal companion for daily work in the field. Features Integrated lock Stable carrying case for all kinds of work Including cube foam for easy adjustment of the desired shape Changeable cube foam available separately Specifications Material Aluminum Color Black Dimensions 460 x 150 x 330 mm Dimensions (inside) 445 x 130 x 315 mm Payload (max.) 16.1 kg Lock Snap lock (lockable) Cube foam insert Yes Design/Type Aluminum frame/Composite material Downloads Manual
