Elecrow ThinkNode M5 – Meshtastic LoRa Transceiver (868 MHz)

  • BrandElecrow

Description

High-Performance LoRa Communication Device

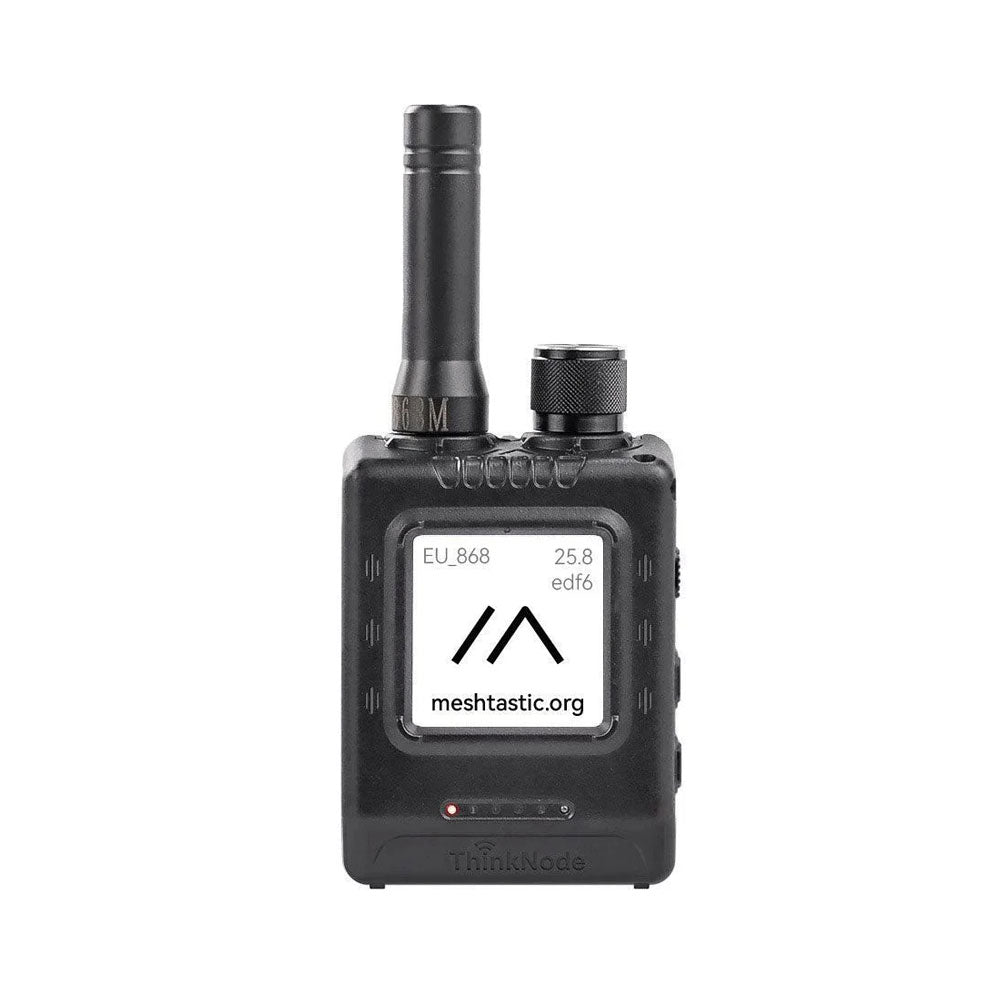

The Elecrow ThinkNode M5 is a compact, portable LoRa communication device designed for off-grid messaging, location sharing, and outdoor use. Powered by an ESP32-S3 processor and an SX1262 LoRa chip, it comes pre-installed with Meshtastic firmware and can be configured conveniently via Bluetooth using the official Meshtastic app.

The integrated multi-GNSS module supports GPS, GLONASS, BeiDou, and QZSS for reliable positioning and location sharing. Messages and device information are displayed on the energy-efficient 1.54-inch e-paper screen, while the built-in 1,200 mAh rechargeable battery enables extended mobile operation.

With its integrated LoRa antenna, compact housing, RTC, and support for both Meshtastic and MeshCore firmware, the ThinkNode M5 is a practical communication solution for hiking, camping, remote locations, and emergency situations where conventional mobile networks are unavailable.

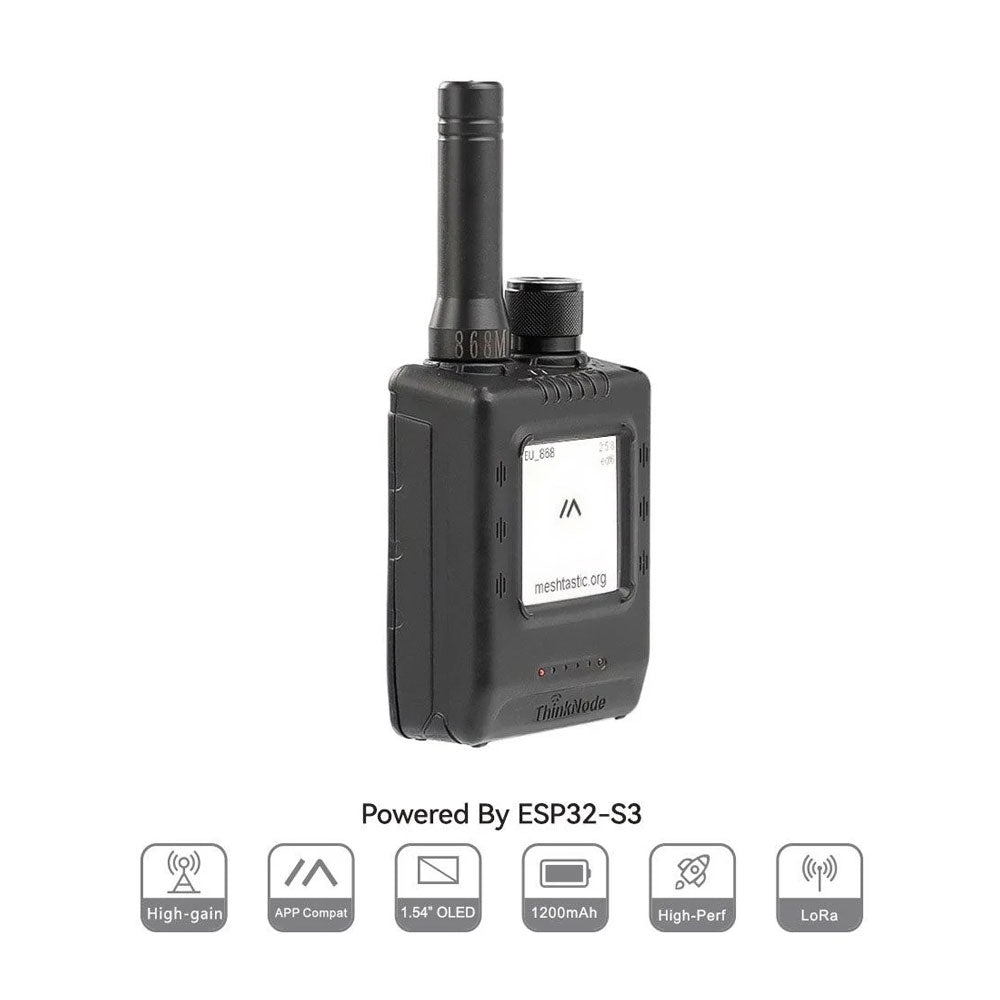

Features

  • LoRa communication
  • Multi-GNSS positioning
  • 1,200 mAh rechargeable battery
  • 1.54-inch e-paper display
  • Built-in RTC
  • Compatible with MeshCore
  • Compatible with Meshtastic

Specifications

Main Processor (ESP32-S3)
CPU/SoC Xtensa 32-bit LX7 dual-core processor, clocked at up to 240 MHz
System Memory 512 KB SRAM, 8 MB PSRAM
Storage 4 MB Flash, 384 KB ROM
Firmware Meshtastic firmware is fully compatible, and the signal is transmitted in LoRa mode
EPD (Electronic Paper Display)
Display Size 1.54 inch EPD (monochrome Ink screen)
Display Materials E-lnk (Electronic Ink）
Resolution 200 x 200
Driver Chip SSD1681 (via SPI or I²C interface)
Global Fresh Time 2s
Wireless Communication
Bluetooth Bluetooth Low Energy and Bluetooth 5.0 (phone configuration)
LoRa SX1262 LoRa Module, EU 868 MHz（external antenna）
Hardware
Interfaces USB-C, RP-SMA
Function GPS Location (GPS, GLONASS, BeiDou, QZSS), EPD Display, RTC, USB 2.0, PMU power management (built-in 1200 mAh lithium battery), buzzer, etc.

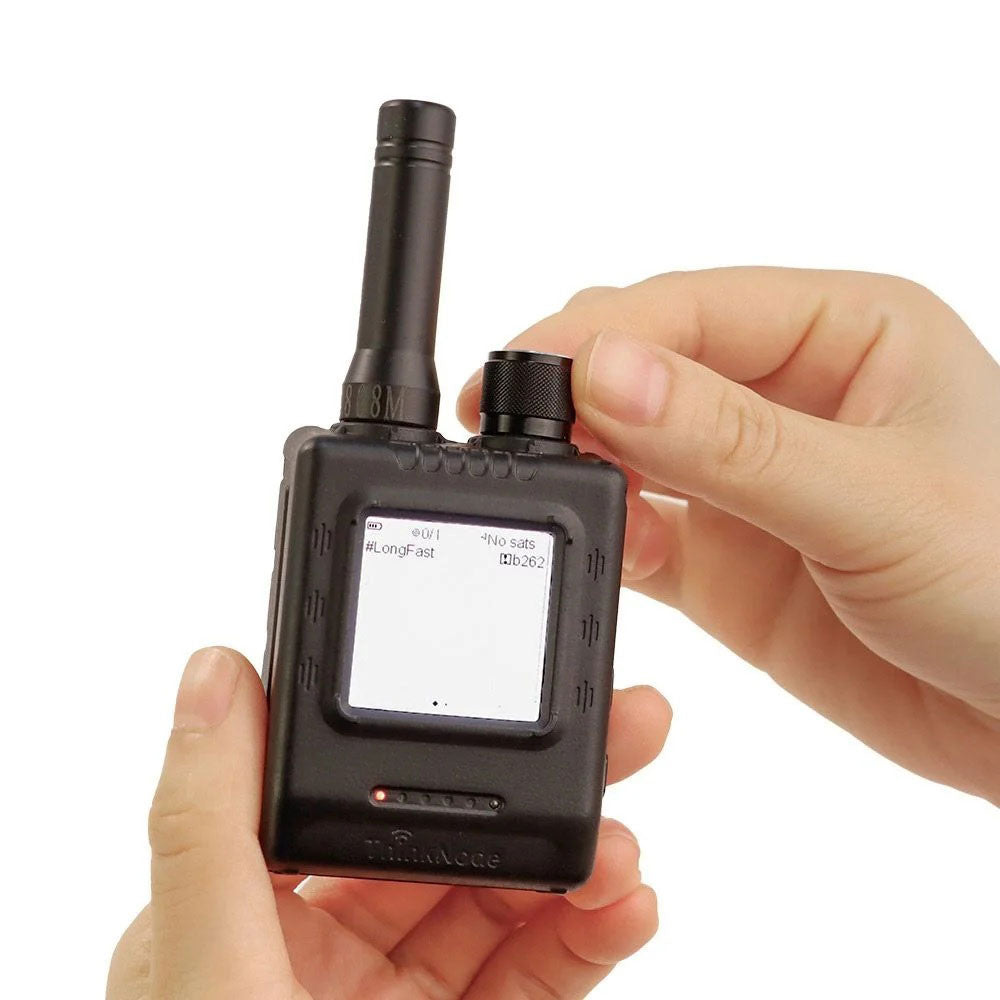

Button Knob Switch, Function Button, Page Turn Button, GPS Switch, Reset Button
LED Indicator Power supply, GPS/LoRa indication
Others
Power Input 5 V/1 A, supports USB or lithium battery power supply
Power consumption The maximum working current is about 340 mA (CPU + LoRa module), and the low power consumption is about 34 uA
Operating Temperature -10~50°C
Storage Temperature -20~60°C
Relative humidity 10-95%, @ 40°C (non-condensing)
Enclosure ABS Plastic
Dimensions 82 x 51.6 x 26.3 mm
Weight 81 g

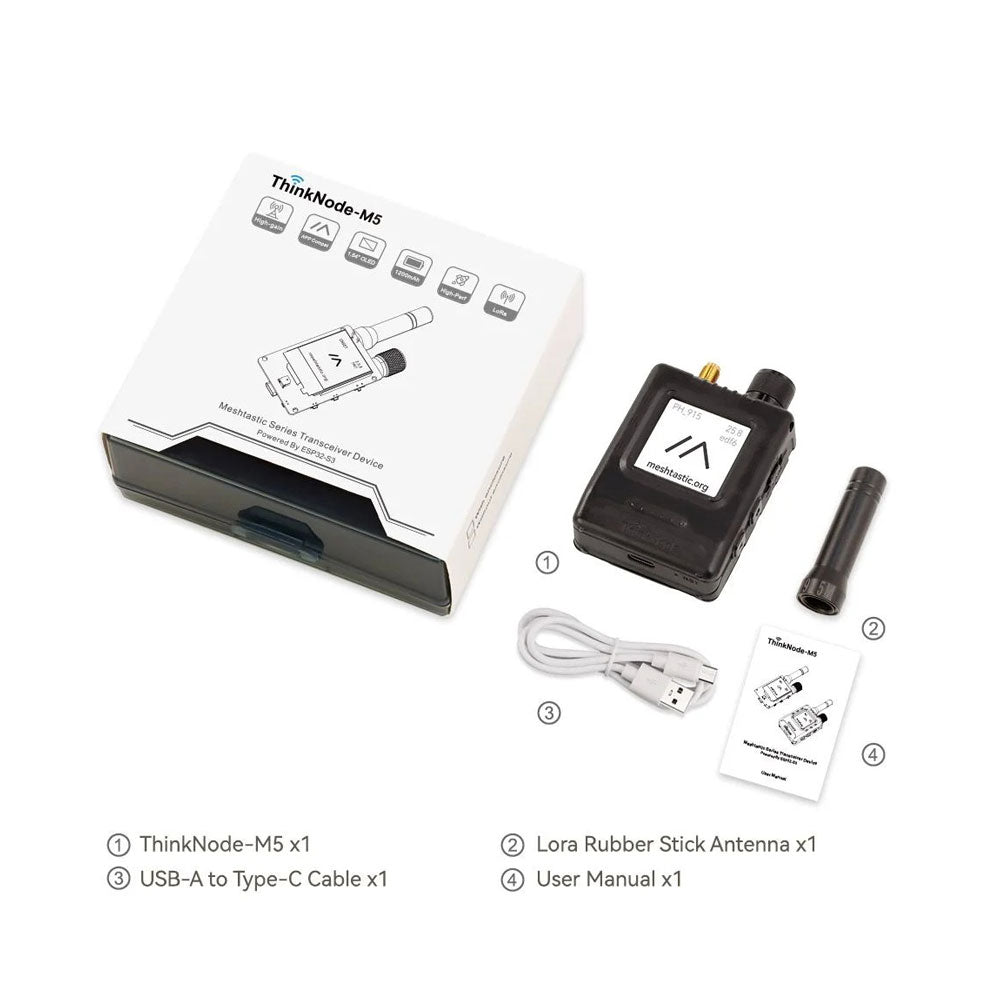

Included

  • 1x Elecrow ThinkNode M5
  • 1x LoRa antenna
  • 1x USB-C cable
  • 1x Manual

Downloads


Product form

High-Performance LoRa Communication Device The Elecrow ThinkNode M5 is a compact, portable LoRa communication device designed for off-grid messaging, location... Read more

Pre-order

€ 74,95 (incl. VAT)
Members: € 67,46
