Voltera V-One Desktop PCB Printer

  • BrandVoltera

Description

Solder Paste Dispensing and Reflow All-in-One

The Voltera V-One creates two-layer prototype circuit boards on your desk. Gerber files go in, printed circuit boards come out. The dispenser lays down a silver-based conductive ink to print your circuit right before your eyes. Assembling traditional and additive boards is easy with the V-One’s solder paste dispensing and reflow features. Simply mount your board on the print bed and import your Gerber file into Voltera’s software.

No more stencils required

Voltera’s software is designed to be understood easily. From importing your Gerber files to the moment you press print, the software safely walks you through each step.

Compatible with EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace, Upverter.

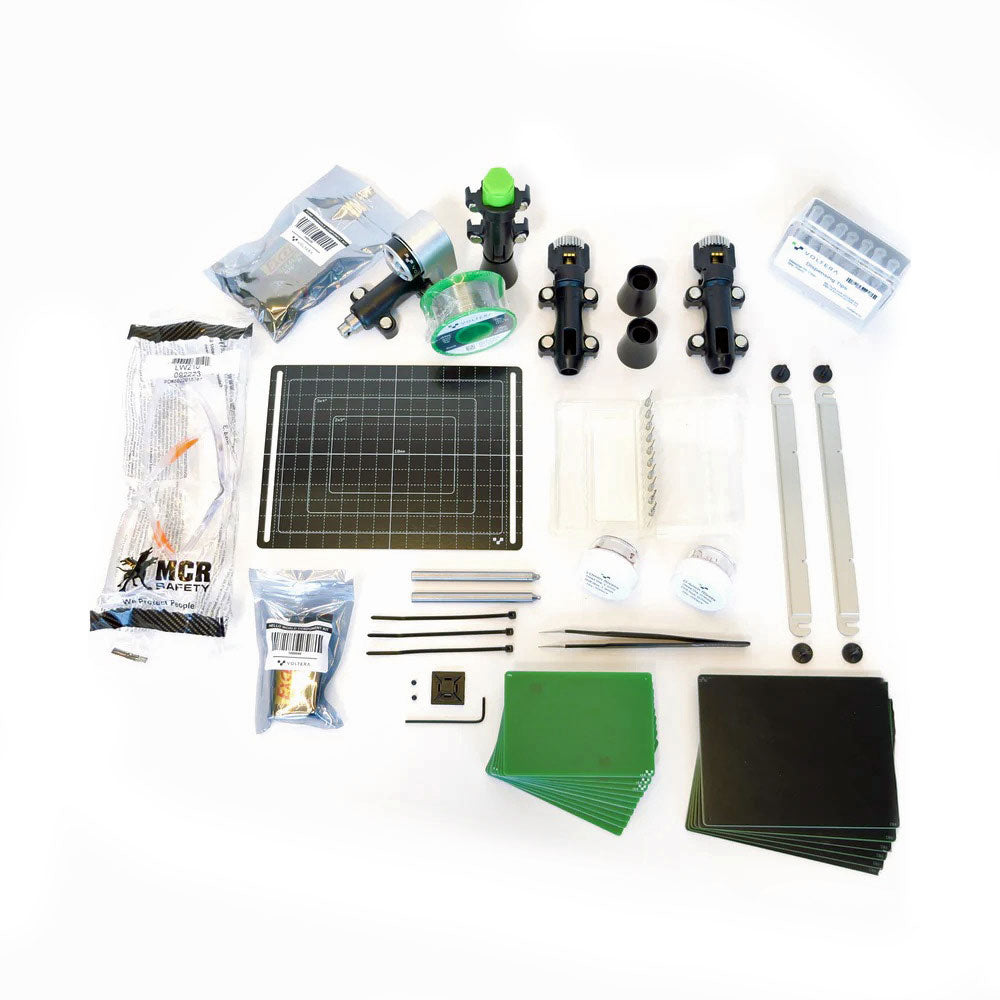

The V-One Desktop PCB Printer includes all accessories and consumables needed to get started:

Consumables

  • 1 Conductor 2 cartridge
  • 1 Solder Paste cartridge
  • 10 2"x3" FR4 substrates
  • 6 3"x4" FR4 substrates
  • 10 2"x3" FR1 substrates
  • 6 3"x4" FR1 substrates
  • 25 Disposable 230 micron nozzles
  • 1 Burnishing pad
  • 1 Solder wire spool
  • 1 Drill bit set
  • 200 0.4 mm rivets
  • 200 1.0 mm rivets
  • 2 Rivet tools
  • 1 Sacrificial layer
  • 1 Hello World starter kit
  • 1 Punk Console starter kit

Accessories

  • 2 Substrate clamps and thumbscrews
  • 2 Dispensers with caps
  • 1 Probe
  • 1 Drill
  • 1 Set of safety glasses
  • 1 Voltera anti-static tweezers

Downloads

More Info

Technical Specifications

Printing Specifications
Minimum trace width 0.2 mm
Minimum passive size 1005
Minimum pin-to-pin pitch (conductive ink) 0.8 mml
Minimum pin-to-pin pitch (solder paste) 0.5 mml
Resistivity 12 mΩ/sq @ 70 um height
Substrate material FR4
Maximum board thickness 3 mm
Soldering Specifications
Solder paste alloy Sn42/Bi57.6/Ag0.4
Solder wire alloy SnBiAg1
Soldering iron temperature 180-210 °C
Print Bed
Print area 135 x 113.5 mm
Max. heated bed temperature 240 °C
Heated bed ramp rate ~2°C/s
Footprint
Dimensions 390 x 257 x 207 mm (L x W x H)
Weight 7 kg
Computing Requirements
Compatible operating systems Windows 7 or higher, MacOS 10.11 or higher
Compatible file format Gerber
Connection type Wired USB
Certification
EN 61326-1:2013 EMC requirements
IEC 61010-1 Safety requirements
CE Marking Affixed to the Voltera V-One printers delivered to European customers

Designed and assembled in Canada.

More technical information

Quickstart

Explore Flexible Printed Electronics on the V-One

Voltera V-One Capabilities Reel

Voltera V-One PCB Printer Walkthrough

Unpacking the V-One

V-One: Solder Paste Dispensing and Reflow All-in-One

Voltera @ Stanford University's Bao Research Group: Robotic Skin and Stretchable Sensors

Voltera @ Princeton: The Future of Aerospace Innovation

Product form

Solder Paste Dispensing and Reflow All-in-One The Voltera V-One creates two-layer prototype circuit boards on your desk. Gerber files go... Read more

€ 5.199,00 incl. VAT
Members identical

    Details

    SKU: 18250
    EAN: 0096718606610

    Description

    Solder Paste Dispensing and Reflow All-in-One

    The Voltera V-One creates two-layer prototype circuit boards on your desk. Gerber files go in, printed circuit boards come out. The dispenser lays down a silver-based conductive ink to print your circuit right before your eyes. Assembling traditional and additive boards is easy with the V-One’s solder paste dispensing and reflow features. Simply mount your board on the print bed and import your Gerber file into Voltera’s software.

    No more stencils required

    Voltera’s software is designed to be understood easily. From importing your Gerber files to the moment you press print, the software safely walks you through each step.

    Compatible with EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace, Upverter.

    The V-One Desktop PCB Printer includes all accessories and consumables needed to get started:

    Consumables

    • 1 Conductor 2 cartridge
    • 1 Solder Paste cartridge
    • 10 2"x3" FR4 substrates
    • 6 3"x4" FR4 substrates
    • 10 2"x3" FR1 substrates
    • 6 3"x4" FR1 substrates
    • 25 Disposable 230 micron nozzles
    • 1 Burnishing pad
    • 1 Solder wire spool
    • 1 Drill bit set
    • 200 0.4 mm rivets
    • 200 1.0 mm rivets
    • 2 Rivet tools
    • 1 Sacrificial layer
    • 1 Hello World starter kit
    • 1 Punk Console starter kit

    Accessories

    • 2 Substrate clamps and thumbscrews
    • 2 Dispensers with caps
    • 1 Probe
    • 1 Drill
    • 1 Set of safety glasses
    • 1 Voltera anti-static tweezers

    Downloads

    More Info

    Technical Specifications

    Printing Specifications
    Minimum trace width 0.2 mm
    Minimum passive size 1005
    Minimum pin-to-pin pitch (conductive ink) 0.8 mml
    Minimum pin-to-pin pitch (solder paste) 0.5 mml
    Resistivity 12 mΩ/sq @ 70 um height
    Substrate material FR4
    Maximum board thickness 3 mm
    Soldering Specifications
    Solder paste alloy Sn42/Bi57.6/Ag0.4
    Solder wire alloy SnBiAg1
    Soldering iron temperature 180-210 °C
    Print Bed
    Print area 135 x 113.5 mm
    Max. heated bed temperature 240 °C
    Heated bed ramp rate ~2°C/s
    Footprint
    Dimensions 390 x 257 x 207 mm (L x W x H)
    Weight 7 kg
    Computing Requirements
    Compatible operating systems Windows 7 or higher, MacOS 10.11 or higher
    Compatible file format Gerber
    Connection type Wired USB
    Certification
    EN 61326-1:2013 EMC requirements
    IEC 61010-1 Safety requirements
    CE Marking Affixed to the Voltera V-One printers delivered to European customers

    Designed and assembled in Canada.

    More technical information

    Quickstart

    Explore Flexible Printed Electronics on the V-One

    Voltera V-One Capabilities Reel

    Voltera V-One PCB Printer Walkthrough

    Unpacking the V-One

    V-One: Solder Paste Dispensing and Reflow All-in-One

    Voltera @ Stanford University's Bao Research Group: Robotic Skin and Stretchable Sensors

    Voltera @ Princeton: The Future of Aerospace Innovation
